DESCRIPTION

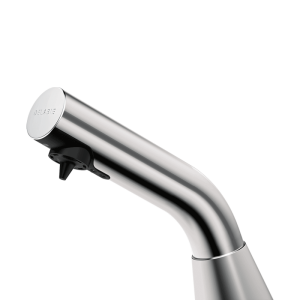

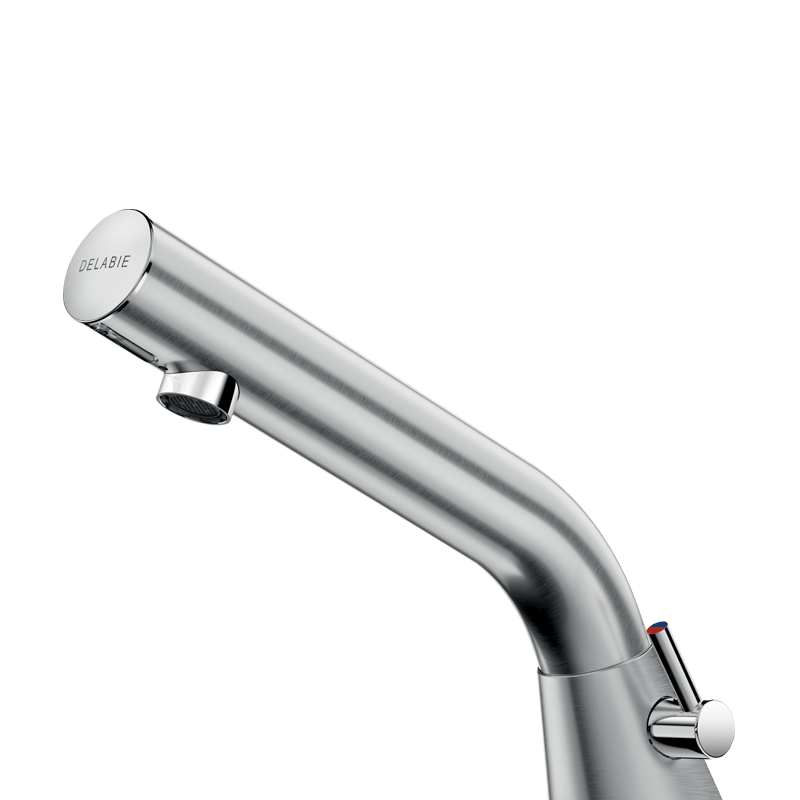

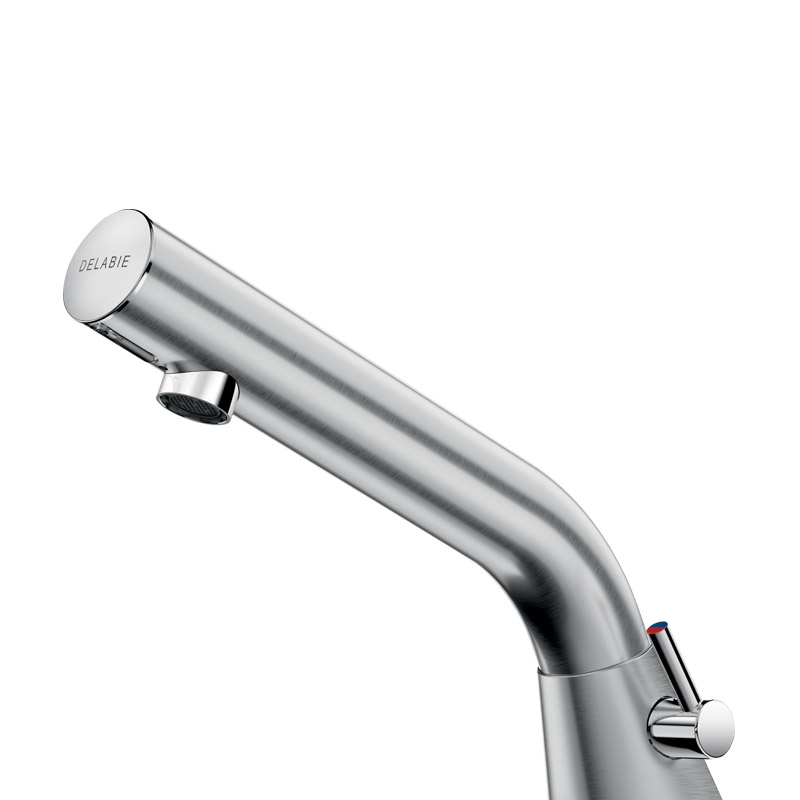

BINOPTIC MIX 2 electronic basin mixer
Ref. 473100
Provisional availability 1st half
Please contact the sales office to check availability.
2026
.
Please contact the sales office to check availability.
Deck-mounted satin electronic basin mixer:
230/6V mains supply.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).
Stainless steel mixer, 100mm high for inset basins.
Presence detection, sensor at the end of the spout optimises detection.
PEX flexibles F3/8" with filters and non-return valves
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Smooth interior spout with low water volume (limits bacterial niches).
Side temperature control with adjustable maximum temperature limiter.
Set detection distance, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
230/6V mains supply.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).
Stainless steel mixer, 100mm high for inset basins.
Presence detection, sensor at the end of the spout optimises detection.
PEX flexibles F3/8" with filters and non-return valves
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Smooth interior spout with low water volume (limits bacterial niches).
Side temperature control with adjustable maximum temperature limiter.
Set detection distance, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Anti-bacterial proliferation duty flush
LED diagnostic aids

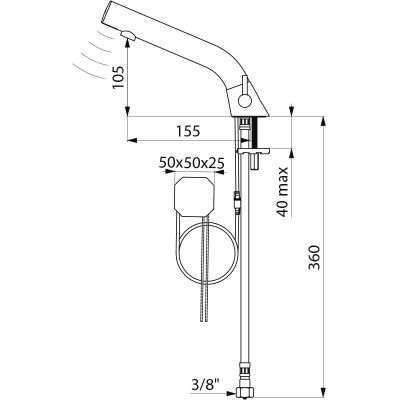

TECHNICAL CHARACTERISTICS
BINOPTIC MIX 2 electronic basin mixer
Ref. 473100Supply | 230/6V mains supply |
Connector | M3/8" |
Technology | Electronic |
Drop height | 100mm |
Flow rate | 3 lpm |
Finish | Satin |
Certificates | |
Warranty |
VARIANTS
473110 | Chrome finish - mains supply 230/6V - F3/8" | ||
---|---|---|---|
47301015 | Chrome finish - mains supply 230/6V - Ø 15mm compression fittings | ||
473110E | Chrome finish -bluetooth connectivity - mains supply 230/6V | ||
473116 | Chrome finish - 6V batteries - F3/8" | ||
47301615 | Chrome finish - 6V batteries - Ø 15mm compression fittings | ||
47300015 | Satin st. steel - mains supply 230/6V - Ø 15mm compression fittings | ||
473106 | Satin finish - 6V batteries - F3/8" | ||
47300615 | Satin st. steel - 6V batteries - Ø 15mm compression fittings | ||
473130 | Mains supply 230/6V - F3/8" | ||
473136 | Operated by 6V batteries - F3/8" |
