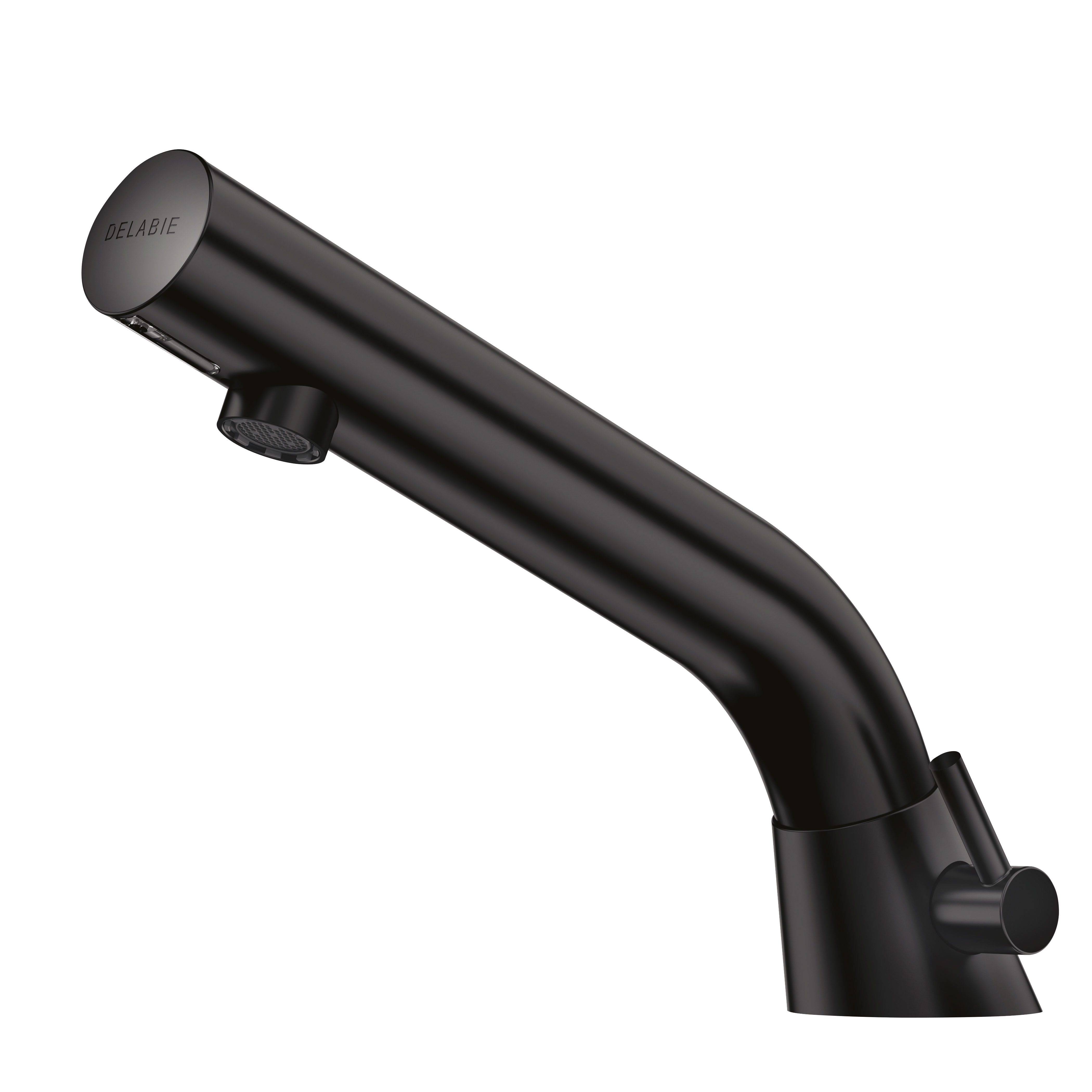

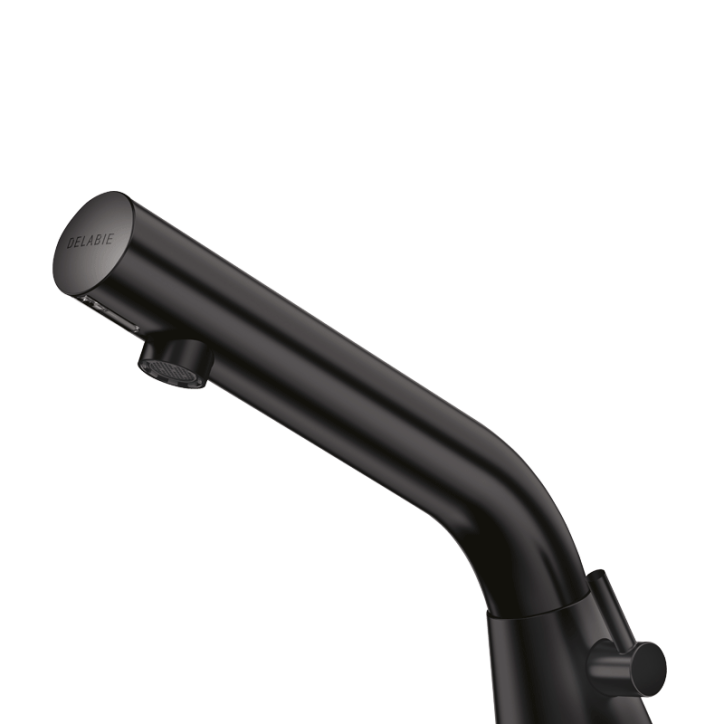

BINOPTIC MIX 2 electronic basin mixer

Ref. 47303615
Batteries, deck-mounted, stopcocks, H. 100mm
BINOPTIC MIX 2 electronic basin mixer

Presentation

DESCRIPTION

BINOPTIC MIX 2 electronic basin mixer

Ref. 47303615
Provisional availability 2nd half
2025
.
Please contact the sales office to check availability.
Deck-mounted matte black electronic basin mixer:
Operated by CR123 6V Lithium batteries.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).

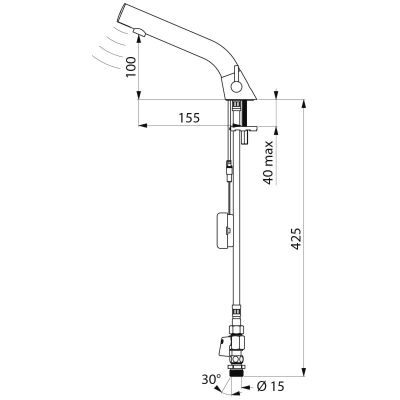

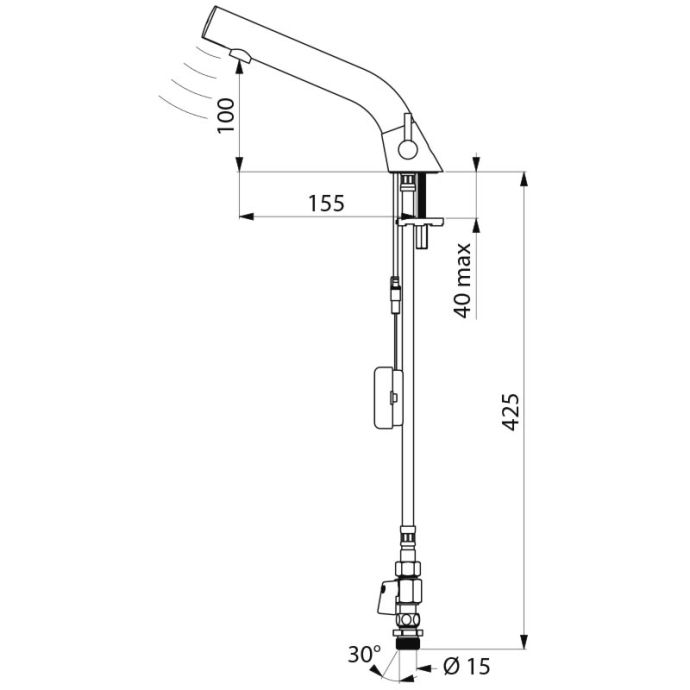

Stainless steel mixer, 100mm high for inset basins.
Presence detection sensor at the end of the spout optimises detection.
PEX flexibles with stopcocks, filters, non-return valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Smooth interior spout with low water volume (limits bacterial niches).
Side temperature control with adjustable maximum temperature limiter.
Set duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Rinçage périodique

Anti-bacterial proliferation duty flush

Maintenance aisée - Installation aisée

LED diagnostic aids

Characteristics

TECHNICAL CHARACTERISTICS

BINOPTIC MIX 2 electronic basin mixer

Ref. 47303615
Supply 6V batteries
Connector M½" Ø 15mm
Technology Electronic
Drop height 100mm
Flow rate 3 lpm
Finish Chrome-plated matte black
Warranty 30-Year

Downloads

DOWNLOADS

BINOPTIC MIX 2 electronic basin mixer

Ref. 47303615

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

473130 Mains supply 230/6V - F3/8"
47303015 Mains supply 230/6V - Ø 15mm compression fittings
473136 Operated by 6V batteries - F3/8"

VARIANTS

473130 Mains supply 230/6V - F3/8"
47303015 Mains supply 230/6V - Ø 15mm compression fittings
473136 Operated by 6V batteries - F3/8"
