DESCRIPTION

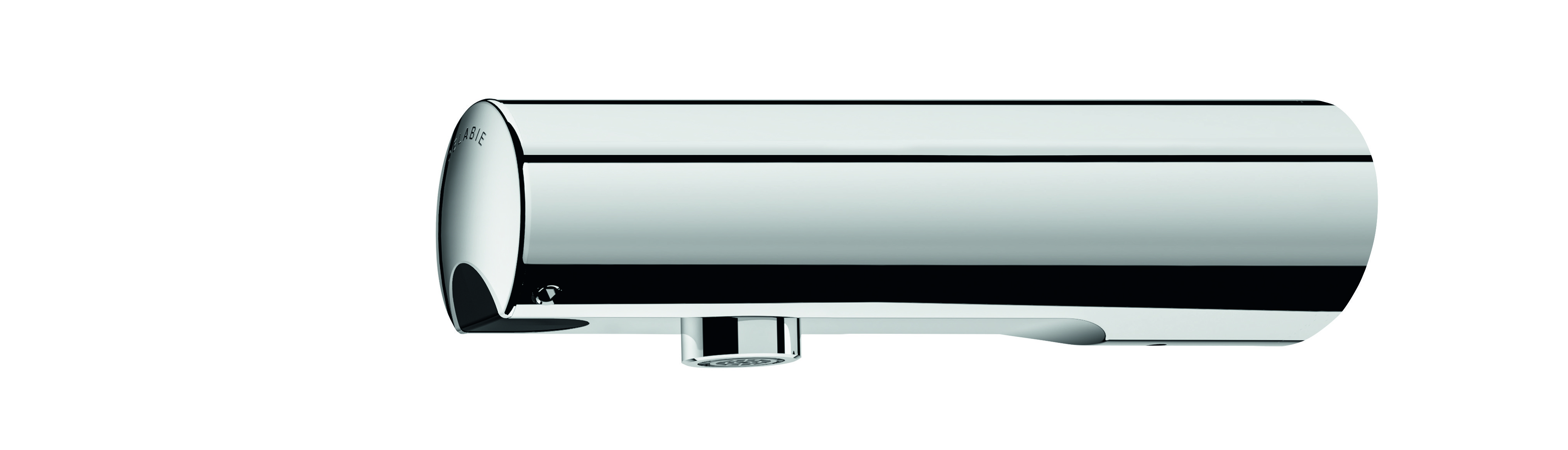

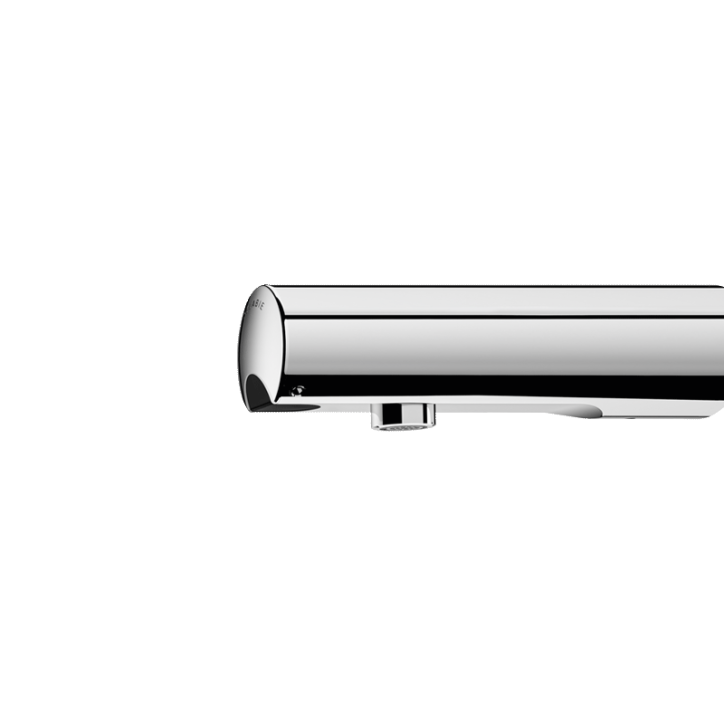

TEMPOMATIC 4 electronic tap
Ref. 443400Wall-mounted electronic basin tap:
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body L. 130mm.
Cap fixed in place by 2 concealed screws.
Stopcock.
Wall-mounted fixings.
Recessed inlet.
Anti-blocking security.
Suitable for people with reduced mobility.
30-year warranty.
230/6V recessed mains supply.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Presence detection sensor at the end of the spout optimises detection.
Chrome-plated stainless steel body L. 130mm.
Cap fixed in place by 2 concealed screws.
Stopcock.
Wall-mounted fixings.
Recessed inlet.
Anti-blocking security.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Integrated electronics
Anti-bacterial duty flush

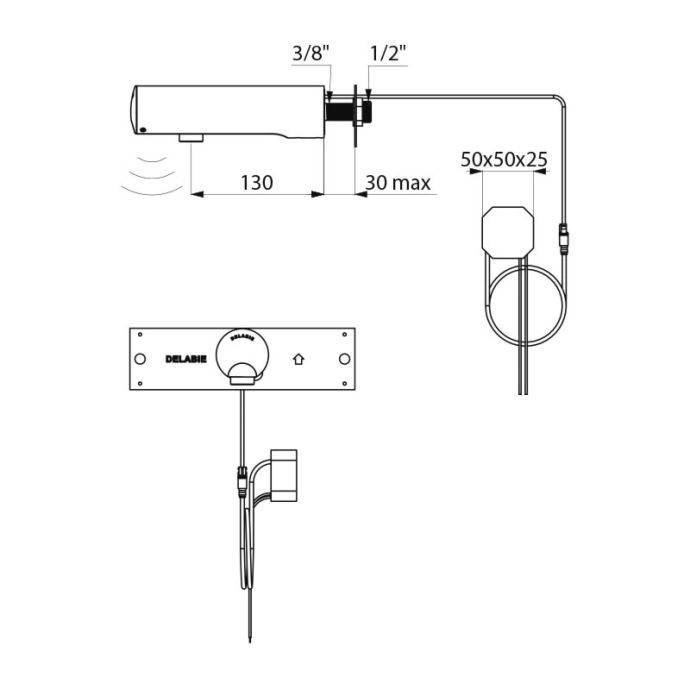

TECHNICAL CHARACTERISTICS
TEMPOMATIC 4 electronic tap
Ref. 443400| Supply | 230/6V mains supply (recessed) |
| Connector | M1/2" |
| Technology | Electronic |
| Spout length | 130mm |
| Flow rate | 3lpm |
| Certificates |
|
| Warranty |
|
| Repairability |  |

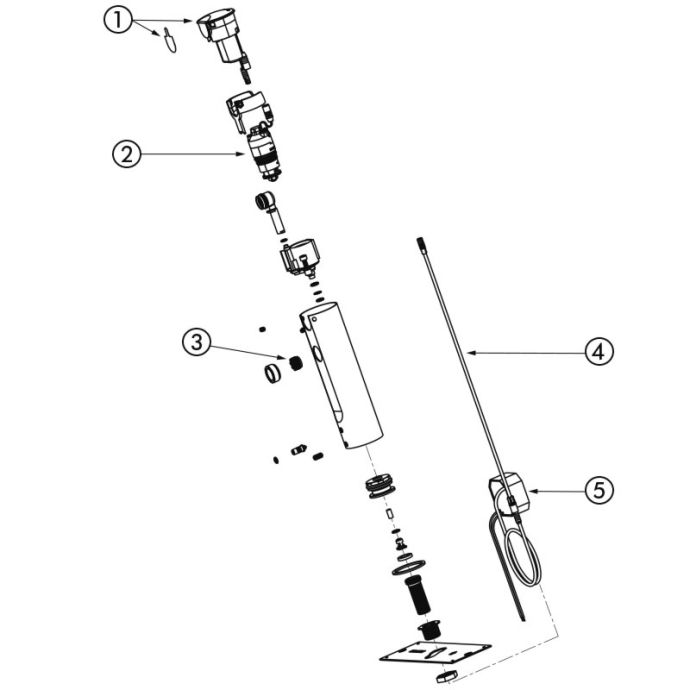

Spare parts
SPARE PARTS
TEMPOMATIC 4 electronic tap
Ref. 443400
| 1. | 490452T |
|
Electronic control unit |
| 2. | 479650 |
|
Solenoid valve |
| 3. | 922016.2P |
|
Flow straightener |
| 4. | 490230EXT |
|
Electrical extension cable |
| 5. | 490240 |
|
Power supply |
VARIANTS
| 443406 | Batteries - L. 130mm - Wall-mounted, recessed supply inlet | ||
|---|---|---|---|
| 443410 | Mains supply, recessed unit - L.130mm - Cross wall | ||
| 443416 | Batteries - L. 130mm - Cross wall | ||
| 443426 | Batteries - L. 130mm - For panels from 1 to 24mm | ||
| 443436 | Batteries - L. 130mm - For repairs | ||
| 443500 | Mains supply, recessed unit - L.190mm - Wall-mounted, recessed inlets | ||
| 443506 | Batteries - L.190mm - Wall-mounted, recessed inlets | ||
| 443510 | Mains supply, recessed unit - L.190mm - Cross wall | ||
| 443516 | Batteries - L. 190mm - Cross wall | ||
| 443526 | Batteries - L. 190mm - For panels from 1 to 24mm | ||
| 443536 | Batteries - L. 190mm - For repairs |
