DESCRIPTION

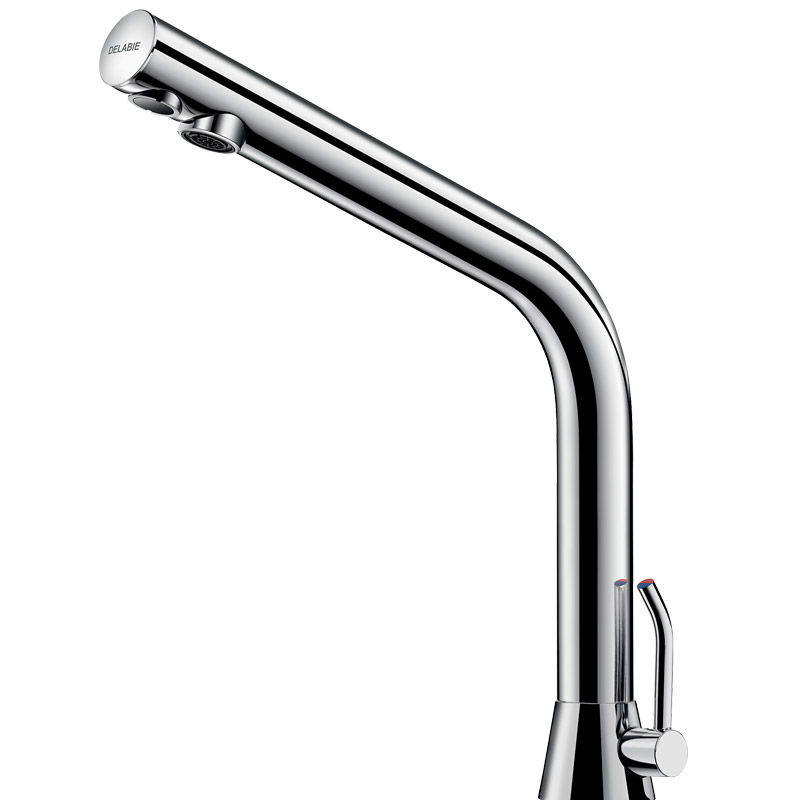

BINOPTIC MIX electronic mixer
Ref. 398MCHLHDeck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 250mm for countertop washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with long lever and adjustable maximum temperature limiter.
Drop height: 250mm for countertop washbasins.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
90% water savings
Hygiene: no manual contact
Diagnostic LED
Sleek design

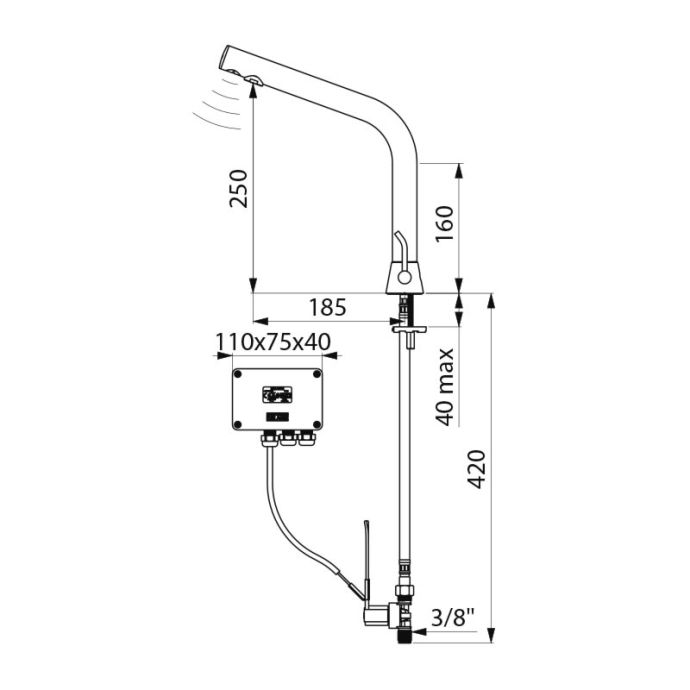

TECHNICAL CHARACTERISTICS
BINOPTIC MIX electronic mixer
Ref. 398MCHLHSupply | 230/12V mains supply |
Connector | M3/8" |
Technology | Electronic |
Drop height | 250mm |
Spout length | 185mm |
Flow rate | 3 lpm |
Certificates | |
Warranty |
VARIANTS
388MCHLH | Mains supply - Spout H. 170mm - long lever - M3/8" | ||
---|---|---|---|
388MCHLH15 | Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings | ||
398MCHLH15 | Mains supply - Spout H. 250mm- long lever - Ø15mm compression fittings | ||
488MCHLH | Battery operated - Spout H. 170mm - long lever - M3/8" | ||
488MCHLH15 | Battery op. - Spout H. 170mm - long lever - Ø15mm compression fittings | ||
498MCHLH | Battery operated - Spout H. 250mm - long lever - M3/8" | ||
498MCHLH15 | Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings |
VARIANTS
388MCHLH | Mains supply - Spout H. 170mm - long lever - M3/8" | ||
---|---|---|---|
388MCHLH15 | Mains supply - Spout H. 170mm- long lever -Ø15mm compression fittings | ||
398MCHLH15 | Mains supply - Spout H. 250mm- long lever - Ø15mm compression fittings | ||
488MCHLH | Battery operated - Spout H. 170mm - long lever - M3/8" | ||
488MCHLH15 | Battery op. - Spout H. 170mm - long lever - Ø15mm compression fittings | ||
498MCHLH | Battery operated - Spout H. 250mm - long lever - M3/8" | ||
498MCHLH15 | Battery op. - Spout H.250mm - long lever - Ø15mm compression fittings |
