DESCRIPTION

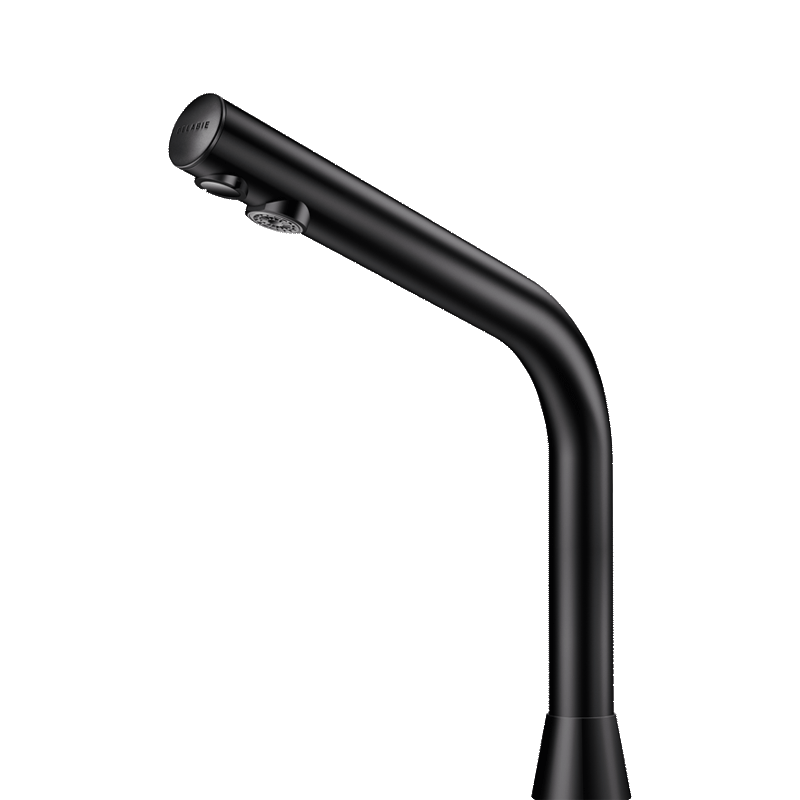

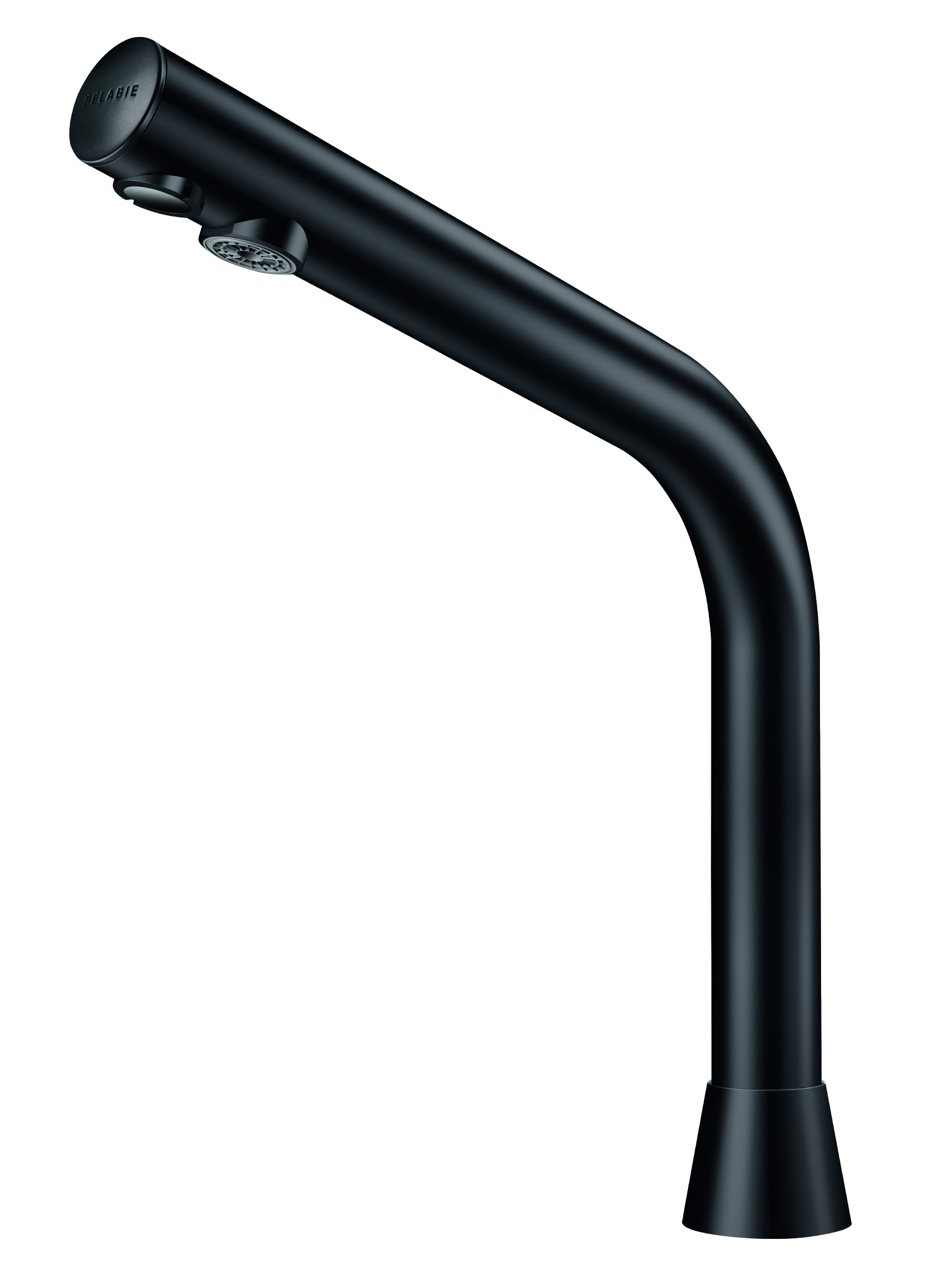

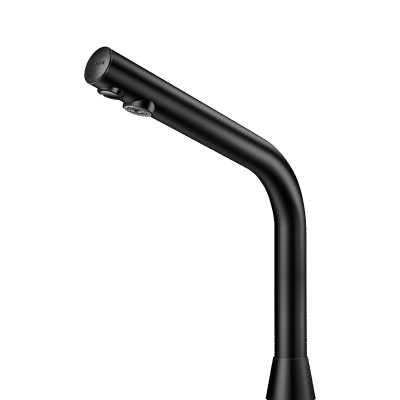

BLACK BINOPTIC electronic tap
Ref. 398035Deck-mounted electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
Matte black chrome finish.
PEX flexible with filter and solenoid valve M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Drop height 250mm, for countertop washbasins.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
Matte black chrome finish.
PEX flexible with filter and solenoid valve M⅜".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Drop height 250mm, for countertop washbasins.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
LED diagnostic aid

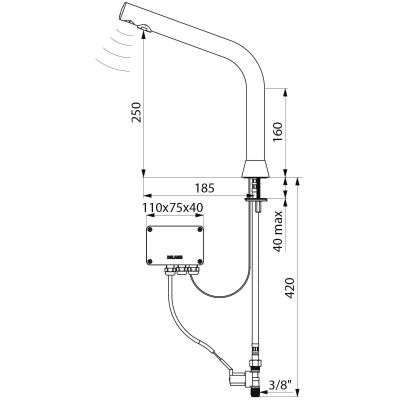

TECHNICAL CHARACTERISTICS
BLACK BINOPTIC electronic tap
Ref. 398035Supply | Mains supply 230/12V |
Connector | M3/8" |
Technology | Electronic |
Drop height | 250mm |
Spout length | 185mm |
Flow rate | 3 lpm |
Finish | Matte black chrome |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
BLACK BINOPTIC electronic tap
Ref. 3980351. | CEL378150V |
|
Detector |
2. | 495444BC |
|
Electronic control unit |
3. | 495612 |
|
Solenoid valve |
4. | 60438.10P |
|
Conical filter |
VARIANTS
388035 | Mains supply - H. 170mm | ||
---|---|---|---|
488035 | Battery operated - H. 170mm | ||
498035 | Battery operated - H. 250mm |
VARIANTS
388035 | Mains supply - H. 170mm | ||
---|---|---|---|
488035 | Battery operated - H. 170mm | ||
498035 | Battery operated - H. 250mm |
