DESCRIPTION

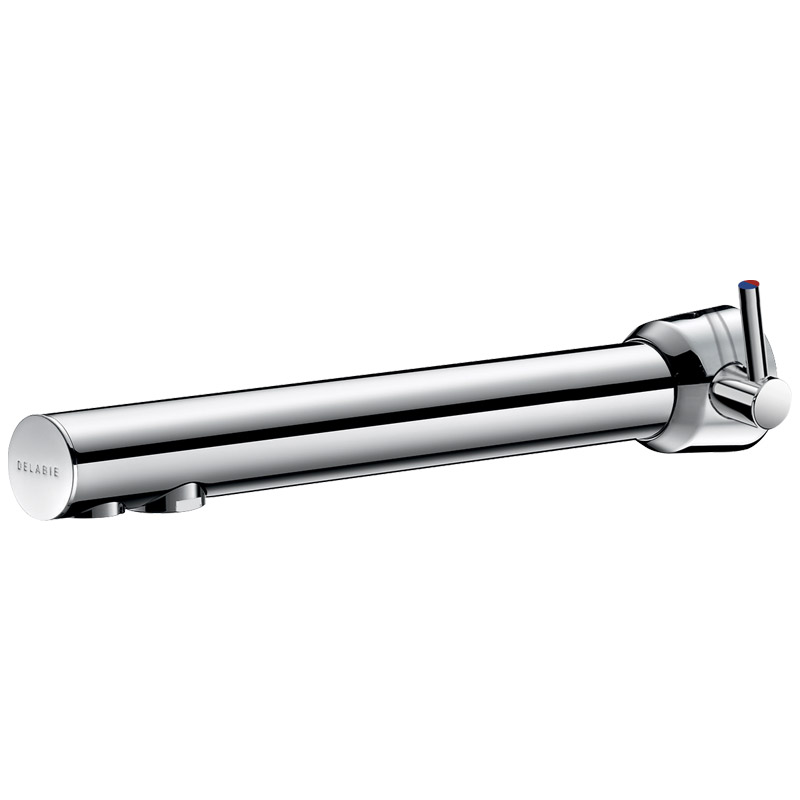

BINOPTIC MIX electronic mixer
Ref. 379MCHCross wall electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Filters and solenoid valves M3/8".
Chrome-plated brass body.
Chrome-plated spout for cross wall installation ≤110mm
Cable for sensor, flexibles and mounting all pass through the same hole.
Anti-blocking safety.
Spout with smooth interior and low volume of water (reduces bacterial niches).
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Filters and solenoid valves M3/8".
Chrome-plated brass body.
Chrome-plated spout for cross wall installation ≤110mm
Cable for sensor, flexibles and mounting all pass through the same hole.
Anti-blocking safety.
Spout with smooth interior and low volume of water (reduces bacterial niches).
Side temperature control with standard lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
LED diagnostic aid
Mains supply
TECHNICAL CHARACTERISTICS
BINOPTIC MIX electronic mixer

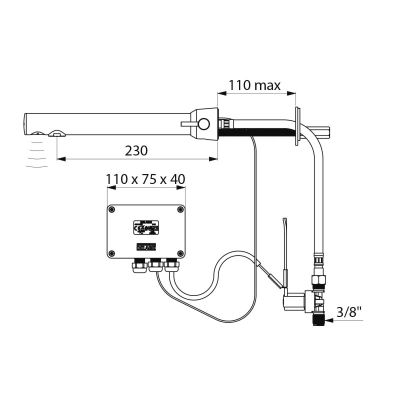

Ref. 379MCHSupply | 230/12V mains supply |
Connector | M3/8" |
Technology | Electronic |
Spout length | 230mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
BINOPTIC MIX electronic mixer
Ref. 379MCH1. | CEL378150V |
|
Detector |
2. | 922024.2P |
|
ECO flow straightener |
3. | 742MSM |
|
Temperature lever |
4. | 495444BC |
|
Electronic control unit |
5. | 495612 |
|
Solenoid valve |
VARIANTS
379MCH15 | Standard temperature control lever - Ø15mm compression fittings |
---|
VARIANTS
379MCH15 | Standard temperature control lever - Ø15mm compression fittings |
---|
