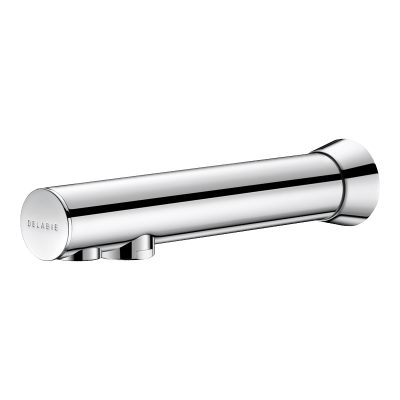

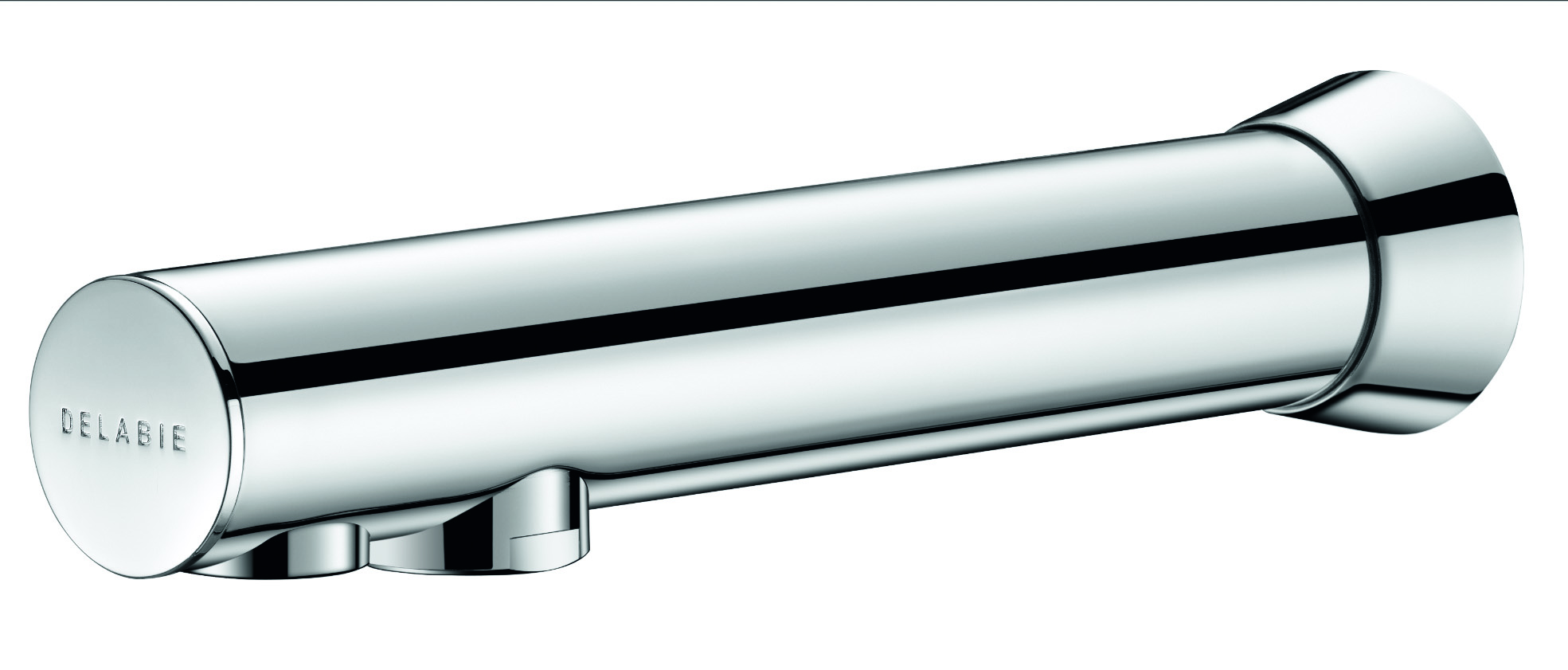

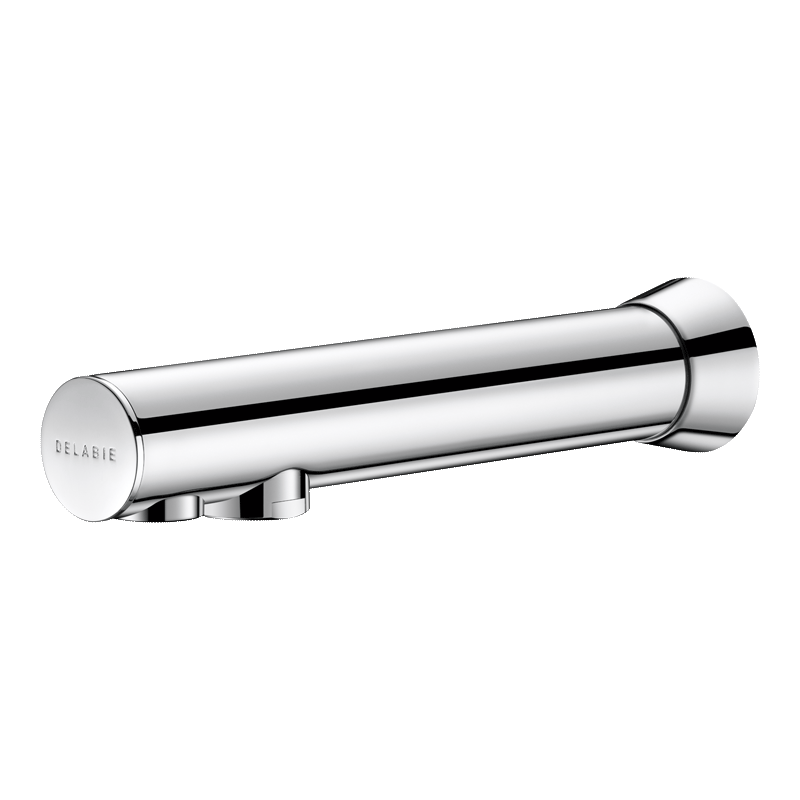

BINOPTIC electronic tap

Ref. 379D1315
Mains supply, Ø 15mm conical inlet
BINOPTIC electronic tap

Presentation

DESCRIPTION

BINOPTIC electronic tap

Ref. 379D1315
Cross wall electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Filter, solenoid valve and Ø 15mm conical inlet.
Chrome-plated solid brass body.

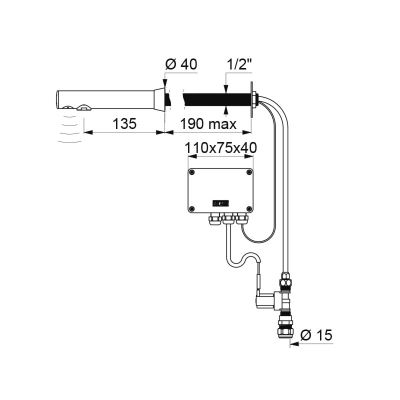

Chrome-plated spout L. 135mm for cross wall installation ≤ 190mm.
Sensor cable, flexibles and mounting all pass through the same hole.
Anti-blocking security.
Spout with a smooth interior and low water volume (limits bacterial niches).
30-year warranty.

ADVANTAGES

Economie d'eau

Exceptional water savings: 90%

Sans contact manuel

Hygiene: no manual contact

Maintenance aisée - Installation aisée

LED diagnostic aid

Rinçage périodique

Duty flush limits bacterial proliferation

Characteristics

TECHNICAL CHARACTERISTICS

BINOPTIC electronic tap

Ref. 379D1315
Supply 230/12V mains supply
Connector M1/2'' Ø 15mm
Technology Electronic
Spout length 135mm
Flow rate 3 lpm
Certificates Logo CE Logo WRAS
Warranty 30-Year

Downloads

DOWNLOADS

BINOPTIC electronic tap

Ref. 379D1315

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

379ENCL Recessed - Spout L. 252mm
379ENC Recessed - Spout L.200mm
379ENC15 Recessed - Spout L.200mm - Ø15mm compression fittings
379DER For walls from 1 to 190mm - Spout L. 205mm
379DER15 For walls 1 - 190mm - Spout L. 205mm - Ø15mm compression fittings
379D13 For walls from 1 to 190mm - Spout L. 135mm
