DESCRIPTION

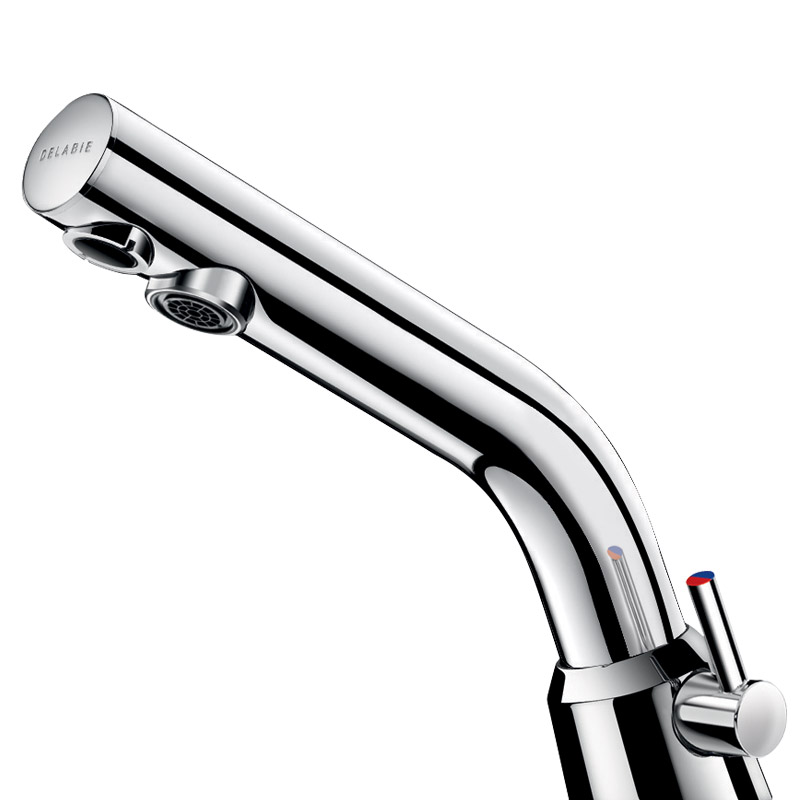

BINOPTIC MIX electronic mixer
Ref. 378MCH15Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Chrome-plated solid brass body.
PEX flexibles with filters, solenoid valves and Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with a smooth interior and low volume of water (limits bacterial niches).
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Chrome-plated solid brass body.
PEX flexibles with filters, solenoid valves and Ø 15mm compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with a smooth interior and low volume of water (limits bacterial niches).
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Duty flush limits bacterial proliferation
LED diagnostic aid
TECHNICAL CHARACTERISTICS
BINOPTIC MIX electronic mixer
Ref. 378MCH15Supply | 230/12V mains supply |
Connector | M1/2'' Ø 15mm |
Technology | Electronic |
Drop height | 110mm |
Spout length | 135mm |
Flow rate | 3 lpm |
Certificates | |
Warranty |
VARIANTS
378MCH | Mains supply - standard lever - M3/8" | ||
---|---|---|---|
478MCH | Battery operated - standard lever - M3/8" | ||
478MCH15 | Battery operated - standard lever - Ø15mm compression fittings |
VARIANTS
378MCH | Mains supply - standard lever - M3/8" | ||
---|---|---|---|
478MCH | Battery operated - standard lever - M3/8" | ||
478MCH15 | Battery operated - standard lever - Ø15mm compression fittings |
