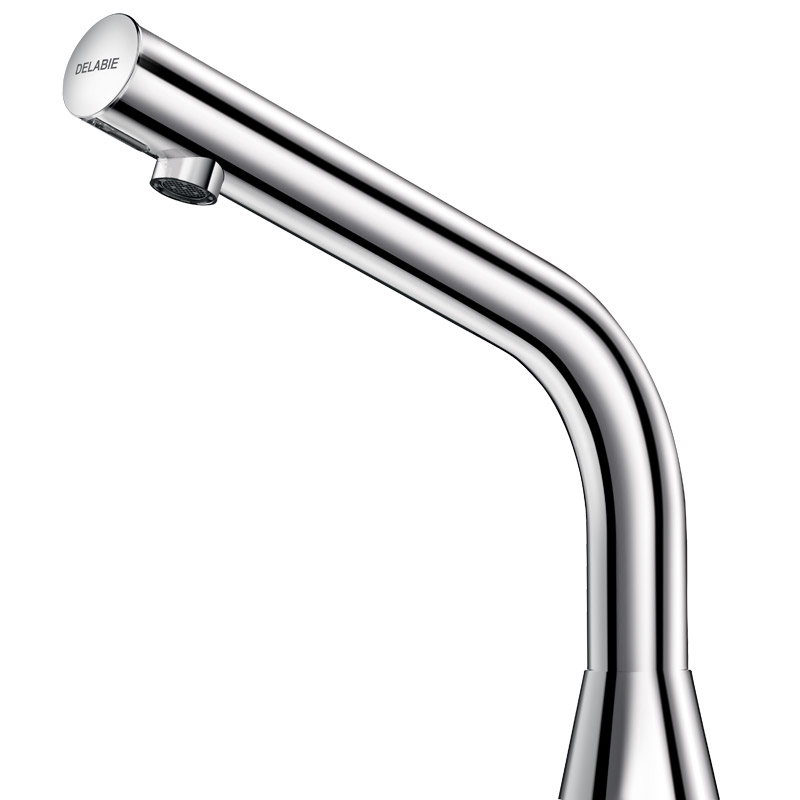

BINOPTIC 2 electronic tap
Ref. 37401015
Mains, deck-mounted, stopcock, H. 170mm
Mains, deck-mounted, stopcock, H. 170mm
DESCRIPTION
BINOPTIC 2 electronic tap
Ref. 37401015
Product currently under development.
Deck-mounted satin electronic basin tap:
230/6V mains supply.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).

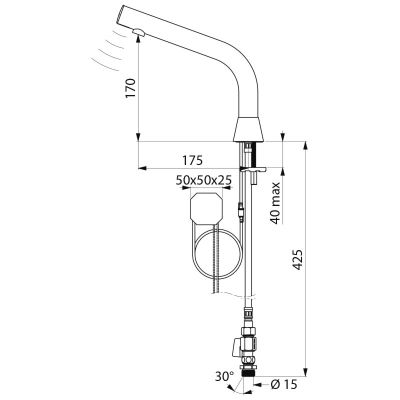

Stainless steel tap, 170mm high for semi-recessed basins.
Presence detection sensor at the end of the spout optimises detection.
PEX flexibles Ø 15mm for compression fittings with filters and stopcock.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Smooth spout interior with low water volume (reduces bacterial development).
Set detection distance, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
230/6V mains supply.
Reduced stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (~60 seconds every 24 hours after the last use).
Stainless steel tap, 170mm high for semi-recessed basins.
Presence detection sensor at the end of the spout optimises detection.
PEX flexibles Ø 15mm for compression fittings with filters and stopcock.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Smooth spout interior with low water volume (reduces bacterial development).
Set detection distance, duty flush and launch thermal shocks manually.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Exceptional water savings: 90%

Hygiene: no manual contact

Anti-bacterial proliferation duty flush

LED diagnostic aids
TECHNICAL CHARACTERISTICS
BINOPTIC 2 electronic tap
Ref. 37401015Supply | 230/6V mains supply |
Connector | M½" Ø 15mm |
Technology | Electronic |
Drop height | 170mm |
Flow rate | 3 lpm |
Finish | Chrome-plated |
Warranty | ![]() |
VARIANTS
374110 | Chrome finish - mains supply 230/6V - F3/8" | ||
---|---|---|---|
374110E | Chrome finish - Bluetooth connectivity - mains supply 230/6V - F3/8" | ||
374116 | Chrome finish - 6V battery - F3/8" | ||
37401615 | Chrome finish - mains supply 230/6V - Ø 15mm compression fittings | ||
374100 | Satin finish - mains supply - F3/8" | ||
37400015 | Satin finish - mains supply 230/6V - Ø 15mm compression fittings | ||
374106 | Satin finish - mains supply 230/6V - F3/8" | ||
37400615 | Satin finish - 6V batteries - Ø 15mm compression fittings |
VARIANTS
374110 | Chrome finish - mains supply 230/6V - F3/8" | ||
---|---|---|---|
374110E | Chrome finish - Bluetooth connectivity - mains supply 230/6V - F3/8" | ||
374116 | Chrome finish - 6V battery - F3/8" | ||
37401615 | Chrome finish - mains supply 230/6V - Ø 15mm compression fittings | ||
374100 | Satin finish - mains supply - F3/8" | ||
37400015 | Satin finish - mains supply 230/6V - Ø 15mm compression fittings | ||
374106 | Satin finish - mains supply 230/6V - F3/8" | ||
37400615 | Satin finish - 6V batteries - Ø 15mm compression fittings |
