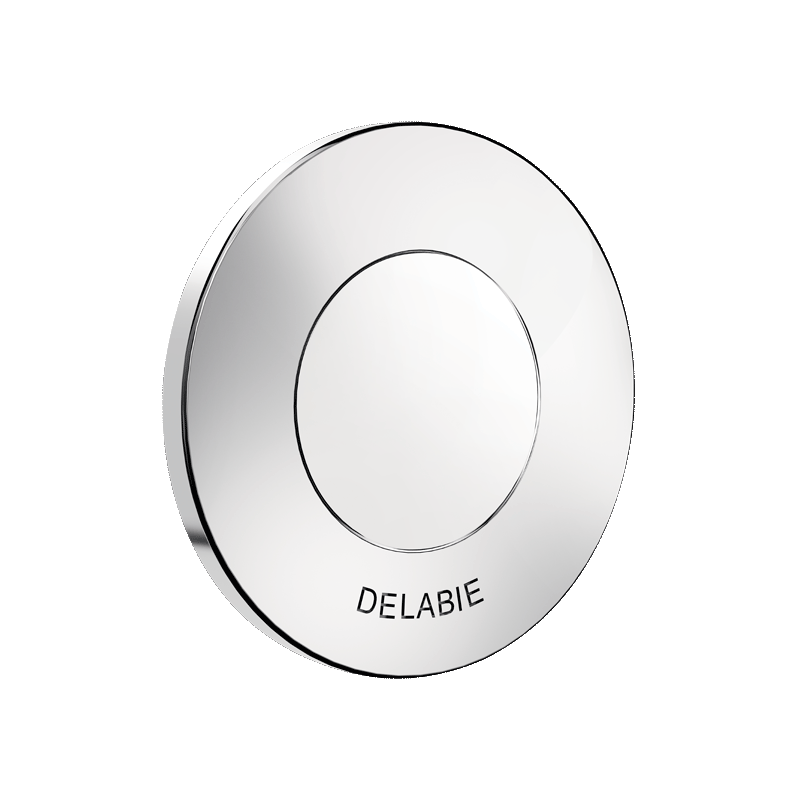

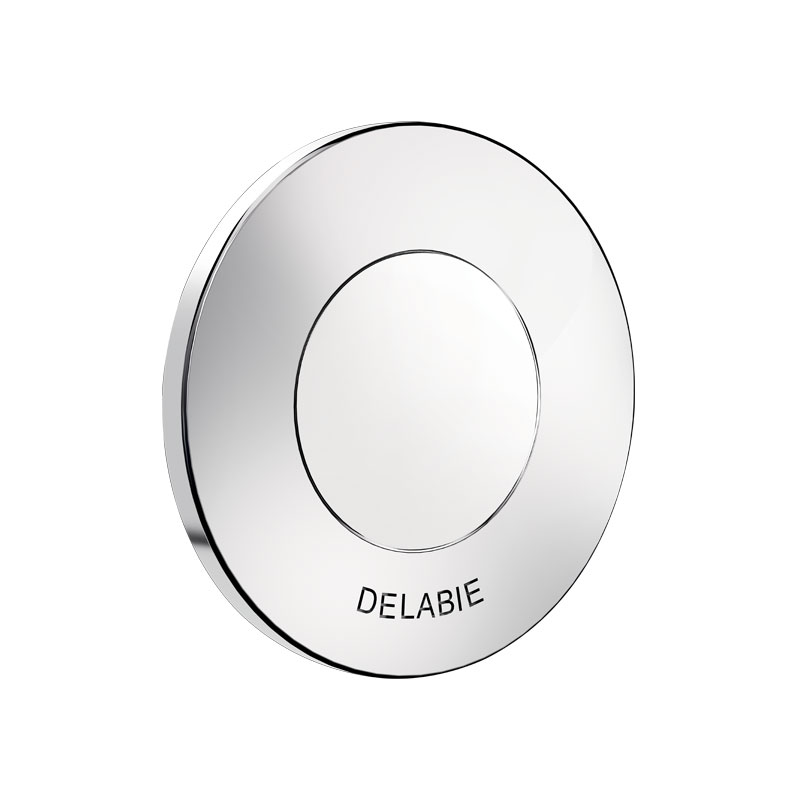

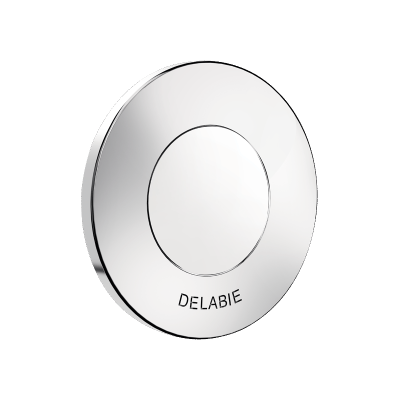

TEMPOFLUX 1 direct flush kit

Ref. 761210
Time flow direct flush WC valve
See variants See variants
TEMPOFLUX 1 direct flush kit

Presentation

DESCRIPTION

TEMPOFLUX 1 direct flush kit

Ref. 761210
Flush system without cistern: directly connected to pipework.
For walls ≤ 200mm.
Soft-touch operation.
Time flow ~7 seconds.
Vacuum breaker.
Stopcock and flow rate/volume adjuster are integrated.
Chrome-plated metal body.
Inline inlet M¾".
Connection washer Ø 32/55mm.
Threaded rod can be cut to size.
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 l/sec at 1 bar pressure.
With PVC flush tube Ø 32mm.
Compatible with rain water.
Suitable for people with reduced mobility.
30-year warranty.

[Formerly ref: 761700]

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

No cistern: no stagnant water

Anti-vandalisme

Cross wall installation

Endurance - Fiabilité

Powerful flush is immediately available

Economie d'eau

Direct flush reduces the risk of leaks

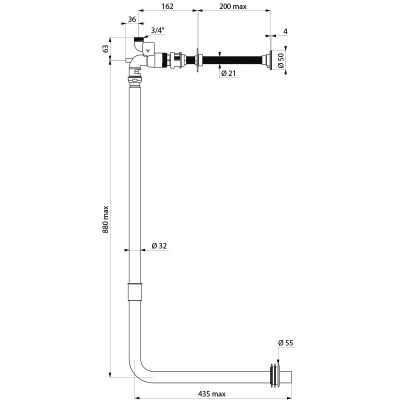

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFLUX 1 direct flush kit

Ref. 761210
Connector ¾"
Technology Time flow
Length 200mm
Certificates Logo Belgaqua
Warranty 30-Year
TEMPOFLUX 1 direct flush kit
Ref. 761210

Downloads

DOWNLOADS

TEMPOFLUX 1 direct flush kit

Ref. 761210

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

761110 Valve only - Time flow ~7 secs, for walls ≤ 200mm, M3/4"
