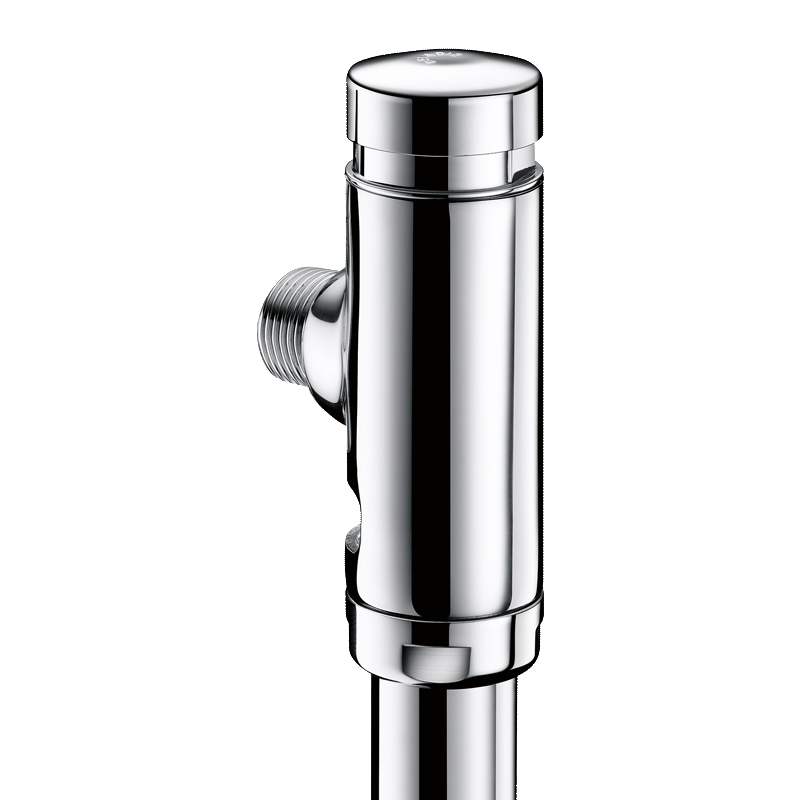

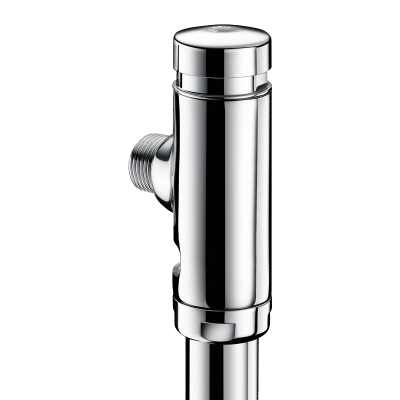

TEMPOFLUX 1 direct flush kit

Ref. 761025
Time flow direct flush WC system
See variants See variants
TEMPOFLUX 1 direct flush kit

Presentation

DESCRIPTION

TEMPOFLUX 1 direct flush kit

Ref. 761025
Flush system without cistern: directly connected to pipework.
For wall-mounted exposed installation.
Soft-touch operation.
Time flow ~7 seconds.
Vacuum breaker.
Chrome-plated solid brass body and push-button.
Angled inlet M¾".

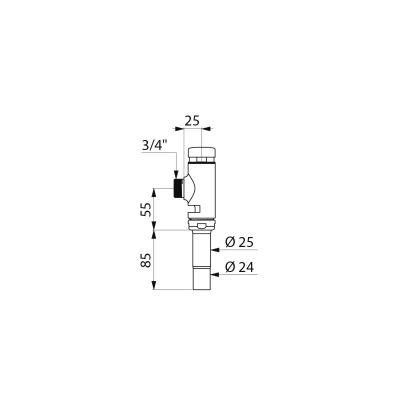

With flush tube Ø 25mm and Ø 24mm (replacements for SCHELL & BINE 120000 models).
Upstream supply pipes: minimum Ø 20mm required at all points (including connectors).
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Compatible with rain water.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

No cistern: no stagnant water

Anti-vandalisme

Chrome-plated solid brass

Endurance - Fiabilité

Powerful flush and immediately available

Economie d'eau

Direct flush reduces the risk of leaks

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOFLUX 1 direct flush kit

Ref. 761025
Connector ¾"
Certificates Logo DoP Logo Belgaqua
Warranty 30-Year
TEMPOFLUX 1 direct flush kit
Ref. 761025

Downloads

DOWNLOADS

TEMPOFLUX 1 direct flush kit

Ref. 761025

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

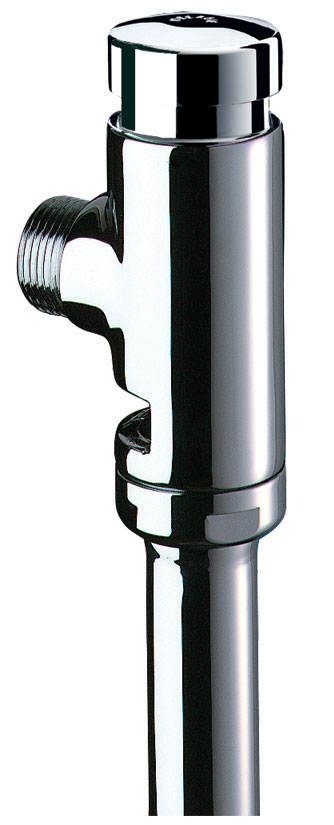

761002 Collar and connector kit, with separate elbow stopcock F3/4"
761004 Collar and connector kit, without stopcock F3/4"
761000 Kit with outlet nut Ø28mm, without stopcock, without pipe, 3/4"
