DESCRIPTION

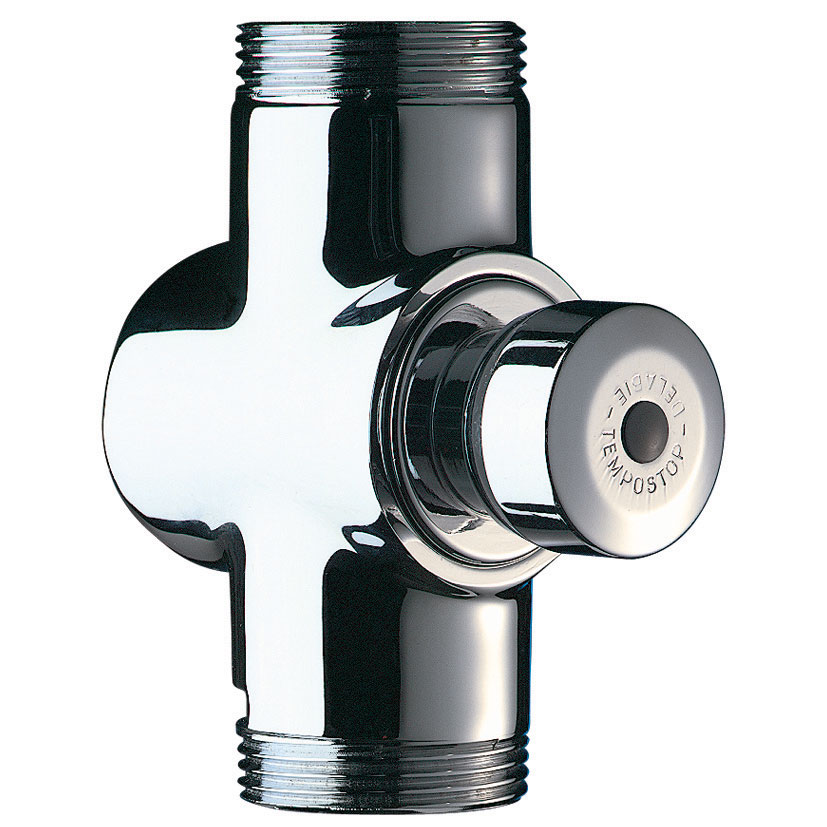

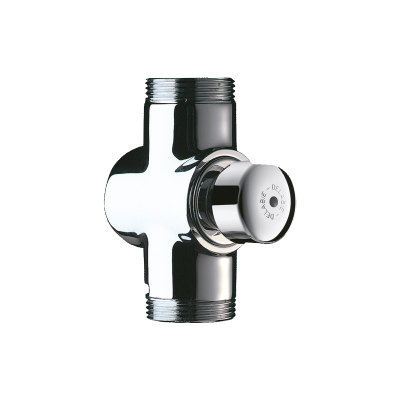

TEMPOCHASSE direct flush valve
Ref. 760000Flush system without cistern: directly connected to pipework.
For wall-mounted exposed installation.
Time flow ~7 seconds.
Vacuum breaker.
Chrome-plated solid brass body and push-button.
Shock-resistant mechanism.
With push-button.
In-line inlet M1¼".
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Compatible with rain water.
30-year warranty.
For wall-mounted exposed installation.
Time flow ~7 seconds.
Vacuum breaker.
Chrome-plated solid brass body and push-button.
Shock-resistant mechanism.
With push-button.
In-line inlet M1¼".
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Compatible with rain water.
30-year warranty.
ADVANTAGES

No cistern: no stagnant water

Chrome-plated solid brass

Powerful flush and immediately available

Direct flush reduces the risk of leaks

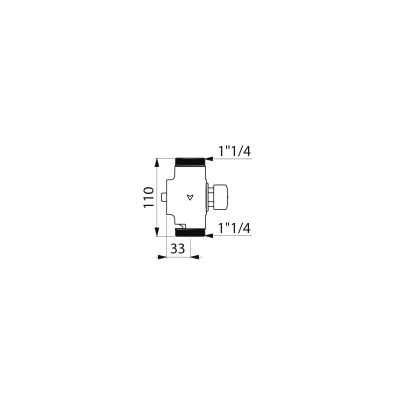

TECHNICAL CHARACTERISTICS
TEMPOCHASSE direct flush valve
Ref. 760000Connector | 1 1/4" |
Height | 110mm |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
TEMPOCHASSE direct flush valve
Ref. 760000
1. | 743779 |
|
Time flow cartridge |
