TEMPOMATIC Connect control plate for WC

TEMPOMATIC Connect recessed electronic valve for direct flush, kit 2/2:
Flush system without cistern: directly connected to pipework.
230/6V mains supply (cable and transformer supplied).

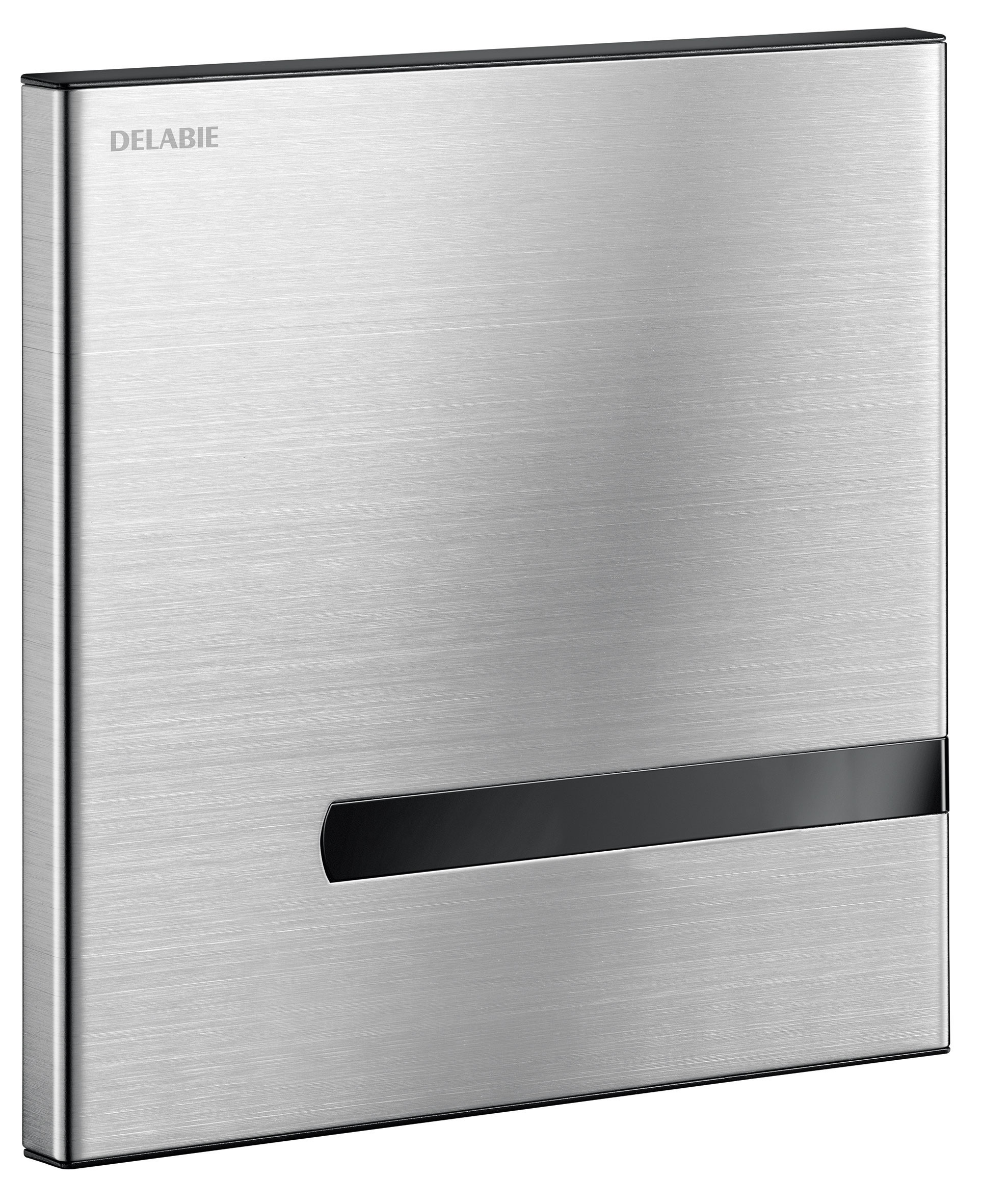

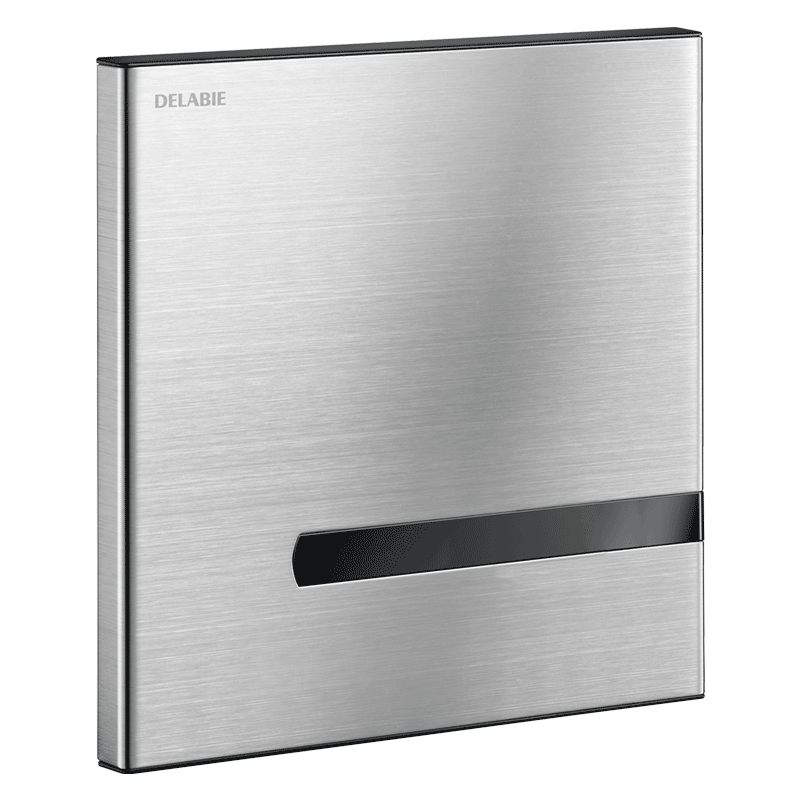

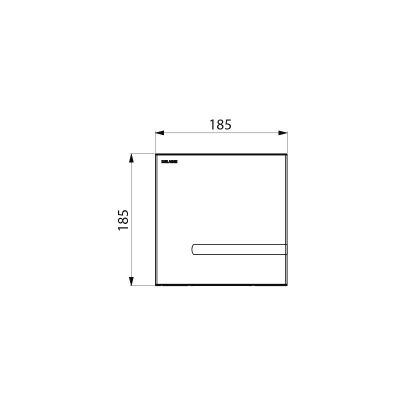

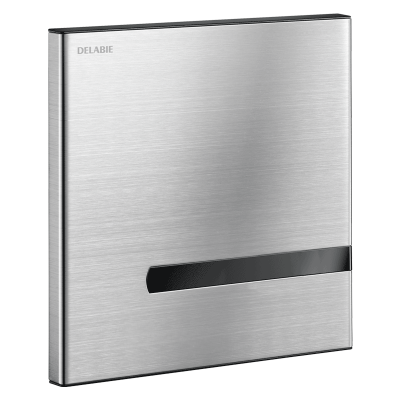

Satin finish stainless steel wall plate 186 x 186mm.
Mechanical fixing of the control plates.
TEMPOMATIC F¾" flush valve is compatible with sea water, rain water and grey water.
Improved presence detection range via a dual sensor (telemetric and infra-red).
Detection delay is 10 seconds.
Two modes of activation:
- contactless by passing the hand in front of sensor,
- an automatic flush is activated after each user leaves.
"Intelligent" automatic rinsing: flush volume adapts according to use - 3L "short" usage, 6L "long" usage - (can be adjusted).
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after the last use or at a pre-set time.
Bluetooth® technology connects to the DELABIE Connect app or presence detection distance can be automatically adjusted via a concealed button.
Supply diameter: minimum Ø 20mm interior at all points (including connectors).
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans and suitable for people with reduced mobility.
30-year warranty.

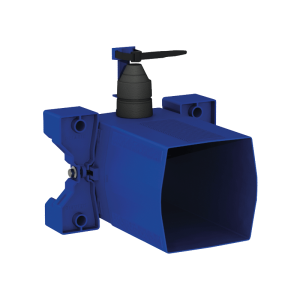

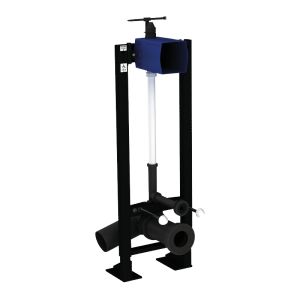

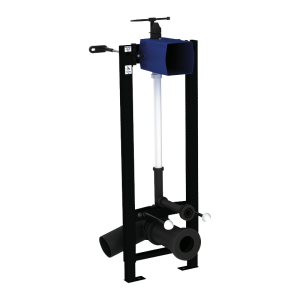

Order with frame system references 564000 or 564005, or with recessed housing 464SBOX.
