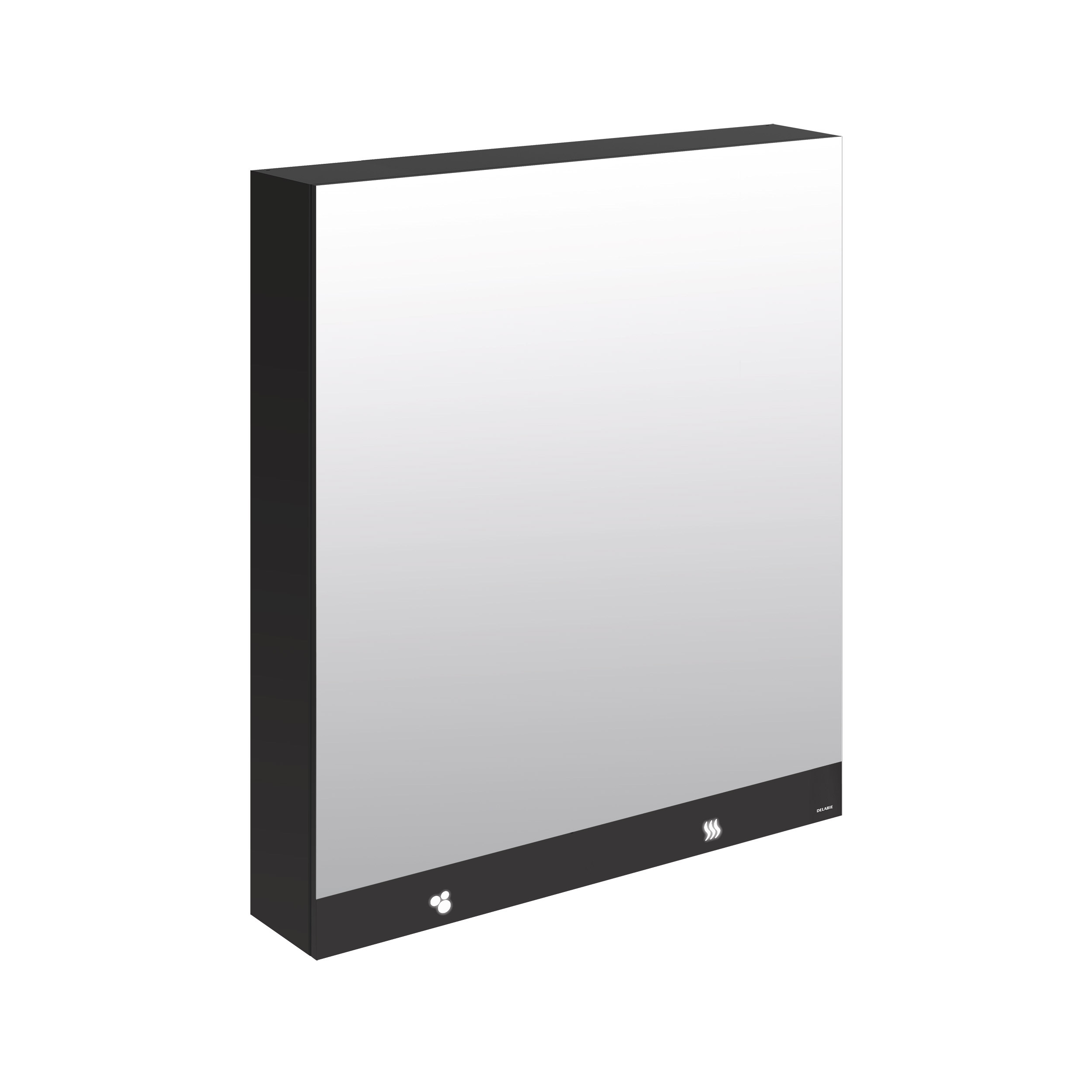

Mirror cabinet with 3 functions
Ref. 510210
Mirror, electronic soap dispenser and paper towel dispenser
Mirror, electronic soap dispenser and paper towel dispenser
DESCRIPTION
Mirror cabinet with 3 functions
Ref. 510210Mirror cabinet with 3 functions: mirror, electronic soap dispenser and paper towel dispenser.
Designer cabinet with a matte black melamine and 304 stainless steel finish.
Touch-free for improved hygiene: electronic soap dispenser.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 3 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Paper towel dispenser:
- Dispenses one sheet at a time.
- Dimensions: 120 x 275 x 360mm.
- Contents: 500 sheets.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.
Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.
Dimensions: 800 x 223 x 1,000mm.
Weight: 38.5kg.
Mirror cabinet with 30-year warranty.
CE marked.
Designer cabinet with a matte black melamine and 304 stainless steel finish.
Touch-free for improved hygiene: electronic soap dispenser.
Quick and easy to install:
- A single electrical connection for all the elements: mains supply with 230V / 50-60Hz.
- Concealed fixings. Mirror cabinet supplied with stainless steel screws for concrete or reinforced wood.
- Adjustable hinges.
Unit with 3 functions:
4mm thick glass mirror and black glass strip with illuminated pictograms.
Automatic soap dispenser:
- No-waste pump dispenser.
- Large capacity tank: 5 litres.
- Suitable for vegetable-based liquid soap with a maximum viscosity of 3,000 mPa.s or specific foam soap.
Paper towel dispenser:
- Dispenses one sheet at a time.
- Dimensions: 120 x 275 x 360mm.
- Contents: 500 sheets.
Basin lit by the LED strip.
Vandal-resistant model with standard DELABIE key.
Anti-blocking: stops automatically if used continuously.
Internal storage shelf.
Several cabinets can be installed side-by-side to create a mirror wall: linking screws are provided.
Dimensions: 800 x 223 x 1,000mm.
Weight: 38.5kg.
Mirror cabinet with 30-year warranty.
CE marked.
ADVANTAGES
3 functions
Design: matte black and 304 st. steel finish
Hygiene: touch-free
One single electrical supply for all elements
TECHNICAL CHARACTERISTICS
Mirror cabinet with 3 functions
Ref. 510210Supply | Mains: 230V / 50-60Hz |
Technology | Electonic |
Height | 1000mm |
Depth | 223mm |
Width | 800mm |
Thickness | Glass mirror: 4mm |
Finish | Matte black melamine and 304 stainless steel |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Mirror cabinet with 3 functions
Ref. 5102101. | 222429 |
|
Service key |
2. | 512BC |
|
Electronic control unit |
3. | SER5102V |
|
Lock with key |
VARIANTS
510207 | With hand dryer - 600mm | ||
---|---|---|---|
510208 | With hand dryer - 800mm | ||
510209 | With paper towel dispenser - 600mm |
VARIANTS
510207 | With hand dryer - 600mm | ||
---|---|---|---|
510208 | With hand dryer - 800mm | ||
510209 | With paper towel dispenser - 600mm |
