DESCRIPTION

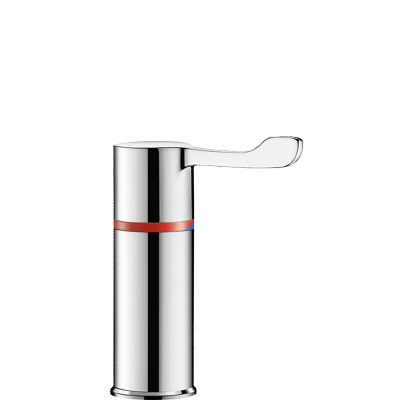

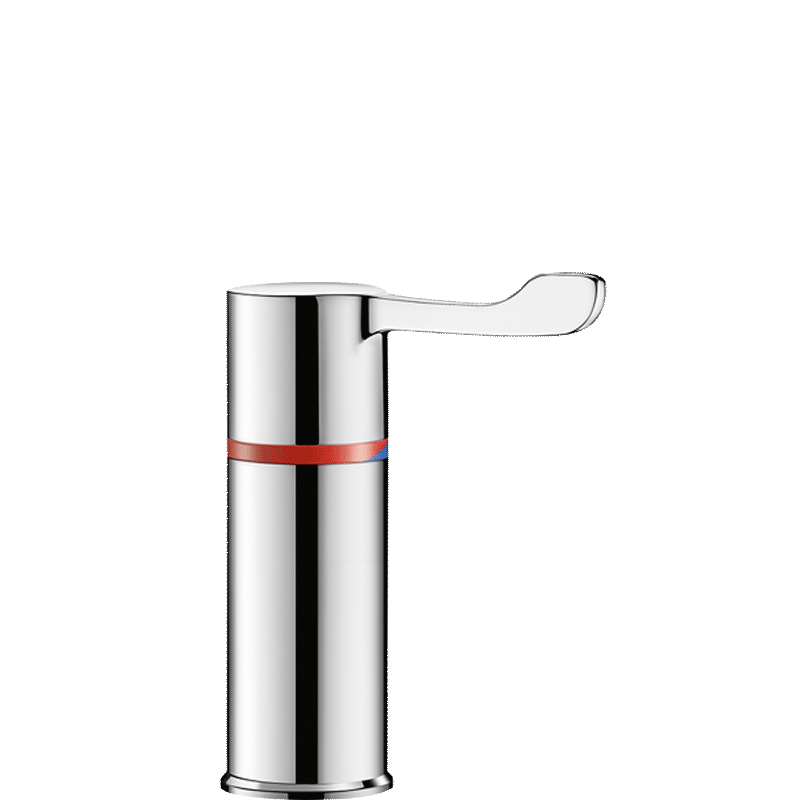

SECURITHERM thermostatic mixer
Ref. H9642SECURITHERM thermostatic single control sequential sink mixer set with retracting hand spray.
Anti-scalding failsafe: shuts off immediately if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Sequential: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Scale-resistant thermostatic sequential cartridge for single control temperature and flow-rate adjustment.
Temperature can be adjusted from cold water to 40°C with maximum temperature limiter set at 40°C.
Body with smooth interior.
No manual contact thanks to Hygiene control lever L. 100mm.
Mixed water brass outlet L. 160mm.
PEX flexibles F3/8" and reinforced fixing via 2 stainless steel rods.
30-year warranty.
Anti-scalding failsafe: shuts off immediately if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Sequential: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
Scale-resistant thermostatic sequential cartridge for single control temperature and flow-rate adjustment.
Temperature can be adjusted from cold water to 40°C with maximum temperature limiter set at 40°C.
Body with smooth interior.
No manual contact thanks to Hygiene control lever L. 100mm.
Mixed water brass outlet L. 160mm.
PEX flexibles F3/8" and reinforced fixing via 2 stainless steel rods.
30-year warranty.
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Sequential: opens/closes with cold water
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Hygiene: no non-return valves
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
SECURITHERM: optimal anti-scalding safety
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Hygiene: transparent flexible with smooth interior

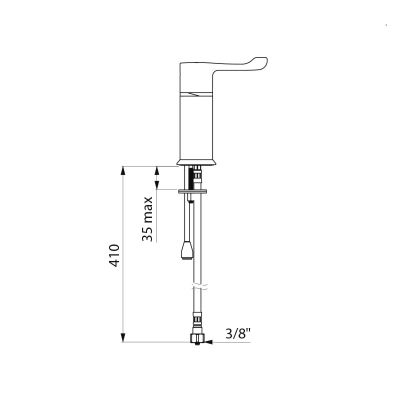

TECHNICAL CHARACTERISTICS
SECURITHERM thermostatic mixer
Ref. H9642Connector | F3/8" |
Technology | SECURITHERM sequential Securitouch |
Temperature limiter | 40°C |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Compatible products
COMPATIBLE PRODUCTS
SECURITHERM thermostatic mixer
Ref. H9642H9613 |
|
SECURITHERM thermostatic sink mixer set |
Spare parts
SPARE PARTS
SECURITHERM thermostatic mixer
Ref. H9642![](https://www.delabie.com/var/site/storage/images/1/1/5/9/3289511-1-fre-FR/PD_H9642.jpg)
1. | N960 |
|
Thermostatic cartridge for basin |
2. | FLEXPEX2 |
|
F3/8" PEX flexible hoses |
3. | 60438.10P |
|
Conical filter |
VARIANTS
H9612 | Sequential thermostatic mixer | ||
---|---|---|---|
H9613 | Sequential thermostatic mixer with column |
