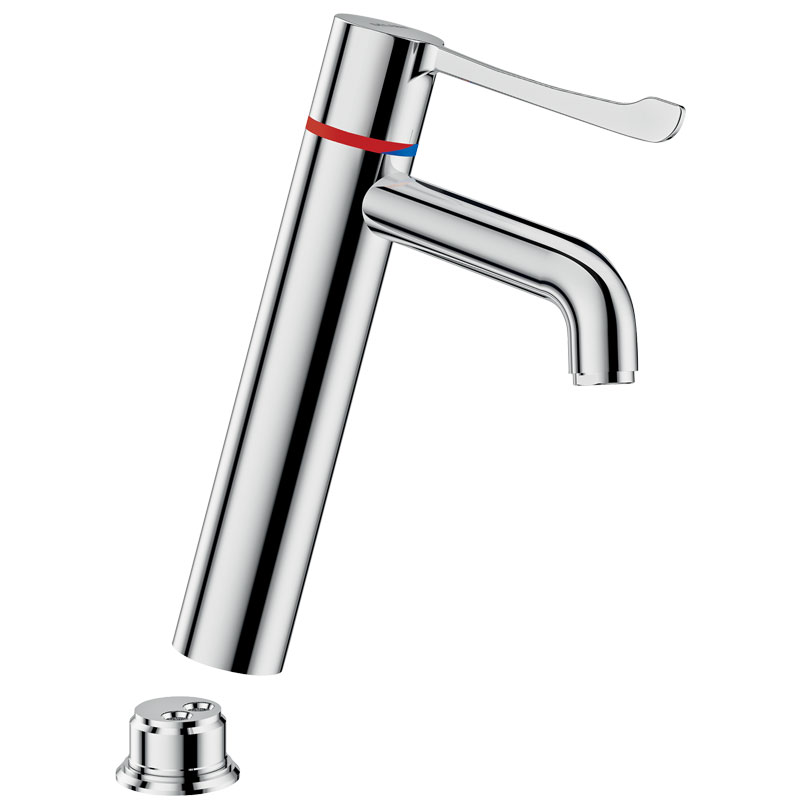

SECURITHERM BIOCLIP sequential thermostatic sink mixer

Ref. H96251
Removable sequential thermostatic mixer H. 160mm L. 140mm
SECURITHERM BIOCLIP sequential thermostatic sink mixer

Presentation

DESCRIPTION

SECURITHERM BIOCLIP sequential thermostatic sink mixer

Ref. H96251
Deck-mounted thermostatic SECURITHERM sink mixer.
Sequential thermostatic mixer: opens and closes with cold water.
No risk of cross flow between the hot and cold water.
No non-return valves on the inlets.
BIOCLIP: mixer is easy to remove for cleaning and disinfection.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Single hole mixer with curved spout H. 160mm L. 140mm fitted with a hygienic flow straightener with no impurity retention and thermal shock-resistant.
Scale-resistant sequential thermostatic cartridge for single control of flow rate and temperature.
Temperature adjusts from cold water up to 40°C with temperature limiter set at 40°C.
Thermal and chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate 9 lpm at 3 bar.
No manual contact thanks to Hygiene control lever L. 146mm.
No pop-up waste.
Supplied with F3/8" PEX flexibles.
Fixing reinforced by 2 stainless steel rods.
Thermostatic mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
30-year warranty.
Also available with copper tails.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: mixer has no non-return valves

Robinetterie déclipsable

Hygiene: can be removed for internal cleaning

Sécurité anti-brûlure

SECURITHERM: optimal anti-scalding safety

Confort - Ergonomie - Déclenchement souple

Sequential: opens and closes with cold water

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP sequential thermostatic sink mixer

Ref. H96251
Supply 3/8"
Technology Removable sequential thermostatic mixer

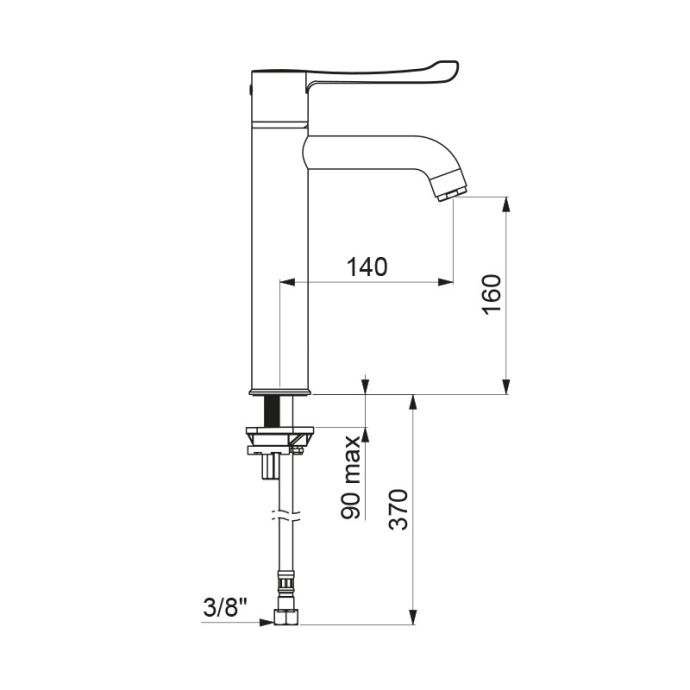

Drop height 160mm
Spout length 140mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Warranty 30-Year

Downloads

DOWNLOADS

SECURITHERM BIOCLIP sequential thermostatic sink mixer

Ref. H96251

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

H9625 Hygiene lever L.146mm - Flexibles with stopcocks
H9625610
H962515
Infection control: mixer body can be easily removed for disinfection
Infection control: mixer body can be easily removed for disinfection
Watch the SECURITHERM technology video: anti-scalding safety and infection control
Watch the SECURITHERM technology video: anti-scalding safety and infection control
