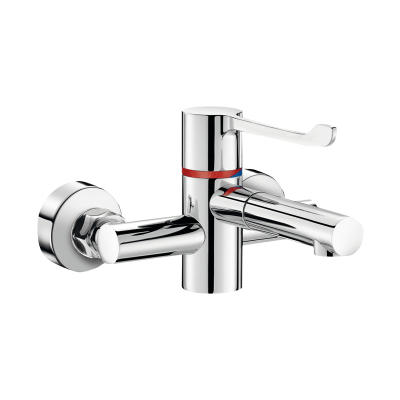

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611S
Wall-mounted sequential thermostatic mixer
SECURITHERM BIOCLIP thermostatic sink mixer

Presentation

DESCRIPTION

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611S

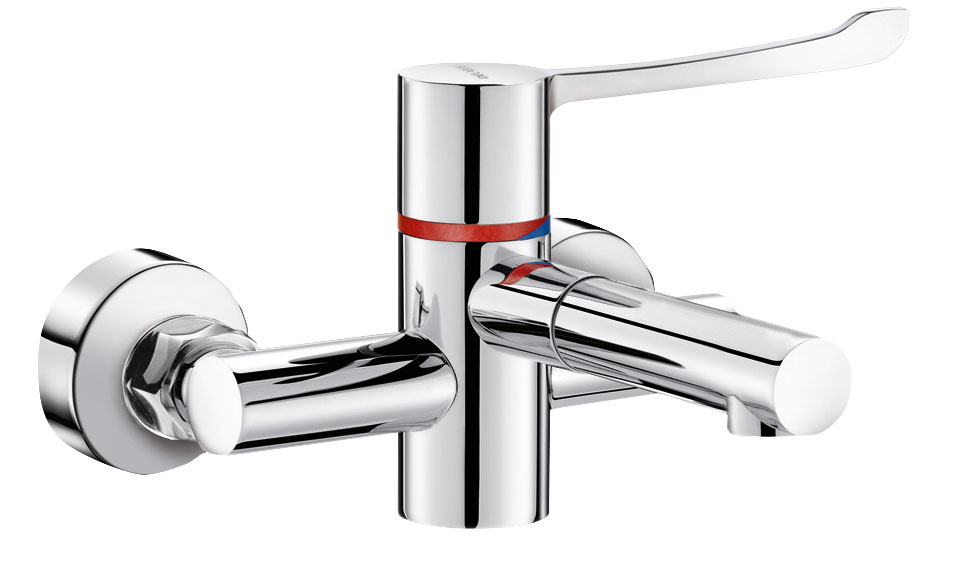

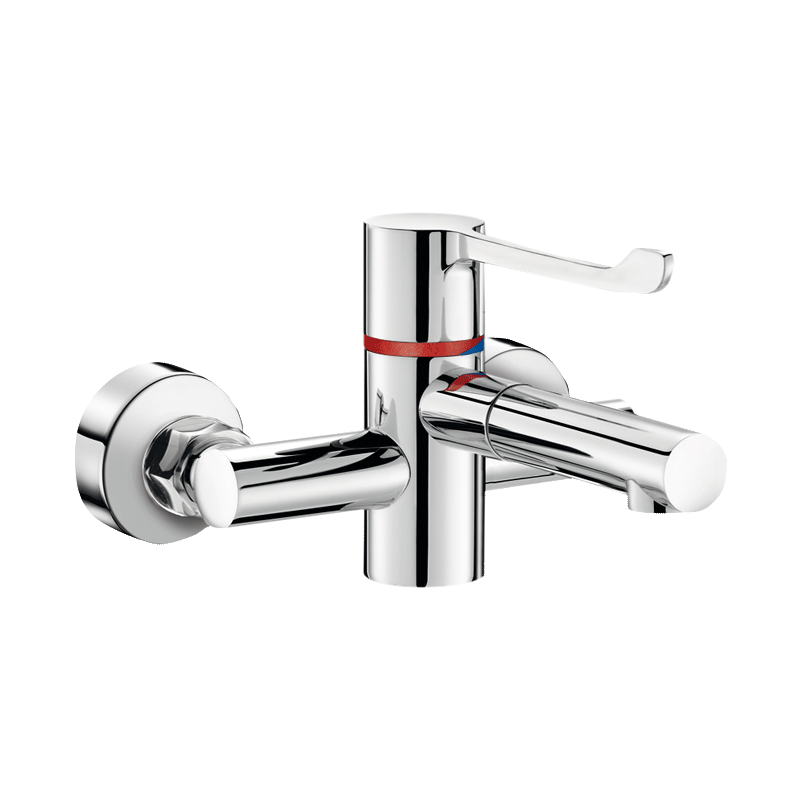

Wall-mounted SECURITHERM thermostatic sink mixer.
Sequential thermostatic mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Wall-mounted mixer supplied with 2 removable stainless steel spouts L.136mm.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant sequential thermostatic cartridge for sequential control of flow and temperature.
Temperature can be adjusted from cold water up to 40°C with maximum temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
Chrome-plated brass body.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres supplied with offset standard connectors M1/2" M3/4".
Mixer ideal for healthcare facilities, retirement homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: no non-return valves

Robinetterie déclipsable

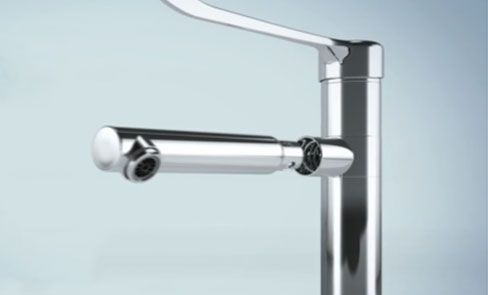

Removable spout: reduces bacterial development

Sécurité anti-brûlure

SECURITHERM: optimum anti-scalding safety

Characteristics

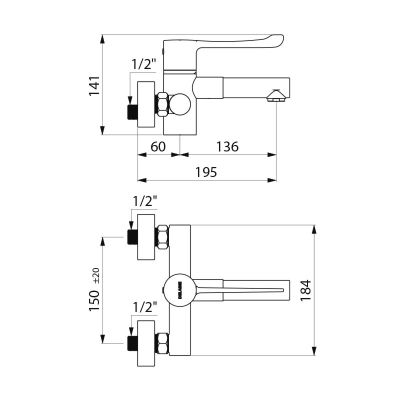

TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611S
Connector M1/2"
Technology SECURITHERM Securitouch sequential mixer
Depth 195mm
Spout length 136mm
Flow rate 7 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo HKWSD
Warranty 30-Year

Downloads

DOWNLOADS

Mitigeur de lavabo thermostatique séquentiel mural SECURITHERM

Ref. H9611S

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

H9610 Removable disposable spout - offset STOP/CHECK unions, 150mm centres
H9614P Removable st. steel spout - inline STOP/CHECK unions, 200mm centres
H9611 Removable st. steel spout - offset STOP/CHECK unions, 150mm centres
H9611P Removable disposable spout - inline STOP/CHECK unions, 150mm centres
H9610S Removable disposable spout - offset standard unions, 150mm centres
