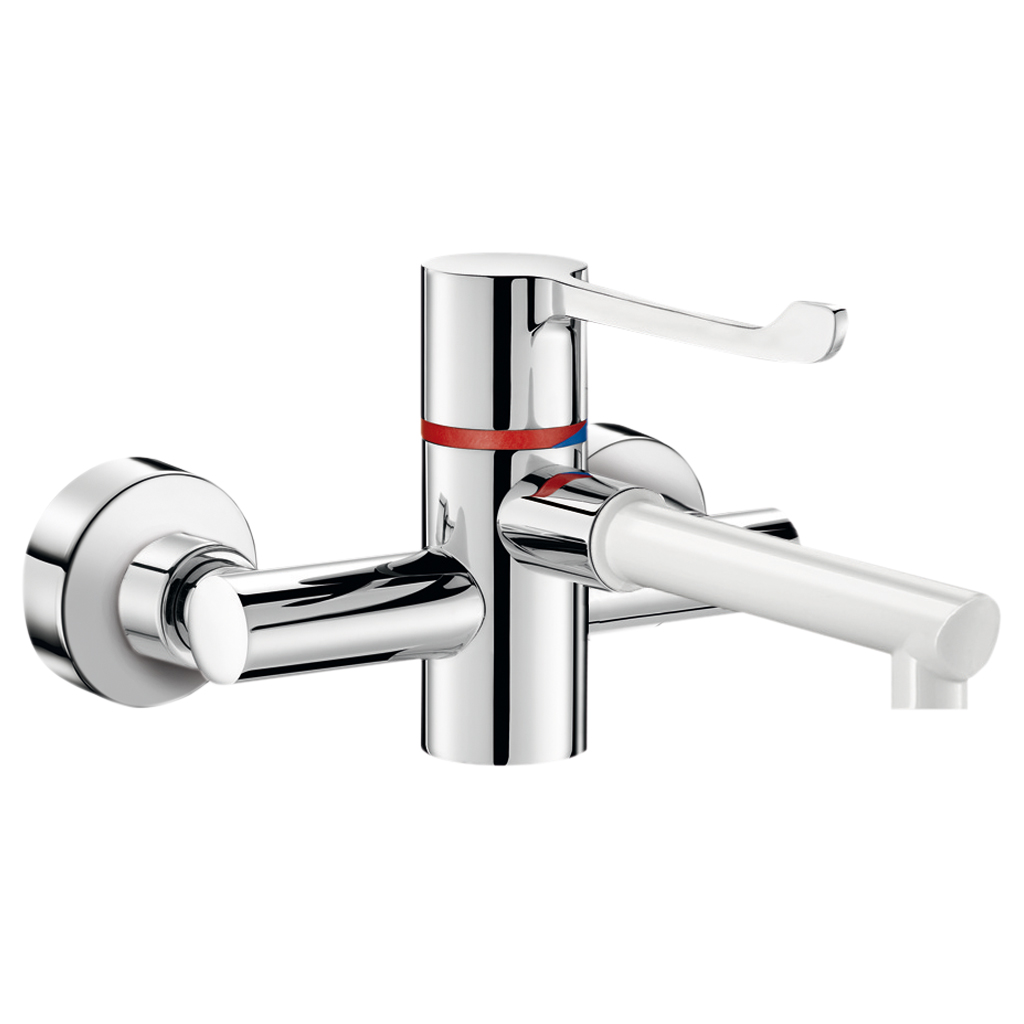

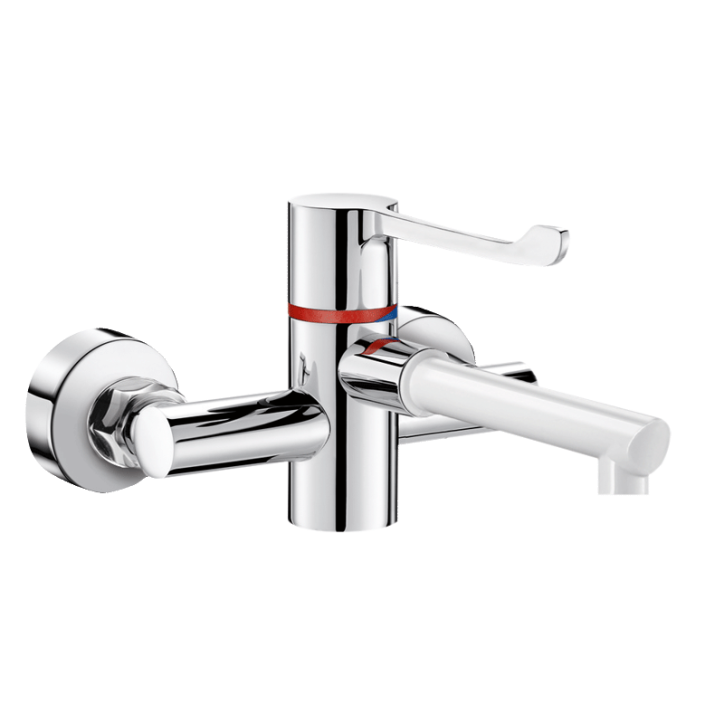

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9610S
Wall-mounted thermostatic sequential mixer
SECURITHERM BIOCLIP thermostatic sink mixer

Presentation

DESCRIPTION

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9610S
Wall-mounted SECURITHERM thermostatic sink mixer.
Thermostatic sequential mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Wall-mounted mixer supplied with 1 removable, disposable spout made from recyclable Hostaform® L. 125mm.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge for sequential control of flow rate and temperature.
Temperature can be adjusted from cold water up to 40°C with maximum temperature limiter set at 40°C.
Thermal and chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
Chrome-plated brass body.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres supplied with offset standard connectors M1/2" M3/4".
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: no non-return valves

Robinetterie déclipsable

Removable spout: reduces bacterial development

Sécurité anti-brûlure

SECURITHERM: optimum anti-scalding safety

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9610S

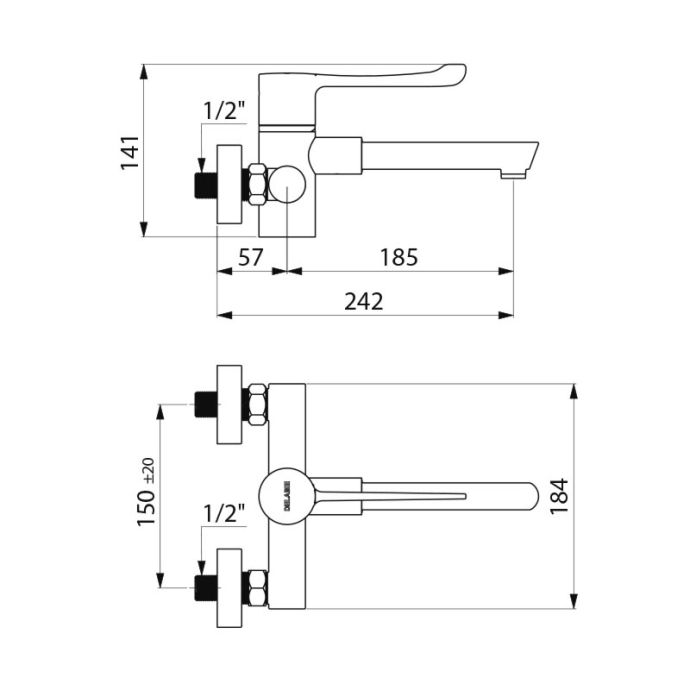

Connector M1/2"
Technology SECURITHERM Securitouch sequential mixer
Height 141mm
Width 184mm
Spout length 185mm
Flow rate 7 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo DoP Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9610S

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

H9610 Removable disposable spout - offset STOP/CHECK unions, 150mm centres
H9614P Removable st. steel spout - inline STOP/CHECK unions, 200mm centres
H9611 Removable st. steel spout - offset STOP/CHECK unions, 150mm centres
H9611P Removable disposable spout - inline STOP/CHECK unions, 150mm centres
H9611S Removable st. steel spout - offset standard unions, 150mm centres

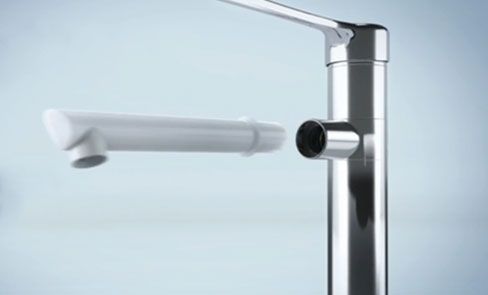

Infection control: mixer with removable spout and body with smooth interior
Infection control: mixer with removable spout and body with smooth interior
Ergonomic: mixer opens and closes sequentially with cold water
Ergonomic: mixer opens and closes sequentially with cold water

VARIANTS

H9610 Removable disposable spout - offset STOP/CHECK unions, 150mm centres
H9614P Removable st. steel spout - inline STOP/CHECK unions, 200mm centres
H9611 Removable st. steel spout - offset STOP/CHECK unions, 150mm centres
H9611P Removable disposable spout - inline STOP/CHECK unions, 150mm centres
H9611S Removable st. steel spout - offset standard unions, 150mm centres
Infection control: mixer with removable spout and body with smooth interior
Infection control: mixer with removable spout and body with smooth interior
Ergonomic: mixer opens and closes sequentially with cold water
Ergonomic: mixer opens and closes sequentially with cold water
