SECURITHERM thermostatic basin mixer

Ref. H96001
Single control thermostatic sequential mixer H. 95mm L. 120mm
SECURITHERM thermostatic basin mixer

Presentation

DESCRIPTION

SECURITHERM thermostatic basin mixer

Ref. H96001

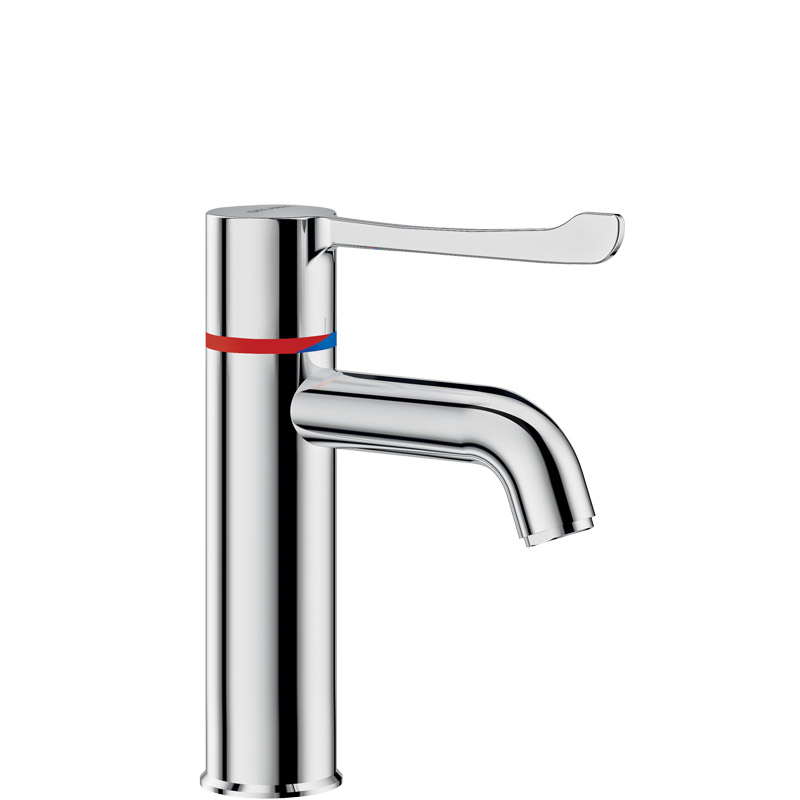

Deck-mounted SECURITHERM thermostatic basin mixer.
Thermostatic sequential mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Single hole mixer with straight spout H. 95mm L. 120mm and fitted with a hygienic flow straightener with no water retention and able to withstand thermal shocks.
Scale-resistant sequential thermostatic cartridge for single lever control of flow rate and temperature.
Temperature control from cold water up to 40°C with maximum temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
No manual contact thanks to Hygiene control lever L. 146mm.
No pop-up waste.
F3/8" PEX flexibles.
Reinforced fixing via 2 stainless steel rods.
Mixer ideal for healthcare facilities, nursing homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tails.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no non-return valves

Sécurité anti-brûlure

SECURITHERM: optimal anti-scalding safety

Sécurité anti-brûlure

Securitouch: thermal insulation prevents burns

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM thermostatic basin mixer

Ref. H96001
Connector F3/8"
Technology SECURITHERM Securitouch sequential mixer

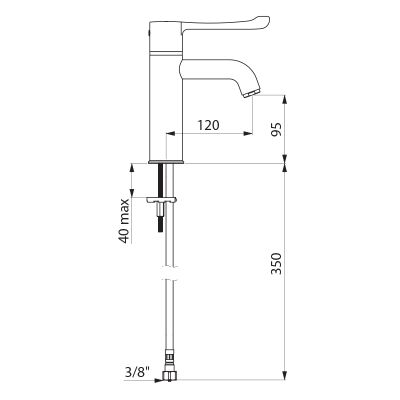

Height 95mm
Drop height 85mm
Spout length 120mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo PZH DVGW
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM thermostatic basin mixer

Ref. H96001

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

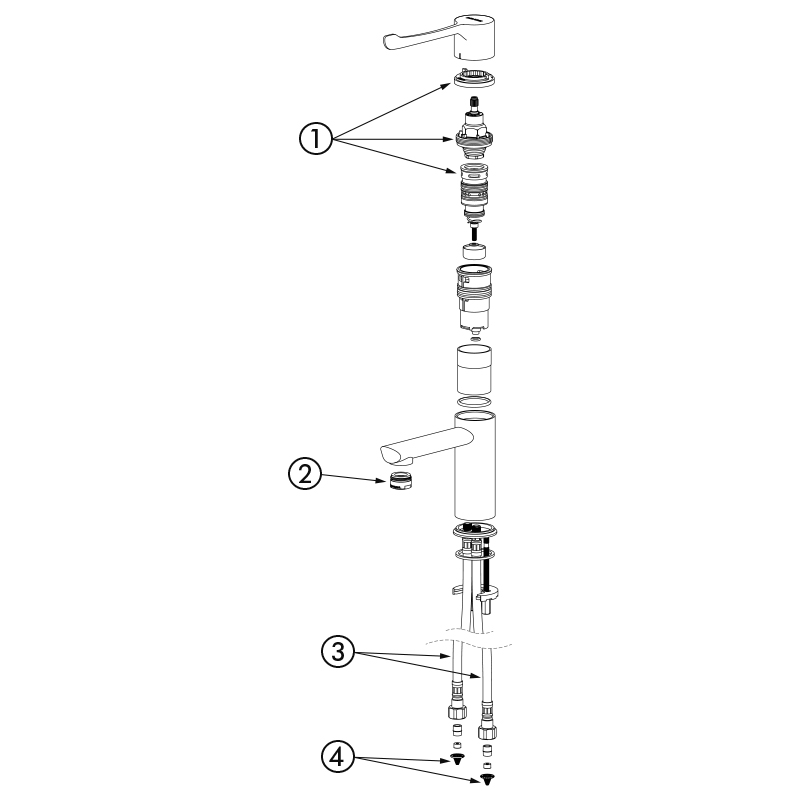

SPARE PARTS

SECURITHERM thermostatic basin mixer

Ref. H96001
Before 07/2021
1. N960
Thermostatic cartridge for basin
2. 921024.2P
Star-shaped flow straightener
3. 96SEF
Locking kit
4. FLEXPEX2
F3/8" PEX flexible hoses
5. 60438.10P
Conical filter

VARIANTS

H9600 No pop-up waste - Hygiene lever L. 146mm - Flexibles and stopcocks
H9601 With pop-up waste - Hygiene lever L. 146mm - Flexibles & stopcocks
H960015 No pop-up waste - Hygiene lever L.146mm - Flexibles & stopcocks, Ø15mm
H9600610 No pop-up waste - Hygiene lever L.146mm - copper tails

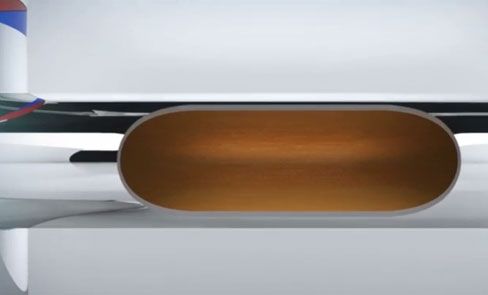

Thermostatic basin mixer with smooth interior: anti-scalding safety and infection control
Thermostatic basin mixer with smooth interior: anti-scalding safety and infection control
Ergonomic: mixer opens and closes sequentially with cold water
Ergonomic: mixer opens and closes sequentially with cold water

VARIANTS

H9600 No pop-up waste - Hygiene lever L. 146mm - Flexibles and stopcocks
H9601 With pop-up waste - Hygiene lever L. 146mm - Flexibles & stopcocks
H960015 No pop-up waste - Hygiene lever L.146mm - Flexibles & stopcocks, Ø15mm
H9600610 No pop-up waste - Hygiene lever L.146mm - copper tails
Thermostatic basin mixer with smooth interior: anti-scalding safety and infection control
Thermostatic basin mixer with smooth interior: anti-scalding safety and infection control
Ergonomic: mixer opens and closes sequentially with cold water
Ergonomic: mixer opens and closes sequentially with cold water
