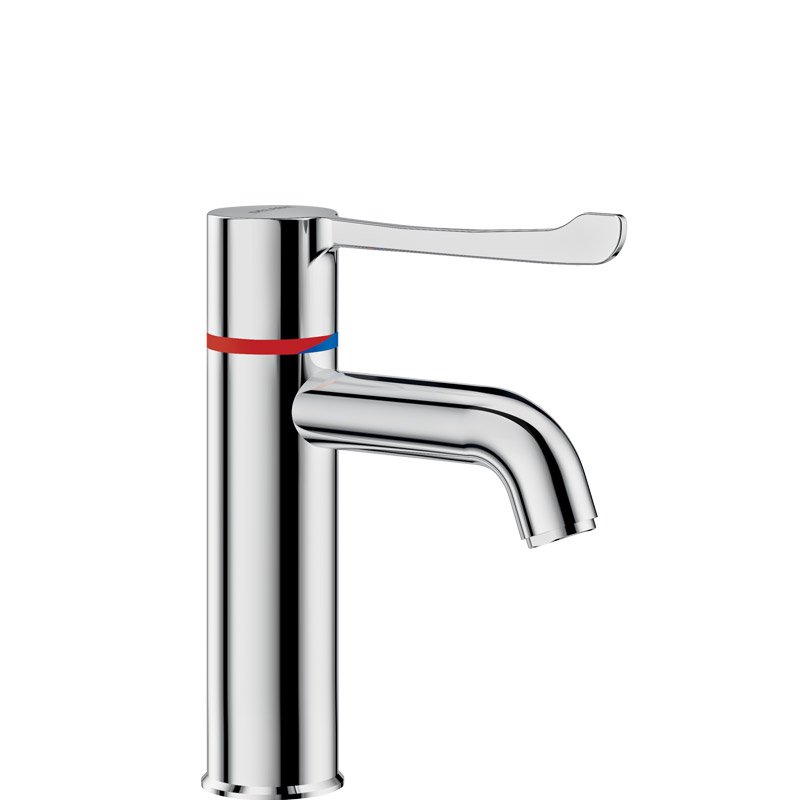

SECURITHERM thermostatic basin mixer
Ref. H9600
Single hole sequential thermostatic mixer H.95mm L.120mm
Single hole sequential thermostatic mixer H.95mm L.120mm
DESCRIPTION
SECURITHERM thermostatic basin mixer
Ref. H9600Deck-mounted SECURITHERM thermostatic basin mixer.
Thermostatic sequential mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
Mixer has no non-return valves on the inlets.
Anti-scalding failsafe: immediate shut-off if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Single hole mixer with curved spout H. 95mm L. 120mm fitted with a hygienic flow straightener.
Scale-resistant sequential thermostatic cartridge for single lever control of flow rate and temperature.
Temperature can be adjusted from cold water up to 40°C with temperature limiter set at 40°C.
Thermal or chemical shocks are possible.

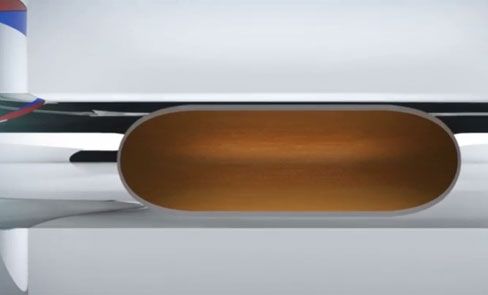

Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.

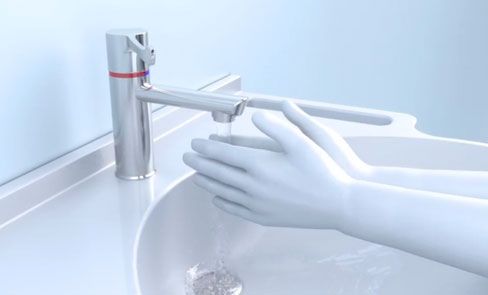

No manual contact thanks to Hygiene control lever L. 146mm.
No pop-up waste.
Supplied with F3/8" PEX flexibles with chrome-plated brass stopcocks.
Fixing reinforced via 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.

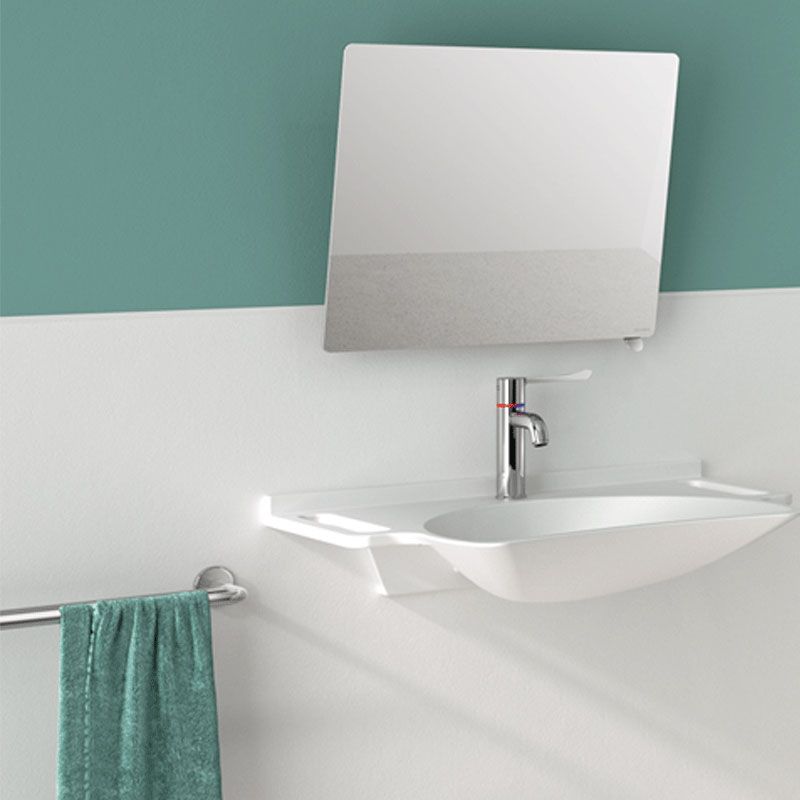

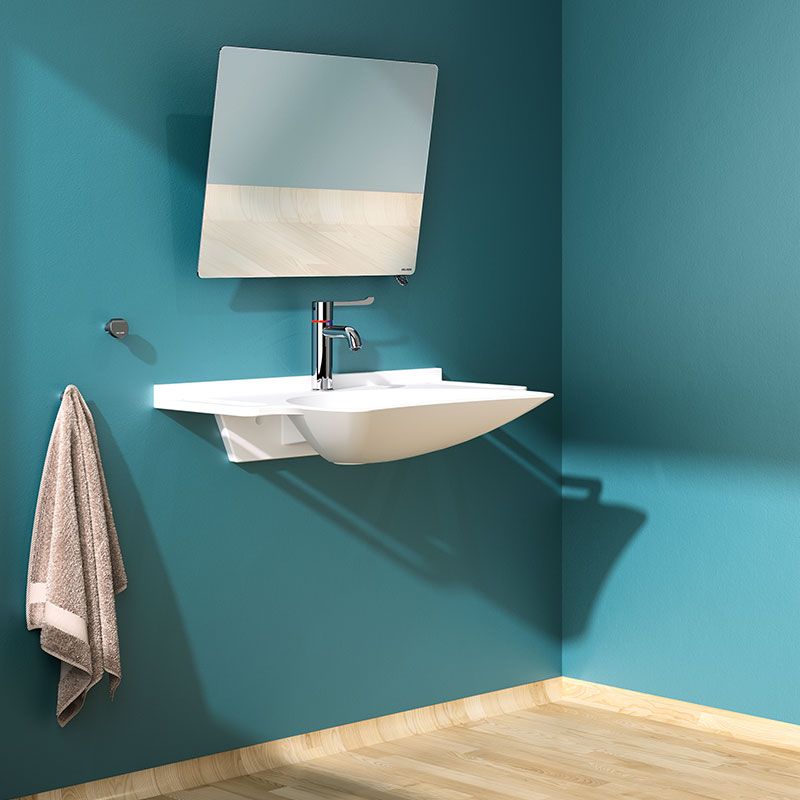

Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

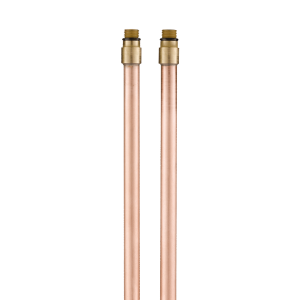

Also available with copper tails.
Thermostatic sequential mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
Mixer has no non-return valves on the inlets.
Anti-scalding failsafe: immediate shut-off if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Single hole mixer with curved spout H. 95mm L. 120mm fitted with a hygienic flow straightener.
Scale-resistant sequential thermostatic cartridge for single lever control of flow rate and temperature.
Temperature can be adjusted from cold water up to 40°C with temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
No manual contact thanks to Hygiene control lever L. 146mm.
No pop-up waste.
Supplied with F3/8" PEX flexibles with chrome-plated brass stopcocks.
Fixing reinforced via 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tails.
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Sequential: opens/closes with cold water
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Maximum hygiene: no non-return valves
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
SECURITHERM: optimal anti-scalding safety
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
Securitouch: thermal insulation prevents burns
TECHNICAL CHARACTERISTICS
SECURITHERM thermostatic basin mixer
Ref. H9600Connector | F3/8" |
Technology | SECURITHERM Securitouch sequential mixer |

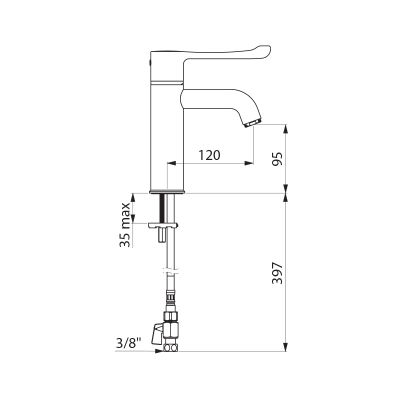

Drop height | 95mm |
Spout length | 120mm |
Flow rate | 5 lpm at 3 bar |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() ![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

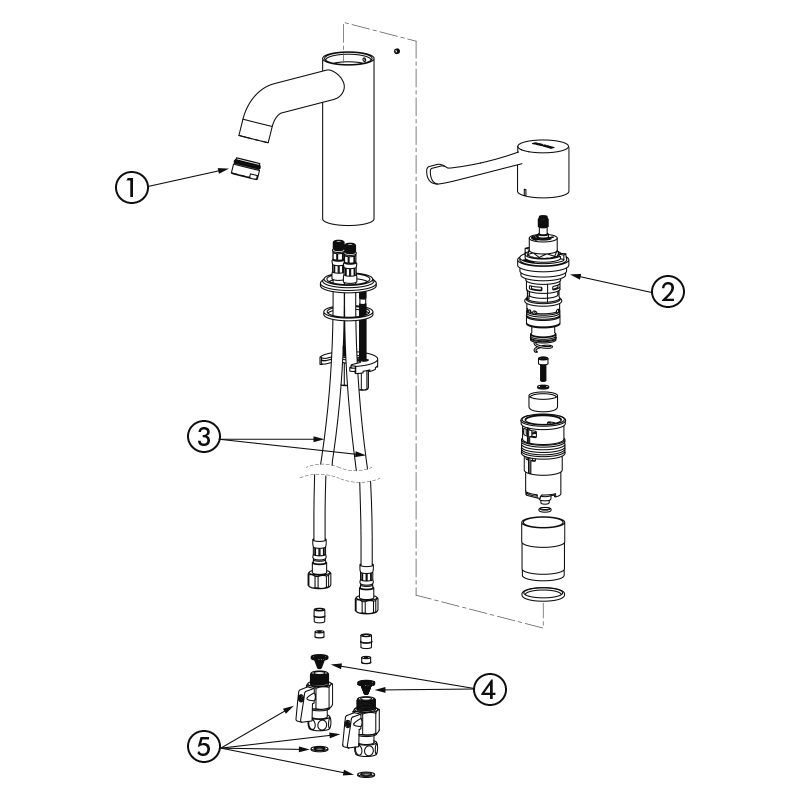

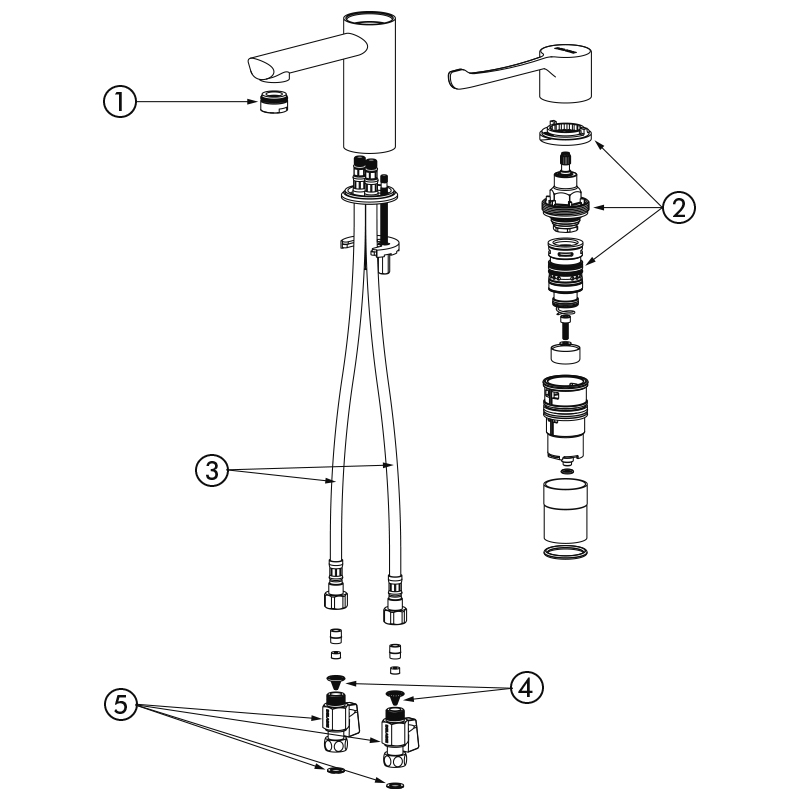

SPARE PARTS
SECURITHERM thermostatic basin mixer
Ref. H9600
A partir de 10/2021
![](https://www.delabie.com/var/site/storage/images/9/7/8/9/3289879-1-fre-FR/PD_H9600.jpg)
1. | 921024.2P |
|
Star-shaped flow straightener |
2. | N960 |
|
Thermostatic cartridge for basin |
3. | 96SEF |
|
Locking kit |
4. | FLEXPEX2 |
|
F3/8" PEX flexible hoses |
5. | 60438.10P |
|
Conical filter |
6. | 825212 |
|
In-line STOP union |
VARIANTS
H96001 | No pop-up waste - Hygiene lever L. 146mm - Flexibles - no stopcocks | ||
---|---|---|---|
H960015 | No pop-up waste - Hygiene lever L.146mm - Flexibles & stopcocks, Ø15mm | ||
H9600610 | No pop-up waste - Hygiene lever L.146mm - copper tails | ||
H9601 | With pop-up waste - Hygiene lever L. 146mm - Flexibles & stopcocks |
VARIANTS
H96001 | No pop-up waste - Hygiene lever L. 146mm - Flexibles - no stopcocks | ||
---|---|---|---|
H960015 | No pop-up waste - Hygiene lever L.146mm - Flexibles & stopcocks, Ø15mm | ||
H9600610 | No pop-up waste - Hygiene lever L.146mm - copper tails | ||
H9601 | With pop-up waste - Hygiene lever L. 146mm - Flexibles & stopcocks |
