PREMIX NANO thermostatic mixing valve

Ref. 732116
For mixed water from 34 - 60°C
PREMIX NANO thermostatic mixing valve

Presentation

DESCRIPTION

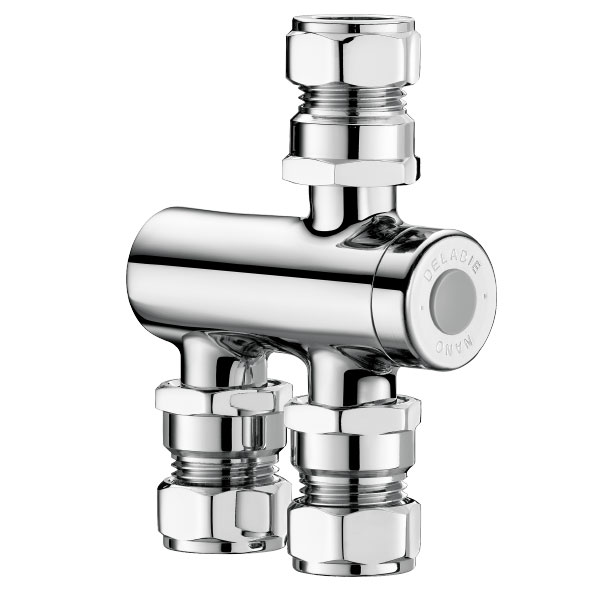

PREMIX NANO thermostatic mixing valve

Ref. 732116
Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Chrome-plated brass body M½" inlets and Ø 15mm conical outlets.
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

Automatic shut-off if hot or cold water fails

Confort - Ergonomie - Déclenchement souple

Stable temperature

Maintenance aisée - Installation aisée

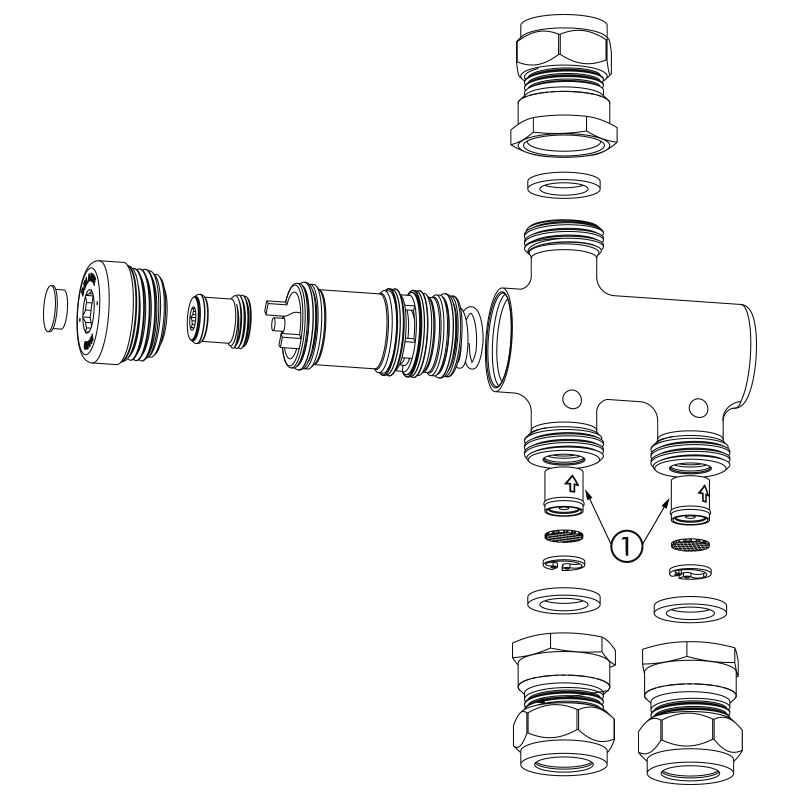

Non-return valves and filters easily accessible

Endurance - Fiabilité

Thermo-reactive cell

Characteristics

TECHNICAL CHARACTERISTICS

PREMIX NANO thermostatic mixing valve

Ref. 732116
Connector M½" Ø 15mm
Technology Thermostatic
Height 70mm
Finish Chrome-plated
Certificates Logo WRAS Logo HKWSD Logo TMV
Warranty 30-Year
PREMIX NANO thermostatic mixing valve
Ref. 732116

Downloads

DOWNLOADS

PREMIX NANO thermostatic mixing valve

Ref. 732116

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

732012 Nickel-plated body - Ø 15mm compression fittings
732216 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732016 Chrome-plated body - Ø 15mm compression fittings
732115 Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8"
732230 Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8"
732515 Connection kit for thermostatic mixing valves
