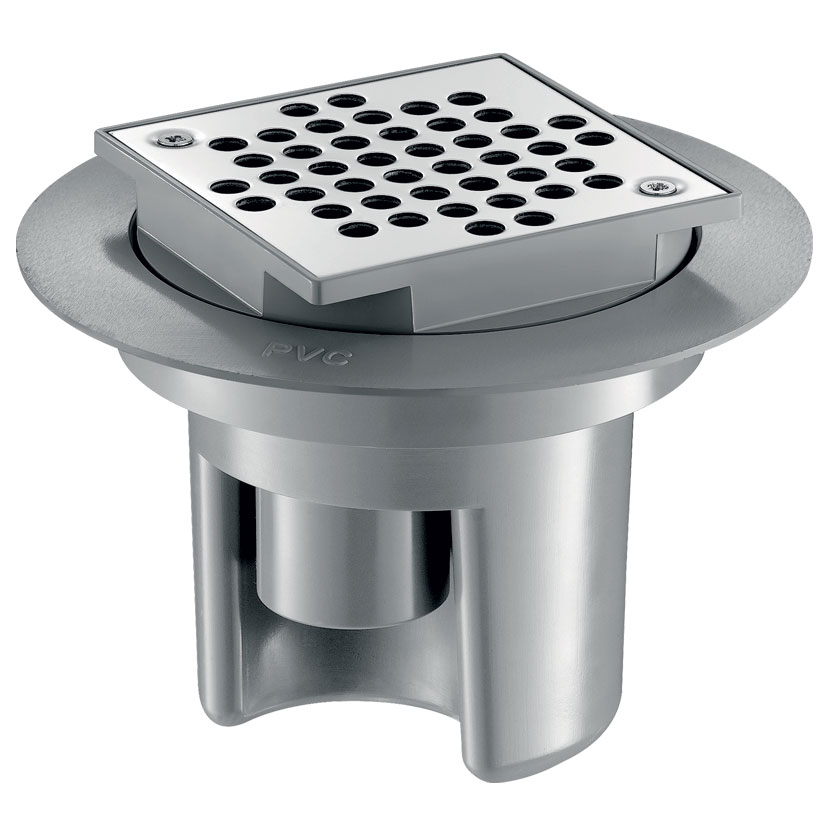

Floor trap

Ref. 682001
For tiled or concrete floors
Floor trap

Presentation

DESCRIPTION

Floor trap

Ref. 682001
Floor trap for hard floors (tiles or concrete floors) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
100x100mm bright polished stainless steel grid.
Horizontal (elbow joint not supplied) or vertical outlet Ø 40mm integrated into the height of the floor trap (saves height and space in all dimensions).
Integrated waterproof plate to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy to clean.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 80mm with extension.
Grid fixed with 2 stainless steel screws.
30-year warranty.

ADVANTAGES

Maintenance aisée - Installation aisée

Trap adaptable to type of floor, adjustable height

Nettoyage aisé

Plunger with handle,body is completely smooth

Anti-vandalisme

Tamperproof stainless steel grid

Characteristics

TECHNICAL CHARACTERISTICS

Floor trap

Ref. 682001
Height 190mm max
Length 100mm
Width 100mm
Flow rate 36 lpm
Certificates Logo DoP
Warranty 30-Year
Floor trap
Ref. 682001

Downloads

DOWNLOADS

Floor trap

Ref. 682001

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

682001DE Ø 50mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
682001UK Ø 43mm outlet- tiled or concrete floors - 100 x 100mm - Height ≤ 80mm
683001 Ø 40mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683001UK Ø43mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683002 Ø 40mm outlet - soft or vinyl floors - 150 x 150mm - Height ≤ 85mm
683002UK Ø 43mm outlet - soft or vinyl floors - Ø 114mm - Height ≤ 85mm
684000 Ø 40mm outlet- tiled or concrete floors- 140 x 140mm
