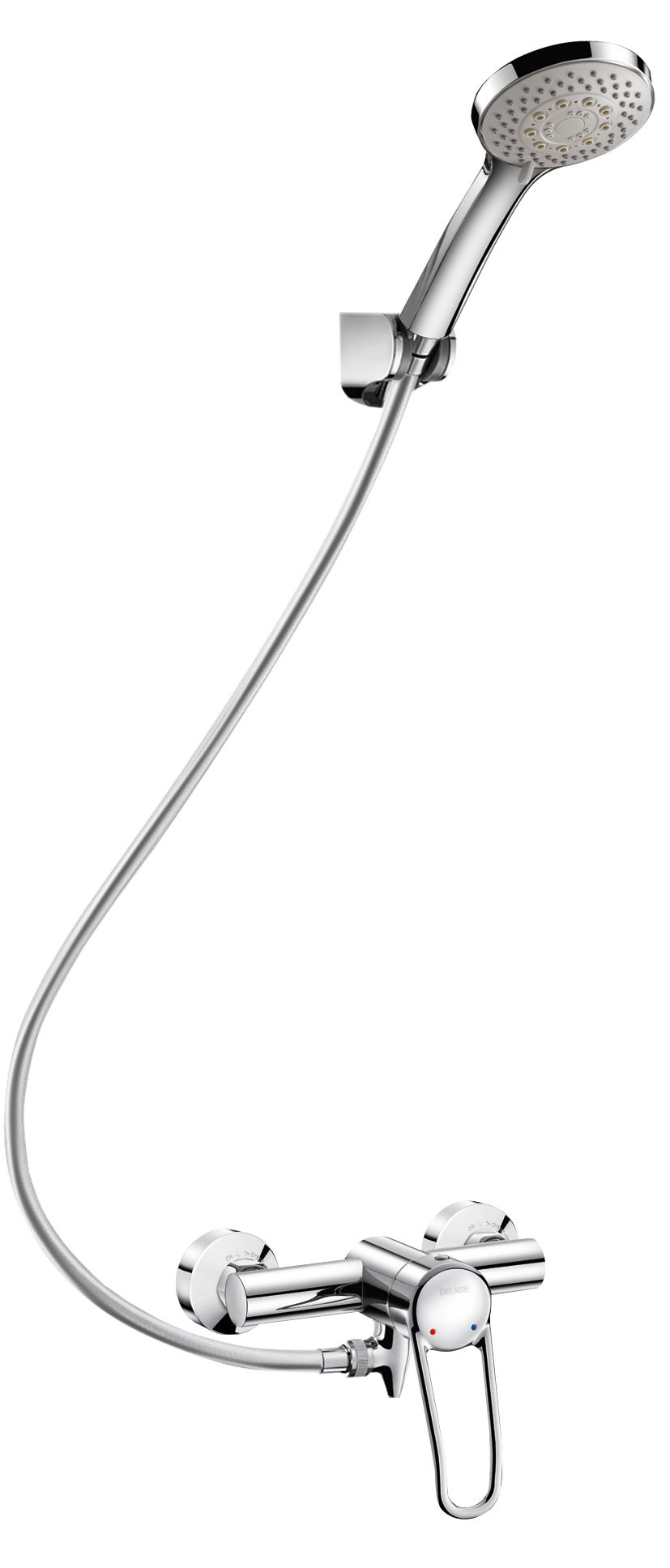

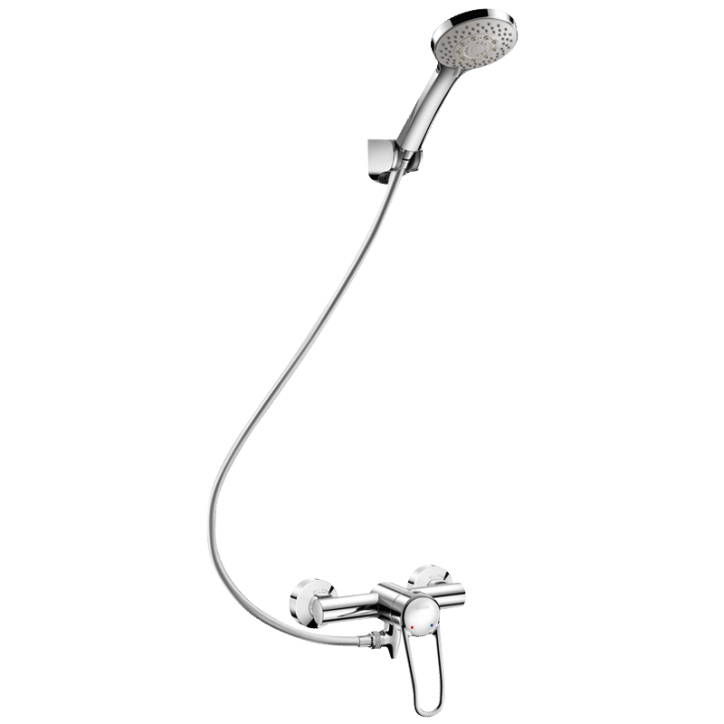

Auto-draining shower kit with mechanical mixer
Ref. 2739HYG
Shower kit with wall-mounted single control mixer
Shower kit with wall-mounted single control mixer
DESCRIPTION
Auto-draining shower kit with mechanical mixer
Ref. 2739HYGShower kit with wall-mounted single control mechanical mixer.
Shower kit with auto-draining device.

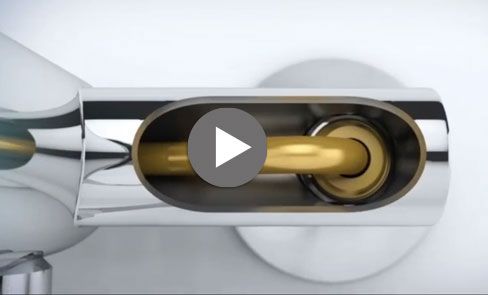

• Wall-mounted single hole mixer with Securitouch thermal insulation to prevent burns.
Ø 40mm classic ceramic cartridge with pre-set maximum temperature limiter.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4", ideal for hospitals.
• Chrome-plated shower head (ref. 813) with flexible shower hose (836T3) and chrome-plated, adjustable, wall-mounted support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (ref. 880).
Mixer is ideal for healthcare facilities, retirement homes, hospitals and clinics.
Mixer is suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
Shower kit with auto-draining device.
• Wall-mounted single hole mixer with Securitouch thermal insulation to prevent burns.
Ø 40mm classic ceramic cartridge with pre-set maximum temperature limiter.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4", ideal for hospitals.
• Chrome-plated shower head (ref. 813) with flexible shower hose (836T3) and chrome-plated, adjustable, wall-mounted support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (ref. 880).
Mixer is ideal for healthcare facilities, retirement homes, hospitals and clinics.
Mixer is suitable for people with reduced mobility.
Shower mixer with 30-year warranty.
ADVANTAGES
Hygiene: smooth interior reduces bacteria
Securitouch thermal insulation prevents burns
Maximum hygiene: low water volume.
Ergonomic: sculptured lever is easy to grip

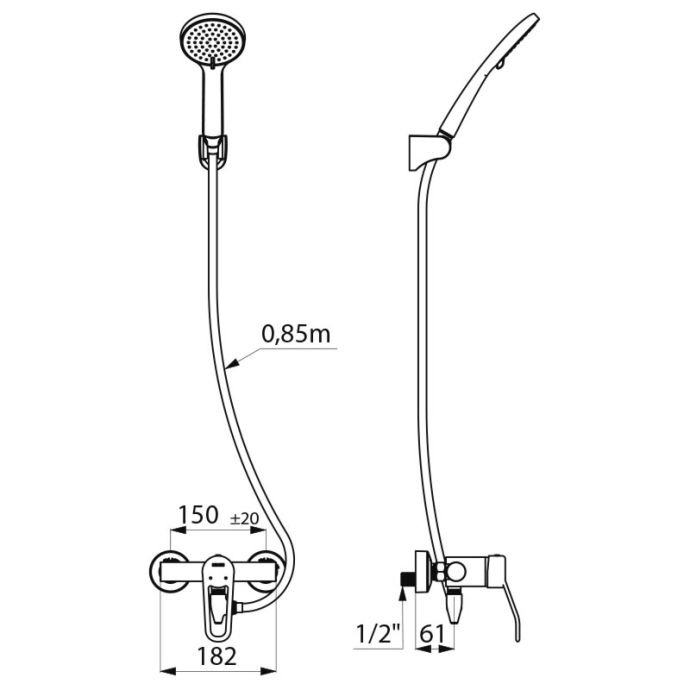

TECHNICAL CHARACTERISTICS
Auto-draining shower kit with mechanical mixer
Ref. 2739HYG| Connector | M1/2" |
| Technology | Securitouch shower mixer |
| Depth | 188mm |
| Width | 182mm |
| Flow rate | 9 lpm |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty |
|
| Repairability |  |

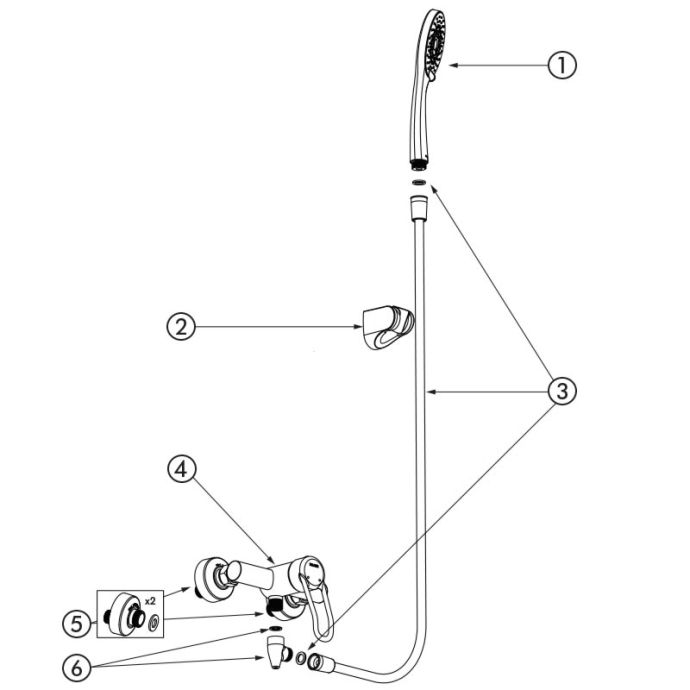

Spare parts
SPARE PARTS
Auto-draining shower kit with mechanical mixer
Ref. 2739HYG
| 1. | 813 |
|
Chrome-plated shower head with 5 jets, M1/2" |
| 2. | 845 |
|
Wall-mounted tilting support for shower heads |
| 3. | 836T3 |
|
SILVER flexible shower hose |
| 4. | 2739 |
|
Securitouch mechanical shower mixer |
| 5. | 855755.2P |
|
Offset connectors |
| 6. | 880 |
|
Auto-draining device |
VARIANTS
| 2739EPHYG | Mixer with EP cartridge - Sculptured lever - STOP/CHECK connectors | ||
|---|---|---|---|
| 2739EPSHYG | Mixer with EP cartridge - Sculptured lever - Standard connectors | ||
| 2739SHYG | Mixer with standard cartridge -Sculptured lever - standard connectors |
Infection control: mixer body with smooth interior
Ergonomic: shower mixer with sculptured lever which is easy to grip
