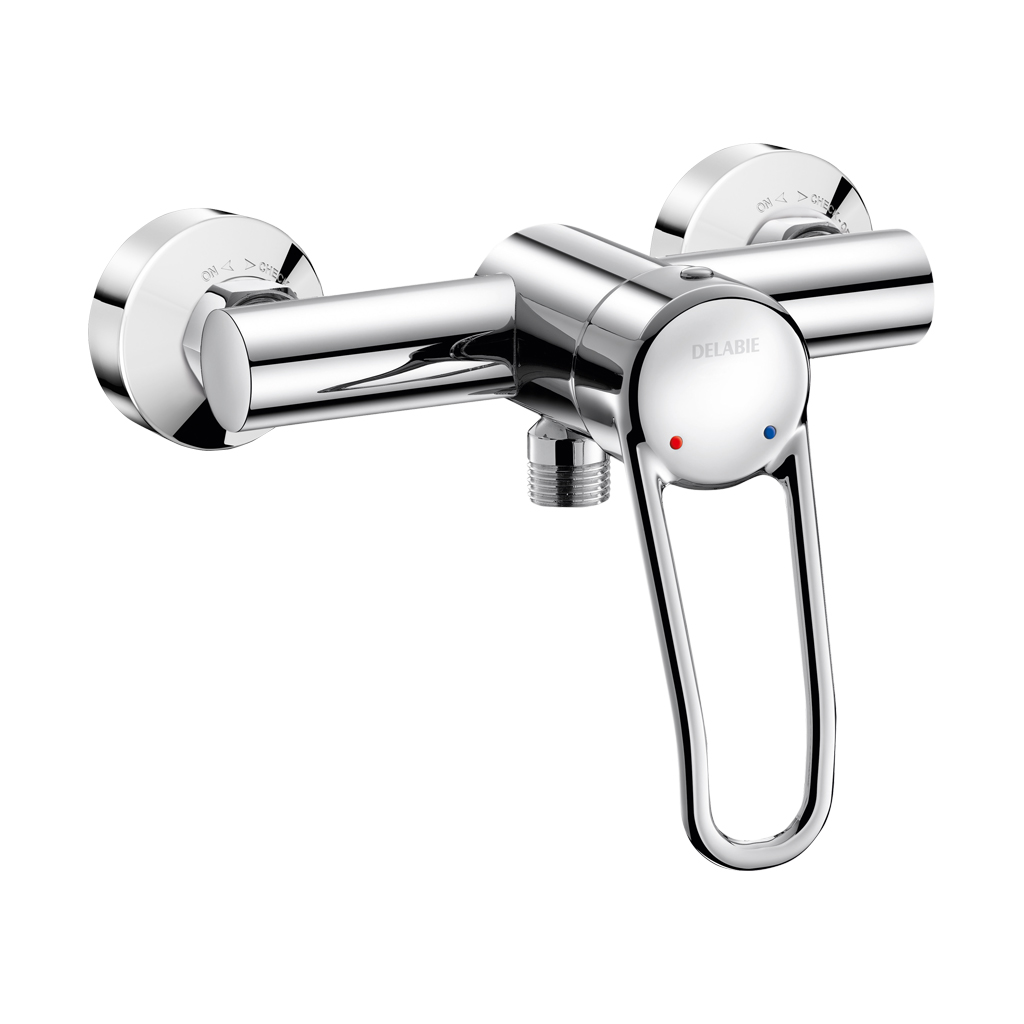

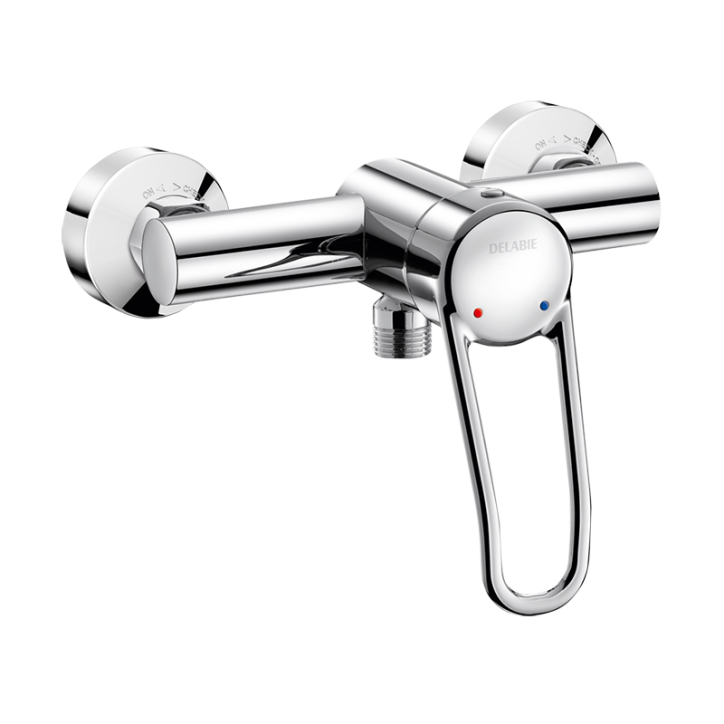

SECURITHERM EP pressure-balancing shower mixer
Ref. 2739EP
Wall-mounted mixer, Securitouch single control, sculptured lever
Wall-mounted mixer, Securitouch single control, sculptured lever
+
DESCRIPTION
SECURITHERM EP pressure-balancing shower mixer
Ref. 2739EPWall-mounted single hole mechanical shower mixer.
Wall-mounted single hole mixer with Securitouch thermal insulation to prevent burns.
Ø 40mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Anti-scalding safety: HW flow is reduced if CW supply fails (and vice versa).
Constant temperature regardless of variations in pressure and flow rate in the system.

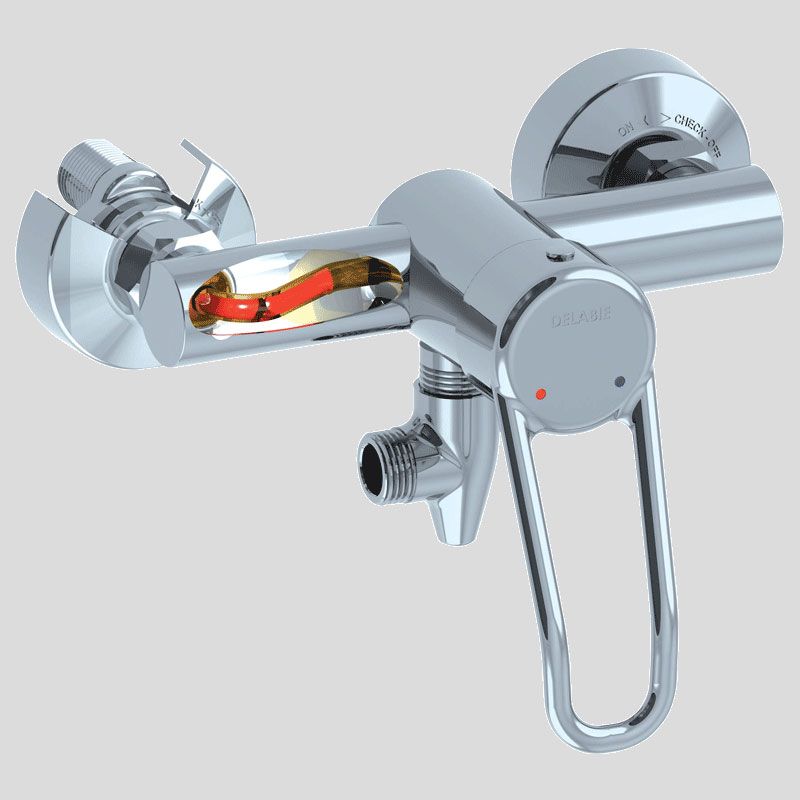

Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4".
Filters and non-return valves.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, nursing homes, hospitals and clinics.

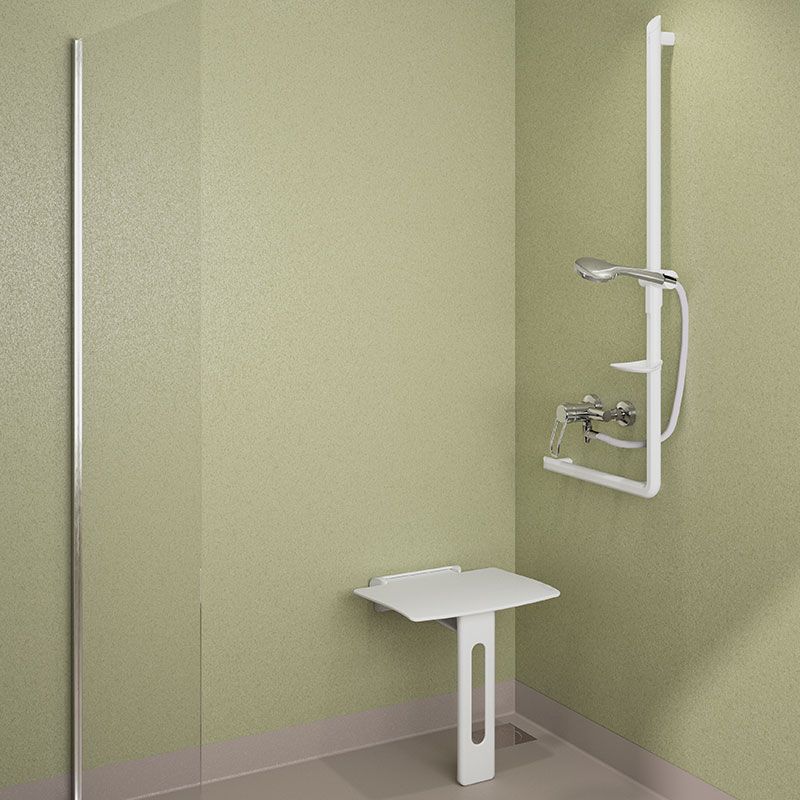

Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Wall-mounted single hole mixer with Securitouch thermal insulation to prevent burns.
Ø 40mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Anti-scalding safety: HW flow is reduced if CW supply fails (and vice versa).
Constant temperature regardless of variations in pressure and flow rate in the system.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4".
Filters and non-return valves.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, nursing homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES
HW flow rate reduced if CW fails
Pressure-balancing: reduces temperature variations

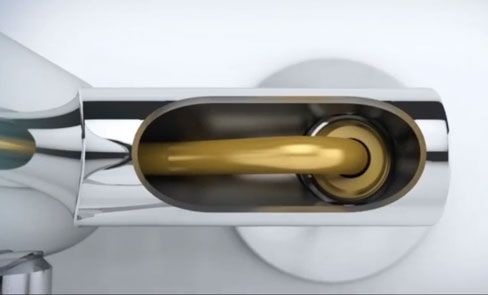

Hygiene: smooth interior reduces bacteria
Maximum hygiene: low water volume

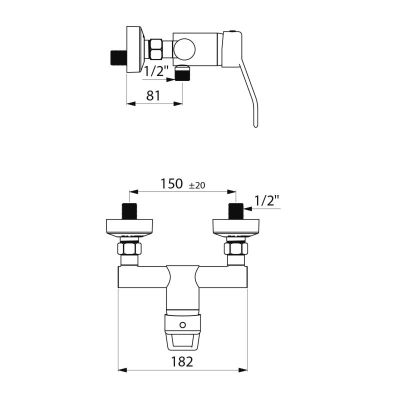

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing shower mixer
Ref. 2739EPConnector | M1/2" |
Technology | SECURITHERM EP mechanical mixer |
Height | 140mm |
Depth | 188mm |
Width | 182mm |
Flow rate | 9 lpm |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Compatible products
COMPATIBLE PRODUCTS
SECURITHERM EP pressure-balancing shower mixer
Ref. 2739EP2739EPHYG |
|
Auto-draining shower kit with mechanical pressure-balancing (EP) mixer |
2739EPKIT |
|

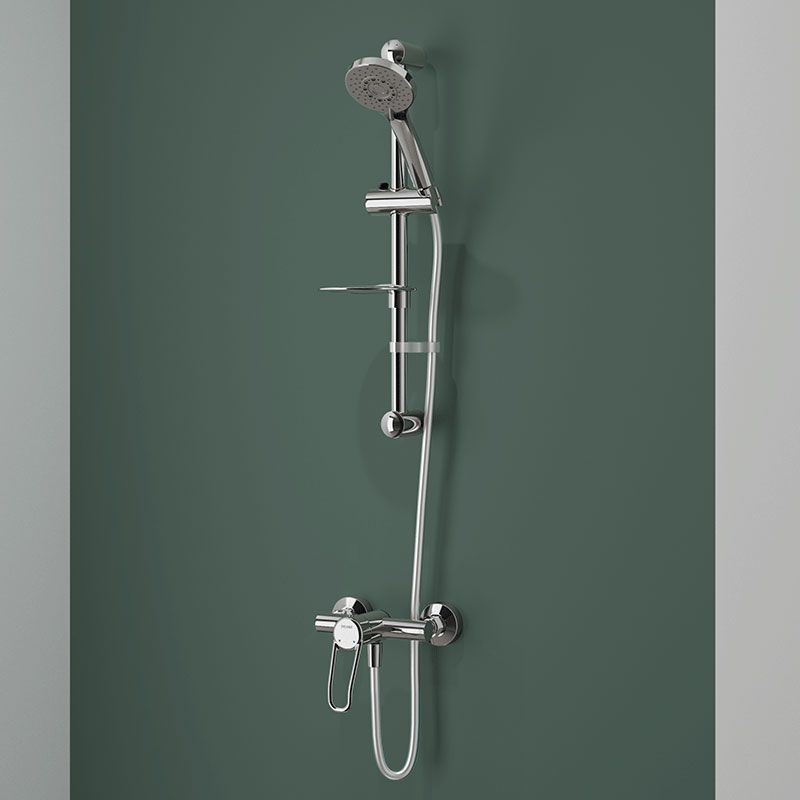

Shower riser rail with EP mechanical mixer |

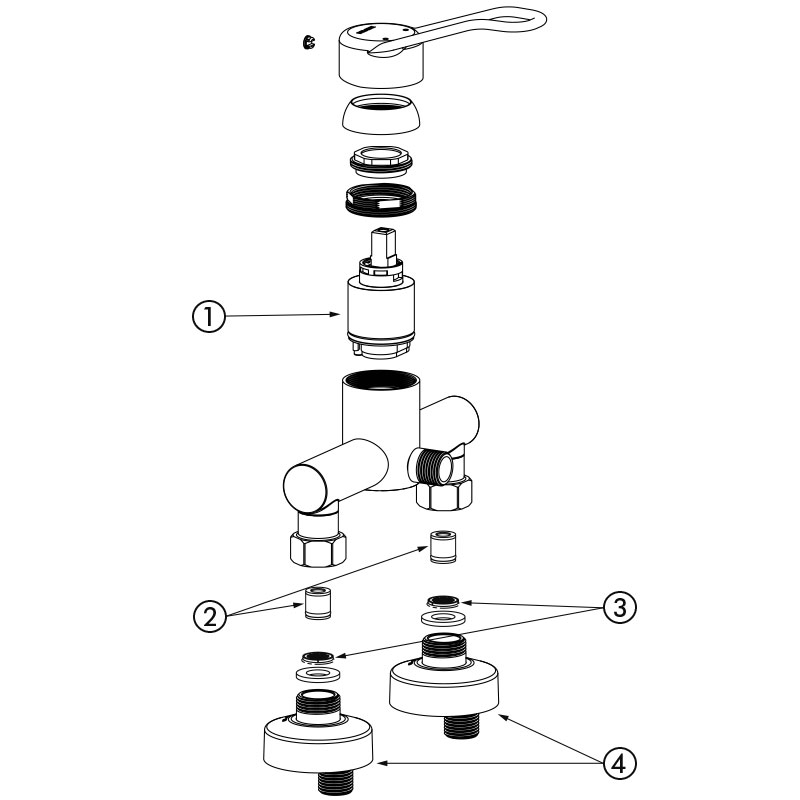

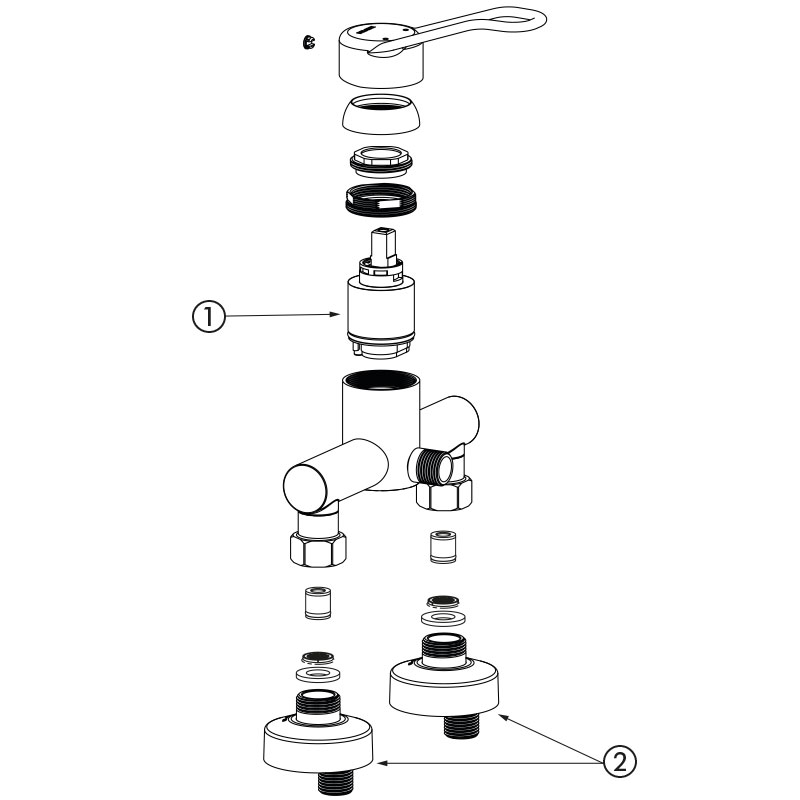

Spare parts
SPARE PARTS
SECURITHERM EP pressure-balancing shower mixer
Ref. 2739EP1. | N252 |
|
Ø40mm ceramic pressure balancing EP cartridge with base |
2. | 900007 |
|
Non-return valve with flow rate regulator |
3. | 60234.10P |
|
Flat filter |
4. | 855755.2P |
|
Offset connectors |
VARIANTS
2739TEP | Mixer with EP cartridge - Solid lever - STOP/CHECK connectors | ||
---|---|---|---|
2739EPS | Mixer with EP cartridge - Sculptured lever - Standard connectors | ||
2739TEPS | Mixer with EP cartridge - Solid lever - Standard connectors | ||
2739 | Mixer w standard cartridge - Sculptured lever - STOP/CHECK connectors | ||
2739T | Mixer w standard cartridge - Solid lever - STOP/CHECK connectors | ||
2739S | Mixer with standard cartridge -Sculptured lever - Standard connectors | ||
2739TS | Mixer with standard cartridge - Solid lever - Standard connectors |
