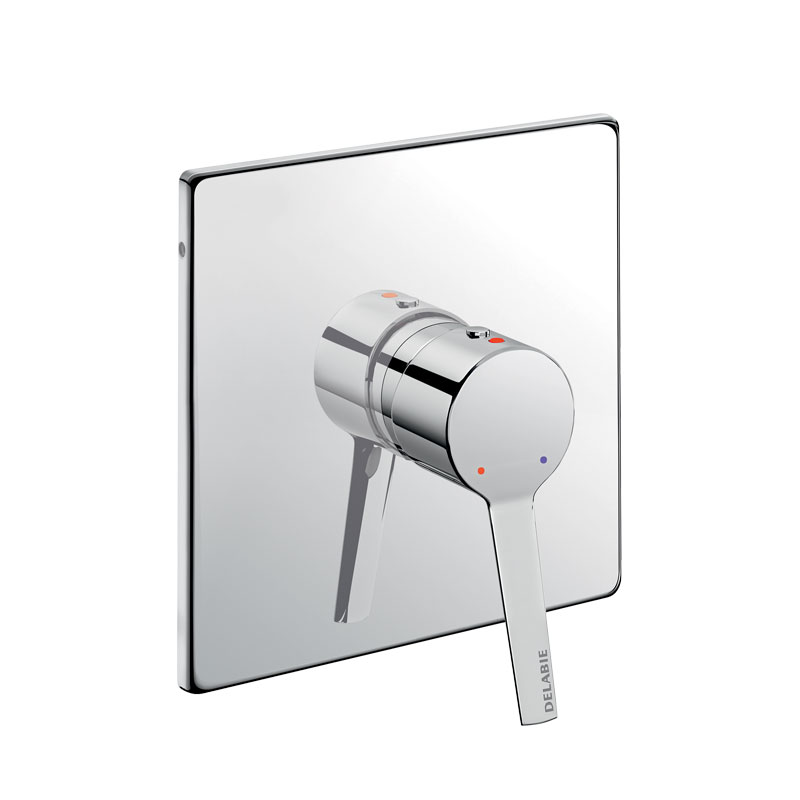

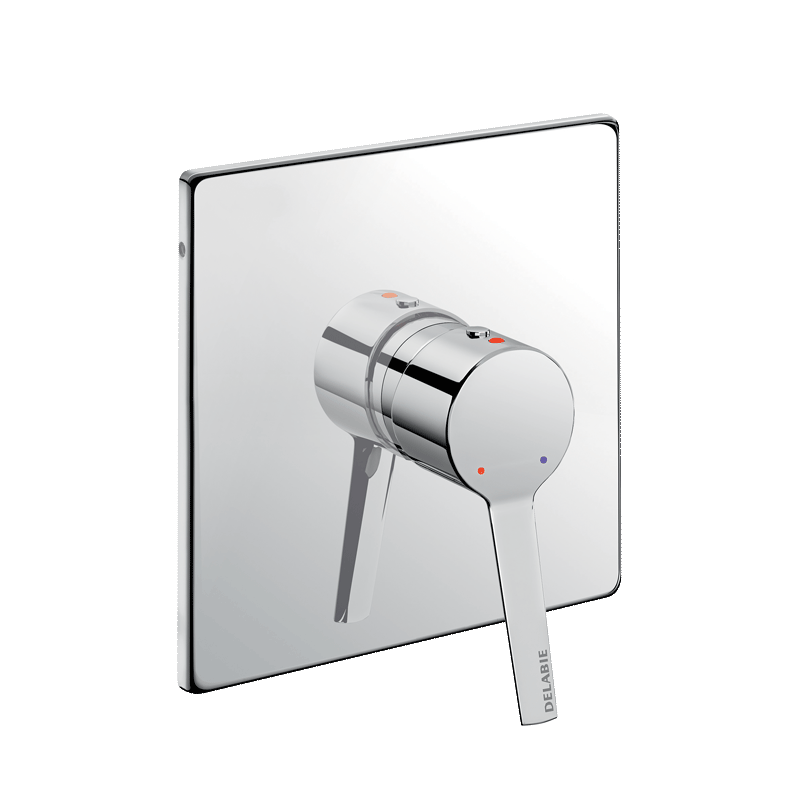

Recessed mechanical shower mixer with pressure-balancing

Ref. 2541EP
Mechanical pressure-balancing mixer in a waterproof housing, kit 2/2
Recessed mechanical shower mixer with pressure-balancing

Presentation

DESCRIPTION

Recessed mechanical shower mixer with pressure-balancing

Ref. 2541EP
Mechanical shower mixer with pressure-balancing which can be recessed, kit 2/2.
Single control mixer with Ø 40mm ceramic cartridge with pressure-balancing.
Pre-set maximum temperature limiter.
Mixer with anti-scalding safety: HW flow rate reduced if CW supply fails (and vice versa).
Stable temperature regardless of variations in pressure and flow rate in the system.
Thermal shocks are easy to undertake without removing the control lever or shutting off the cold water.
Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head.
Solid control lever.
Filters and non-return valves on the inlets.
Order a wall-mounted outlet or shower head to complete.

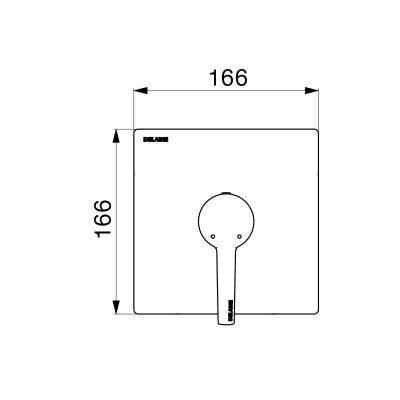

Bright polished stainless steel cover plate 166 x 166mm.
Mechanical shower mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

Order with a waterproof recessing housing ref. 254BOX.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW supply fails

Confort - Ergonomie - Déclenchement souple

EP: reduces temperature variations

Sécurité anti-brûlure

Thermal shock without removing control lever

Confort - Ergonomie - Déclenchement souple

Ergonomic: solid lever is easy to grip

Characteristics

TECHNICAL CHARACTERISTICS

Recessed mechanical shower mixer with pressure-balancing

Ref. 2541EP
Supply 1/2"
Technology Mixer with SECURITHERM EP pressure-balancing
Flow rate Flow rate regulated at 9 lpm (mixer only), 6 lpm at 3 bar with shower head
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo WRAS Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Recessed mechanical shower mixer with pressure-balancing

Ref. 2541EP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Recessed mechanical shower mixer with pressure-balancing

Ref. 2541EP
1. N262
Ø35mm ceramic pressure balancing cartridge

VARIANTS

2551EP Mixer with EP cartridge - with elbow outlet
2551 Mixer with ceramic cartridge - With elbow outlet
2541 Standard cartridge - Without elbow outlet
254CBOX Waterproof housing for wall-plate with elbow outlet
254BOX Waterproof housing for wall-plate without elbow outlet
