DESCRIPTION

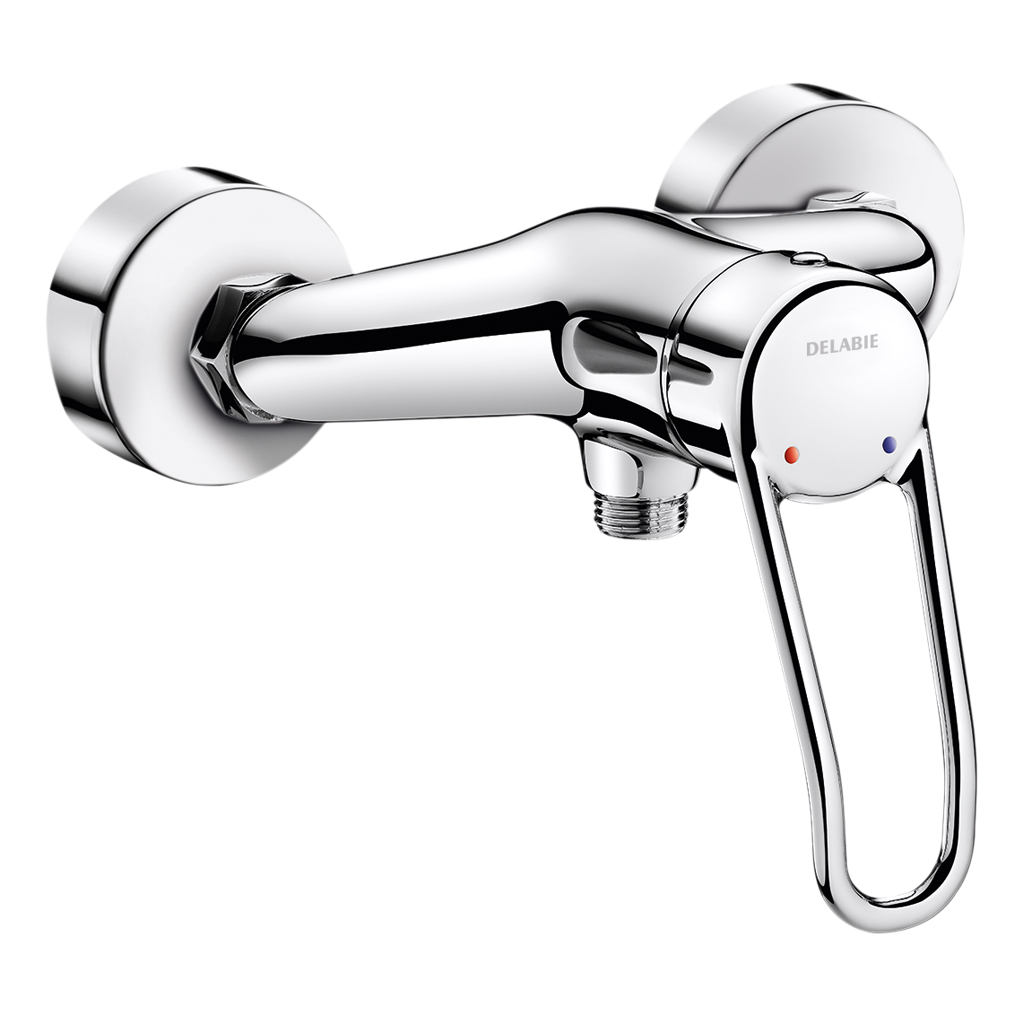

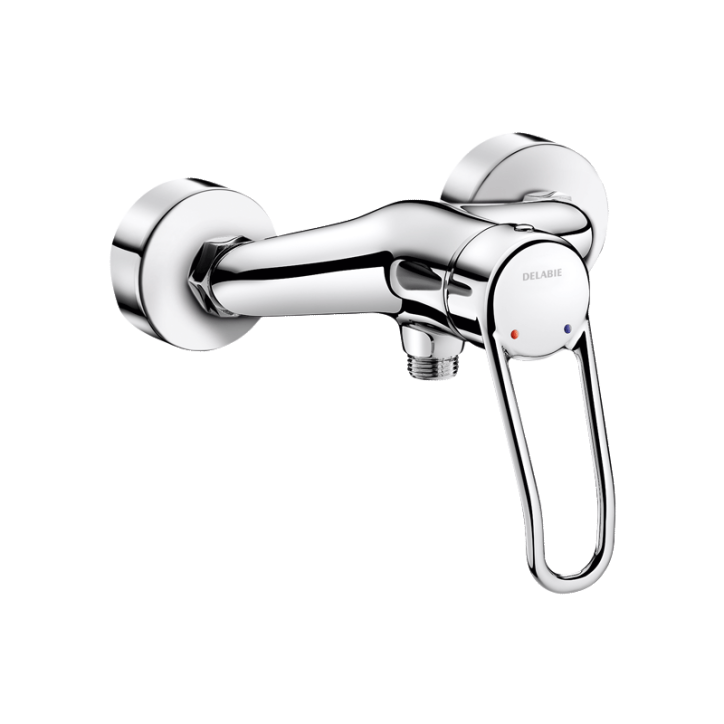

Mechanical shower mixer
Ref. 2539SWall-mounted single control mechanical shower mixer.
Ø 40mm classic ceramic cartridge and pre-set maximum temperature limiter.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" bottom outlet with integrated non-return valve.
Wall-mounted mixer with offset standard connectors, M1/2" M3/4".
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Ø 40mm classic ceramic cartridge and pre-set maximum temperature limiter.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" bottom outlet with integrated non-return valve.
Wall-mounted mixer with offset standard connectors, M1/2" M3/4".
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES
Pre-set maximum temperature limiter
Ergonomic: sculptured lever is easy to grip
Water savings: flow rate regulated at 9 lpm

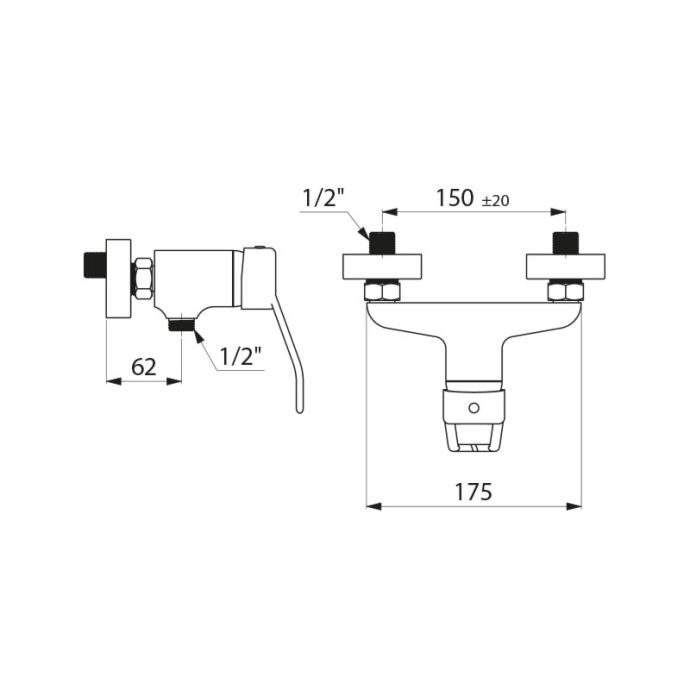

TECHNICAL CHARACTERISTICS
Mechanical shower mixer
Ref. 2539S| Connector | M1/2" |
| Flow rate | 9 lpm |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Compatible products
COMPATIBLE PRODUCTS
Mechanical shower mixer
Ref. 2539S| 2539SHYG |
|
Auto-draining shower kit with mechanical mixer |
| 2539SKIT |
|
Shower kit with mechanical mixer |
Spare parts

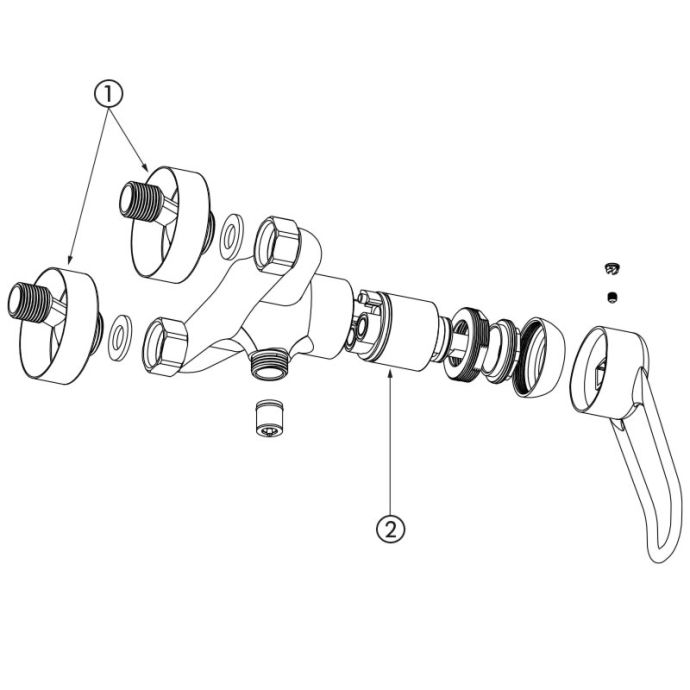

SPARE PARTS
Mechanical shower mixer
Ref. 2539S
| 1. | 856794.2P |
|
Offset union |
| 2. | N109AG75 |
|
Ø40mm ceramic cartridge |
VARIANTS
| 2539EP | EP cartridge - Long sculptured lever - STOP/CHECK connectors | ||
|---|---|---|---|
| 2539EPS | EP cartridge - Long sculptured lever - Standard connectors | ||
| 2239EP | EP cartridge - Short sculptured lever - STOP/CHECK connectors | ||
| 2239EPS | EP cartridge - Short sculptured lever - standard connectors | ||
| 2539 | Standard cartridge - Long sculptured lever -STOP/CHECK connectors | ||
| 2239 | Standard cartridge - Short sculptured lever - STOP/CHECK connectors | ||
| 2239S | Standard cartridge - Short sculptured lever - standard connectors |
Ergonomic: shower mixer with sculptured lever which is easy to grip
Associated products
Auto-draining device
Automatically drains the shower head and flexible hose
Ref. 880
SILVER flexible shower hose
Smooth PVC flexible hose FF1/2"
Ref. 836T1
Chrome-plated single jet shower head M1/2"
Ø 70mm, scale-resistant
Ref. 811
VARIANTS
| 2539EP | EP cartridge - Long sculptured lever - STOP/CHECK connectors | ||
|---|---|---|---|
| 2539EPS | EP cartridge - Long sculptured lever - Standard connectors | ||
| 2239EP | EP cartridge - Short sculptured lever - STOP/CHECK connectors | ||
| 2239EPS | EP cartridge - Short sculptured lever - standard connectors | ||
| 2539 | Standard cartridge - Long sculptured lever -STOP/CHECK connectors | ||
| 2239 | Standard cartridge - Short sculptured lever - STOP/CHECK connectors | ||
| 2239S | Standard cartridge - Short sculptured lever - standard connectors |
Ergonomic: shower mixer with sculptured lever which is easy to grip
