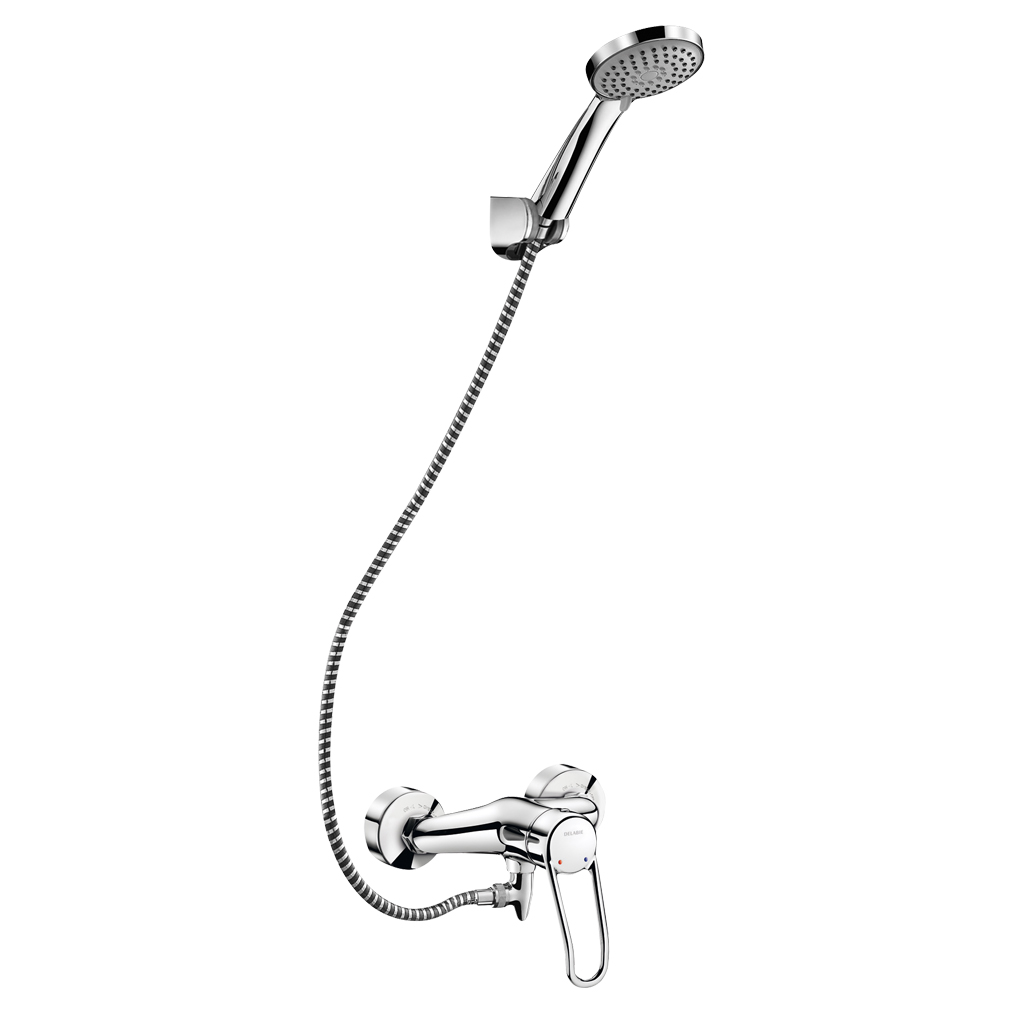

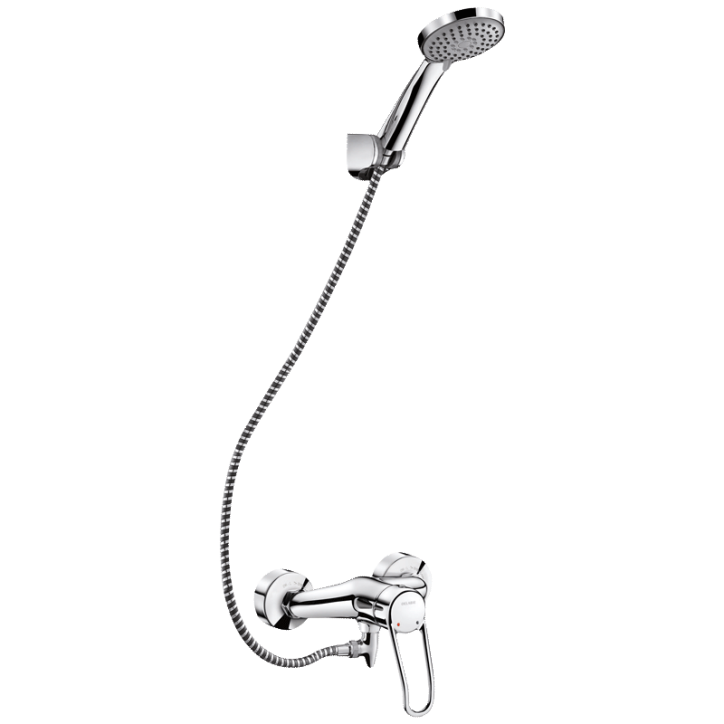

Auto-draining shower kit with mechanical mixer

Ref. 2539HYG
Mechanical mixer
See variants See variants
Auto-draining shower kit with mechanical mixer

Presentation

DESCRIPTION

Auto-draining shower kit with mechanical mixer

Ref. 2539HYG
Mechanical shower kit with auto-draining device:
• Shower mixer with Ø 40mm ceramic cartridge with pre-set maximum temperature limiter.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Supplied with offset STOP/CHECK connectors, M1/2" M3/4", ideal for hospitals.
• Shower head (ref. 813) with flexible hose (ref. 834T3) and chrome-plated, adjustable, wall-mounted support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Hygiène - Anti-bactérien - BIOSAFE

Handset and flexible hose drain out automatically

Confort - Ergonomie - Déclenchement souple

Sculptured control lever for eased grip

Economie d'eau

Water saving: flow rate regulated at 9 lpm

Characteristics

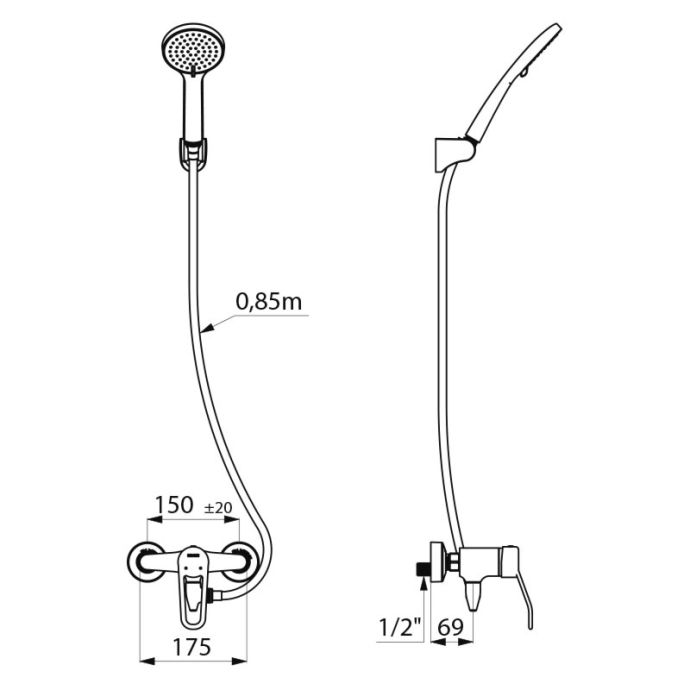

TECHNICAL CHARACTERISTICS

Auto-draining shower kit with mechanical mixer

Ref. 2539HYG
Connector M1/2"
Depth 173mm
Width 175mm
Flow rate 9 lpm
Finish Chrome-plated brass
Certificates ACS Logo PZH
Warranty 30-Year
Repairability
Auto-draining shower kit with mechanical mixer
Ref. 2539HYG

Downloads

DOWNLOADS

Auto-draining shower kit with mechanical mixer

Ref. 2539HYG

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

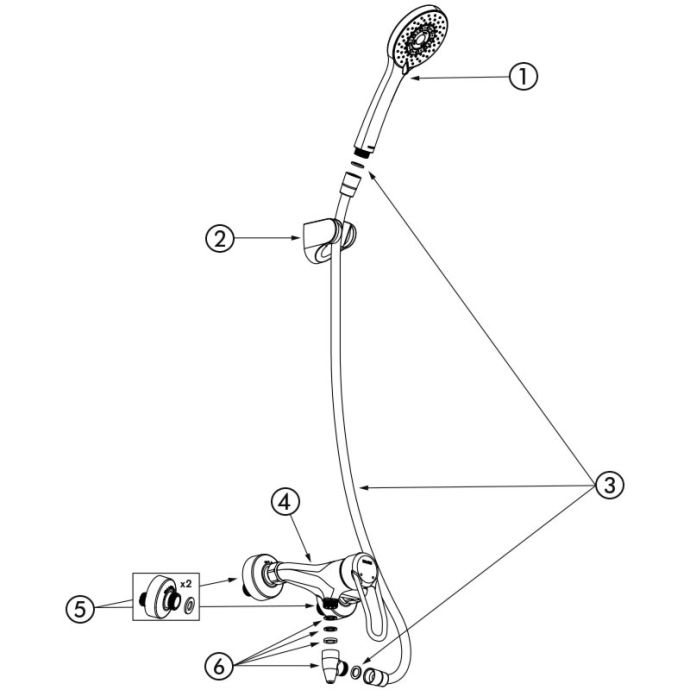

SPARE PARTS

Auto-draining shower kit with mechanical mixer

Ref. 2539HYG
1. 813
Chrome-plated shower head with 5 jets, M1/2"
2. 845
Wall-mounted tilting support for shower heads
3. 834T3
BICOLOR flexible shower hose
4. 2539
Mechanical shower mixer
5. 855755.2P
Offset connectors
6. 880
Auto-draining device

VARIANTS

2539EPHYG EP cartridge - Long sculptured lever - STOP/CHECK connectors
2539EPSHYG EP cartridge - Long sculptured lever - Standard connectors
2239EPHYG EP cartridge - Short sculptured lever - STOP/CHECK connectors
2239EPSHYG EP cartridge - Short sculptured lever - standard connectors
2539SHYG Standard cartridge - Long sculptured lever -Standard connectors
