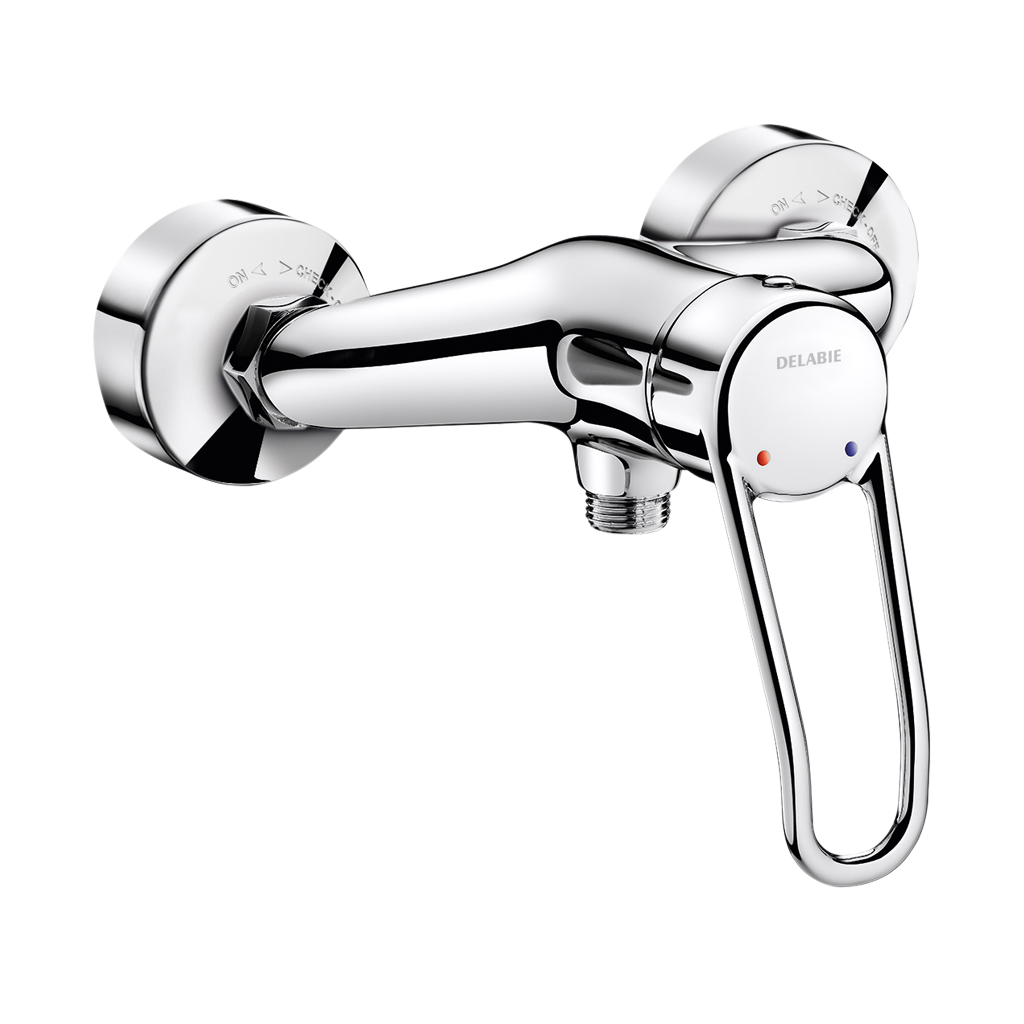

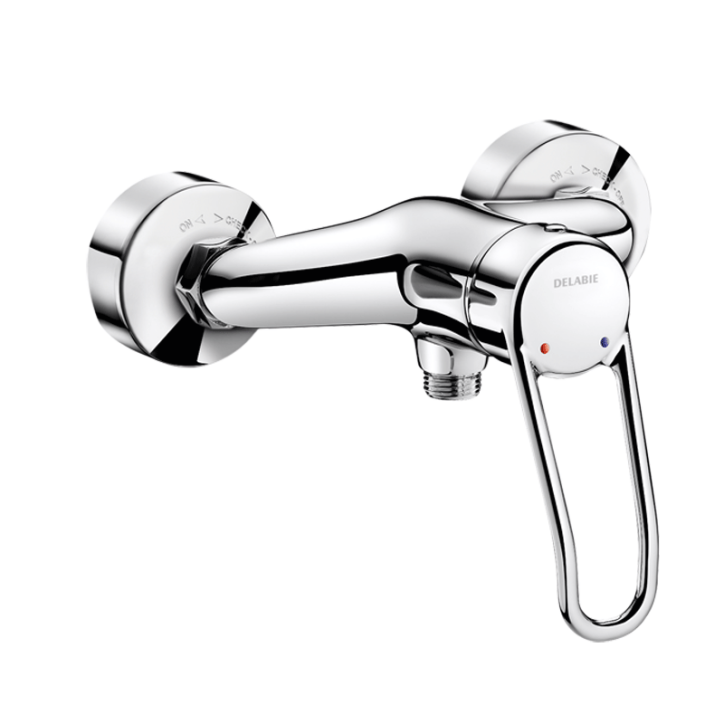

SECURITHERM EP pressure-balancing shower mixer
Ref. 2539EP
Wall-mounted single control mixer, sculptured lever
Wall-mounted single control mixer, sculptured lever
DESCRIPTION
SECURITHERM EP pressure-balancing shower mixer
Ref. 2539EPWall-mounted single control mechanical shower mixer.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Constant temperature regardless of pressure and flow rate variations in the system.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M½" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK wall connectors M½" M¾".
Filters and non-return valves.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, nursing homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Constant temperature regardless of pressure and flow rate variations in the system.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M½" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK wall connectors M½" M¾".
Filters and non-return valves.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, nursing homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES
HW flow rate reduced if CW fails
Pressure-balancing: limits temperature variations
Egonomic: sculptured lever is easy to grip
Water savings: flow rate regulated at 9 lpm

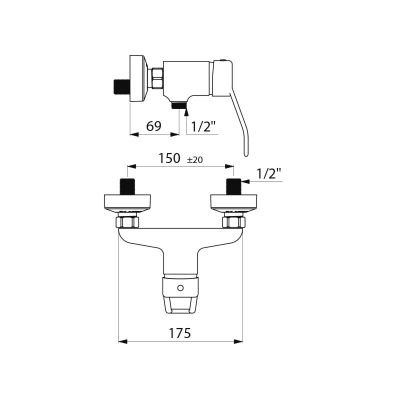

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing shower mixer
Ref. 2539EP| Connector | M1/2" |
| Technology | SECURITHERM EP mechanical mixer |
| Flow rate | 9 lpm |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Compatible products
COMPATIBLE PRODUCTS
SECURITHERM EP pressure-balancing shower mixer
Ref. 2539EP| 2539EPKIT |
|
Shower riser column with EP mechanical mixer |
| 2539EPHYG |
|
Auto-draining shower kit with EP mechanical mixer |
Spare parts
SPARE PARTS
SECURITHERM EP pressure-balancing shower mixer
Ref. 2539EP
| 1. | 855755.2P |
|
Offset connectors |
| 2. | 60234.10P |
|
Flat filter |
| 3. | 900010 |
|
Non-return valve |
| 4. | N252 |
|
Ø40mm ceramic pressure balancing EP cartridge with base |
VARIANTS
| 2539EPS | EP cartridge - Long sculptured lever - Standard connectors | ||
|---|---|---|---|
| 2239EP | EP cartridge - Short sculptured lever - STOP/CHECK connectors | ||
| 2239EPS | EP cartridge - Short sculptured lever - standard connectors | ||
| 2539 | Standard cartridge - Long sculptured lever -STOP/CHECK connectors | ||
| 2539S | Standard cartridge - Long sculptured lever -Standard connectors | ||
| 2239 | Standard cartridge - Short sculptured lever - STOP/CHECK connectors | ||
| 2239S | Standard cartridge - Short sculptured lever - standard connectors |
Pressure-balancing: mixer with anti-scalding safety and stable temperatures
Ergonomic: shower mixer with sculptured lever which is easy to grip
Associated products
SILVER flexible shower hose
Smooth PVC flexible hose FF1/2"
Ref. 836T3
Chrome-plated single jet shower head M1/2"
Ø 22mm
Ref. 815
Auto-draining device
Automatically drains the shower head and flexible hose
Ref. 880
VARIANTS
| 2539EPS | EP cartridge - Long sculptured lever - Standard connectors | ||
|---|---|---|---|
| 2239EP | EP cartridge - Short sculptured lever - STOP/CHECK connectors | ||
| 2239EPS | EP cartridge - Short sculptured lever - standard connectors | ||
| 2539 | Standard cartridge - Long sculptured lever -STOP/CHECK connectors | ||
| 2539S | Standard cartridge - Long sculptured lever -Standard connectors | ||
| 2239 | Standard cartridge - Short sculptured lever - STOP/CHECK connectors | ||
| 2239S | Standard cartridge - Short sculptured lever - standard connectors |
Pressure-balancing: mixer with anti-scalding safety and stable temperatures
Ergonomic: shower mixer with sculptured lever which is easy to grip
