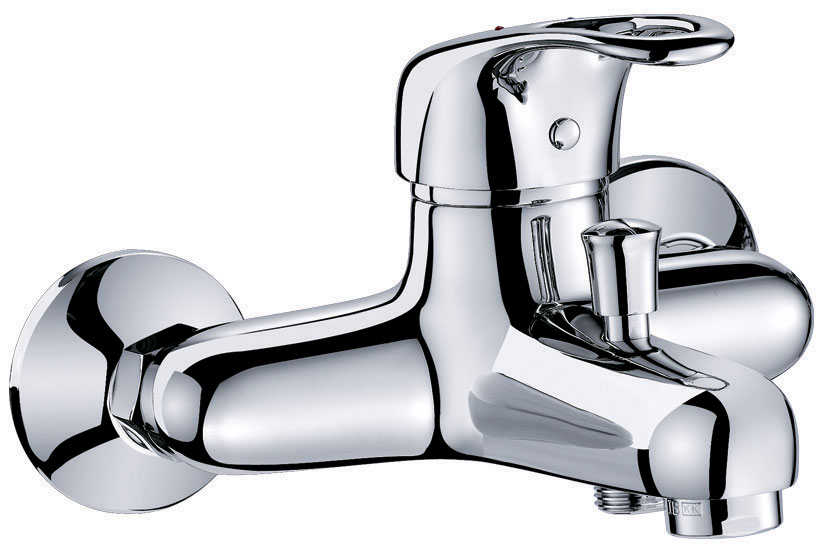

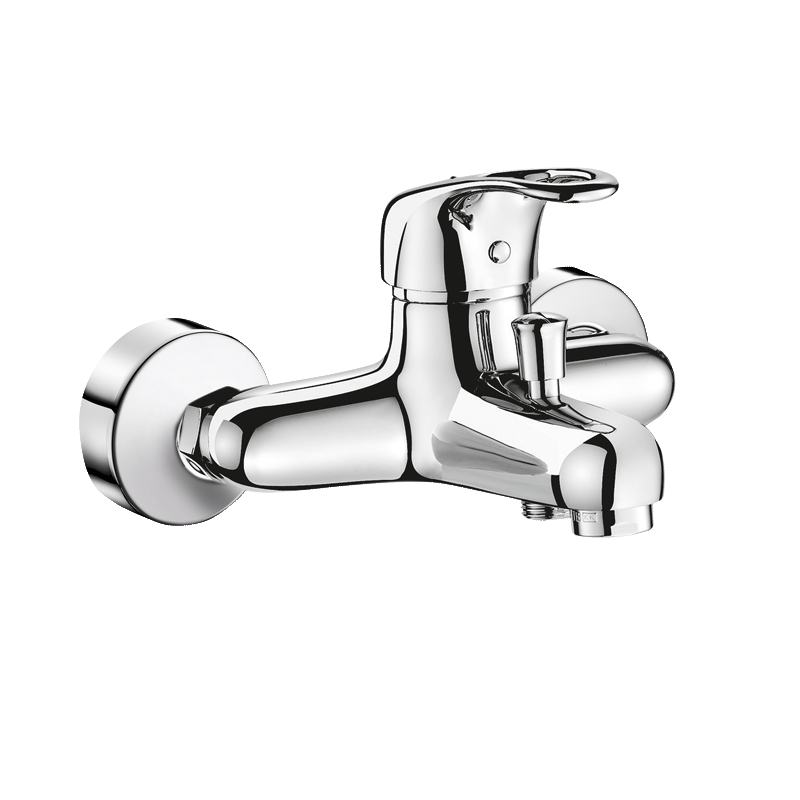

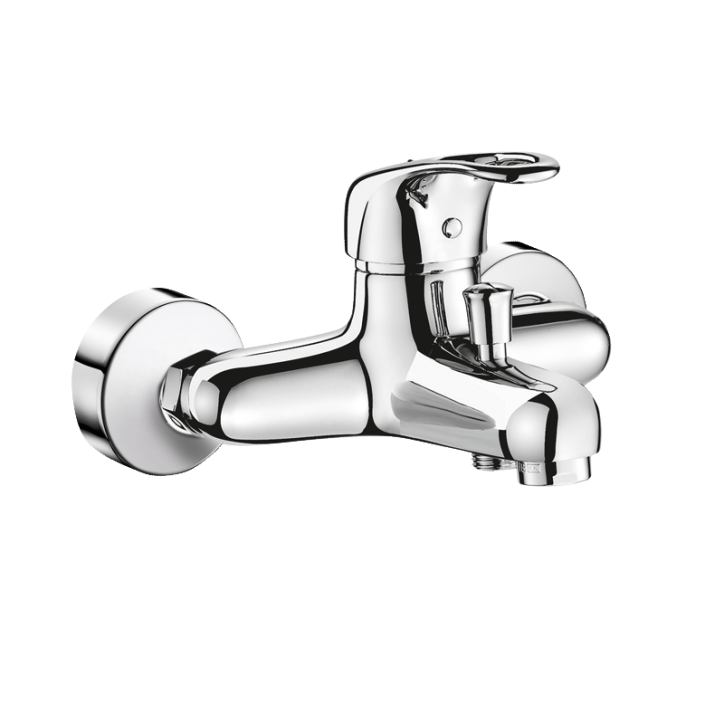

Wall-mtd shower-bath mixer

Ref. 2252S
Mechanical shower mixer with sculptured control lever
Wall-mtd shower-bath mixer

Presentation

DESCRIPTION

Wall-mtd shower-bath mixer

Ref. 2252S
Mechanical shower-bath mixer.
Ø 40mm ceramic cartridge with pre-set maximum temperature limiter.
Fitted with and automatic diverter with low pressure lock to maintain the shower position even if the flow rate is too low.
High sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Chrome-plated brass body.
Mixer supplied with offset standard connectors, M1/2" M3/4".
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Confort - Ergonomie - Déclenchement souple

Ergonomic sculptured lever for an easier grip

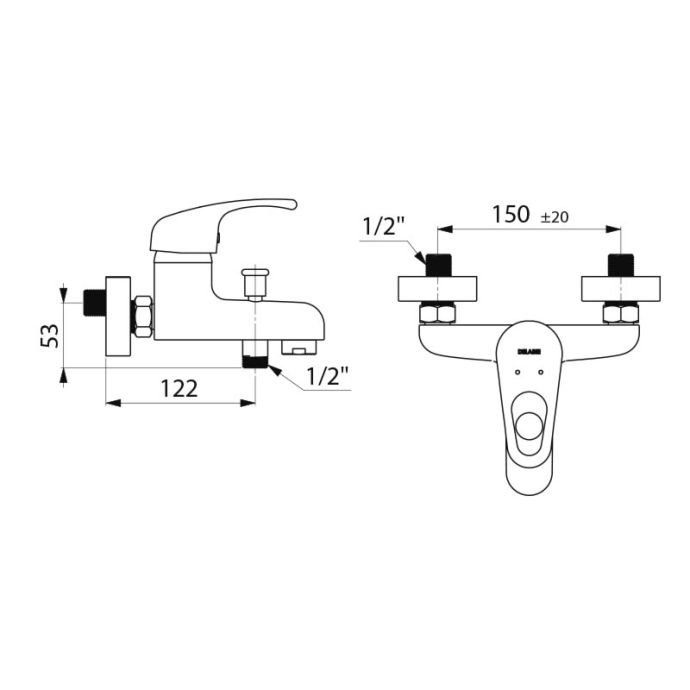

Characteristics

TECHNICAL CHARACTERISTICS

Wall-mtd shower-bath mixer

Ref. 2252S
Connector M1/2"
Height 138mm
Finish Chrome-plated brass
Certificates Logo Belgaqua ACS
Warranty 30-Year
Repairability
Wall-mtd shower-bath mixer
Ref. 2252S

Downloads

DOWNLOADS

Mitigeur bain-douche mural

Ref. 2252S

To download one or several documents linked to this product, please select the type of file you require :

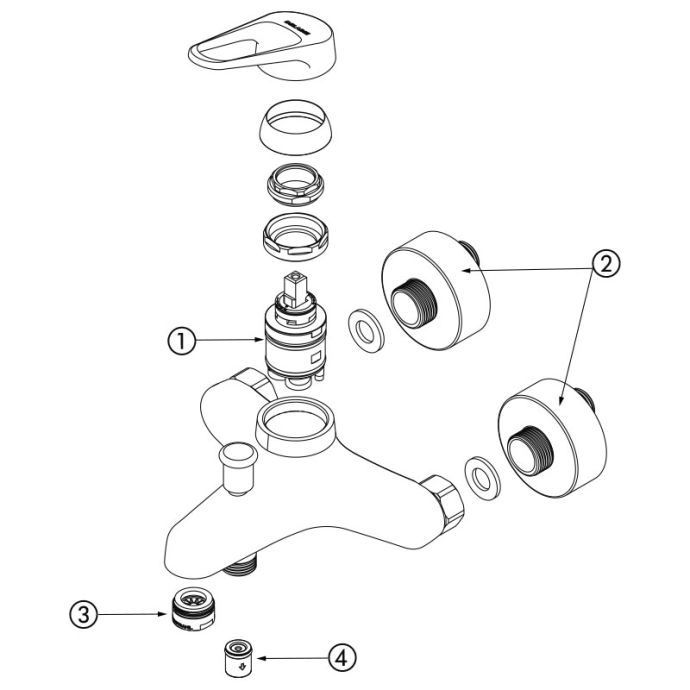

Spare parts

SPARE PARTS

Wall-mtd shower-bath mixer

Ref. 2252S
1. NS262
Ø35mm ceramic cartridge
2. 856794.2P
Offset union
3. 921024.2P
Star-shaped flow straightener
4. 900015
Non-return valve
