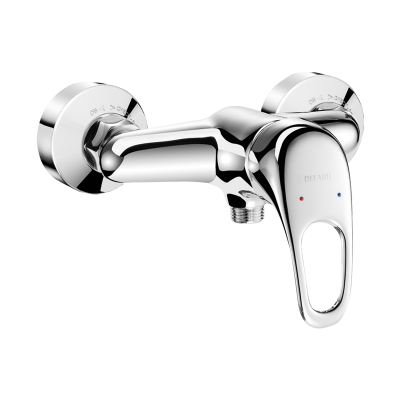

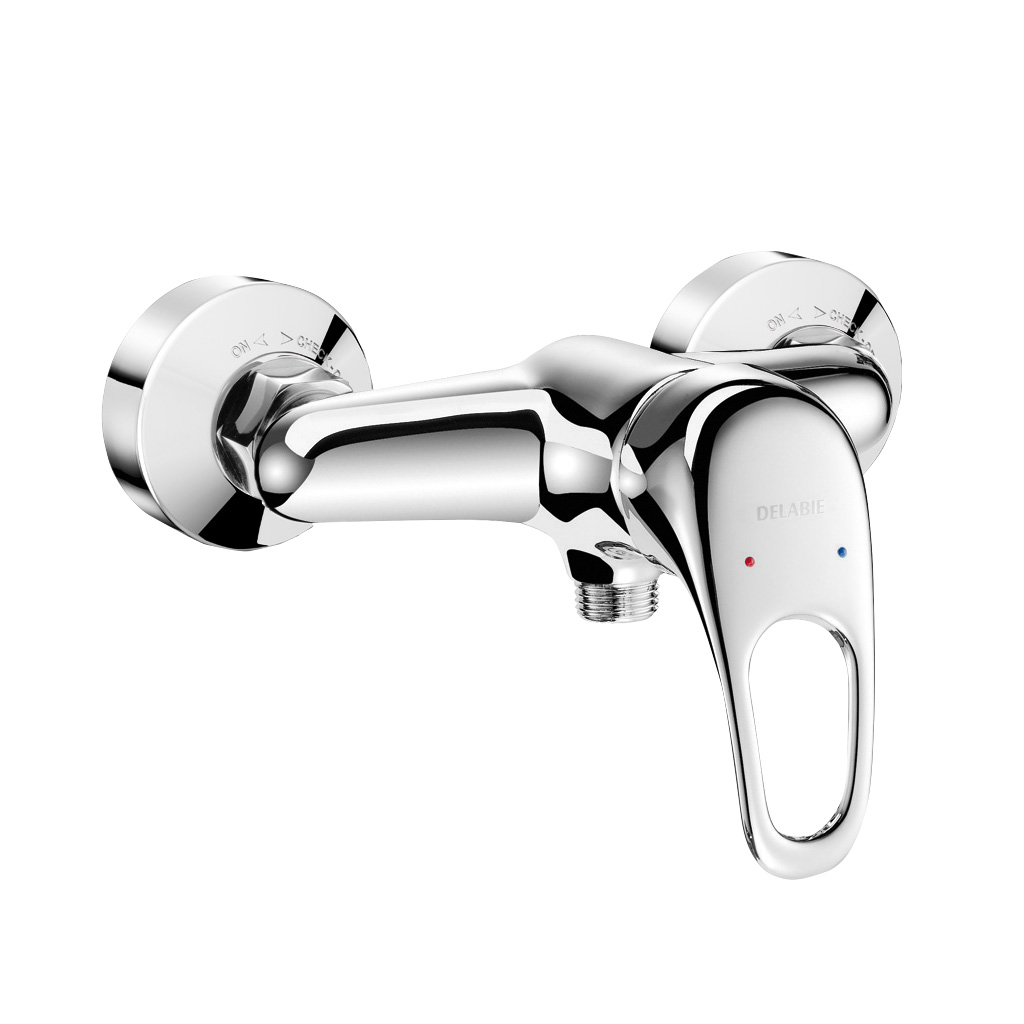

Mechanical shower mixer

Ref. 2239
Wall-mounted single control mixer, sculptured control lever
See variants See variants
Mechanical shower mixer

Presentation

DESCRIPTION

Mechanical shower mixer

Ref. 2239
Wall-mounted single control mechanical shower mixer.
Ø 40mm classic ceramic cartridge with pre-set maximum temperature limiter.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK wall connectors, M1/2" M3/4".
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Confort - Ergonomie - Déclenchement souple

Ergonomic: sculptured lever is easy to grip

Economie d'eau

Water savings: flow rate regulated at 9 lpm

Characteristics

TECHNICAL CHARACTERISTICS

Mechanical shower mixer

Ref. 2239

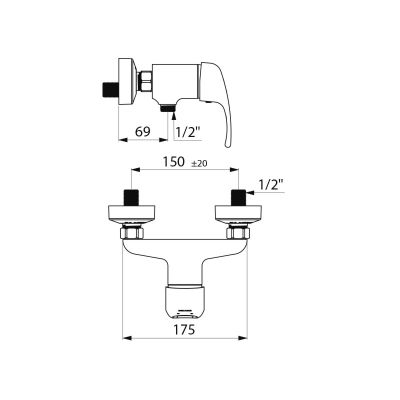

Connector M1/2"
Width 175mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo NF SINTEF Logo PZH Logo DoP
Warranty 30-Year
Repairability
Mechanical shower mixer
Ref. 2239

Downloads

DOWNLOADS

Mechanical shower mixer

Ref. 2239

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Mechanical shower mixer

Ref. 2239
1. 855755.2P
Offset connectors
2. N109AG75
Ø40mm ceramic cartridge

VARIANTS

2539EP EP cartridge - Long sculptured lever - STOP/CHECK connectors
2539EPS EP cartridge - Long sculptured lever - Standard connectors
2239EP EP cartridge - Short sculptured lever - STOP/CHECK connectors
2239EPS EP cartridge - Short sculptured lever - standard connectors
2539 Standard cartridge - Long sculptured lever -STOP/CHECK connectors
2539S Standard cartridge - Long sculptured lever -Standard connectors
2239S Standard cartridge - Short sculptured lever - standard connectors
Ergonomic: shower mixer with sculptured lever which is easy to grip
Ergonomic: shower mixer with sculptured lever which is easy to grip
