DESCRIPTION

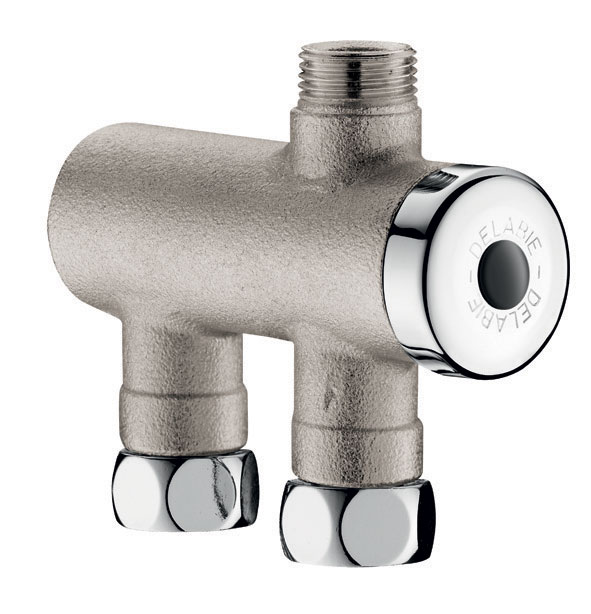

PREMIX NANO thermostatic mixing valve
Ref. 732012Thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of hot or cold water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Nickel-plated body, inlets F3/8" and outlet M3/8".
30-year warranty.
For 1 to 2 taps or 1 shower.
Anti-scalding safety: automatic water shut-off in case of hot or cold water supply failure.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Non-return valves and filters.
Minimum flow rate for operation: 3 lpm.
Thermal shocks are possible.
Nickel-plated body, inlets F3/8" and outlet M3/8".
30-year warranty.
ADVANTAGES
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
Automatic shut-off if hot or cold water fails
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Temperature stability
![Maintenance aisée - Installation aisée](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Accessible filters and non-return valves
![Endurance - Fiabilité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
Thermo-reactive cell
TECHNICAL CHARACTERISTICS
PREMIX NANO thermostatic mixing valve
Ref. 732012Connector | 3/8" |
Technology | Thermostatic |
Height | 70mm |
Length | 75mm |
Finish | nickel-plated |
Certificates |
![]() ![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
732016 | Chrome-plated body - Ø 15mm compression fittings | ||
---|---|---|---|
732115 | Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8" | ||
732116 | Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8" | ||
732216 | Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8" | ||
732230 | Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8" | ||
732515 | Connection kit for thermostatic mixing valves |
