SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Ref. 2921TEP

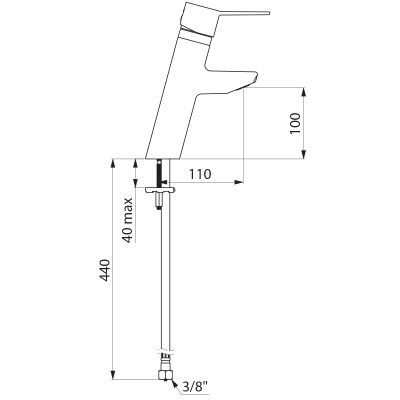

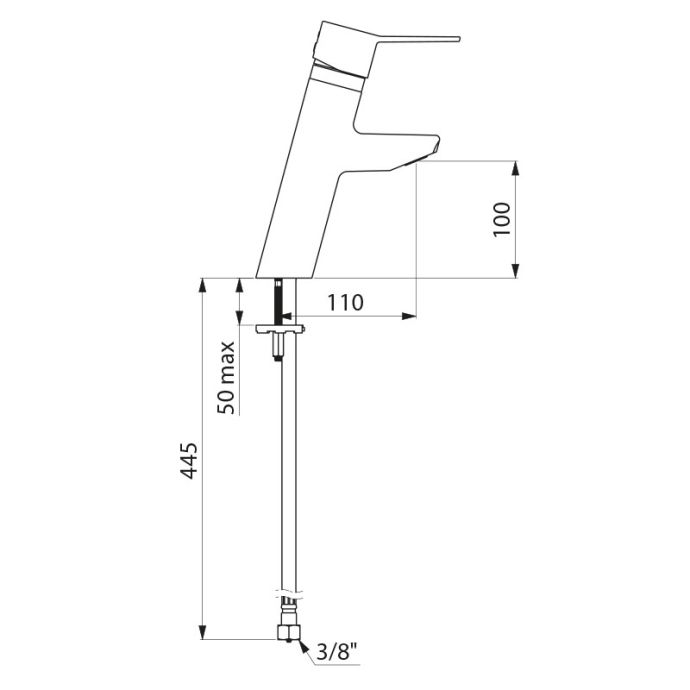

Single hole mechanical mixer H. 100mm L. 110mm
SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Ref. 2921TEP
Provisional availability 2nd half
2024
.
Please contact the sales office to check availability.
Deck-mounted mechanical basin mixer with pressure-balancing.
Single hole mixer with spout H. 100mm L. 110mm fitted with BIOSAFE hygienic outlet.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Spout with a tube with a smooth interior, no niches where bacteria can develop, and low water volume.
The speed with which the water flows through the tube considerably reduces biofilm development.
Thermal shocks are possible without removing the lever or shutting off the cold water supply.
Body with very flow water volume (reduces bacterial development).
Flow rate regulated at 5 lpm.
Solid control lever.
No pop-up waste.
F3/8" PEX flexibles with filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW supply fails

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: body with very low water volume

Sécurité anti-brûlure

Thermal shock without removing the control lever

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Ref. 2921TEP
Connector F3/8"
Technology SECURITHERM EP BIOSAFE mechanical mixer
Drop height 100mm
Spout length 110mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates Logo Belgaqua ACS Logo WRAS
Warranty 30-Year

Downloads

DOWNLOADS

SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Ref. 2921TEP

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

2921LEP EP cartridge - Hygiene lever - no pop-up waste
2920LEP EP cartridge - Hygiene lever - pop-up waste
2920TEP EP cartridge - solid lever - pop-up waste
2921L Standard cartridge - Hygiene lever - no pop-up waste
2921T Standard cartridge - solid lever - no pop-up waste
2920L Standard cartridge - Hygiene lever - pop-up waste
2920T Standard cartridge - solid lever - pop-up waste

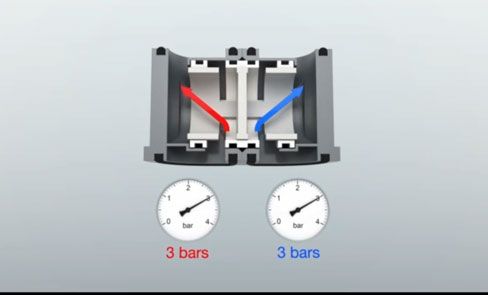

Pressure-balancing: anti-scalding safety and temperature stability
Pressure-balancing: anti-scalding safety and temperature stability

VARIANTS

2921LEP EP cartridge - Hygiene lever - no pop-up waste
2920LEP EP cartridge - Hygiene lever - pop-up waste
2920TEP EP cartridge - solid lever - pop-up waste
2921L Standard cartridge - Hygiene lever - no pop-up waste
2921T Standard cartridge - solid lever - no pop-up waste
2920L Standard cartridge - Hygiene lever - pop-up waste
2920T Standard cartridge - solid lever - pop-up waste
Pressure-balancing: anti-scalding safety and temperature stability
Pressure-balancing: anti-scalding safety and temperature stability
