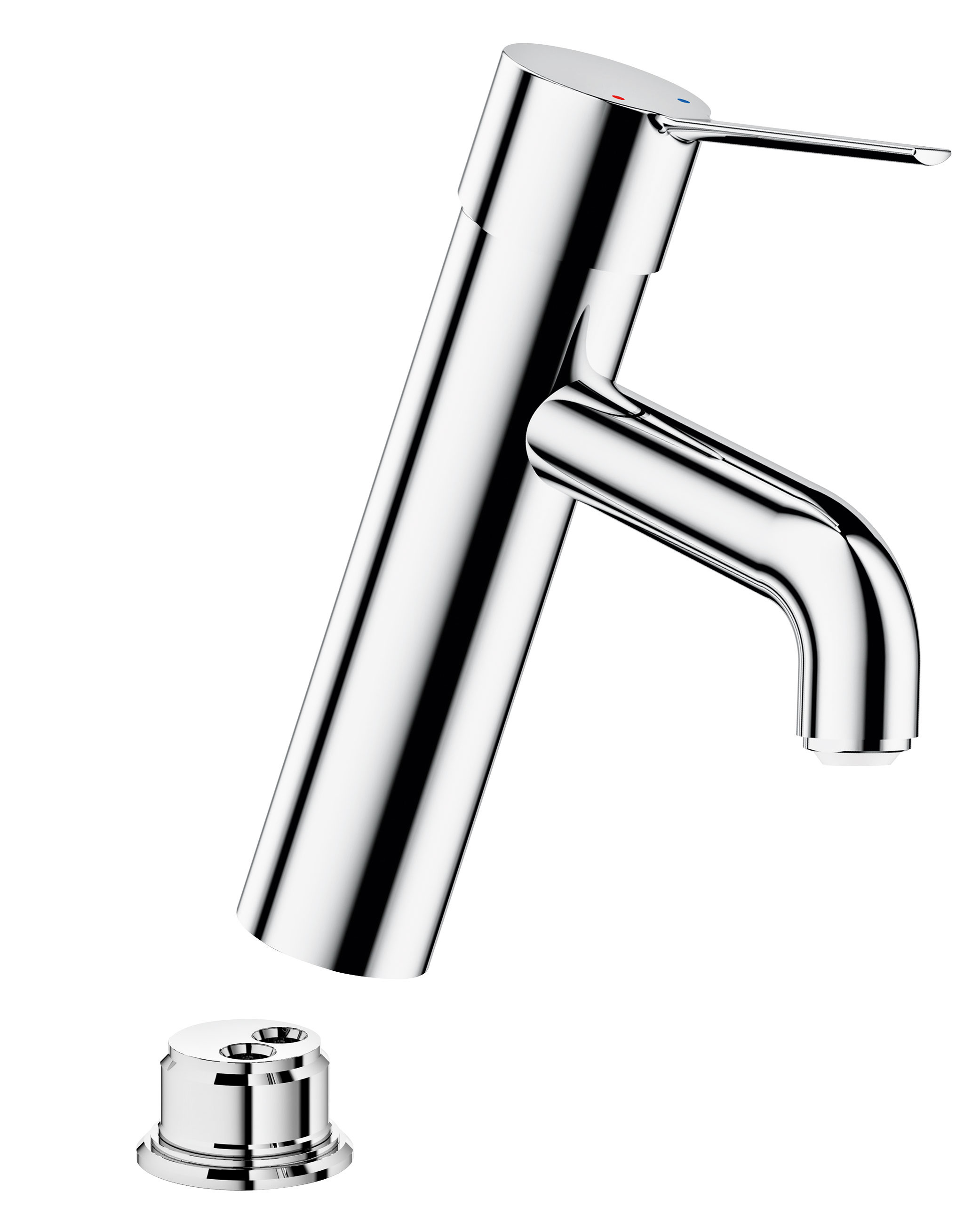

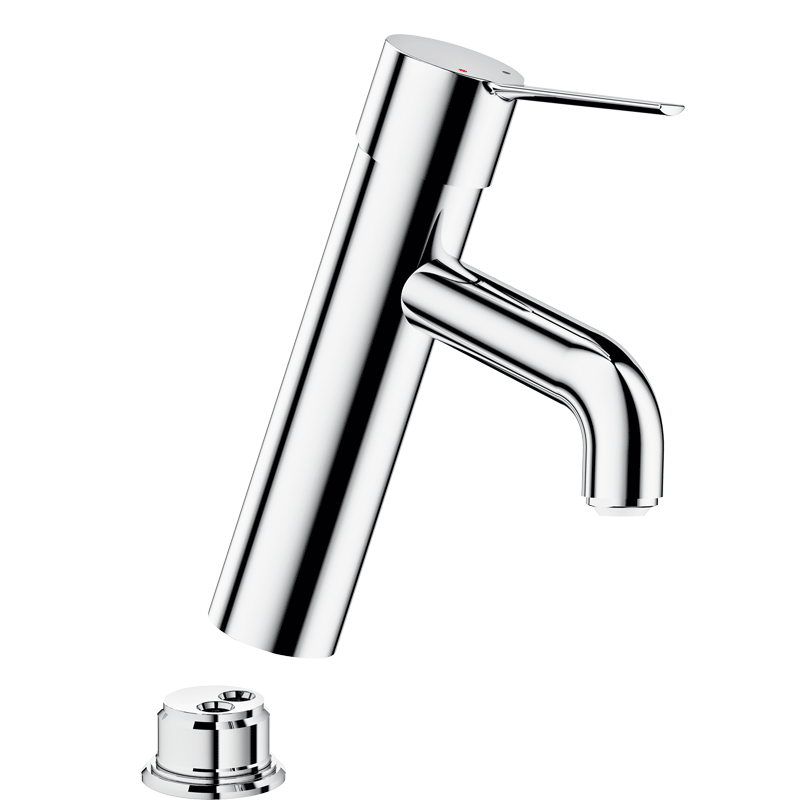

SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 28211TEP
Single hole removable mechanical mixer H.95mm L.120mm, solid lever
Single hole removable mechanical mixer H.95mm L.120mm, solid lever
DESCRIPTION
SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 28211TEPDeck-mounted mechanical basin mixer with pressure-balancing.

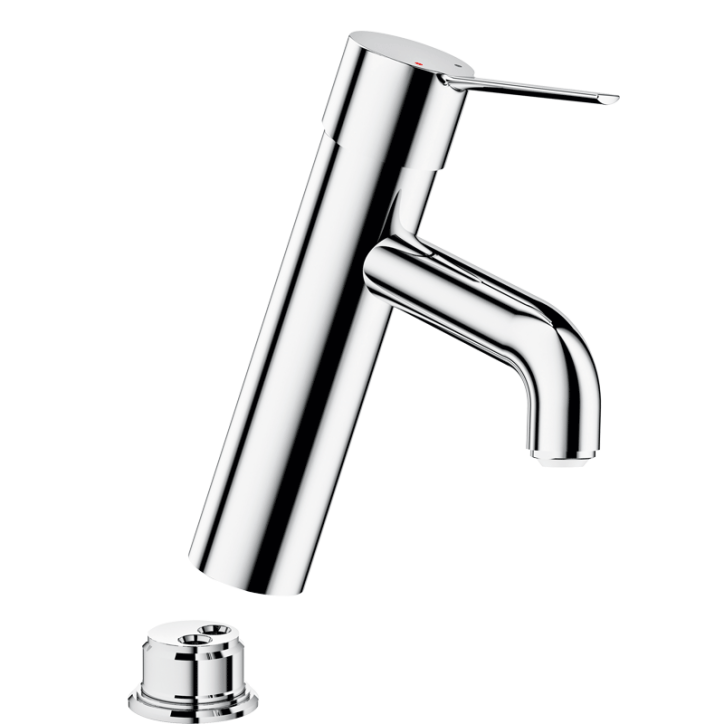

BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a BIOSAFE hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Thermal shocks are possiible without removing the control lever or shutting off the cold water supply.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of variations in pressure and flow rate in the system.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever L. 150mm.
No pop-up waste.
F3/8" PEX flexibles.
Filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing, ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a BIOSAFE hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Thermal shocks are possiible without removing the control lever or shutting off the cold water supply.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of variations in pressure and flow rate in the system.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever L. 150mm.
No pop-up waste.
F3/8" PEX flexibles.
Filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing, ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES
HW flow rate reduced if CW fails

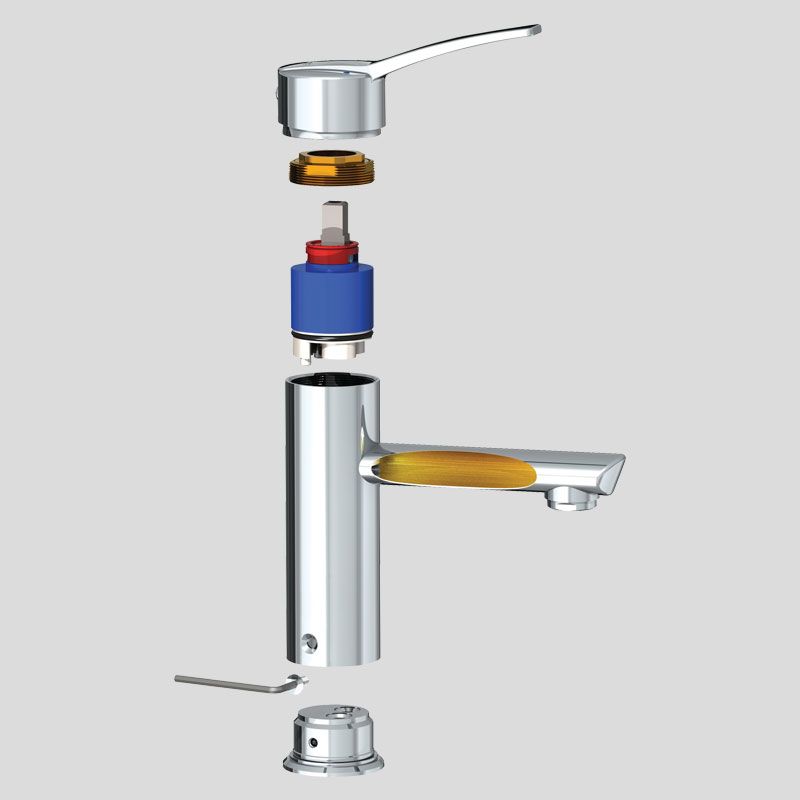

Hygiene: remove for internal descaling
Hygiene: smooth interior reduces bacteria
EP: reduces temperature variations
TECHNICAL CHARACTERISTICS
SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 28211TEPConnector | F3/8" |
Technology | SECURITHERM EP BIOCLIP mixer |

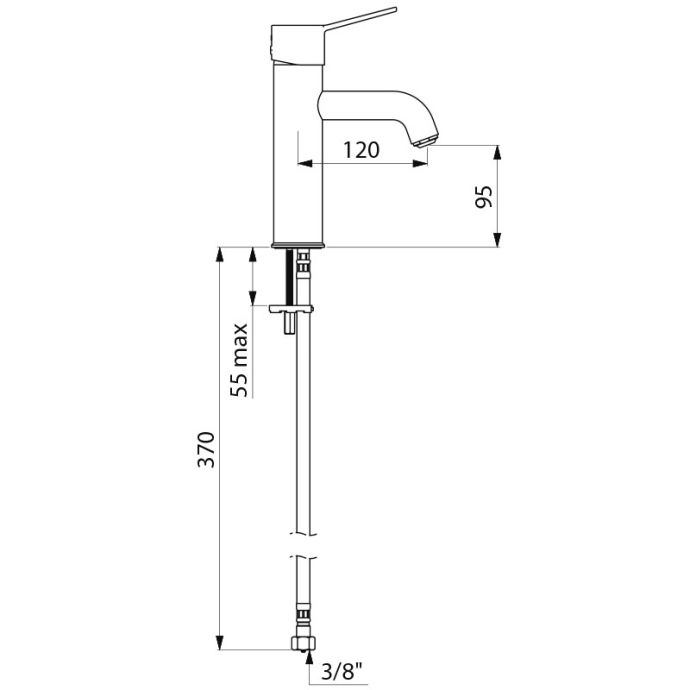

Drop height | 95mm |
Spout length | 120mm |
Flow rate | 5 lpm at 3 bar |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

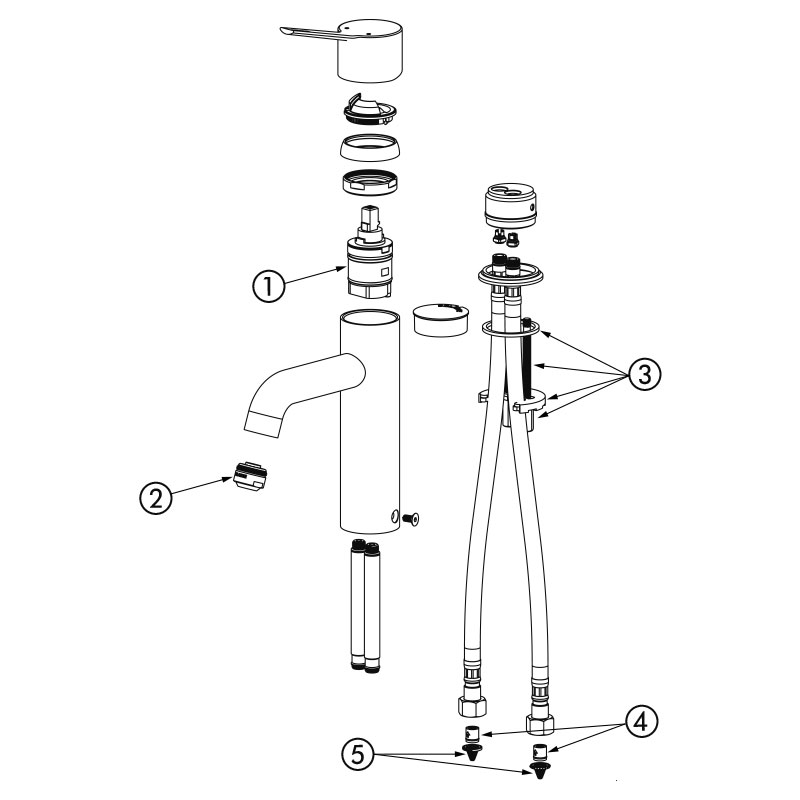

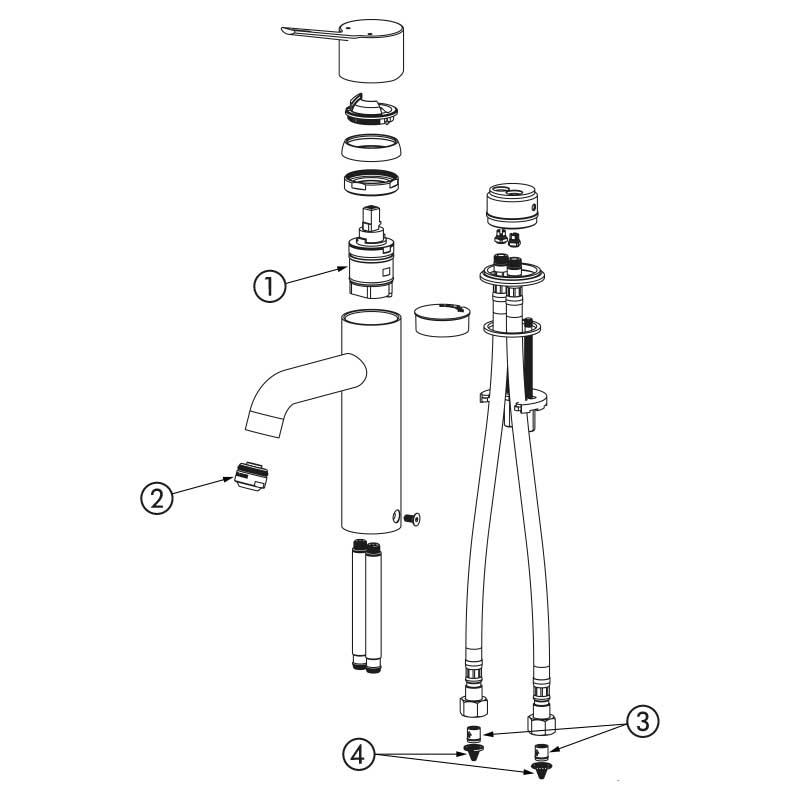

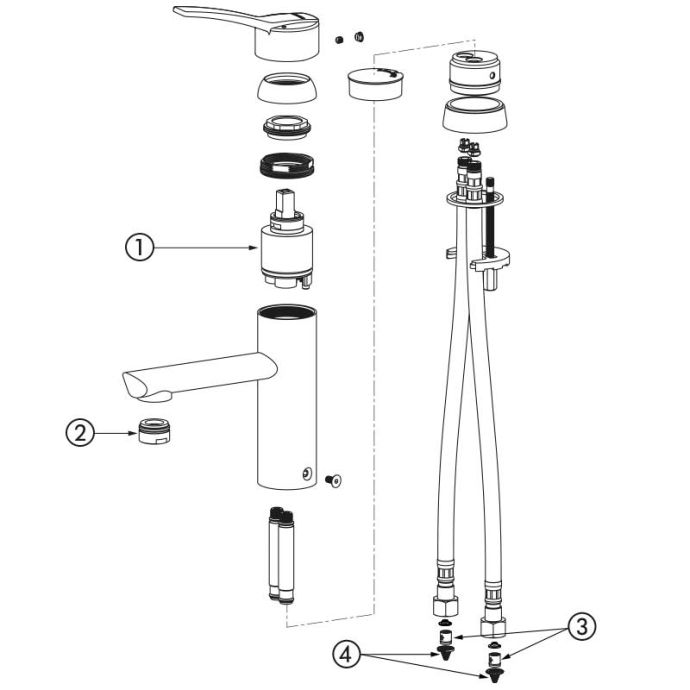

SPARE PARTS
SECURITHERM EP BIOCLIP pressure-balancing basin mixer
Ref. 28211TEP1. | N252 |
|
Ø40mm ceramic pressure balancing EP cartridge with base |
2. | 921024.2P |
|
Star-shaped flow straightener |
3. | 2510SES |
|
Locking kit |
4. | 900010 |
|
Non-return valve |
5. | 60438.10P |
|
Conical filter |
VARIANTS
2821LEP | EP cartridge - Hygiene lever - no waste - stopcocks - flexibles | ||
---|---|---|---|
2821TEP | EP cartridge - solid lever - no waste - stopcocks - flexibles | ||
2820LEP | EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
2820TEP | EP cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
28211LEP | Ep cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles | ||
28201LEP | EP cartridge, Hygiene lever - pop-up waste - no stopcocks - flexibles | ||
28201TEP | EP cartridge - solid lever - pop-up waste - no stopcocks - flexibles | ||
2821L | Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles | ||
2821T | Standard cartridge - solid lever - no waste - stopcocks - flexibles | ||
2820L | Std cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
2820T | Std cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
28211L | Std cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles | ||
28211T | Standard cartridge - solid lever - no waste, no stopcocks - flexibles | ||
28201L | Std cartridge, Hygiene lever - pop-up waste - no stopcocks, flexibles | ||
28201T | Std cartridge - solid lever - pop-up waste - no stopcocks - flexibles |
VARIANTS
2821LEP | EP cartridge - Hygiene lever - no waste - stopcocks - flexibles | ||
---|---|---|---|
2821TEP | EP cartridge - solid lever - no waste - stopcocks - flexibles | ||
2820LEP | EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
2820TEP | EP cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
28211LEP | Ep cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles | ||
28201LEP | EP cartridge, Hygiene lever - pop-up waste - no stopcocks - flexibles | ||
28201TEP | EP cartridge - solid lever - pop-up waste - no stopcocks - flexibles | ||
2821L | Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles | ||
2821T | Standard cartridge - solid lever - no waste - stopcocks - flexibles | ||
2820L | Std cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
2820T | Std cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
28211L | Std cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles | ||
28211T | Standard cartridge - solid lever - no waste, no stopcocks - flexibles | ||
28201L | Std cartridge, Hygiene lever - pop-up waste - no stopcocks, flexibles | ||
28201T | Std cartridge - solid lever - pop-up waste - no stopcocks - flexibles |
