SECURITHERM EP BIOCLIP pressure-balancing basin mixer

Ref. 2820TEP
Single hole removable mechanical mixer H.95mm L.120mm, solid lever
SECURITHERM EP BIOCLIP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP BIOCLIP pressure-balancing basin mixer

Ref. 2820TEP
Deck-mounted mechanical basin mixer with pressure-balancing.

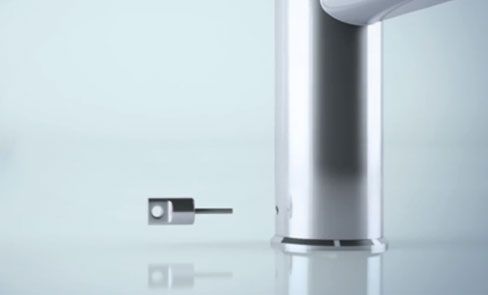

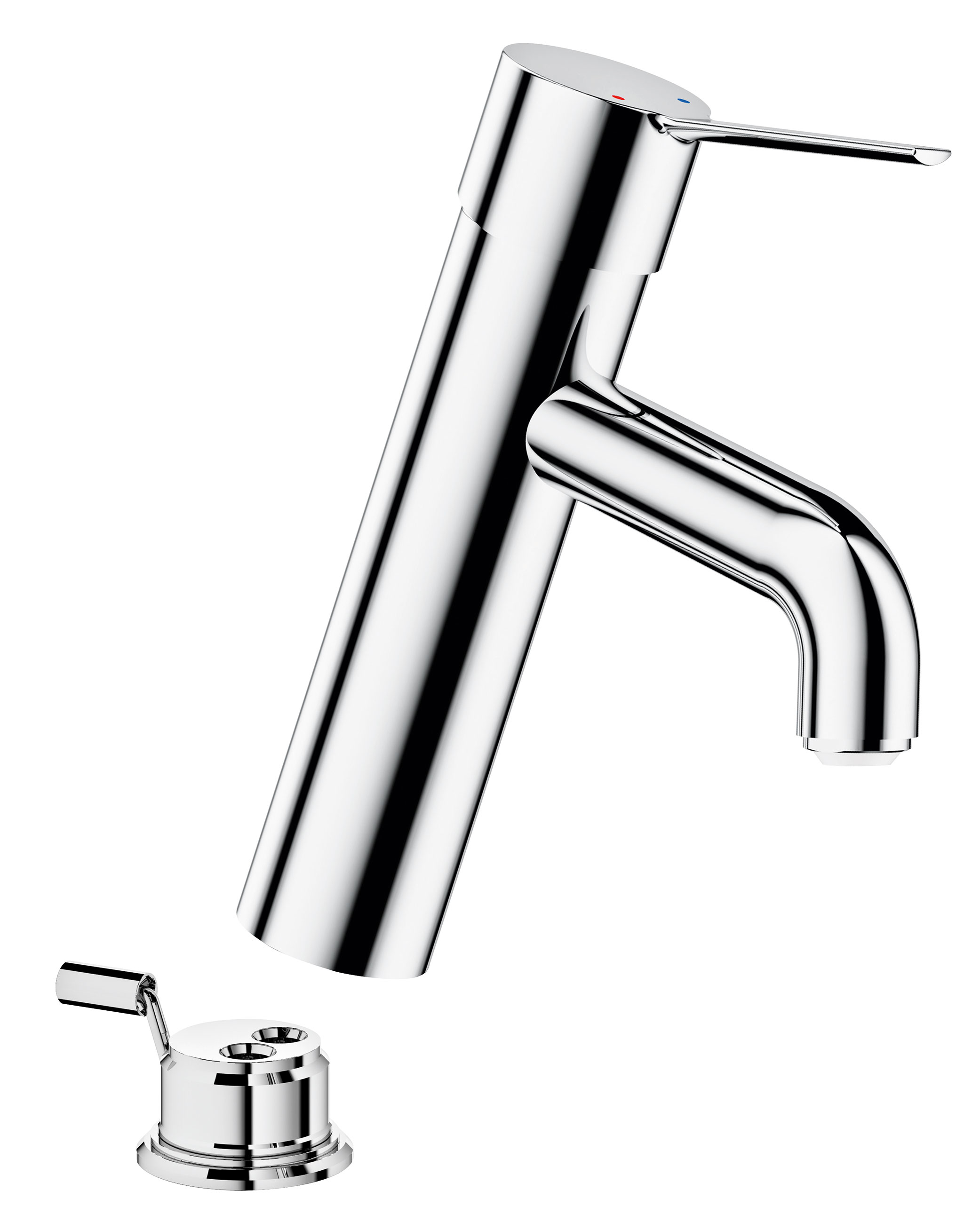

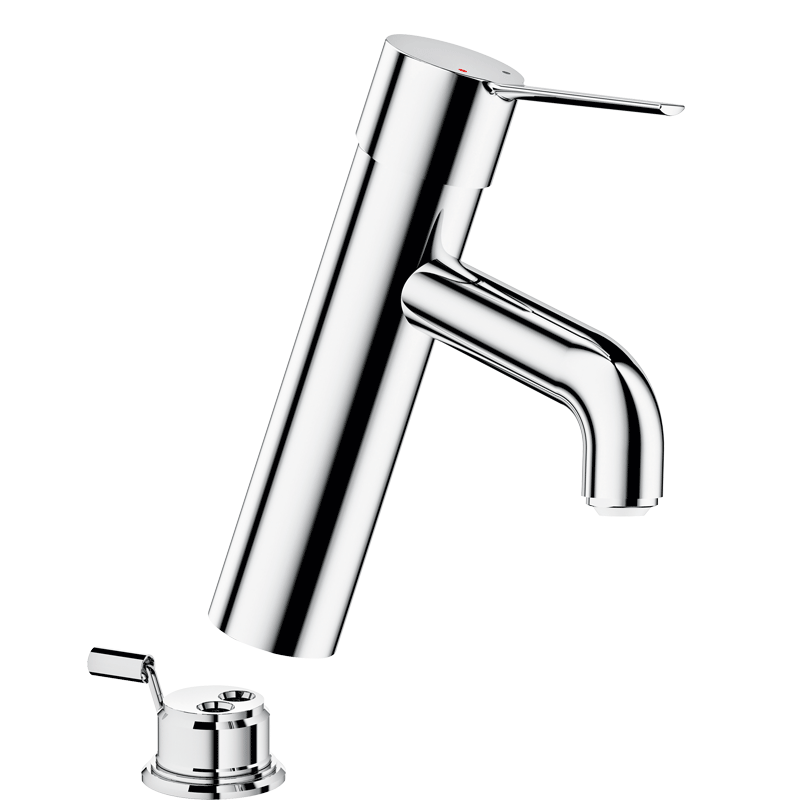

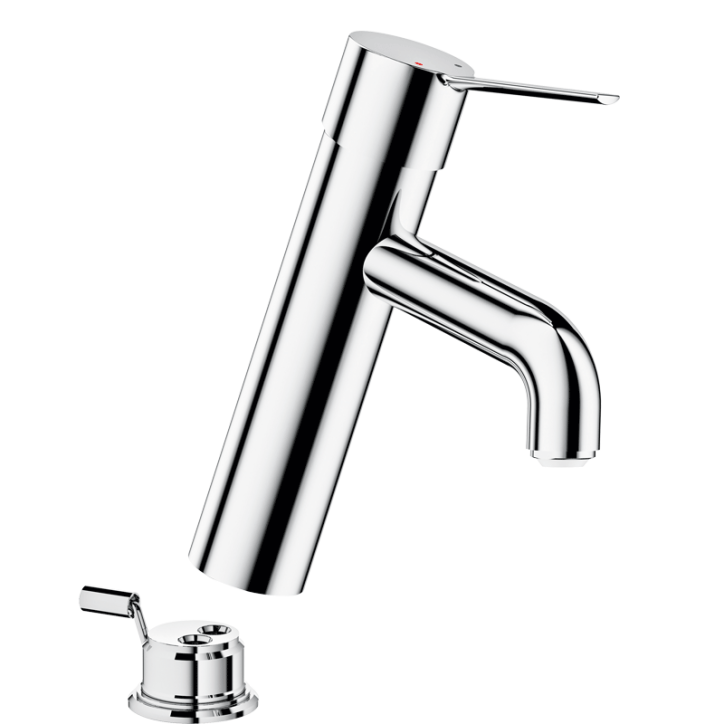

BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a hygienic BIOSAFE nozzle.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.

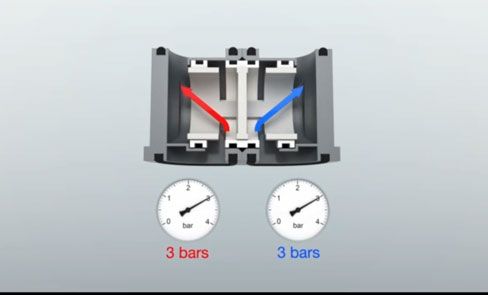

Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of variations in pressure and flow rate in the system.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
Ergonomic, brass pop-up waste 1 1/4".
F3/8" PEX flexibles with stopcocks.
Filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing, ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW fails

Robinetterie déclipsable

Hygiene: remove for internal descaling

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Confort - Ergonomie - Déclenchement souple

EP: reduces temperature variations

Characteristics

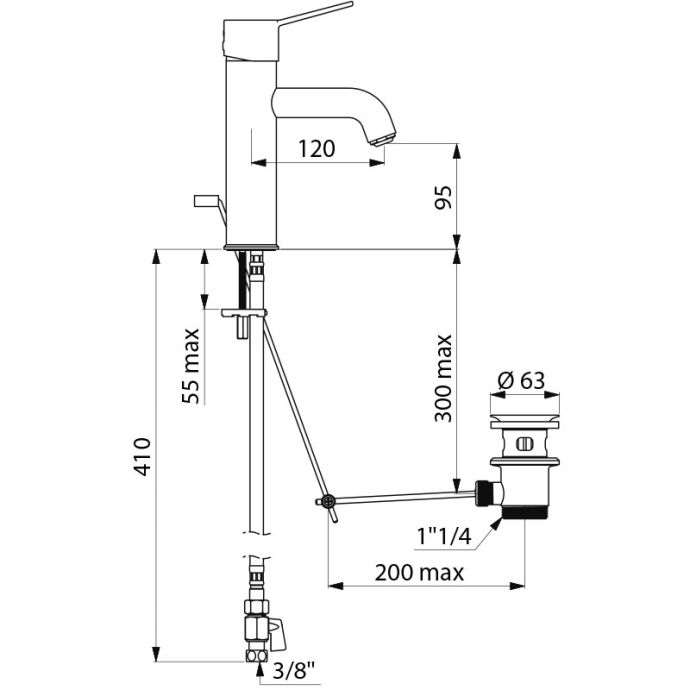

TECHNICAL CHARACTERISTICS

SECURITHERM EP BIOCLIP pressure-balancing basin mixer

Ref. 2820TEP
Connector F3/8"
Technology SECURITHERM EP BIOCLIP
Drop height 95mm
Spout length 120mm
Flow rate 5 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo WRAS Logo HKWSD Logo PZH Logo DoP Logo Belgaqua
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP BIOCLIP pressure-balancing basin mixer

Ref. 2820TEP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

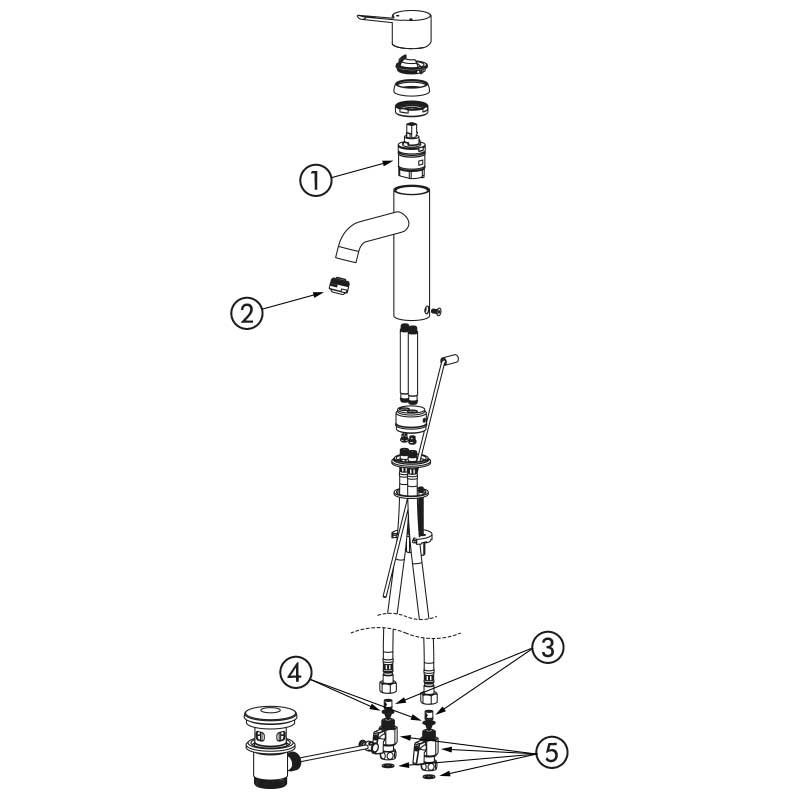

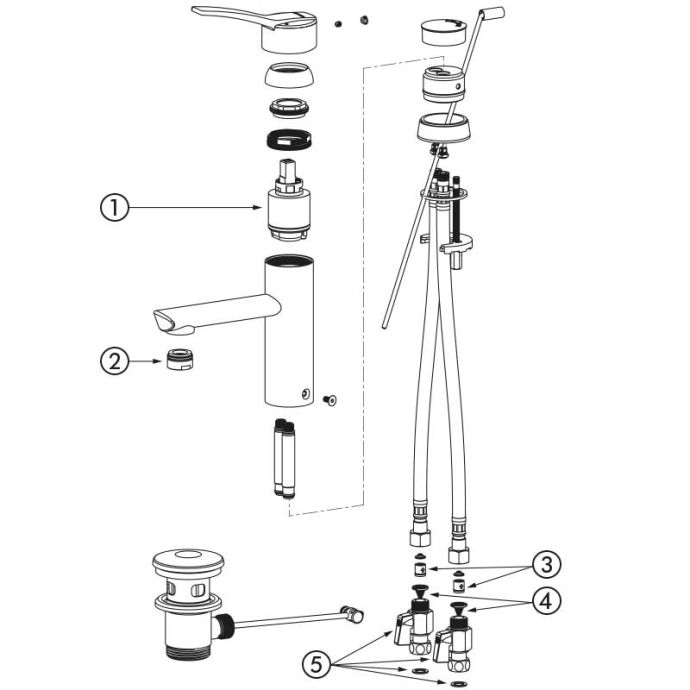

SPARE PARTS

SECURITHERM EP BIOCLIP pressure-balancing basin mixer

Ref. 2820TEP
Before 04/2023
1. N252
Ø40mm ceramic pressure balancing EP cartridge with base
2. 2510SES
Locking kit
3. 921024.2P
Star-shaped flow straightener
4. 900010
Non-return valve
5. 60438.10P
Conical filter
6. 825212
In-line STOP union
From 04/2023
1. N262
Ø35mm ceramic pressure balancing cartridge
2. 922640
BIOSAFE hygienic outlet M24/100
3. 2510SES
Locking kit
4. 900010
Non-return valve
5. 60438.10P
Conical filter
6. 825212
In-line STOP union

VARIANTS

2821LEP EP cartridge - Hygiene lever - no waste - stopcocks - flexibles
2821TEP EP cartridge - solid lever - no waste - stopcocks - flexibles
2820LEP EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles
28211LEP Ep cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles
28211TEP EP cartridge - solid lever - no pop-up waste, no stopcocks - flexibles
28201LEP EP cartridge, Hygiene lever - pop-up waste - no stopcocks - flexibles
28201TEP EP cartridge - solid lever - pop-up waste - no stopcocks - flexibles
2821L Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles
2821T Standard cartridge - solid lever - no waste - stopcocks - flexibles
2820L Std cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles
2820T Std cartridge - solid lever - pop-up waste - stopcocks - flexibles
28211L Std cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles
28211T Standard cartridge - solid lever - no waste, no stopcocks - flexibles
28201L Std cartridge, Hygiene lever - pop-up waste - no stopcocks, flexibles
28201T Std cartridge - solid lever - pop-up waste - no stopcocks - flexibles
