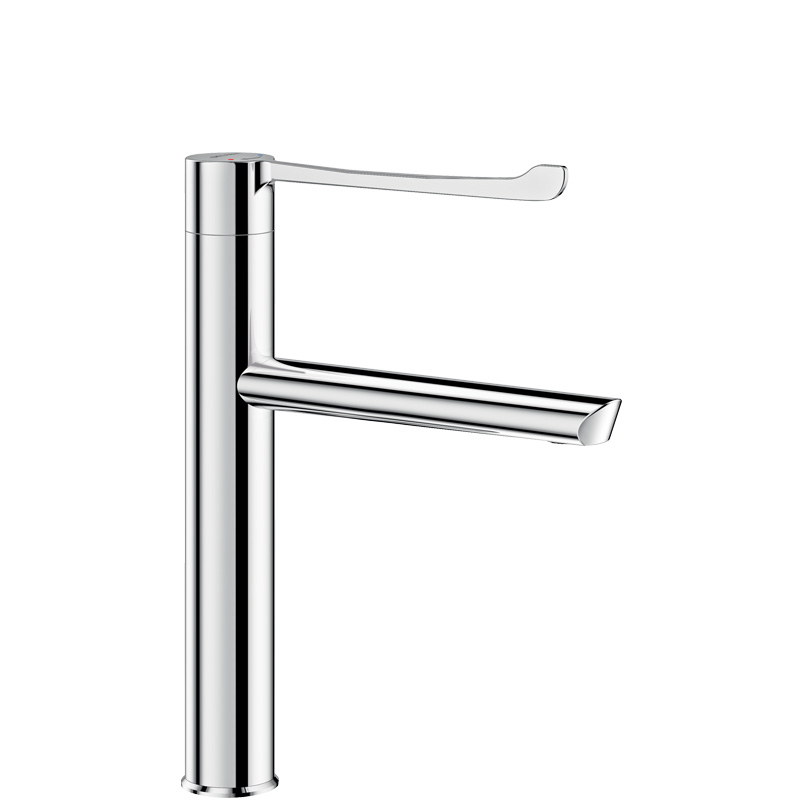

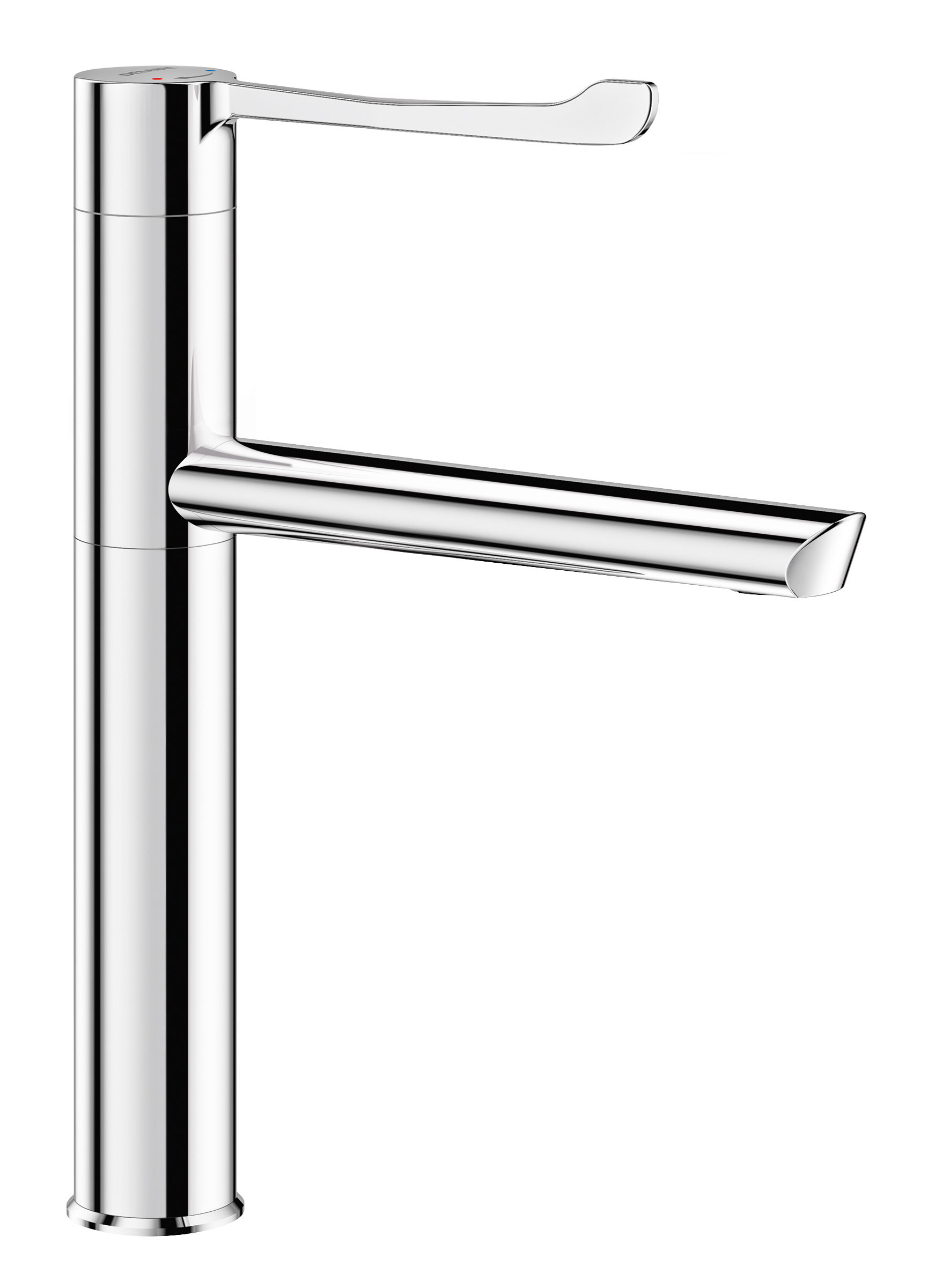

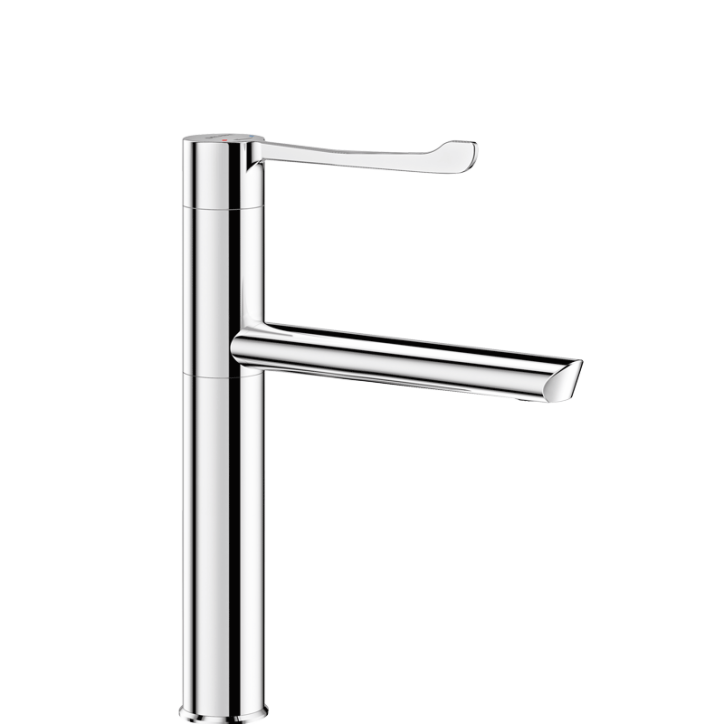

BIOSAFE sequential mechanical basin mixer

Ref. 2665T5

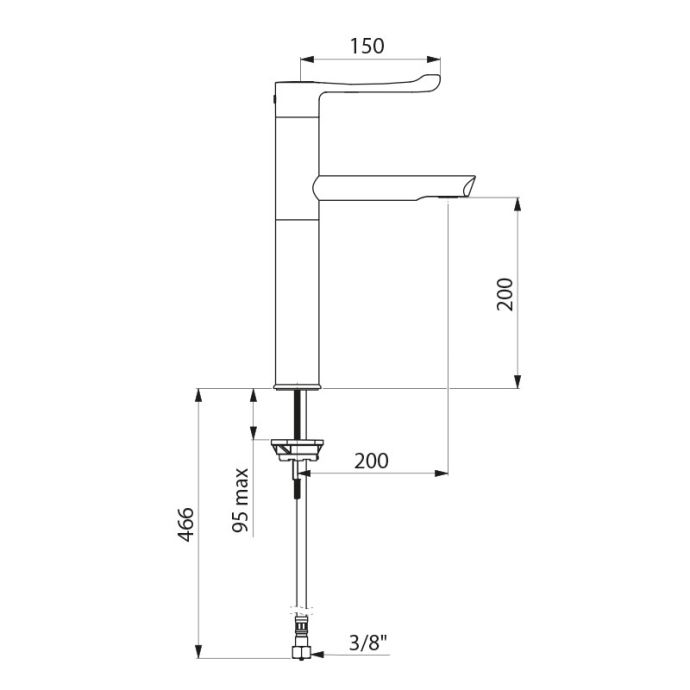

Tall single hole sequential mixer H. 200mm L. 200mm
BIOSAFE sequential mechanical basin mixer

Presentation

DESCRIPTION

BIOSAFE sequential mechanical basin mixer

Ref. 2665T5
Provisional availability 2nd half
2024
.
Please contact the sales office to check availability.
Deck-mounted tall mechanical basin mixer.
Sequential mechanical mixer: opens and closes with cold water over a range of 70°.
Single hole mixer with fixed spout H. 200mm L. 200mm.
Tall mixer with BIOSAFE hygienic outlet suitable for fitting a BIOFIL terminal filter.
Ø 35 sequential ceramic cartridge with pre-set maximum temperature limiter.
Spout with internal tube with smooth interior, with nowhere for bacteria to develop and very low water volume.
The speed of the water inside this tube reduces biofilm development considerably.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Body with very low volume of water (fewer niches where bacteria can develop).
Flow rate regulated at 5 lpm.
Hygiene control lever L. 200mm requires no manual contact.
PEX flexibles F3/8".
No risk of cross flow between the hot and cold water.
No non-return valves on teh inlets.
Fixings reinforced by 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Sequential: opens/closes with cold water

Sécurité anti-brûlure

Thermal shock without removing the control lever

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: controls biofilm

Confort - Ergonomie - Déclenchement souple

No manual contact: Hygiene control lever

Characteristics

TECHNICAL CHARACTERISTICS

BIOSAFE sequential mechanical basin mixer

Ref. 2665T5

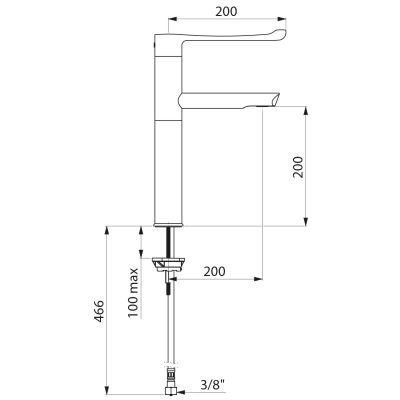

Supply 3/8"
Technology Sequential mechanical mixer
Drop height 200mm
Spout length 200mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates Logo WRAS
Warranty 30-Year

Downloads

DOWNLOADS

BIOSAFE sequential mechanical basin mixer

Ref. 2665T5

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

2664T5 Swivelling spout H. 200mm L. 200mm
2665T1 Fixed spout H. 160mm L. 160mm
2664T1 Swivelling spout H. 160mm L. 160mm
2664T2 Swivelling spout H. 160mm L. 250mm

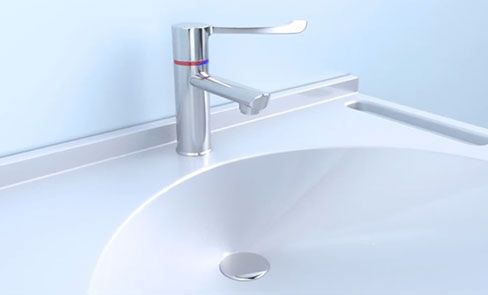

Ergonomic: mixer opens and closes sequentially with cold water
