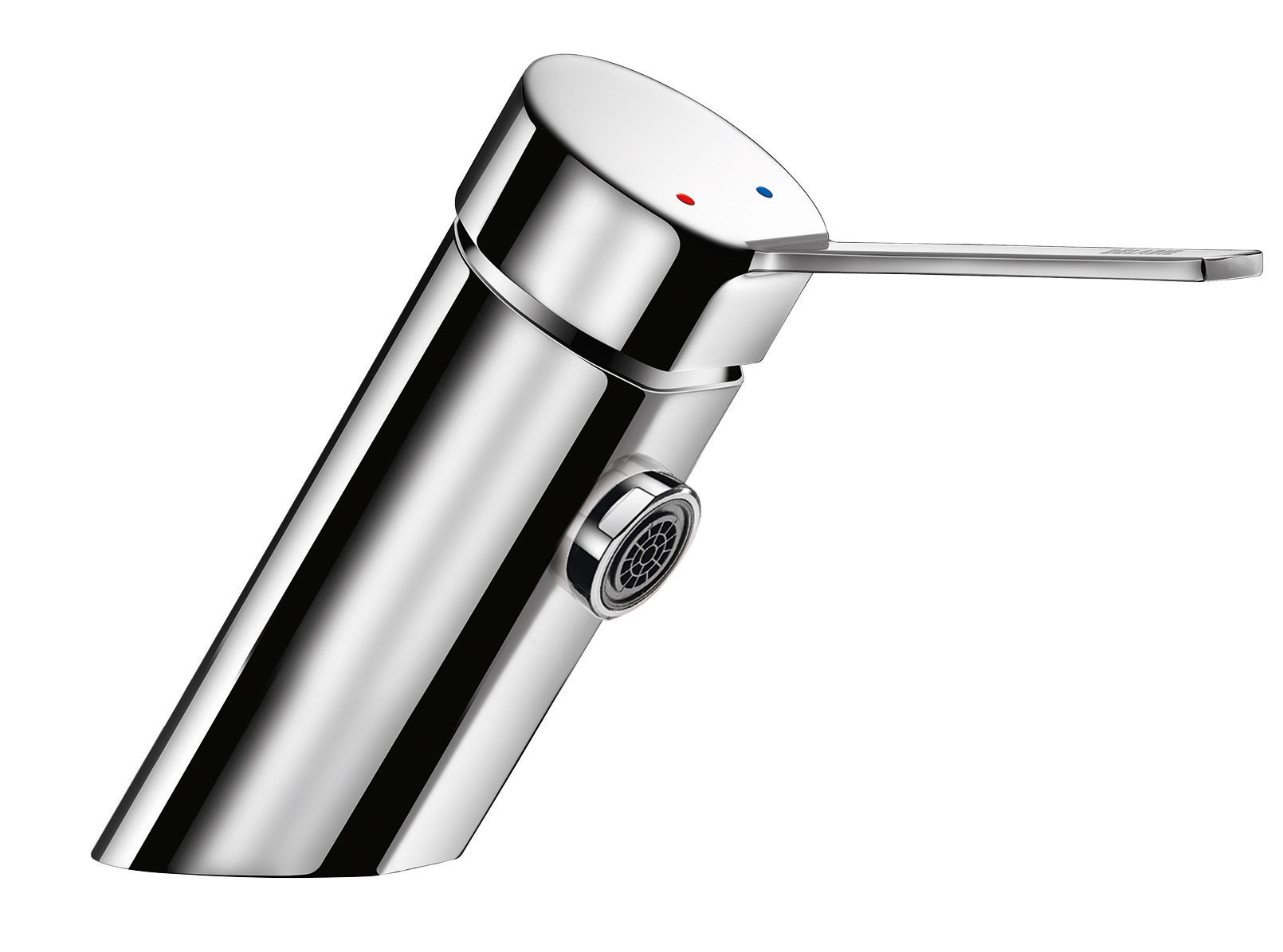

SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Ref. 2621MINIEP
Single hole mechanical mixer with no spout H. 50mm L. 80mm
SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Ref. 2621MINIEP
Deck-mounted mechanical basin mixer with pressure-balancing.

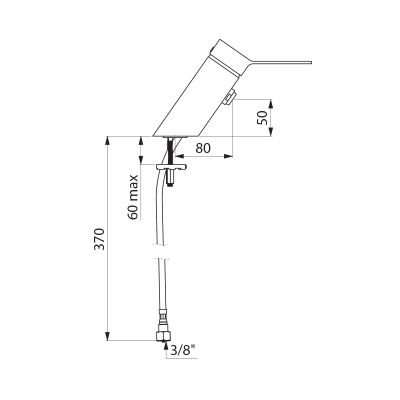

Single hole mechanical mixer H. 50mm L. 80mm.
No spout: hygienic flow straightener integrated into the body.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Securitouch thermal insulation prevents burns.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Mixer body with smooth interior and very low water volume (reduces bacterial development).
Flow rate limited to 4 lpm at 3 bar.
Solid control lever.
No pop-up waste.
PEX flexibles F3/8" with rotating unions with filters and non-return valves.
Fixing reinforced by two stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tails.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW fails

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: mixer with no spout

Sécurité anti-brûlure

Thermal shocks are possible without removing lever

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: body with very low water volume

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Ref. 2621MINIEP
Connector F3/8"
Technology SECURITHERM EP BIOSAFE mechanical mixer
Drop height 50mm
Spout length 80mm
Flow rate 4 lpm at 3 bar
Temperature limiter Yes
Certificates ACS Logo Belgaqua Logo WRAS Logo DIN-DVGW SINTEF Logo PZH Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur de lavabo à équilibrage de pression SECURITHERM EP BIOSAFE

Ref. 2621MINIEP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

SECURITHERM EP BIOSAFE pressure-balancing basin mixer

Ref. 2621MINIEP
After 05/2024:
1. N262
Ø35mm ceramic pressure balancing cartridge
2. 926024
BIOSAFE hygienic outlet M24/100
3. FLEXPEX6
F3/8" rotating PEX flexible hoses
4. 2520SES
Locking kit
5. 900010
Non-return valve
6. 60438.10P
Conical filter

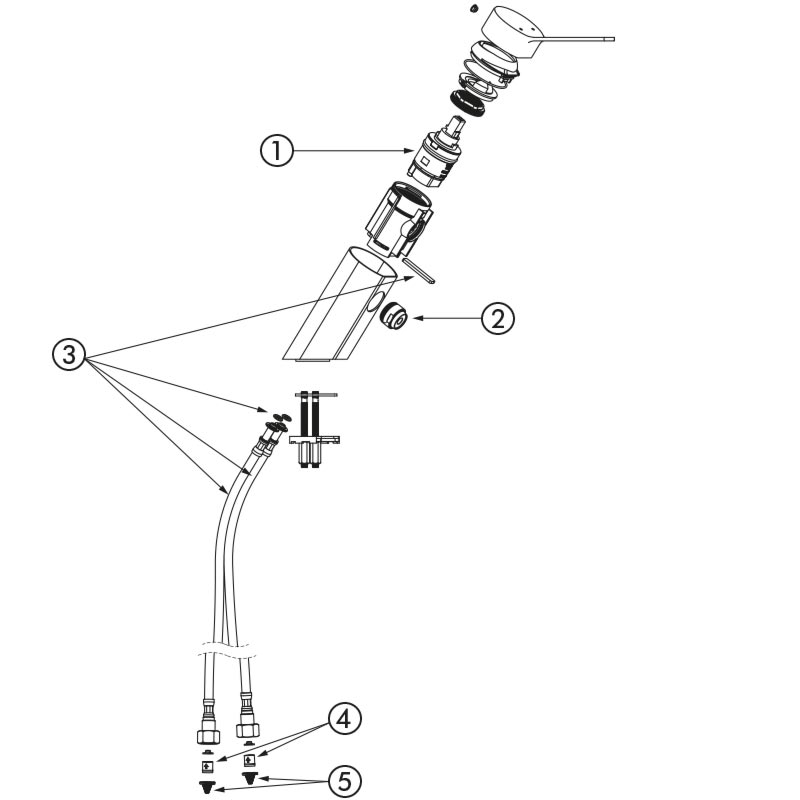

Before 05/2024:
1. N262
Ø35mm ceramic pressure balancing cartridge
2. 926024
BIOSAFE hygienic outlet M24/100
3. FLEXPEX6
F3/8" rotating PEX flexible hoses
4. 2520SES
Locking kit
5. 900010
Non-return valve
6. 60438.10P
Conical filter

VARIANTS

2621EP EP cartridge - no pop-up waste - H. 95mm L. 110mm - Flexibles
26216EP EP cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails
2620EP EP cartridge - pop-up waste - H. 95mm L. 110mm - Flexibles
26216MINIEP EP cartridge - no pop-up waste - H. 50mm L. 80mm - Copper tails
2620MINIEP EP cartridge - pop-up waste - H. 50mm L. 80mm - Flexibles
2621 Standard cartridge - no pop-up waste - H. 95mm L. 110mm - Flexibles
26216 Standard cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails
2621MINI Standard cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles
26216MINI Standard cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles
2620 Standard cartridge - pop-up waste - H. 95mm L. 110mm - Flexibles
2620MINI Standard cartridge - pop-up waste - H. 50mm L. 80mm - Flexibles
