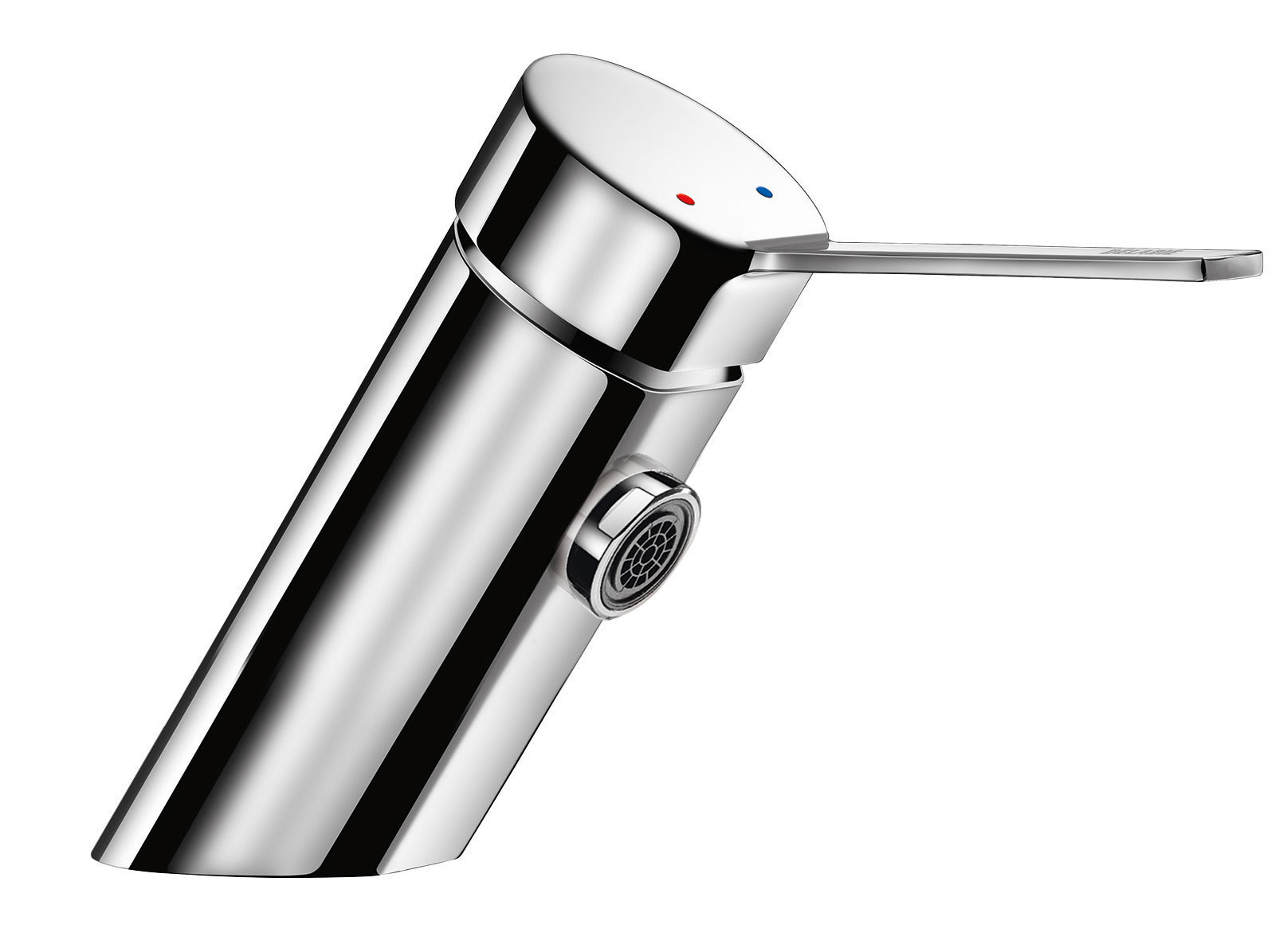

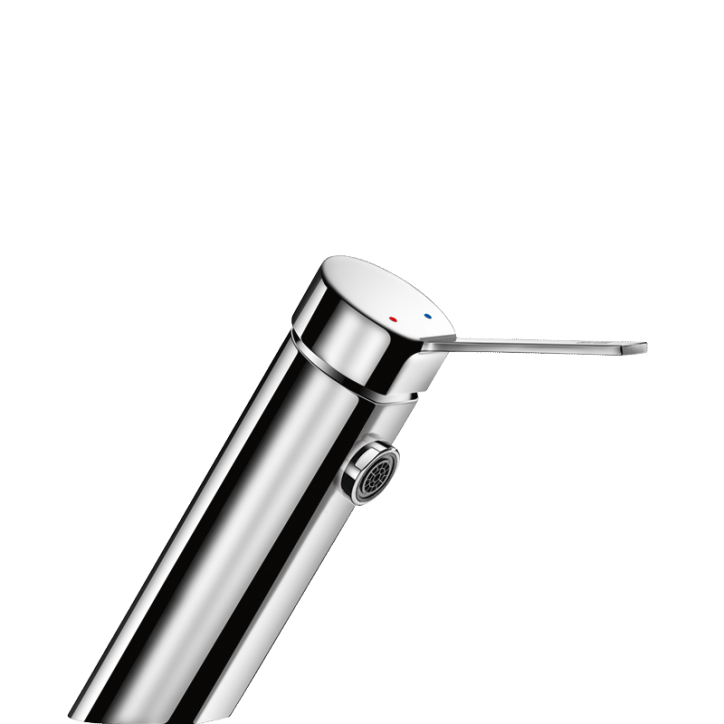

BIOSAFE mechanical basin mixer
Ref. 2621

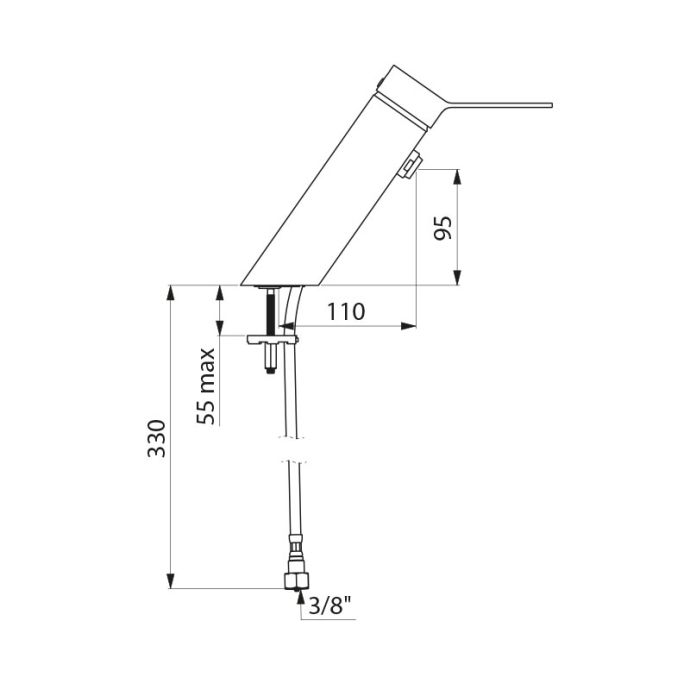

Single hole mechanical mixer with no spout, H. 95mm L. 110mm
Single hole mechanical mixer with no spout, H. 95mm L. 110mm
DESCRIPTION
BIOSAFE mechanical basin mixer
Ref. 2621Deck-mounted mechanical basin mixer.
Single hole mechanical mixer H. 95mm L. 110mm.

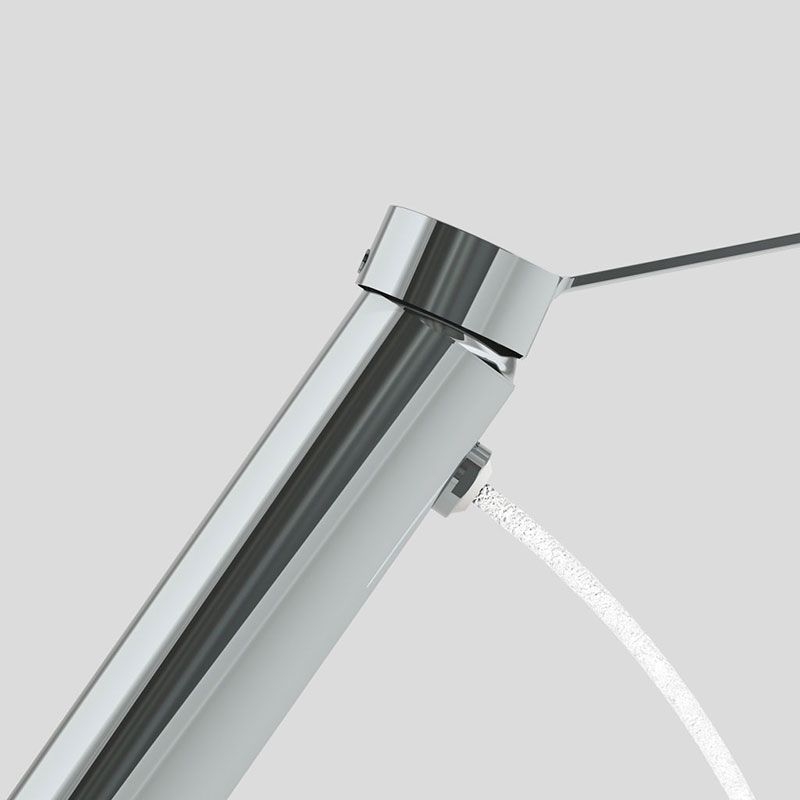

No spout: hygienic flow straightener integrated into the body.
Securitouch thermal insulation prevents burns.

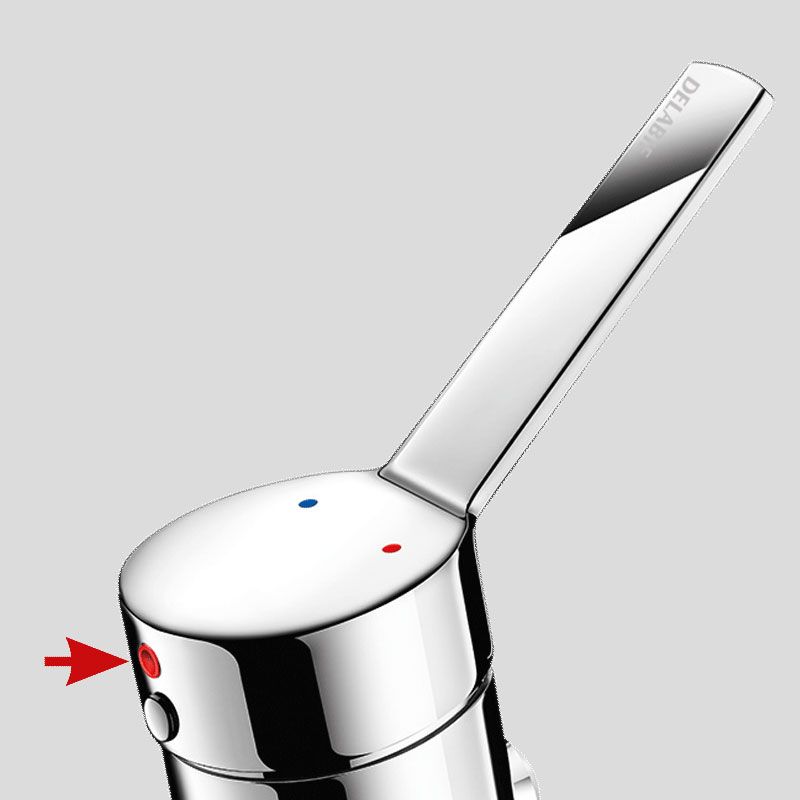

Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.

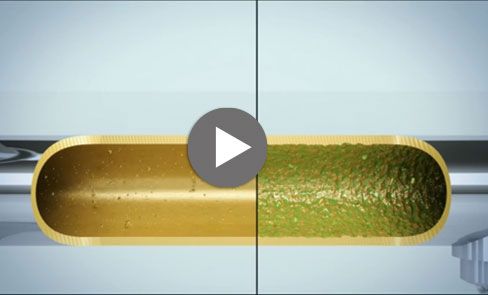

Mixer body with smooth interior and very low water volume (limits bacterial development).
Flow rate regulated at 4 lpm.
Solid control lever.
No pop-up waste.
PEX flexibles F3/8", rotating unions.
Fixing reinforced by two stainless steel rods.

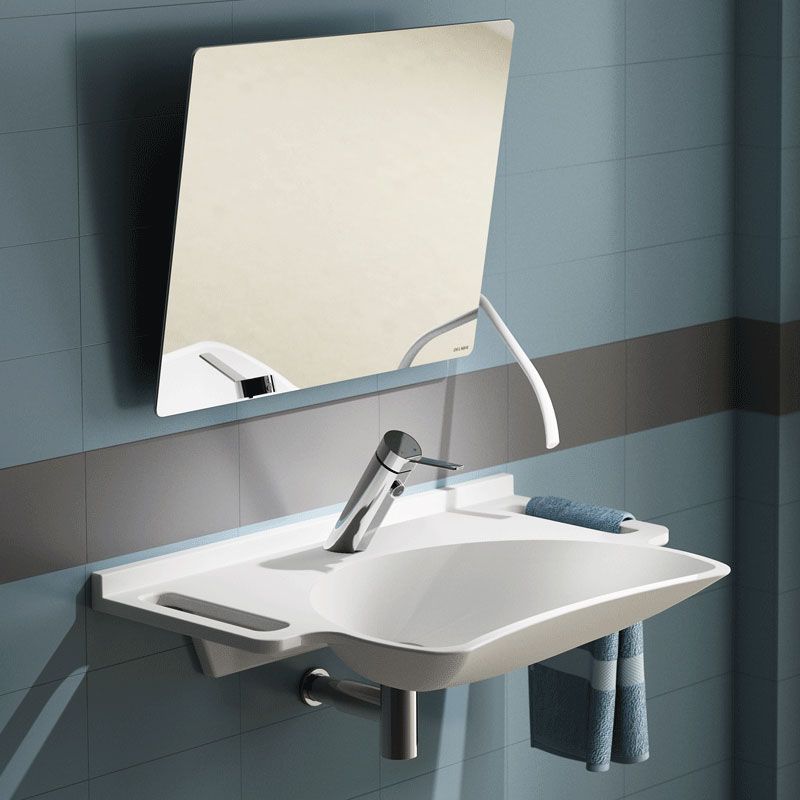

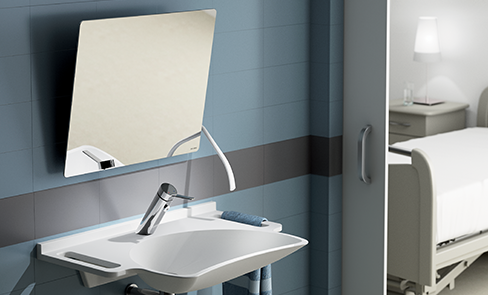

Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tails.
Single hole mechanical mixer H. 95mm L. 110mm.
No spout: hygienic flow straightener integrated into the body.
Securitouch thermal insulation prevents burns.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Mixer body with smooth interior and very low water volume (limits bacterial development).
Flow rate regulated at 4 lpm.
Solid control lever.
No pop-up waste.
PEX flexibles F3/8", rotating unions.
Fixing reinforced by two stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tails.
ADVANTAGES
Hygiene: body with very low water volume
Maximum hygiene: no spout
Thermal shocks are possible
Pre-set maximum temperature limiter
TECHNICAL CHARACTERISTICS
BIOSAFE mechanical basin mixer
Ref. 2621Connector | F3/8" |
Technology | BIOSAFE mechanical mixer |
Height | 180mm |
Length | 220mm |
Drop height | 95mm |
Spout length | 110mm |
Flow rate | 4 lpm |
Temperature limiter | Yes |
Certificates | |
Warranty | |
Repairability |
Spare parts

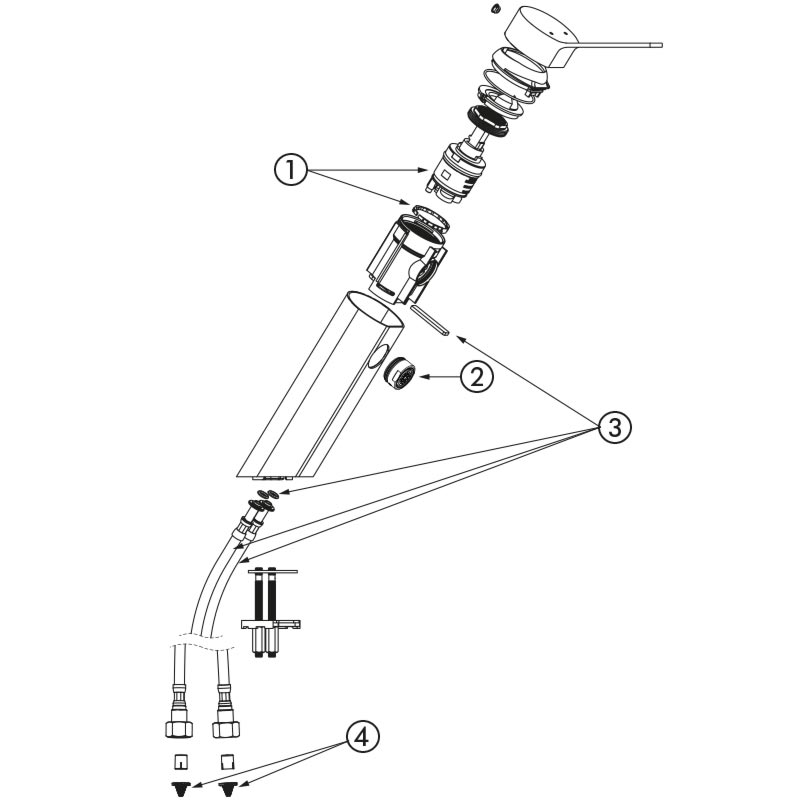

SPARE PARTS
BIOSAFE mechanical basin mixer
Ref. 2621
After 05/2024:
1. | NSB262 |
|
Ø35mm ceramic cartridge |
2. | 926024 |
|
BIOSAFE hygienic outlet M24/100 |
3. | FLEXPEX6 |
|
F3/8" rotating PEX flexible hoses |
4. | 2520SES |
|
Locking kit |
5. | 60438.10P |
|
Conical filter |
Before 05/2024:
1. | NSB262 |
|
Ø35mm ceramic cartridge |
2. | 926024 |
|
BIOSAFE hygienic outlet M24/100 |
3. | FLEXPEX6 |
|
F3/8" rotating PEX flexible hoses |
4. | 2520SES |
|
Locking kit |
5. | 60438.10P |
|
Conical filter |
VARIANTS
2621EP | EP cartridge - no pop-up waste - H. 95mm L. 110mm - Flexibles | ||
---|---|---|---|
26216EP | EP cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails | ||
2620EP | EP cartridge - pop-up waste - H. 95mm L. 110mm - Flexibles | ||
2621MINIEP | EP cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles | ||
26216MINIEP | EP cartridge - no pop-up waste - H. 50mm L. 80mm - Copper tails | ||
2620MINIEP | EP cartridge - pop-up waste - H. 50mm L. 80mm - Flexibles | ||
26216 | Standard cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails | ||
2621MINI | Standard cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles | ||
26216MINI | Standard cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles | ||
2620 | Standard cartridge - pop-up waste - H. 95mm L. 110mm - Flexibles | ||
2620MINI | Standard cartridge - pop-up waste - H. 50mm L. 80mm - Flexibles |
