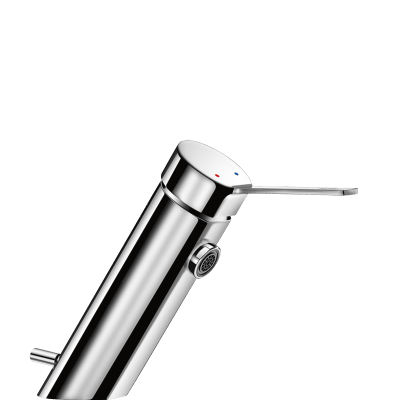

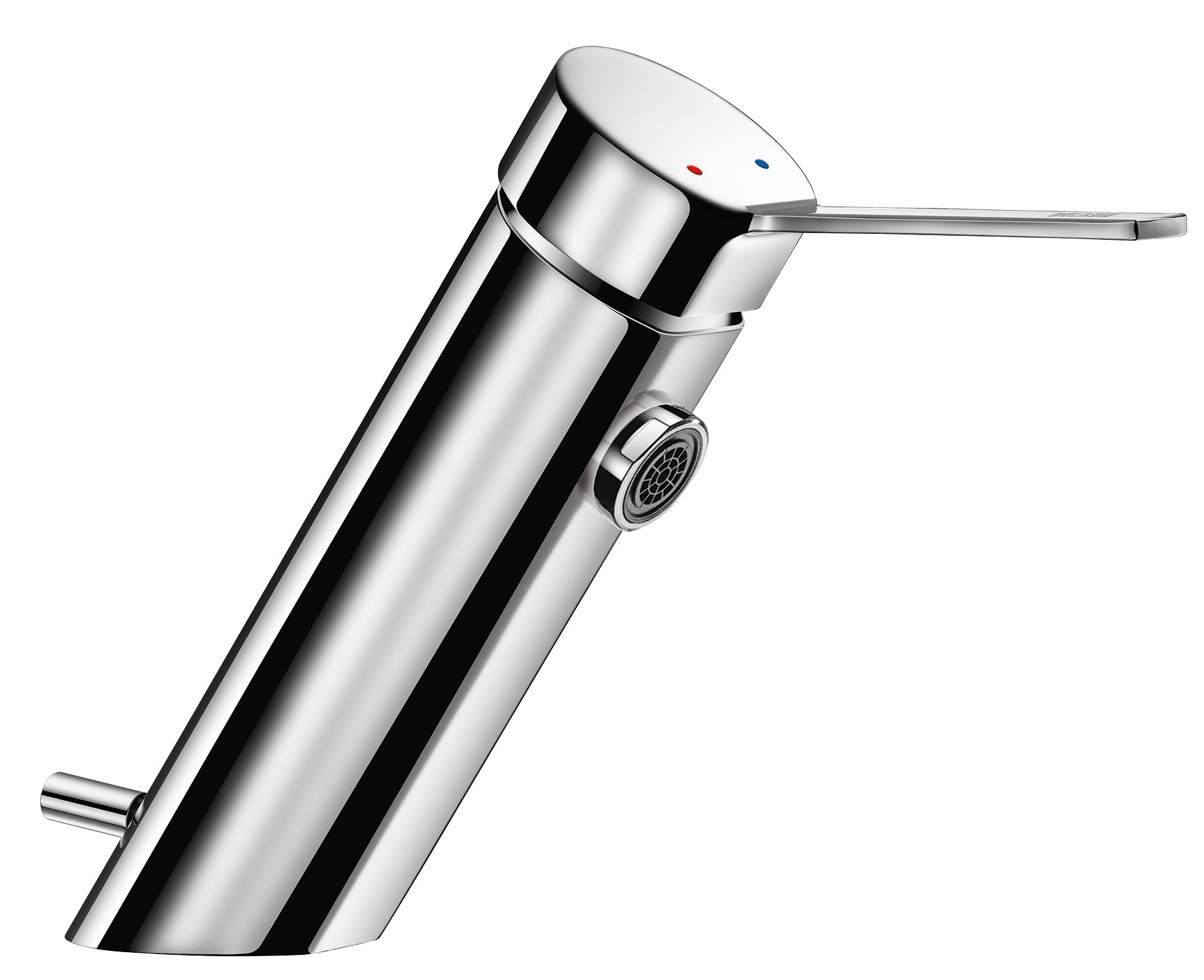

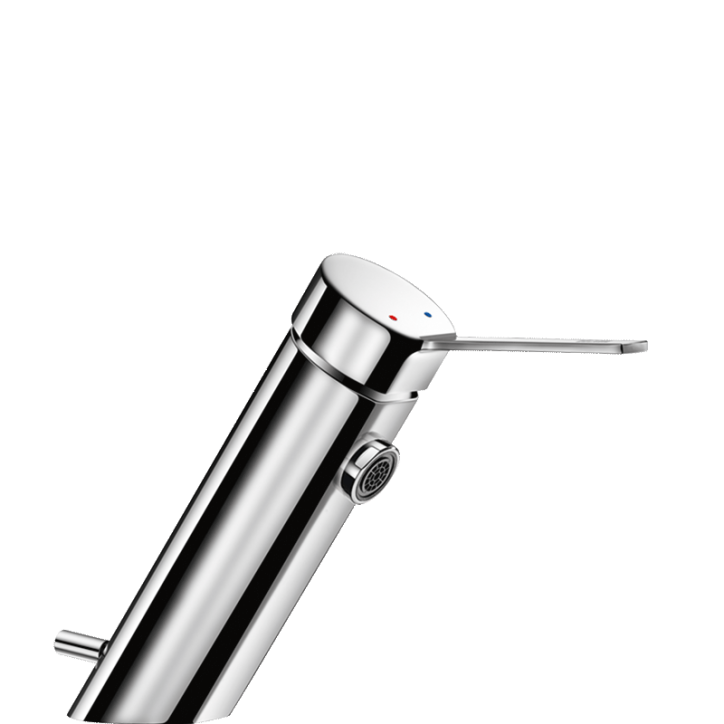

BIOSAFE mechanical basin mixer
Ref. 2620
Single hole mechanical mixer with no spout, H. 95mm L. 110mm
Single hole mechanical mixer with no spout, H. 95mm L. 110mm
DESCRIPTION
BIOSAFE mechanical basin mixer
Ref. 2620Deck-mounted mechanical basin mixer.
Single hole mechanical mixer H. 95mm L. 110mm.
No spout: hygienic flow straightener integrated into the body.
Securitouch thermal insulation prevents burns.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Body with smooth interior and very low water volume (reduces bacterial development).
Flow rate regulated at 4 lpm.
Solid control lever.
Ergonomic pop-up waste 1 1/4" in brass.
PEX flexibles F3/8" with rotating unions.
Fixing reinforced by two stainless steel rods.

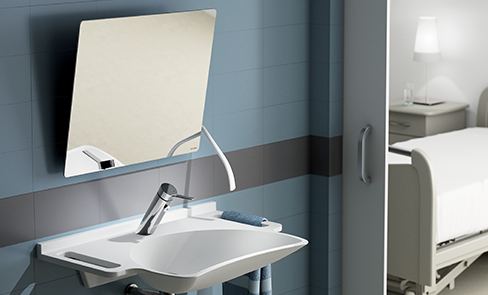

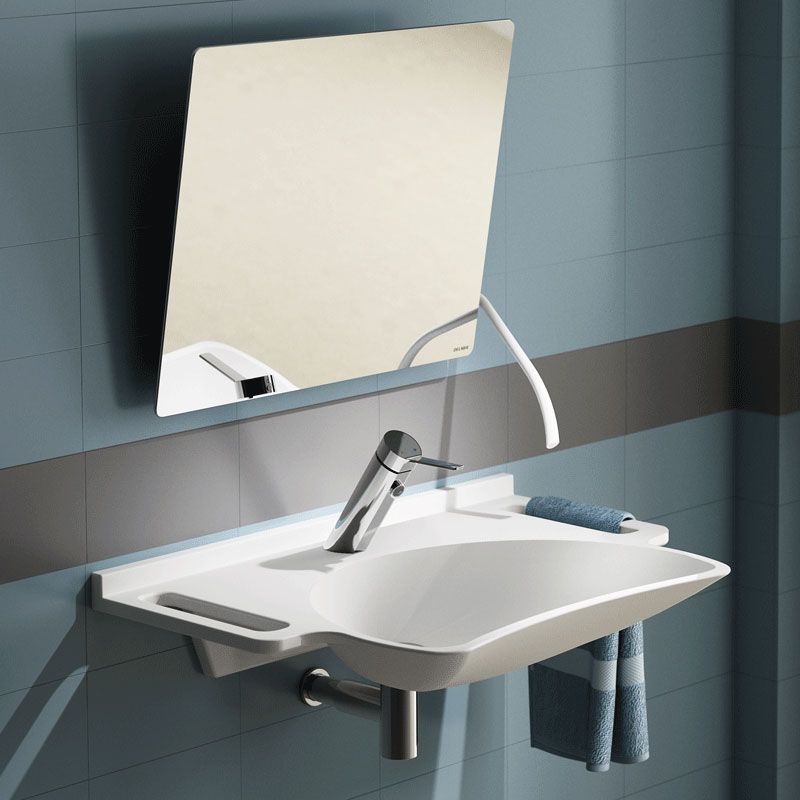

Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.
Single hole mechanical mixer H. 95mm L. 110mm.
No spout: hygienic flow straightener integrated into the body.
Securitouch thermal insulation prevents burns.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Body with smooth interior and very low water volume (reduces bacterial development).
Flow rate regulated at 4 lpm.
Solid control lever.
Ergonomic pop-up waste 1 1/4" in brass.
PEX flexibles F3/8" with rotating unions.
Fixing reinforced by two stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES

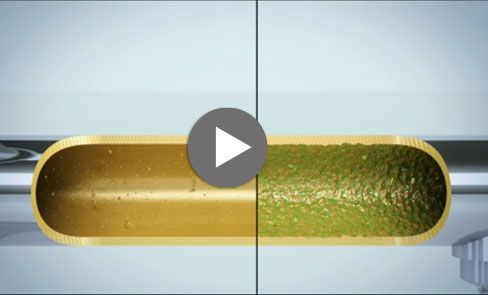

Hygiene: body with very low water volume

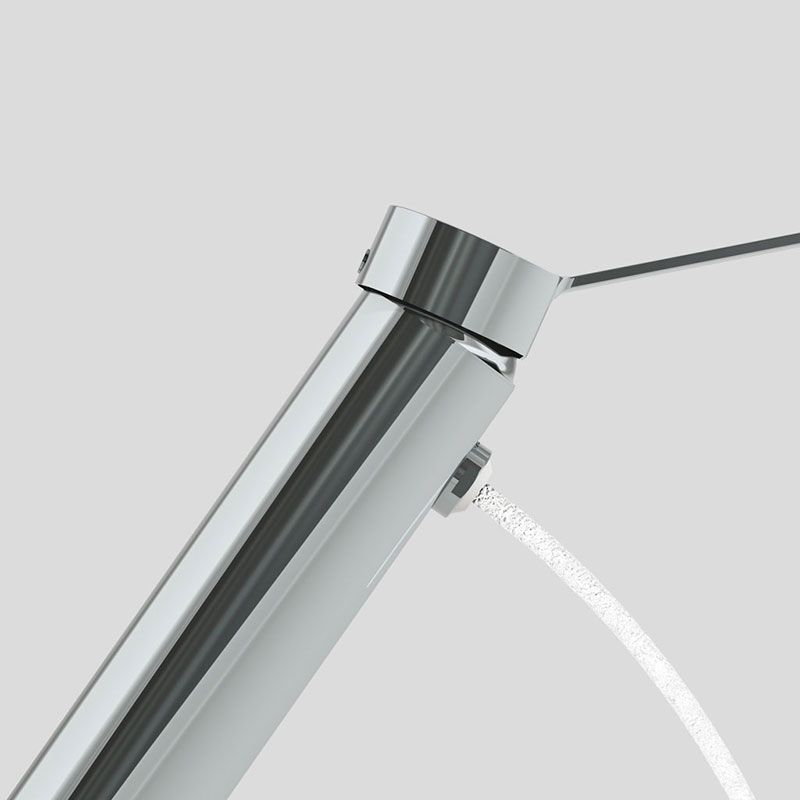

Maximum hygiene: No spout
Thermal shocks are possible

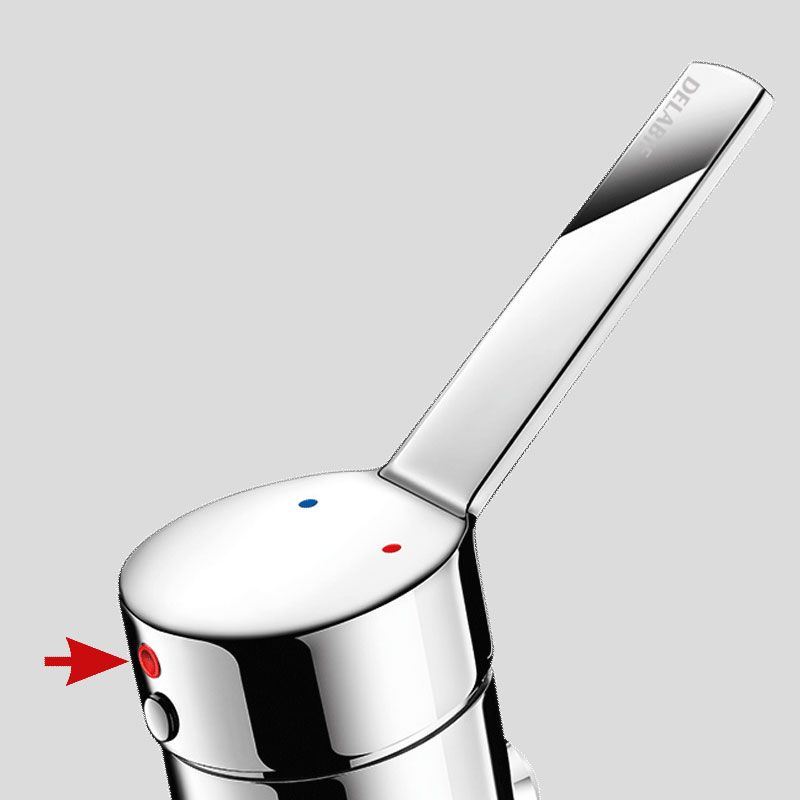

Pre-set maximum temperature limiter

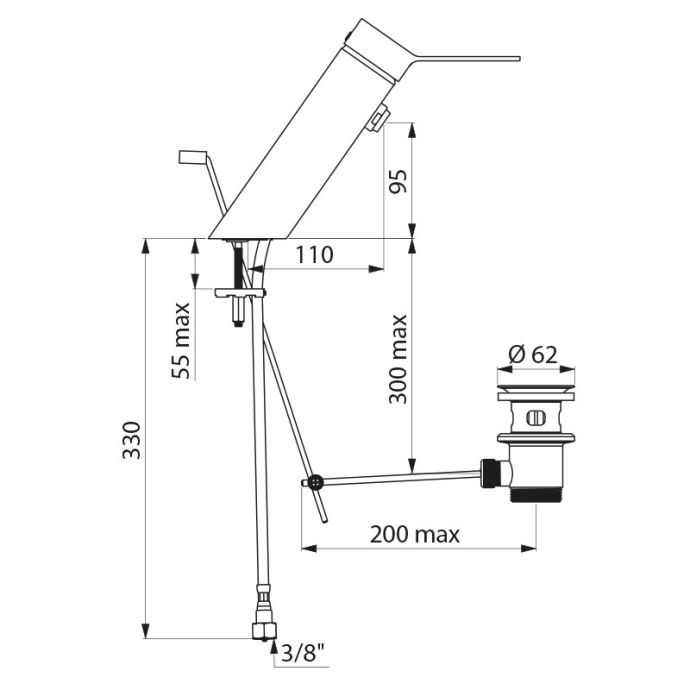

TECHNICAL CHARACTERISTICS
BIOSAFE mechanical basin mixer
Ref. 2620Connector | F3/8" |
Technology | BIOSAFE mechanical mixer |
Height | 180mm |
Length | 220mm |
Drop height | 95mm |
Spout length | 110mm |
Flow rate | 5 lpm |
Temperature limiter | Yes |
Certificates | |
Warranty | |
Repairability |
Spare parts

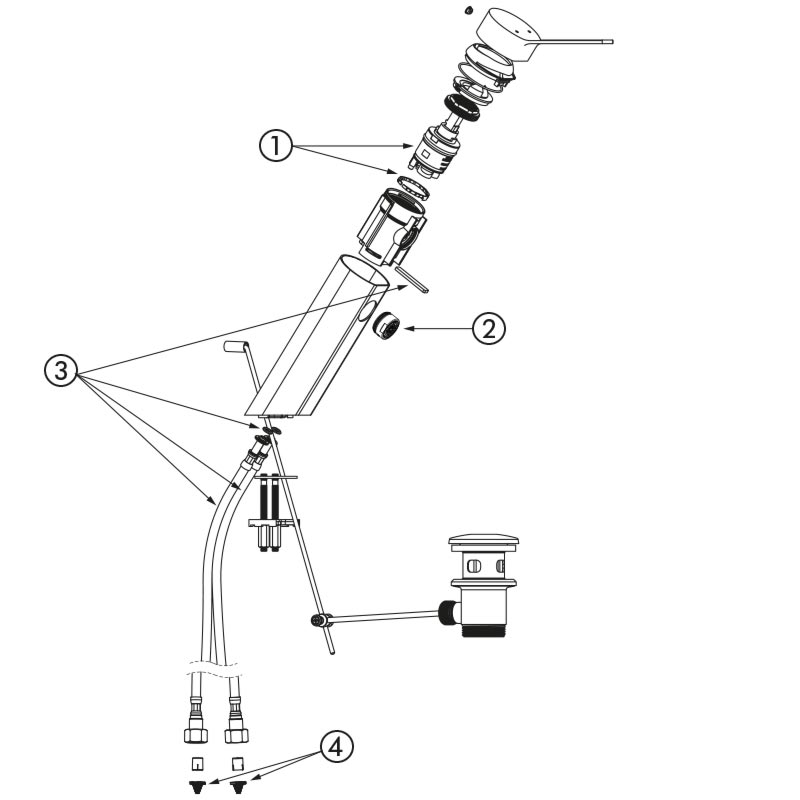

SPARE PARTS
BIOSAFE mechanical basin mixer
Ref. 2620
After 05/2024:
1. | NSB262 |
|
Ø35mm ceramic cartridge |
2. | 926024 |
|
BIOSAFE hygienic outlet M24/100 |
3. | FLEXPEX6 |
|
F3/8" rotating PEX flexible hoses |
4. | 2520SES |
|
Locking kit |
5. | 60438.10P |
|
Conical filter |
Before 05/2024:
1. | NSB262 |
|
Ø35mm ceramic cartridge |
2. | 926024 |
|
BIOSAFE hygienic outlet M24/100 |
3. | FLEXPEX6 |
|
F3/8" rotating PEX flexible hoses |
4. | 2520SES |
|
Locking kit |
5. | 60438.10P |
|
Conical filter |
VARIANTS
2621EP | EP cartridge - no pop-up waste - H. 95mm L. 110mm - Flexibles | ||
---|---|---|---|
26216EP | EP cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails | ||
2620EP | EP cartridge - pop-up waste - H. 95mm L. 110mm - Flexibles | ||
2621MINIEP | EP cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles | ||
26216MINIEP | EP cartridge - no pop-up waste - H. 50mm L. 80mm - Copper tails | ||
2620MINIEP | EP cartridge - pop-up waste - H. 50mm L. 80mm - Flexibles | ||
2621 | Standard cartridge - no pop-up waste - H. 95mm L. 110mm - Flexibles | ||
26216 | Standard cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails | ||
2621MINI | Standard cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles | ||
26216MINI | Standard cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles | ||
2620MINI | Standard cartridge - pop-up waste - H. 50mm L. 80mm - Flexibles |
VARIANTS
2621EP | EP cartridge - no pop-up waste - H. 95mm L. 110mm - Flexibles | ||
---|---|---|---|
26216EP | EP cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails | ||
2620EP | EP cartridge - pop-up waste - H. 95mm L. 110mm - Flexibles | ||
2621MINIEP | EP cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles | ||
26216MINIEP | EP cartridge - no pop-up waste - H. 50mm L. 80mm - Copper tails | ||
2620MINIEP | EP cartridge - pop-up waste - H. 50mm L. 80mm - Flexibles | ||
2621 | Standard cartridge - no pop-up waste - H. 95mm L. 110mm - Flexibles | ||
26216 | Standard cartridge - no pop-up waste - H. 95mm L. 110mm - Copper tails | ||
2621MINI | Standard cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles | ||
26216MINI | Standard cartridge - no pop-up waste - H. 50mm L. 80mm - Flexibles | ||
2620MINI | Standard cartridge - pop-up waste - H. 50mm L. 80mm - Flexibles |
