Wall-mounted basin mixer with pressure-balancing

Ref. 2614EP
Wall-mounted mechanical mixer with BIOCLIP spout
Wall-mounted basin mixer with pressure-balancing

Presentation

DESCRIPTION

Wall-mounted basin mixer with pressure-balancing

Ref. 2614EP

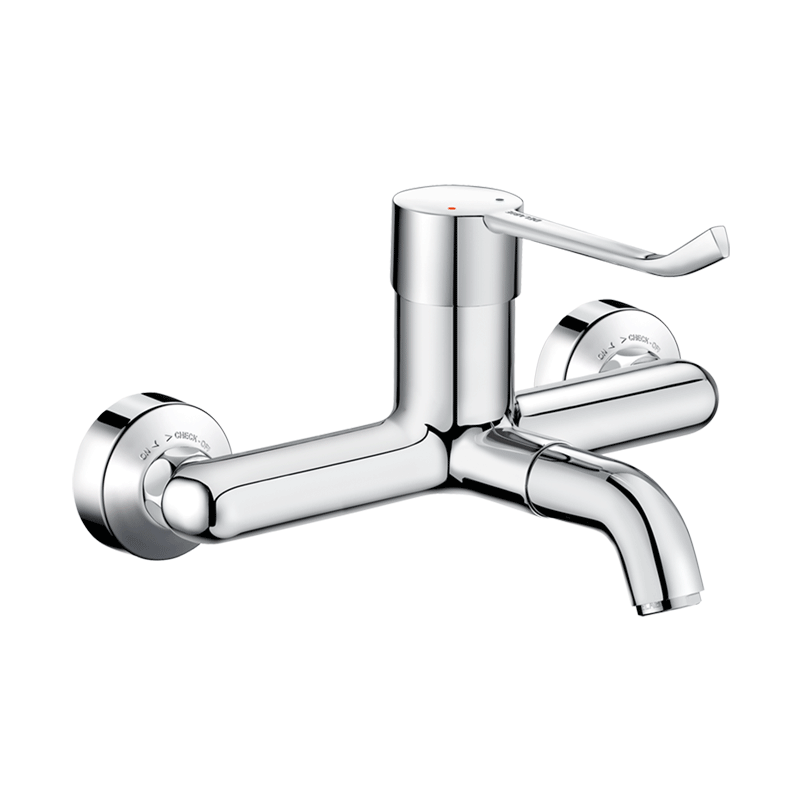

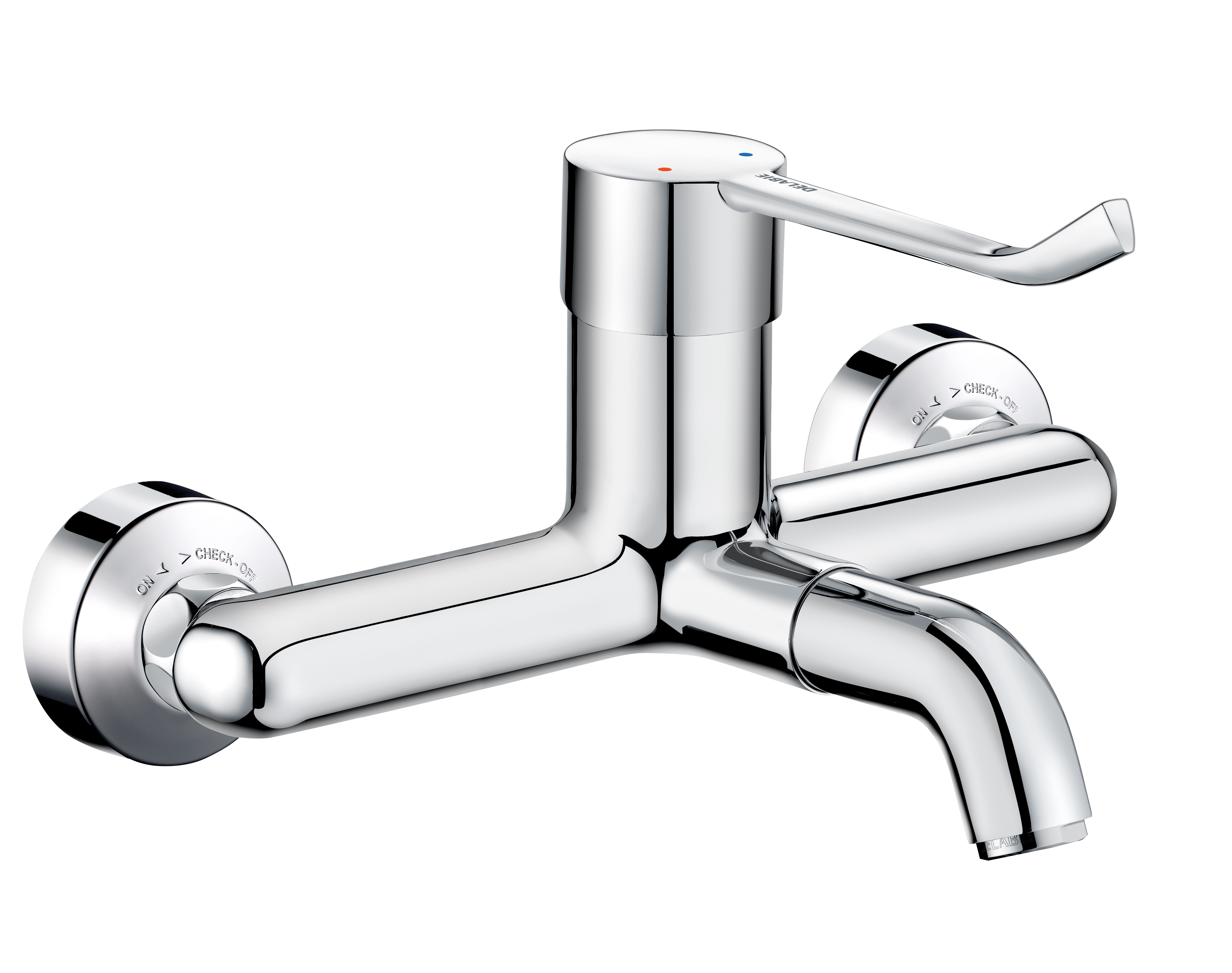

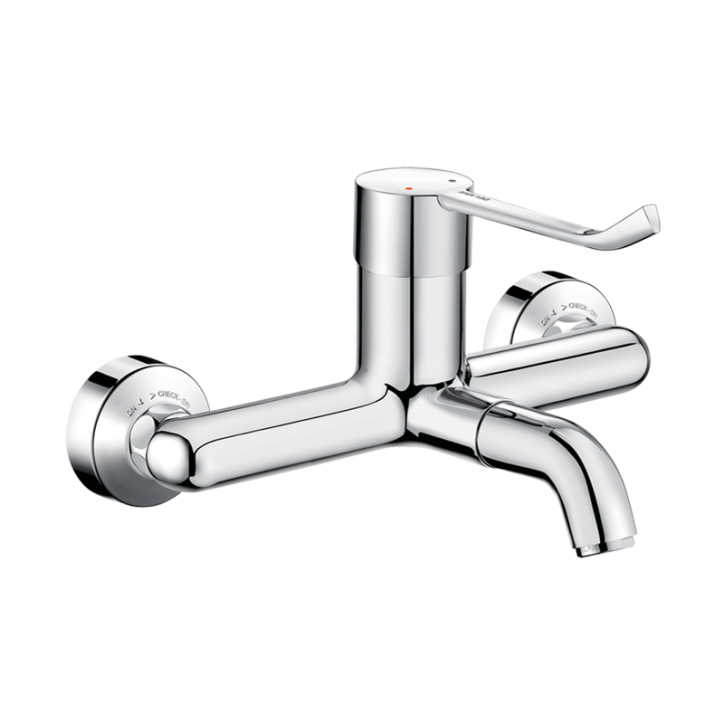

SECURITHERM pressure-balancing wall-mounted basin mixer.
Wall-mounted mixer supplied with 2 removable brass spouts.

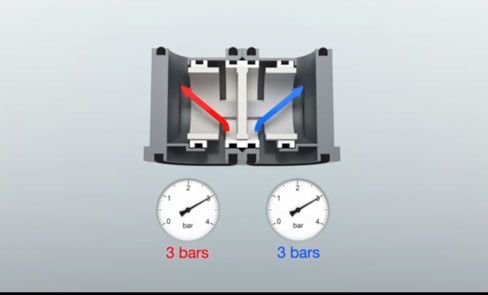

Anti-scalding safety: HW flow rate is reduced if CW flow rate fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Securitouch thermal insulation prevents burns.
Ø 35mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduce niches where bacteria can develop).
Thermal shocks are easy to undertake without removing the control lever or shutting off the cold water supply.
Flow rate limited to 5 lpm at 3 bar.
Chrome-plated brass body.
Hygiene control lever L. 150mm requires no manual contact.
Mixer supplied with in-line STOP/CHECK connectors M1/2" M3/4" ideal for hospitals.

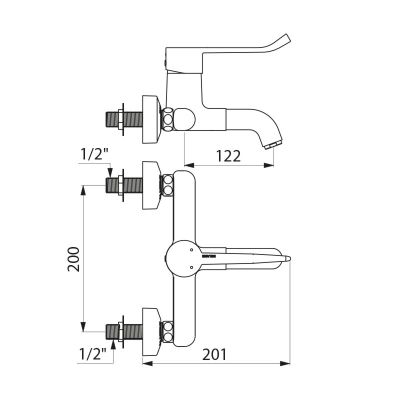

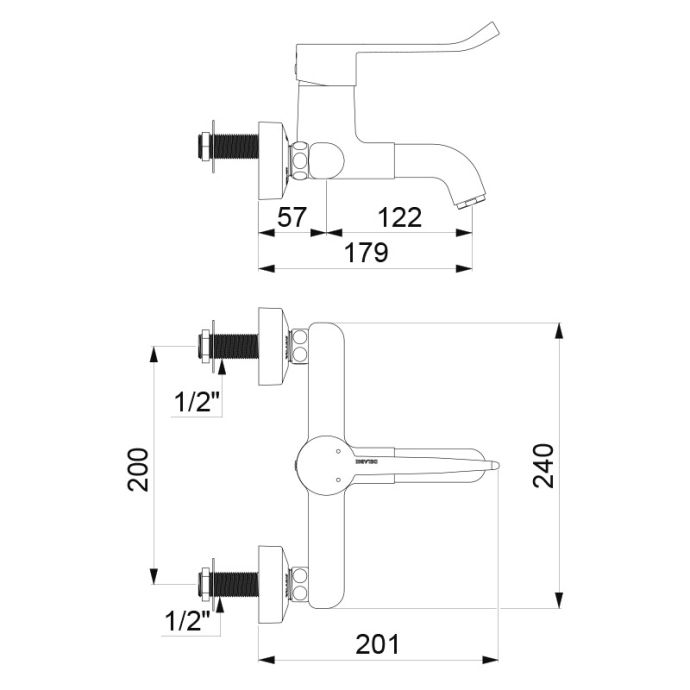

Mixer with 200mm centres.
Recommended installation height: 110 - 200mm above the basin surface.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

EP: HW flow rate reduced if CW supply fails

Confort - Ergonomie - Déclenchement souple

Securitouch: thermal insulation prevents burns

Sécurité anti-brûlure

Thermal shock without removing the control lever

Robinetterie déclipsable

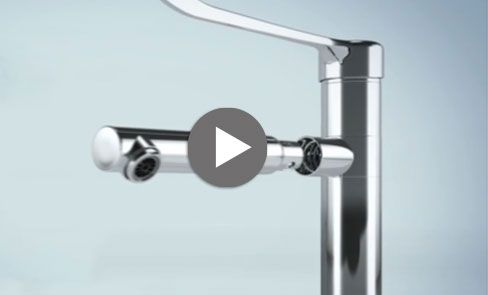

Removable spout: reduces bacterial development

Characteristics

TECHNICAL CHARACTERISTICS

Wall-mounted basin mixer with pressure-balancing

Ref. 2614EP
Technology SECURITHERM EP mixer, Securitouch
Flow rate 5 lpm at 3 bar
Temperature limiter YES
Finish Chrome-plated brass
Warranty 30-Year

Downloads

DOWNLOADS

Wall-mounted basin mixer with pressure-balancing

Ref. 2614EP

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

2610EP Removable disposable spout - offset STOP/CHECK unions, centres 150mm
2611EP Removable brass spout - inline STOP/CHECK unions, centres 150mm
