SECURITHERM EP pressure-balancing sink mixer
Ref. 2565T3EP
Tall, single hole, single control mixer with EP cartridge
Tall, single hole, single control mixer with EP cartridge
DESCRIPTION
SECURITHERM EP pressure-balancing sink mixer
Ref. 2565T3EPDeck-mounted sink mixer with SECURITHERM pressure-balancing.
Single hole, single control mixer with fixed spout H. 305mm L. 140mm.
Tall mixer with hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic pressure-balancing cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate limited to 9 lpm at 3 bar.
Body and base made from chrome-plated brass.
Hygiene control lever L. 185mm requires no manual contact.
F3/8" PEX flexibles with filters and non-return valves.
Reinforced fixings via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Single hole, single control mixer with fixed spout H. 305mm L. 140mm.
Tall mixer with hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic pressure-balancing cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate limited to 9 lpm at 3 bar.
Body and base made from chrome-plated brass.
Hygiene control lever L. 185mm requires no manual contact.
F3/8" PEX flexibles with filters and non-return valves.
Reinforced fixings via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES

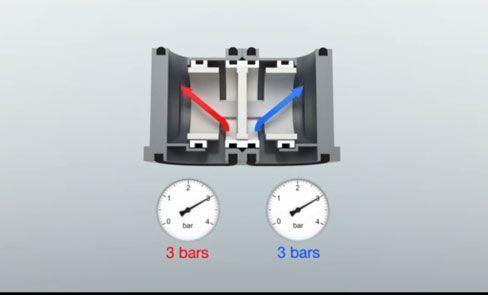

EP: HW flow rate reduced if CW fails
EP: reduces pressure variations
Thermal shock without removing the control lever
Hygiene: smooth interior reduces bacteria

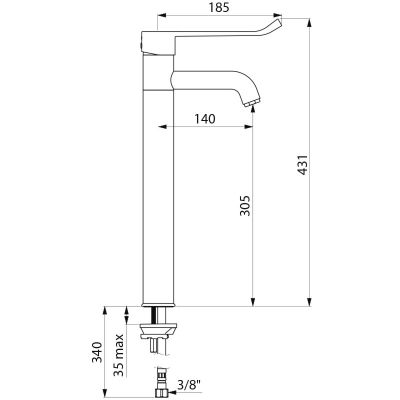

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing sink mixer
Ref. 2565T3EPConnector | F3/8" |
Technology | SECURITHERM EP mixer |
Height | 431mm |
Drop height | 305mm |
Spout length | 140mm |
Flow rate | 9 lpm at 3 bar |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

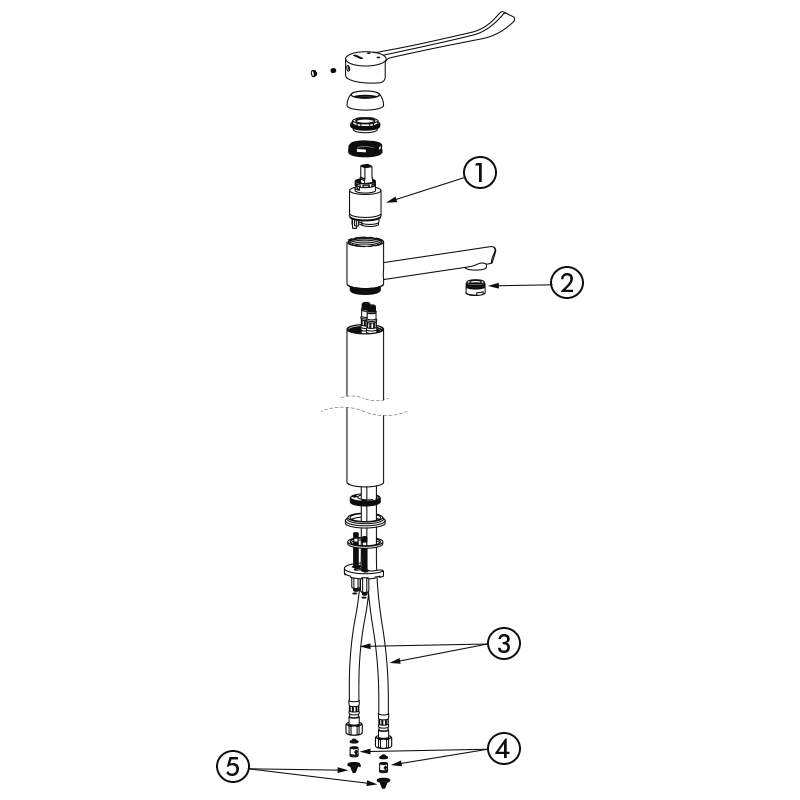

SPARE PARTS
SECURITHERM EP pressure-balancing sink mixer
Ref. 2565T3EP
Before April 2021
1. | N252 |
|
Ø40mm ceramic pressure balancing EP cartridge with base |
2. | 921024.2P |
|
Star-shaped flow straightener |
3. | 2510SES |
|
Locking kit |
4. | FLEXPEX4 |
|
F3/8" PEX flexible hoses |
5. | 900010 |
|
Non-return valve |
6. | 60438.10P |
|
Conical filter |
VARIANTS
2565T3 | Standard cartridge - fixed spout H. 305mm L. 140mm | ||
---|---|---|---|
2564T3EP | EP cartridge - swivelling spout H. 305mm L. 140mm | ||
2564T4EP | EP cartridge - swivelling spout H. 305mm L. 220mm | ||
2564T3 | Standard cartridge - swivelling spout H. 305mm L. 140mm | ||
2564T4 | Standard cartridge - swivelling spout H. 305mm L. 220mm |
VARIANTS
2565T3 | Standard cartridge - fixed spout H. 305mm L. 140mm | ||
---|---|---|---|
2564T3EP | EP cartridge - swivelling spout H. 305mm L. 140mm | ||
2564T4EP | EP cartridge - swivelling spout H. 305mm L. 220mm | ||
2564T3 | Standard cartridge - swivelling spout H. 305mm L. 140mm | ||
2564T4 | Standard cartridge - swivelling spout H. 305mm L. 220mm |
