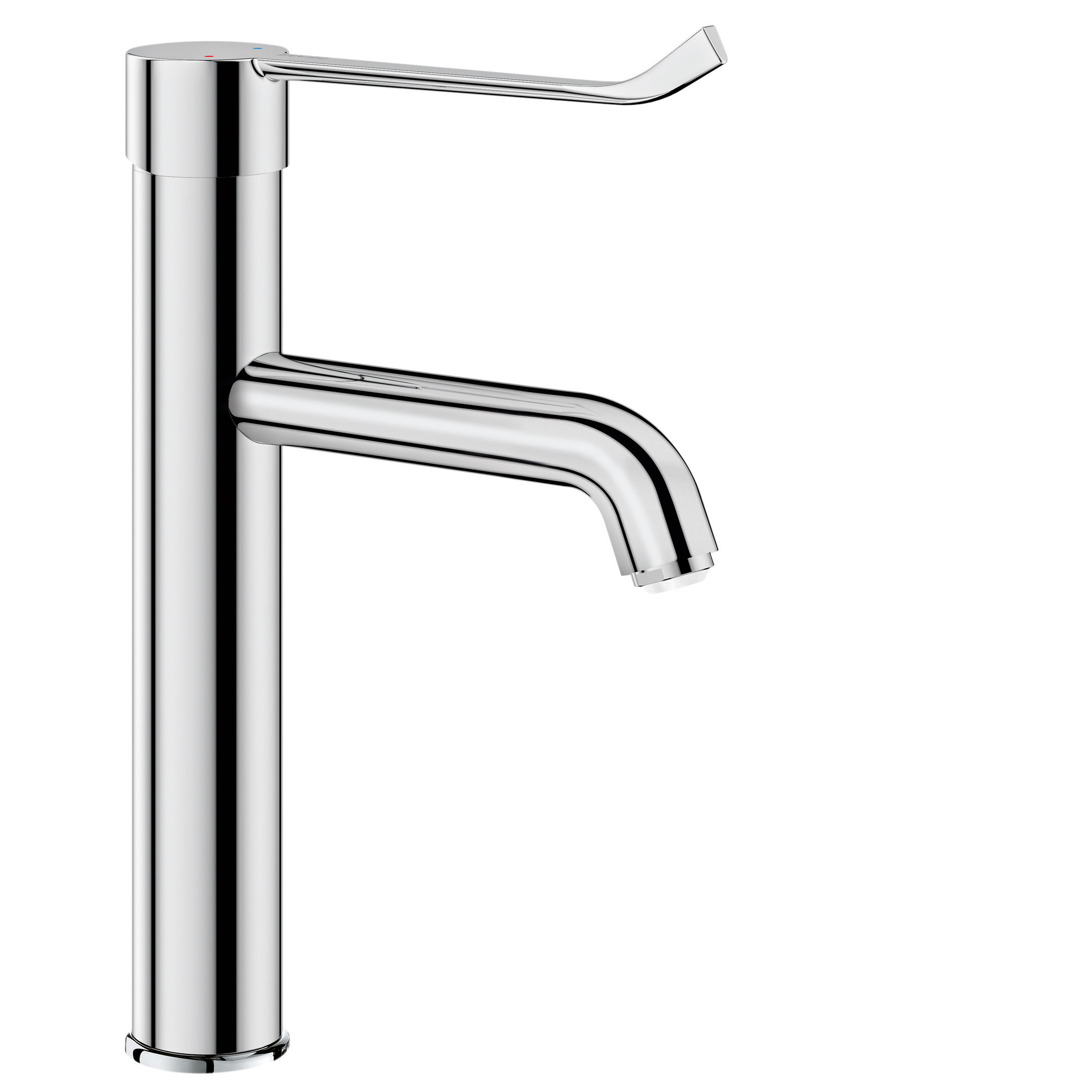

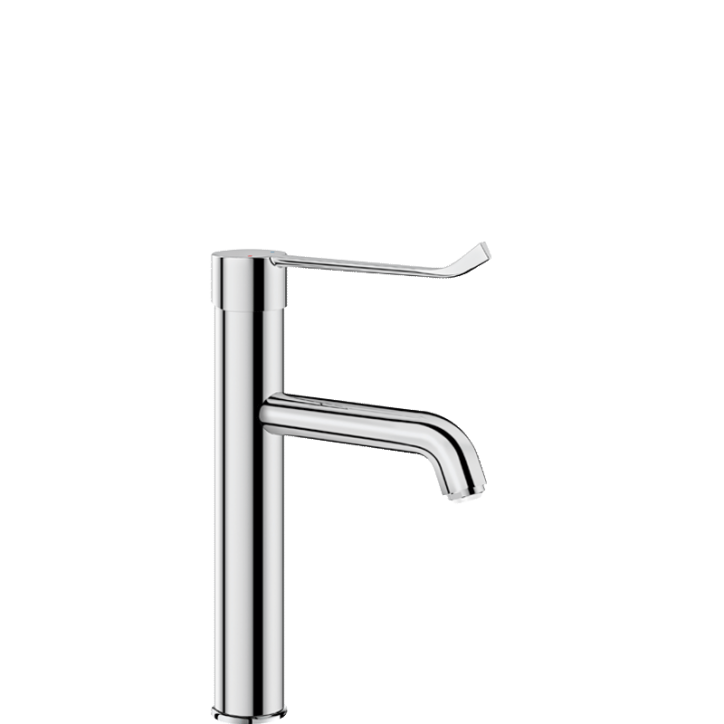

Mechanical mixer for basins
Ref. 2565T1
Single hole, single control tall mixer with ceramic cartridge
Single hole, single control tall mixer with ceramic cartridge
DESCRIPTION
Mechanical mixer for basins
Ref. 2565T1Deck-mounted mechanical basin mixer.
Single hole, single control mixer with fixed spout H. 165mm L. 140mm.

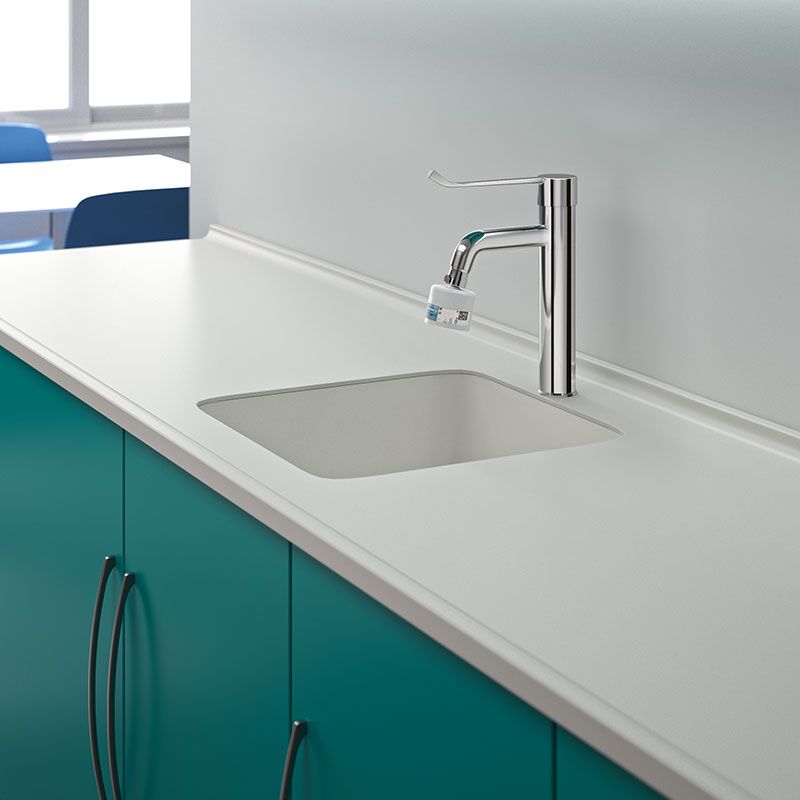

Tall mixer with BIOSAFE hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm classic ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are easy to undertake without removing the control lever or shutting off the cold water supply.
Flow rate regulated at 5 lpm.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
F3/8" PEX flexibles.
Reinforced fixings via 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Single hole, single control mixer with fixed spout H. 165mm L. 140mm.
Tall mixer with BIOSAFE hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm classic ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are easy to undertake without removing the control lever or shutting off the cold water supply.
Flow rate regulated at 5 lpm.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
F3/8" PEX flexibles.
Reinforced fixings via 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES
Hygiene: smooth interiors reduce bacteria
Thermal shock without removing the control lever
Pre-set maximum temperature limiter
No manual contact thanks to Hygiene control lever

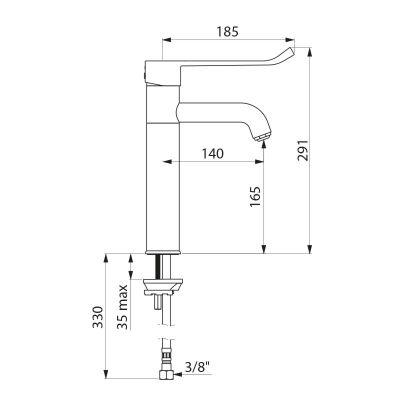

TECHNICAL CHARACTERISTICS
Mechanical mixer for basins
Ref. 2565T1Connector | F3/8" |
Height | 291mm |
Drop height | 165mm |
Spout length | 140mm |
Flow rate | 5 lpm |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

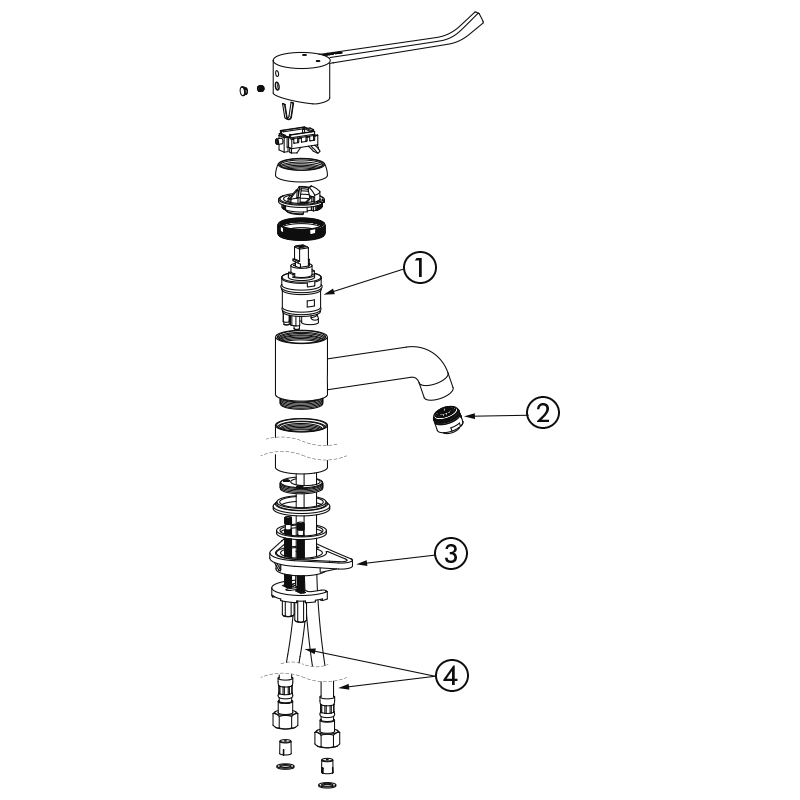

SPARE PARTS
Mechanical mixer for basins
Ref. 2565T11. | NS262 |
|
Ø35mm ceramic cartridge |
2. | 922640 |
|

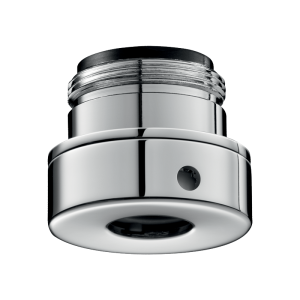

BIOSAFE hygienic outlet M24/100 |
3. | 256P |
|
Fixing plate |
4. | 2510SES |
|
Locking kit |
5. | FLEXPEX3 |
|
F3/8" PEX flexible hoses |
VARIANTS
2564T5EP | EP cartridge - swivelling spout H. 205mm L. 170mm | ||
---|---|---|---|
2565T5EP | EP cartridge - fixed spout H. 205mm L. 170mm | ||
2564T1EP | EP cartridge - swivelling spout H. 165mm L. 140mm | ||
2565T1EP | EP cartridge - fixed spout H. 165mm L. 140mm | ||
2564T2EP | EP cartridge - swivelling spout H. 165mm L. 220mm | ||
2564T5 | Standard cartridge - swivelling spout H. 205mm L. 170mm | ||
2565T5 | Standard cartridge - fixed spout H. 205mm L. 170mm | ||
2564T1 | Standard cartridge - swivelling spout H. 165mm L. 140mm | ||
2564T2 | Standard cartridge - swivelling spout H. 165mm L. 220mm |
