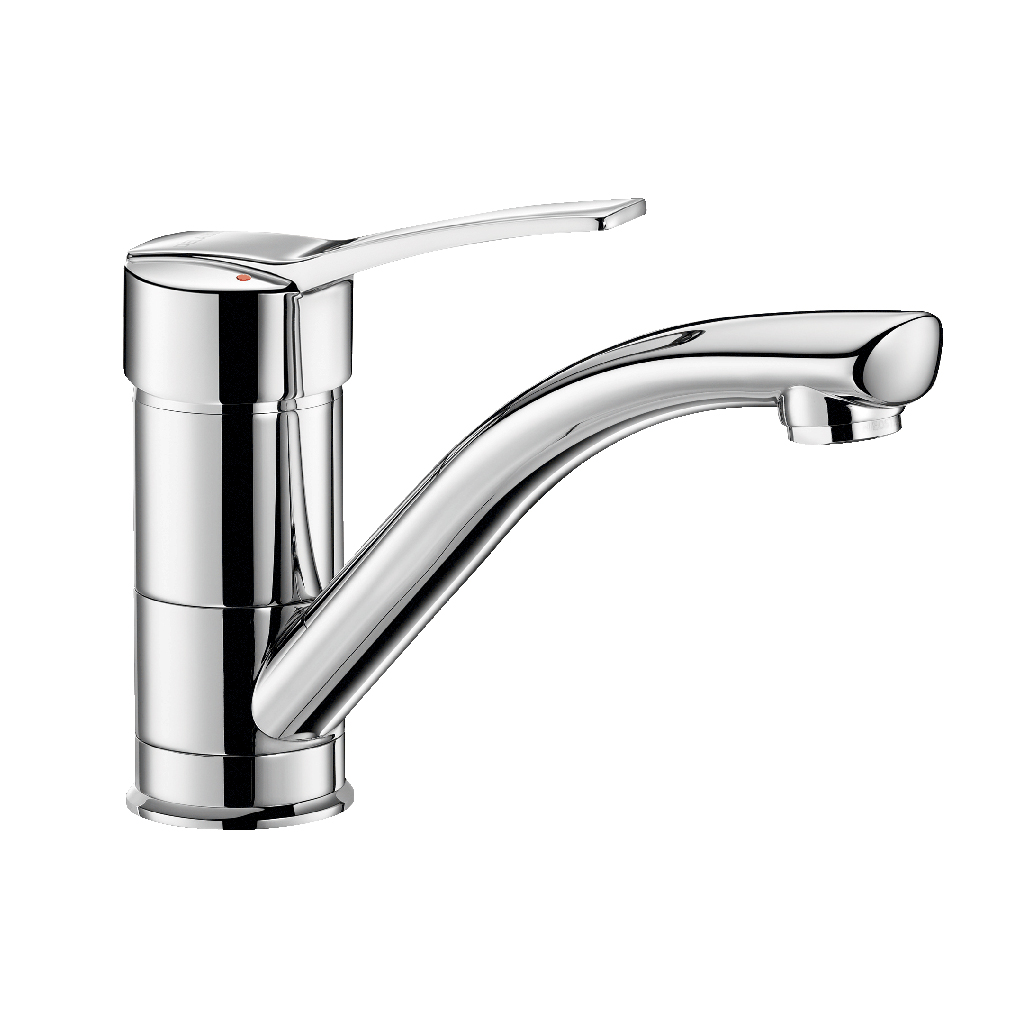

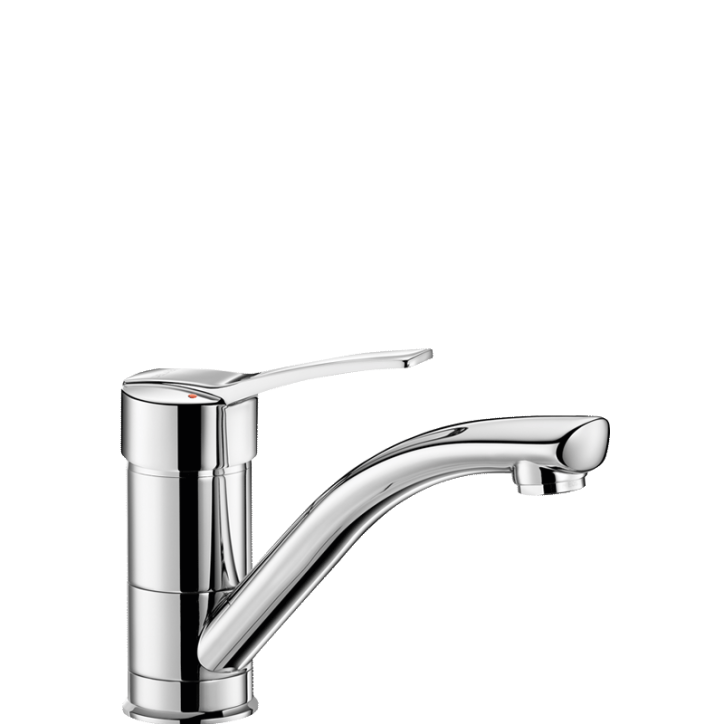

Mechanical basin mixer

Ref. 2522T
Single hole mechanical mixer with swivelling spout H. 100mm L. 170mm

Presentation

DESCRIPTION

Mechanical basin mixer

Ref. 2522T

Deck-mounted mechanical basin mixer.
Single hole mechanical mixer with swivelling spout H. 100mm L. 170mm with hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 40mm classic ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
PEX flexibles F3/8".
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

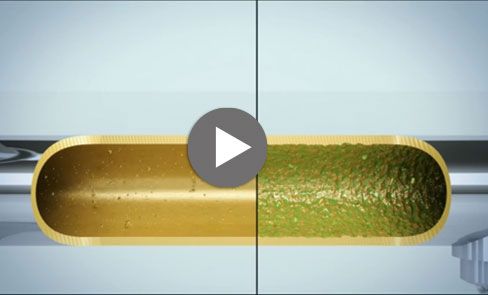

Hygiene: smooth interior reduces bacteria

Pre-set maximum temperature limiter

Ergonomic: solid control lever for easy grip

User comfort: swivelling spout

Characteristics

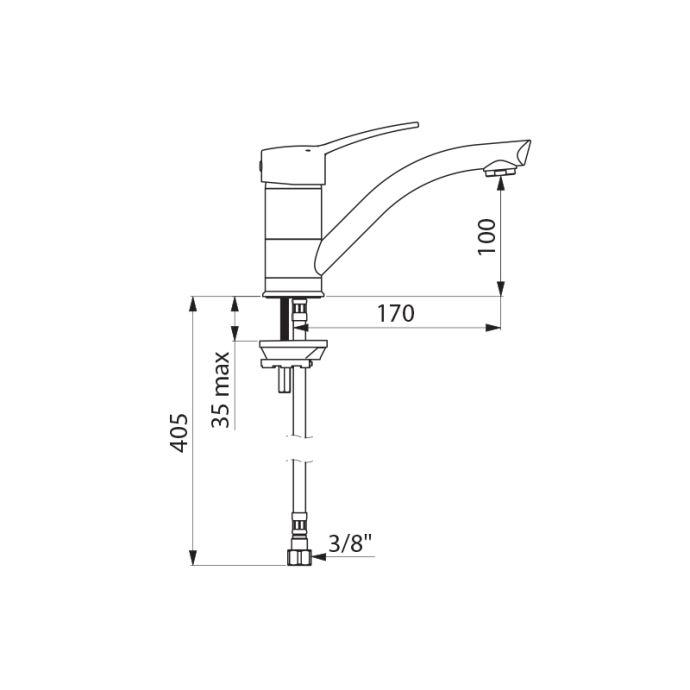

TECHNICAL CHARACTERISTICS

Mechanical basin mixer

Ref. 2522T

Connector	F3/8"
Height	142mm
Drop height	100mm
Spout length	170mm
Flow rate	5 lpm at 3 bar
Temperature limiter	Yes
Finish	Chrome-plated brass
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

Mitigeur de lavabo mécanique

Ref. 2522T

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

Installation guide

Certificates

Spare parts

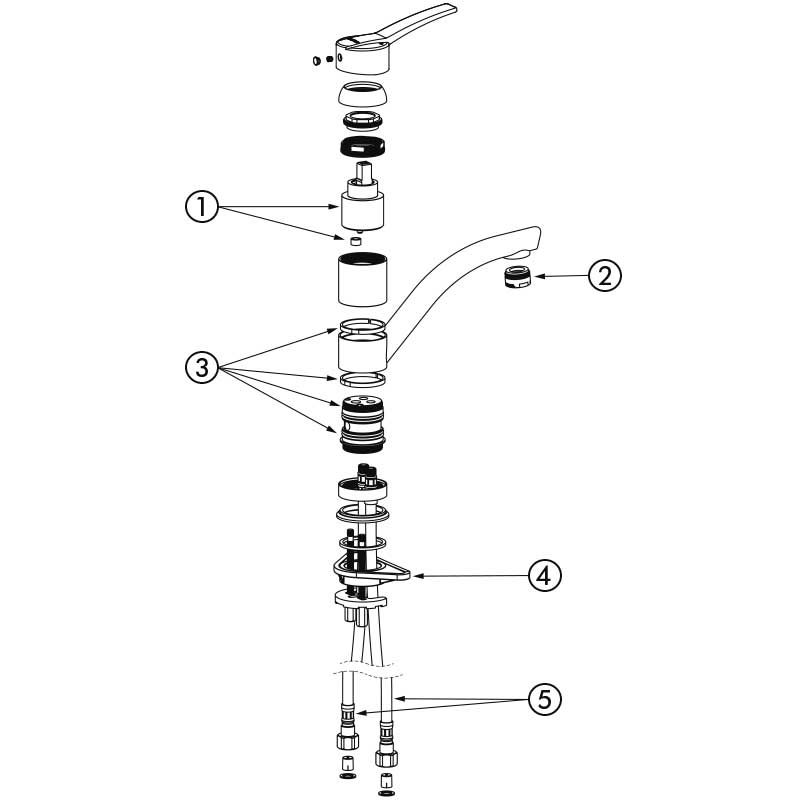

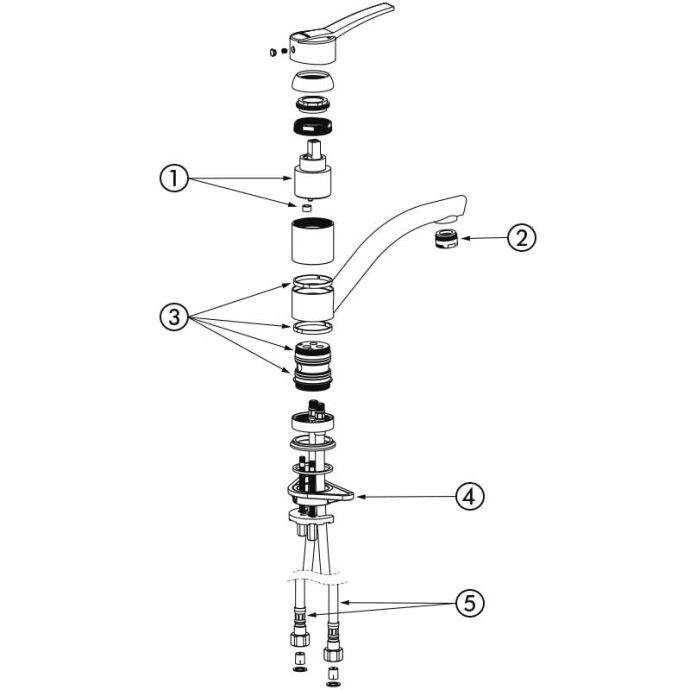

SPARE PARTS

Mechanical basin mixer

Ref. 2522T

1.	N248AA75	Ø40mm ceramic cartridge
2.	921024.2P	Star-shaped flow straightener
3.	753256	Replacement O-ring joints
4.	2510SES	Locking kit
5.	256P	Fixing plate
6.	FLEXPEX2	F3/8" PEX flexible hoses
