SECURITHERM EP pressure-balancing basin mixer

Ref. 2521TEP
Single hole mechanical mixer H. 85mm, L. 135mm
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 2521TEP
Deck-mounted mechanical basin mixer with pressure-balancing.
Single hole mechanical mixer with spout H. 85mm L. 135mm with BIOSAFE hygienic spout outlet.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if cold water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
Without pop-up waste.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW fails

Confort - Ergonomie - Déclenchement souple

EP: reduces temperature variations

Hygiène - Anti-bactérien - BIOSAFE

Hygienic: BIOSAFE hygienic outlet with no grid

Confort - Ergonomie - Déclenchement souple

Ergonomic: solid control lever is easy to grip

Characteristics

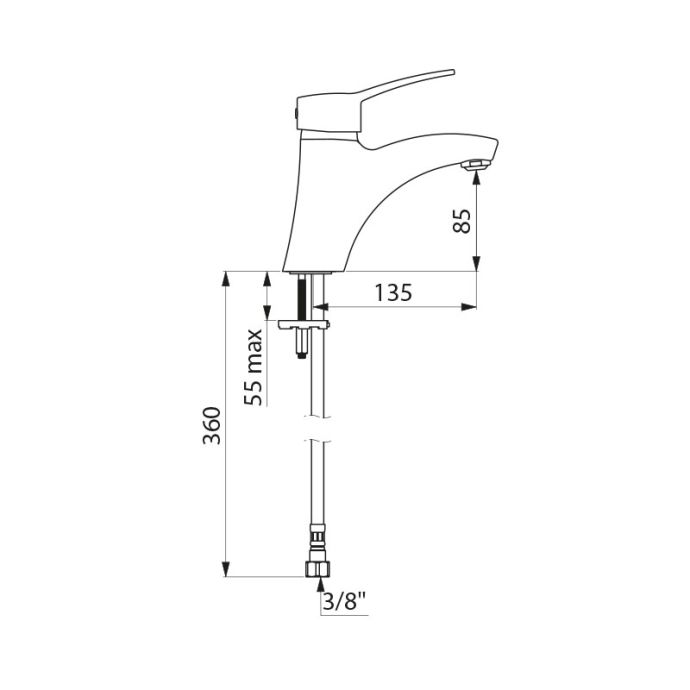

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2521TEP
Connector F3/8"
Technology SECURITHERM EP mechanical mixer
Height 165mm
Drop height 85mm
Spout length 135mm
Flow rate 5 lpm at 3 bar
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo DIN-DVGW Logo PZH Logo DoP SINTEF
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2521TEP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

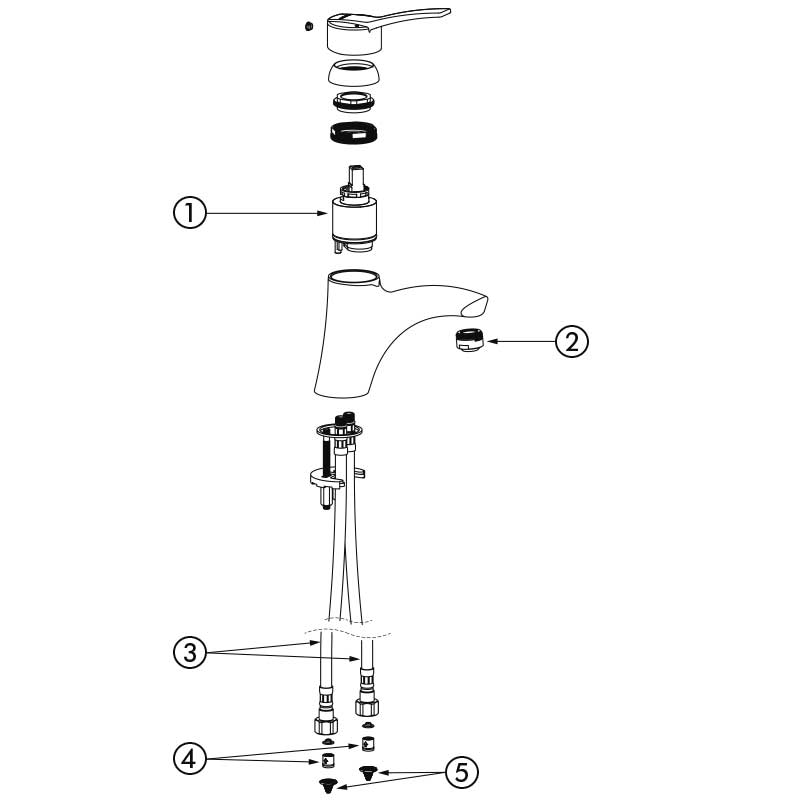

SPARE PARTS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2521TEP
1. N252
Ø40mm ceramic pressure balancing EP cartridge with base
2. 923024
Hygienic BIOSAFE outlet M24/100
3. 2520SES
Locking kit
4. FLEXPEX2
F3/8" PEX flexible hoses
5. 900010
Non-return valve
6. 60438.10P
Conical filter

VARIANTS

2521EP EP cartridge - sculptured lever - no pop-up waste
2521LEP EP cartridge - Hygiene lever - no pop-up waste
2520TEP EP cartridge - solid lever - pop-up waste
2520EP EP cartridge - sculptured lever - pop-up waste
2520LEP EP cartridge - Hygiene lever - pop-up waste
2521T Standard cartridge - solid lever - no pop-up waste
2521 Standard cartridge - sculptured lever - no pop-up waste
2521L Standard cartridge - Hygiene lever - no pop-up waste
2520T Standard cartridge - solid lever - pop-up waste
2520 Standard cartridge - sculptured lever - pop-up waste
2520L Standard cartridge - Hygiene lever - pop-up waste
Ergonomic: basin mixer with solid lever is easy to grip
Ergonomic: basin mixer with solid lever is easy to grip
Basin mixer with pressure-balancing: anti-scalding safety and stable temperatures
Basin mixer with pressure-balancing: anti-scalding safety and stable temperatures

VARIANTS

2521EP EP cartridge - sculptured lever - no pop-up waste
2521LEP EP cartridge - Hygiene lever - no pop-up waste
2520TEP EP cartridge - solid lever - pop-up waste
2520EP EP cartridge - sculptured lever - pop-up waste
2520LEP EP cartridge - Hygiene lever - pop-up waste
2521T Standard cartridge - solid lever - no pop-up waste
2521 Standard cartridge - sculptured lever - no pop-up waste
2521L Standard cartridge - Hygiene lever - no pop-up waste
2520T Standard cartridge - solid lever - pop-up waste
2520 Standard cartridge - sculptured lever - pop-up waste
2520L Standard cartridge - Hygiene lever - pop-up waste
Ergonomic: basin mixer with solid lever is easy to grip
Ergonomic: basin mixer with solid lever is easy to grip
Basin mixer with pressure-balancing: anti-scalding safety and stable temperatures
Basin mixer with pressure-balancing: anti-scalding safety and stable temperatures
