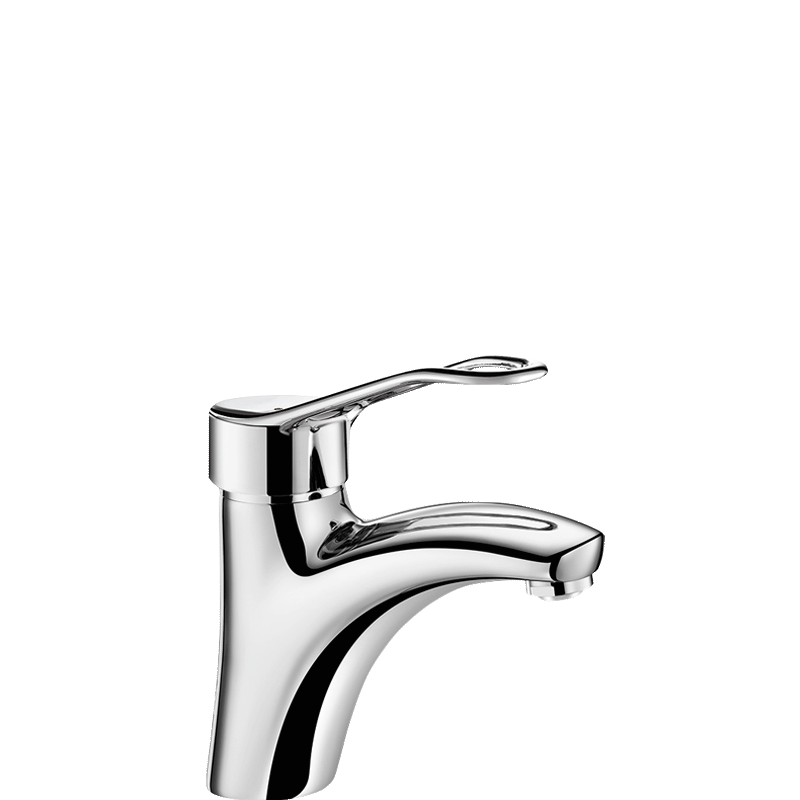

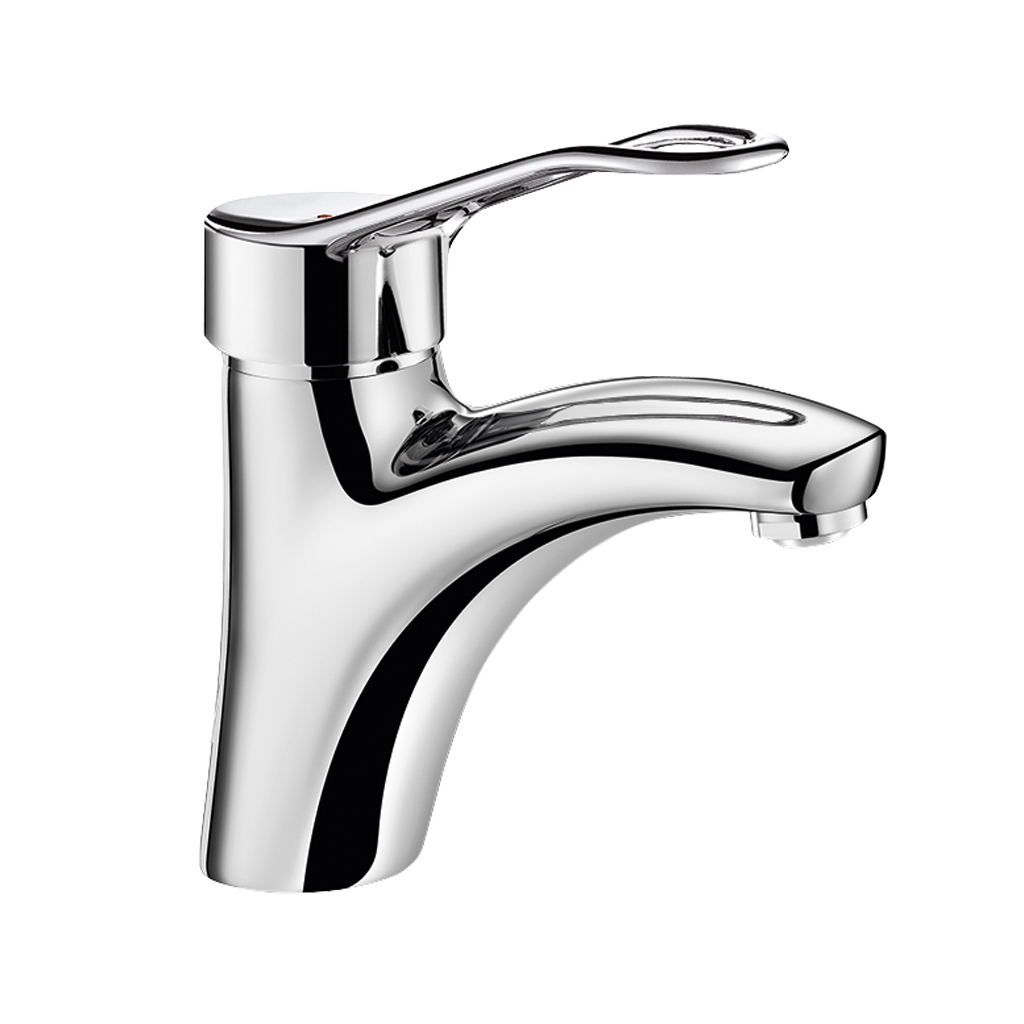

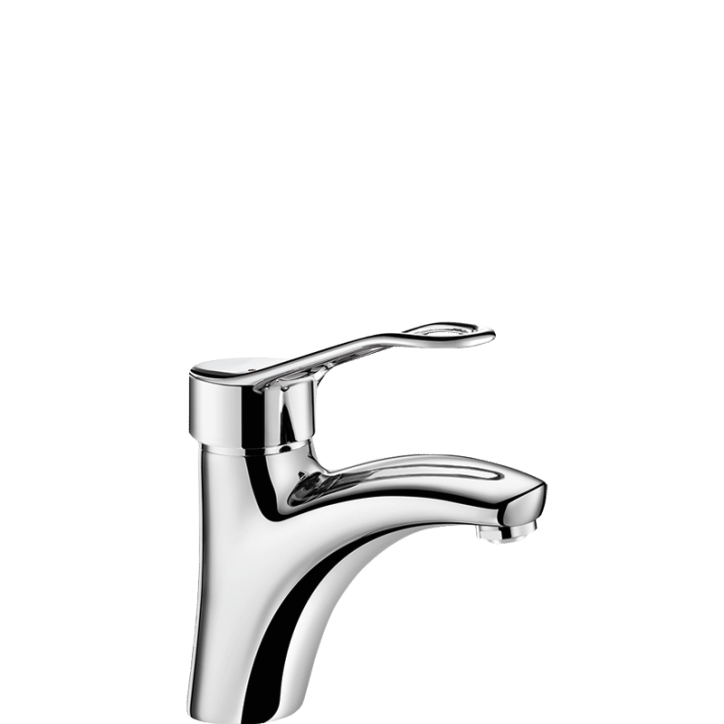

SECURITHERM EP pressure-balancing basin mixer
Ref. 2521EP
Single hole mechanical mixer H. 85mm, L. 135mm
Single hole mechanical mixer H. 85mm, L. 135mm
DESCRIPTION
SECURITHERM EP pressure-balancing basin mixer
Ref. 2521EPDeck-mounted mechanical basin mixer with pressure-balancing basin.
Single hole mechanical mixer with spout H. 85mm L. 135mm fitted with a BIOSAFE hygienic spout outlet.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if cold water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Flow rate limited to 5 lpm at 3 bar.
Sculptured control lever.
Without pop-up waste.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Single hole mechanical mixer with spout H. 85mm L. 135mm fitted with a BIOSAFE hygienic spout outlet.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if cold water supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate in the system.
Flow rate limited to 5 lpm at 3 bar.
Sculptured control lever.
Without pop-up waste.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer with SECURITHERM pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES
HW flow rate reduced if CW fails
EP: reduces temperature variations
Hygiene: BIOSAFE hygienic outlet with no grid
Ergonomic: sculptured lever is easy to grip

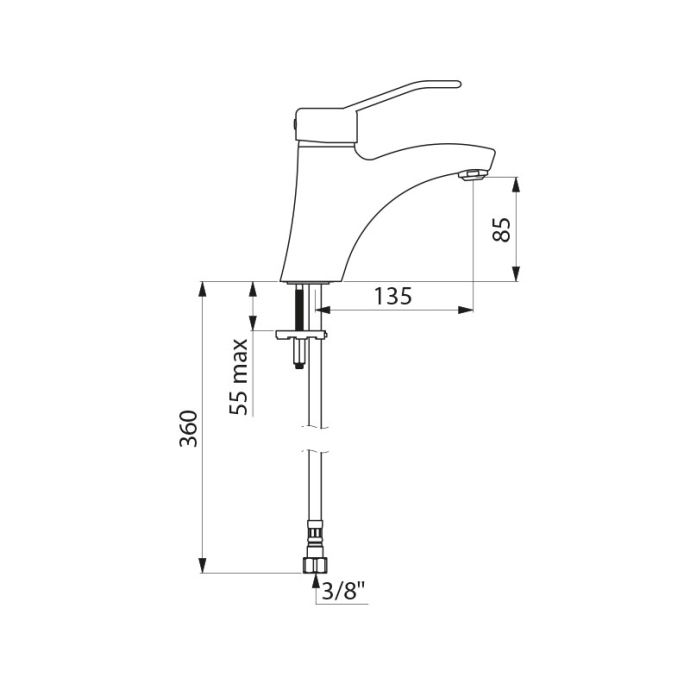

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing basin mixer
Ref. 2521EPConnector | F3/8" |
Technology | SECURITHERM EP BIOSAFE mechanical mixer |
Height | 165mm |
Drop height | 85mm |
Spout length | 135mm |
Flow rate | 5 lpm at 3 bar |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

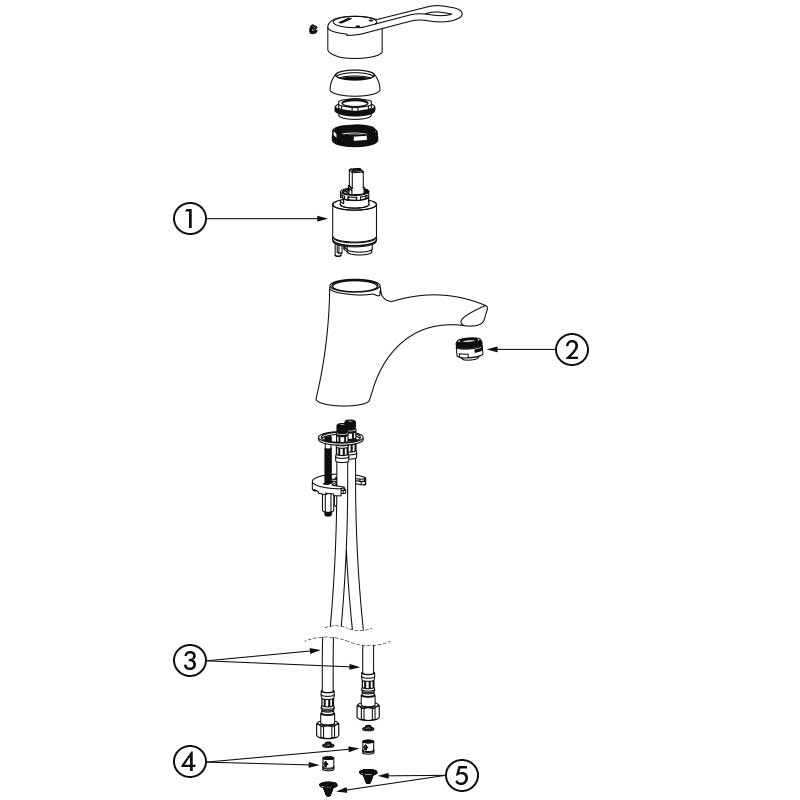

SPARE PARTS
SECURITHERM EP pressure-balancing basin mixer
Ref. 2521EP1. | N252 |
|
Ø40mm ceramic pressure balancing EP cartridge with base |
2. | 923024 |
|
Hygienic BIOSAFE outlet M24/100 |
3. | 2520SES |
|
Locking kit |
4. | FLEXPEX2 |
|
F3/8" PEX flexible hoses |
5. | 900010 |
|
Non-return valve |
6. | 60438.10P |
|
Conical filter |
VARIANTS
2521TEP | EP cartridge - solid lever - no pop-up waste | ||
---|---|---|---|
2521LEP | EP cartridge - Hygiene lever - no pop-up waste | ||
2520TEP | EP cartridge - solid lever - pop-up waste | ||
2520EP | EP cartridge - sculptured lever - pop-up waste | ||
2520LEP | EP cartridge - Hygiene lever - pop-up waste | ||
2521T | Standard cartridge - solid lever - no pop-up waste | ||
2521 | Standard cartridge - sculptured lever - no pop-up waste | ||
2521L | Standard cartridge - Hygiene lever - no pop-up waste | ||
2520T | Standard cartridge - solid lever - pop-up waste | ||
2520 | Standard cartridge - sculptured lever - pop-up waste | ||
2520L | Standard cartridge - Hygiene lever - pop-up waste |
