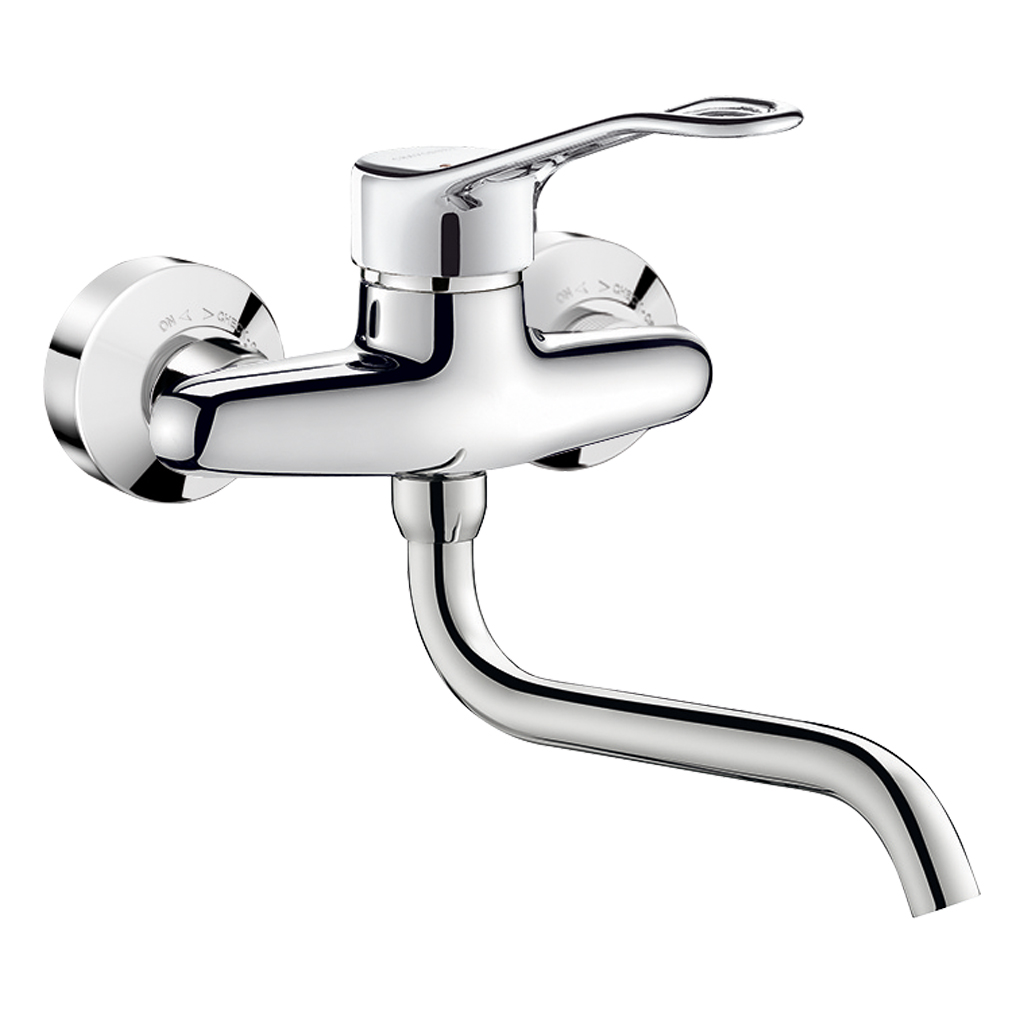

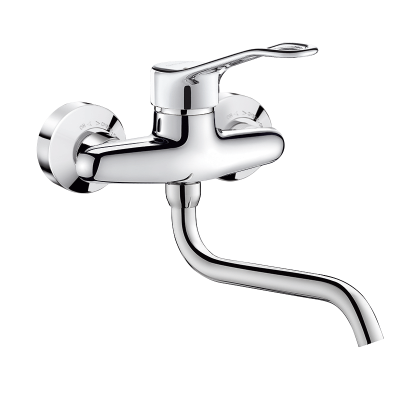

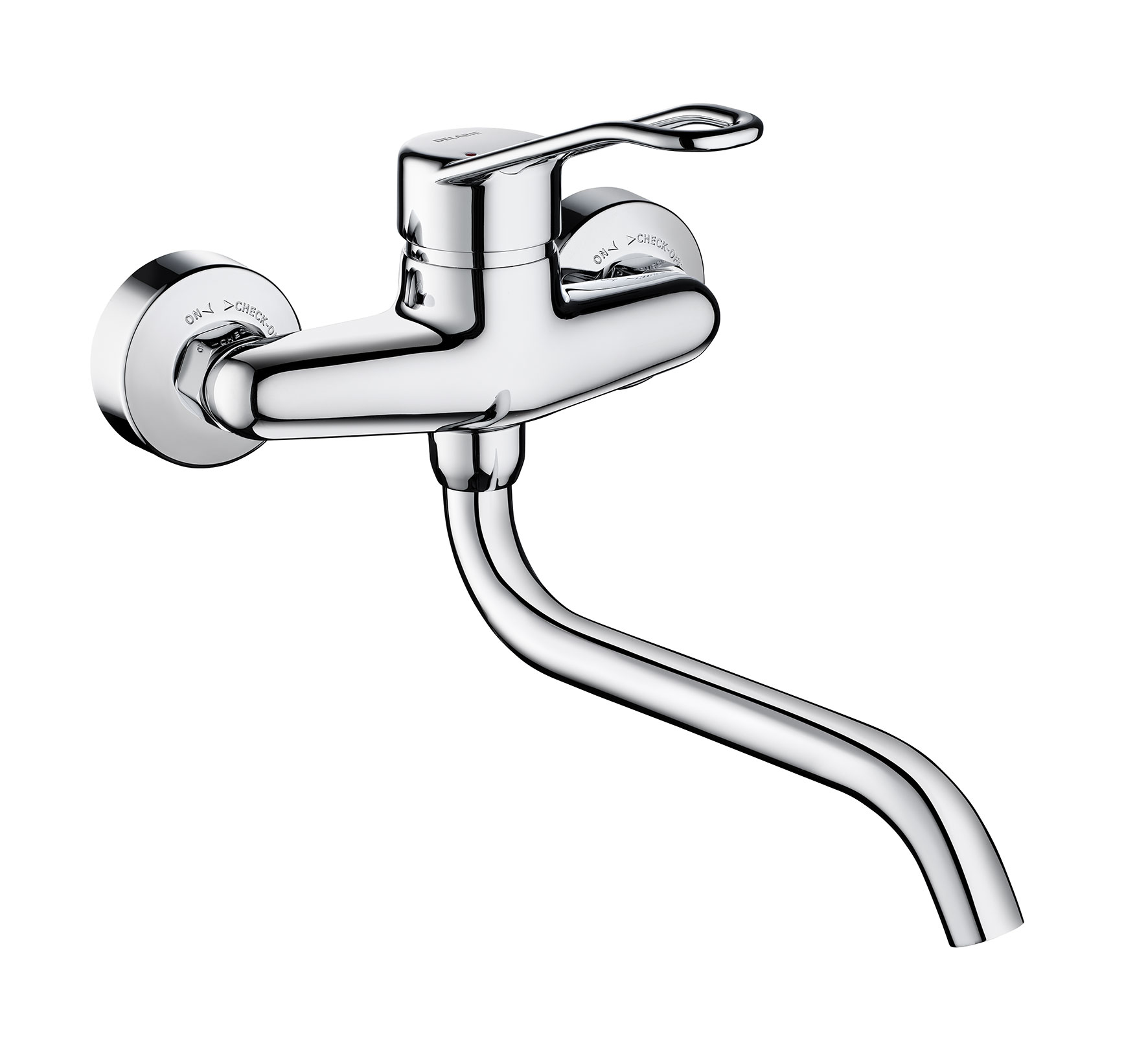

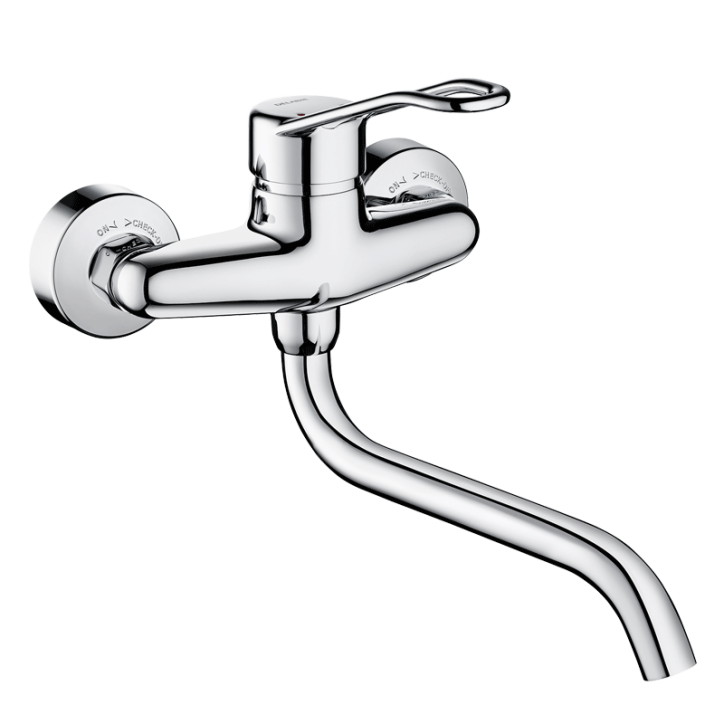

Mechanical sink mixer

Ref. 2519
Wall-mounted mixer with swivelling spout L. 200mm, sculptured lever
See variants See variants
Mechanical sink mixer

Presentation

DESCRIPTION

Mechanical sink mixer

Ref. 2519
Wall-mounted mechanical sink mixer.
Wall-mounted mixer with swivelling, tubular spout L. 200mm with smooth interior (reduces bacterial development).
Auto-draining under-spout Ø 22mm with star-shaped, brass flow straightener.
Ø 40mm standard ceramic cartridge with pre-set maximum temperature limiter.
Flow rate 26 lpm at 3 bar.
Chrome-plated brass body.
Sculptured control lever.
Mixer with 150mm centres supplied with offset STOP/CHECK wall connectors, M1/2" M3/4", suitable for hospitals.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics
Mixer with 30-year warranty.

ADVANTAGES

Corps à intérieur lisse

Hygiene: spout with smooth interior

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Confort - Ergonomie - Déclenchement souple

Ergonomic: sculptured lever is easy to grip

Hygiène - Anti-bactérien - BIOSAFE

Auto-draining spout reduces bacterial development

Characteristics

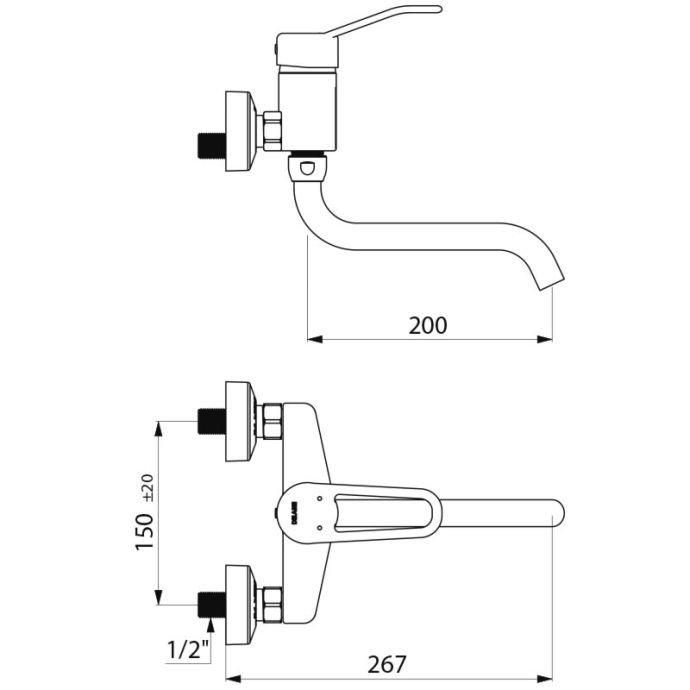

TECHNICAL CHARACTERISTICS

Mechanical sink mixer

Ref. 2519
Connector M1/2"
Spout length 200mm
Flow rate 26 lpm
Finish Chrome-plated brass
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Repairability
Mechanical sink mixer
Ref. 2519

Downloads

DOWNLOADS

Mechanical sink mixer

Ref. 2519

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

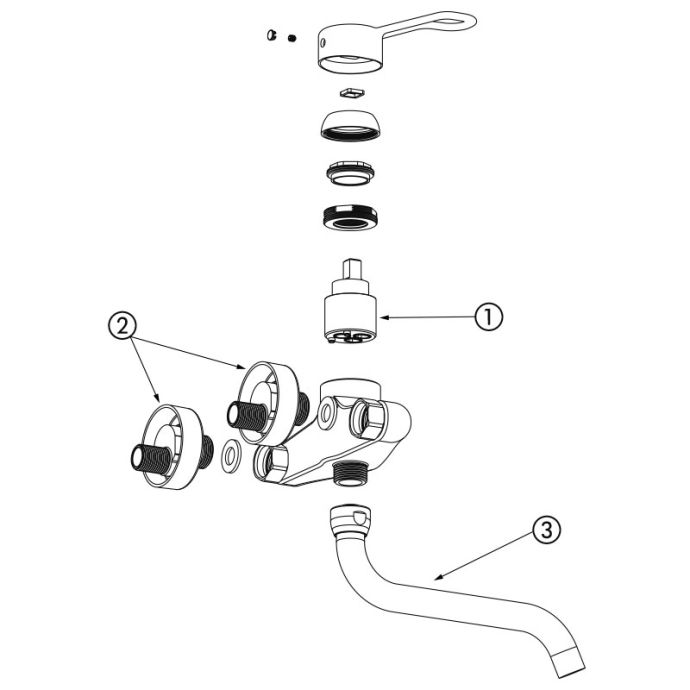

SPARE PARTS

Mechanical sink mixer

Ref. 2519
1. N148AA75
Ø40mm ceramic cartridge
2. 855755.2P
Offset connectors
3. 943200100M
Tubular swivelling spout

VARIANTS

2519L Hygiene lever - STOP/CHECK connectors
2519LS Hygiene lever - standard connectors
2519S Sculptured lever - standard connectors
