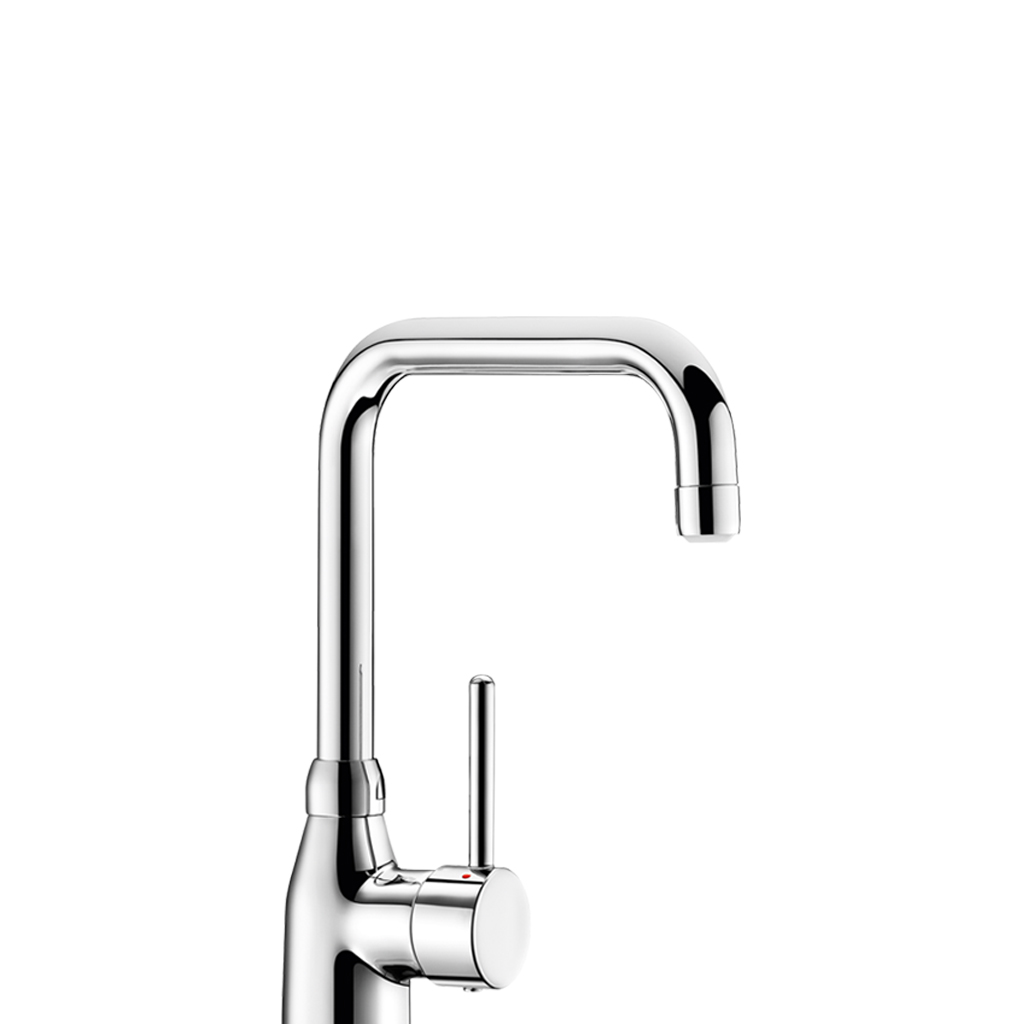

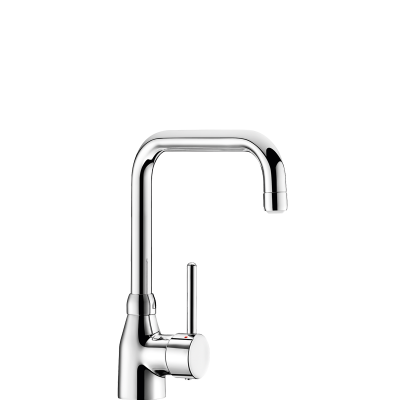

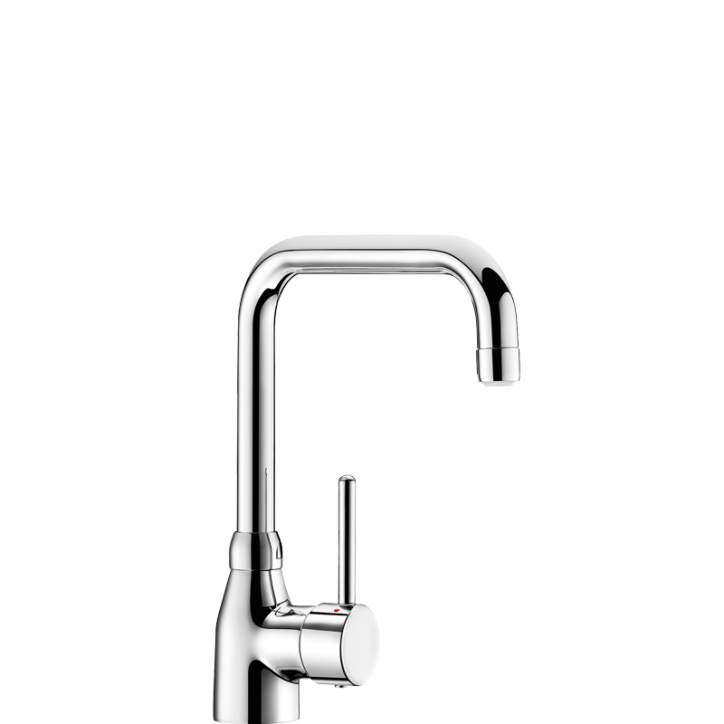

Mechanical basin mixer

Ref. 25061T1
Single hole mechanical mixer with swivelling spout H. 195mm L. 150mm

Presentation

DESCRIPTION

Mechanical basin mixer

Ref. 25061T1

Deck-mounted mechanical basin mixer.
Single hole mechanical mixer with swivelling spout H. 195mm L. 150mm fitted with a BIOSAFE hygienic outlet.
Ø 35mm classic ceramic cartridge with maximum temperature limiter supplied but not installed.
Spout with smooth interior.
Flow rate limited to 5 lpm at 3 bar.
Slimline control lever.
No pop-up waste.
F3/8" PEX flexibles.
Fixing reinforced by 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

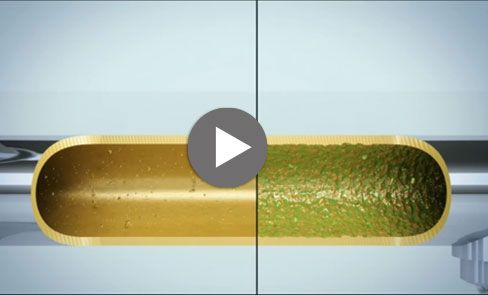

Hygiene: smooth interior reduces bacteria

Hygiene: BIOSAFE hygienic outlet with no grid

Ergonomic: slimline lever is easy to grip

Comfort: optimised height and spout projection

Characteristics

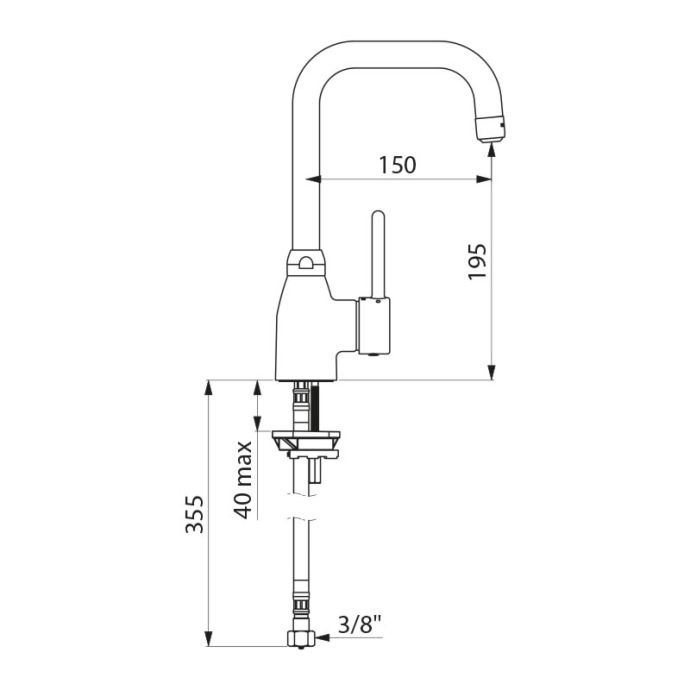

TECHNICAL CHARACTERISTICS

Mechanical basin mixer

Ref. 25061T1

Connector	F3/8"
Drop height	195mm
Spout length	150mm
Flow rate	5 lpm at 3 bar
Finish	Chrome-plated brass
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

Mitigeur de lavabo mécanique

Ref. 25061T1

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

Certificates

Spare parts

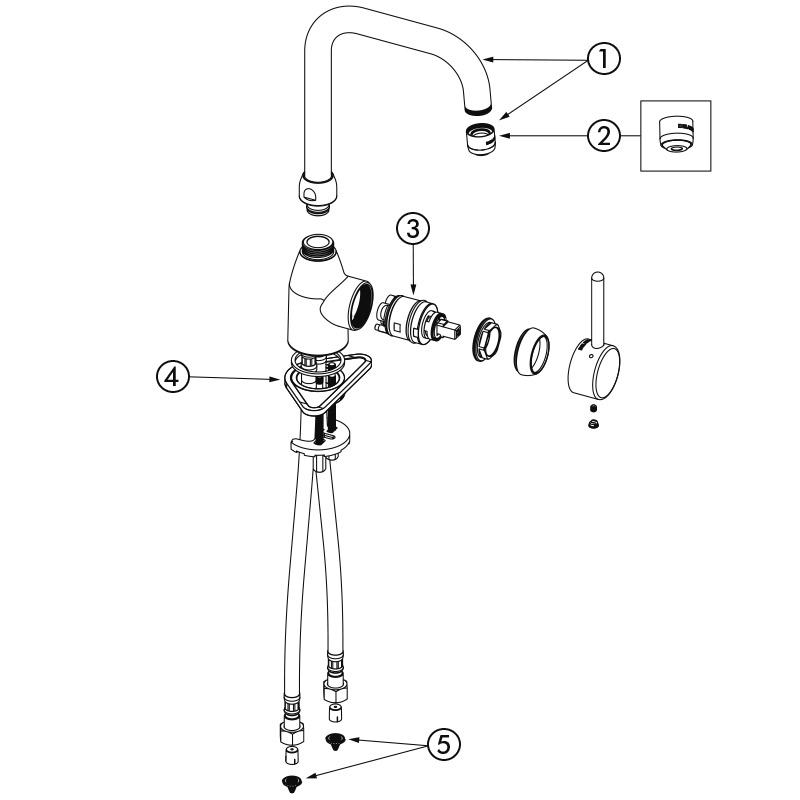

SPARE PARTS

Mechanical basin mixer

Ref. 25061T1

1.	963150923F	Tubular swivelling spout

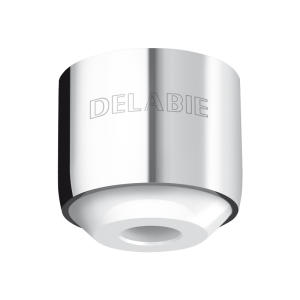

2.	923022	Hygienic BIOSAFE outlet F22/100
3.	N222	Ø35mm ceramic cartridge
4.	256P	Fixing plate
5.	2510SES	Locking kit
6.	60438.10P	Conical filter
