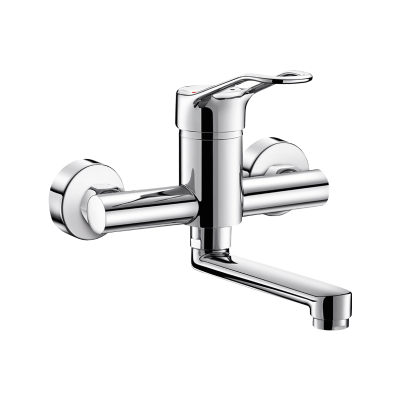

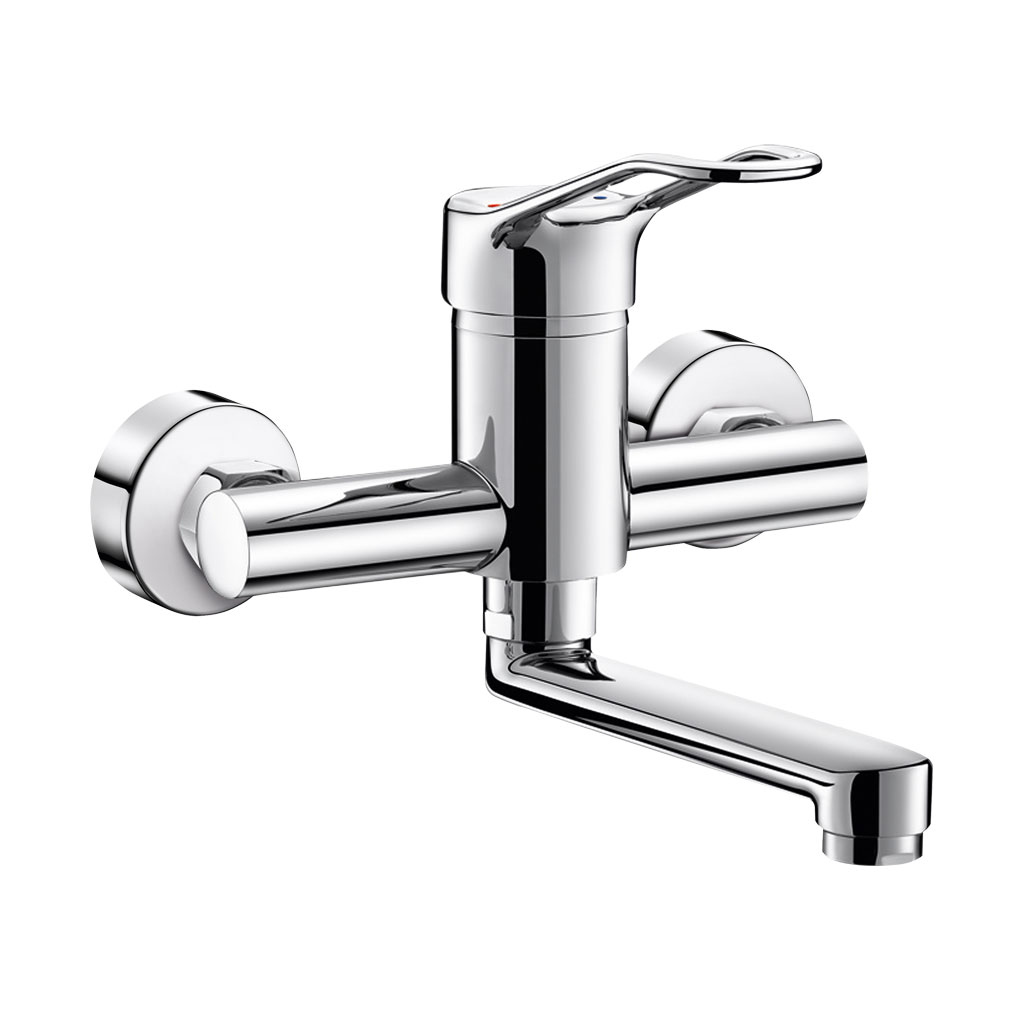

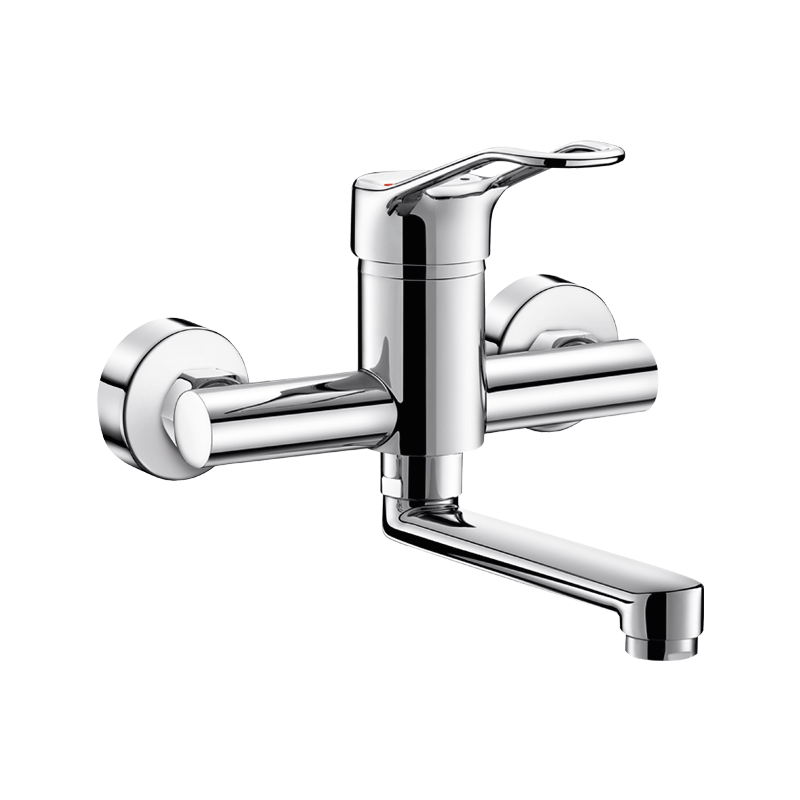

Mechanical basin mixer
Ref. 2446S

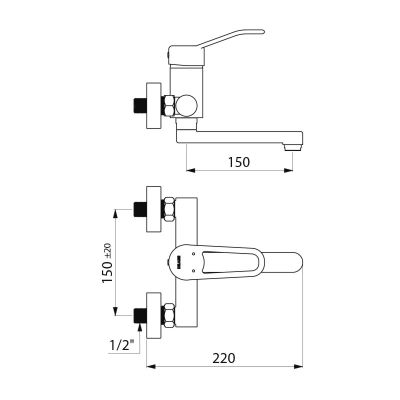

Wall-mounted mixer with swivelling spout L. 150mm, sculptured lever
Wall-mounted mixer with swivelling spout L. 150mm, sculptured lever
DESCRIPTION
Mechanical basin mixer
Ref. 2446SWall-mounted mechanical basin mixer.
Swivelling, flat under-spout L. 150mm with hygienic flow straightener suitable for fitting a BIOFIL terminal filter.
Securitouch thermal insulation prevents burns.
Ø 40mm ceramic cartridge and pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduce niches where bacteria can develop).
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Sculptured control lever.
Supplied with standard connectors, M1/2" M3/4".
30-year warranty.
Swivelling, flat under-spout L. 150mm with hygienic flow straightener suitable for fitting a BIOFIL terminal filter.
Securitouch thermal insulation prevents burns.
Ø 40mm ceramic cartridge and pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduce niches where bacteria can develop).
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Sculptured control lever.
Supplied with standard connectors, M1/2" M3/4".
30-year warranty.
ADVANTAGES
Smooth body/spout interior, reduces bacteria
Pre-set maximum temperature limiter
Securitouch thermal insulation prevents burns
Ergonomic, sculptured control lever
TECHNICAL CHARACTERISTICS
Mechanical basin mixer
Ref. 2446S| Connector | M1/2" |
| Technology | Securitouch |
| Spout length | 150mm |
| Flow rate | 5 lpm |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts

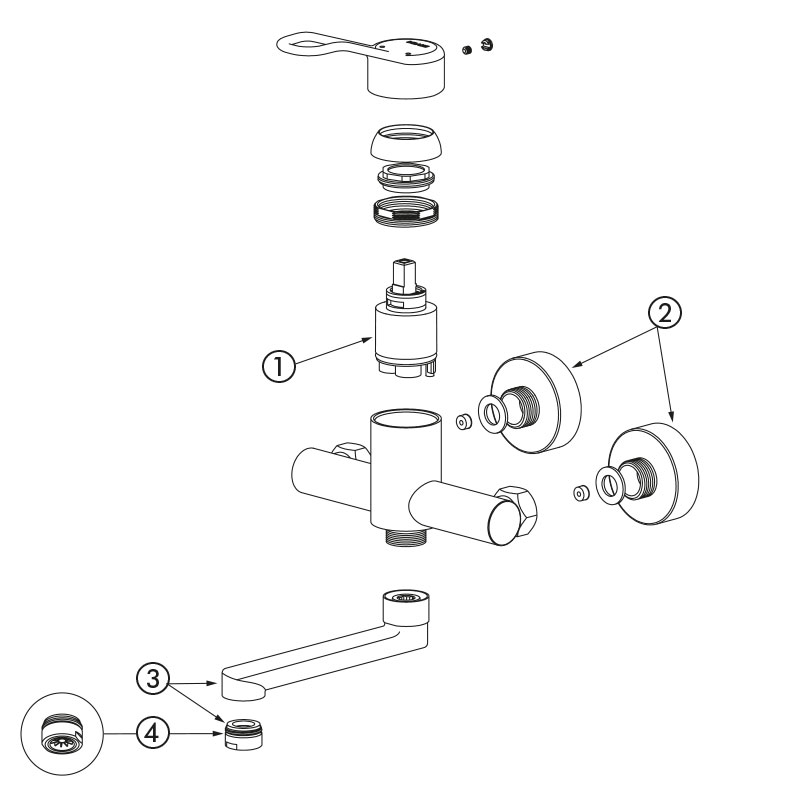

SPARE PARTS
Mechanical basin mixer
Ref. 2446S
| 1. | N009AG75 |
|
Ø40mm ceramic cartridge |
| 2. | 856794.2P |
|
Offset union |
| 3. | 900005 |
|
Flow limiter |
| 4. | 943150 |
|
Flat swivelling under spout |
| 5. | 921024.2P |
|
Star-shaped flow straightener |
VARIANTS
| 2445 | Std cartridge - Spout L.200mm - Sculpt lever, offset STOP/CHECK unions | ||
|---|---|---|---|
| 2445EP | EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions | ||
| 2445EPS | EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions | ||
| 2445L | Standard cartridge - Spout L. 200mm - Hygiene lever - offset STOP/CHECK unions | ||
| 2445LEP | EP cartridge - Spout L. 200mm - Hygiene lever - Offset STOP/CHECK unions | ||
| 2445LEPS | EP cartridge - swivel spout L. 200mm - Hygiene lever, standard unions | ||
| 2445LS | Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions | ||
| 2445S | Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions | ||
| 2446 | Std cartridge - swivel spout L.150mm - sculpt lever, STOP/CHECK unions | ||
| 2446EP | EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions | ||
| 2446EPS | EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions | ||
| 2446L | Std cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions | ||
| 2446LEP | EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions | ||
| 2446LEPS | EP cartridge - swivel spout L. 150mm - Hygiene lever, standard unions | ||
| 2446LS | Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions |
Associated products
Offset union
11mm, standard
Ref. 856794.2P
HYGIÉNA waste
Pre-scored waste with concave grid
Ref. 611

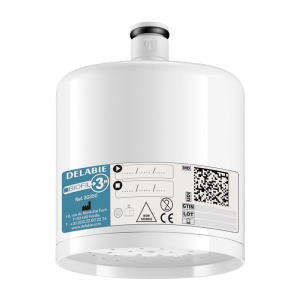

BIOFIL 3-month tap and wall shower filter
