SECURITHERM EP pressure-balancing basin mixer

Ref. 2446LEPS
Wall-mounted mixer with swivelling spout L. 150, Hygiene lever L. 150
See variants See variants
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 2446LEPS
Wall-mounted SECURITHERM Pressure Balancing (EP) basin mixer.
Anti-scalding safety: HW flow is reduced if CW supply fails (and vice versa).
Securitouch thermal insulation prevents burns.
Flat, swivelling under spout L. 150mm with hygienic flow straightener suitable for fitting a BIOFIL terminal filter.
Ø 40mm pressure-balancing ceramic cartridge and pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm.
Supplied with standard connectors M1/2" M3/4".
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW fails

Sécurité anti-brûlure

Securitouch thermal insulation prevents burns

Confort - Ergonomie - Déclenchement souple

EP: prevention of pressure variations

Corps à intérieur lisse

Body/spout with smooth interior reduces bacteria

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2446LEPS
Connector M1/2"
Technology SECURITHERM EP, Securitouch
Spout length 150mm
Flow rate 5 lpm
Temperature limiter 41°C
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo WRAS Logo DoP Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2446LEPS

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

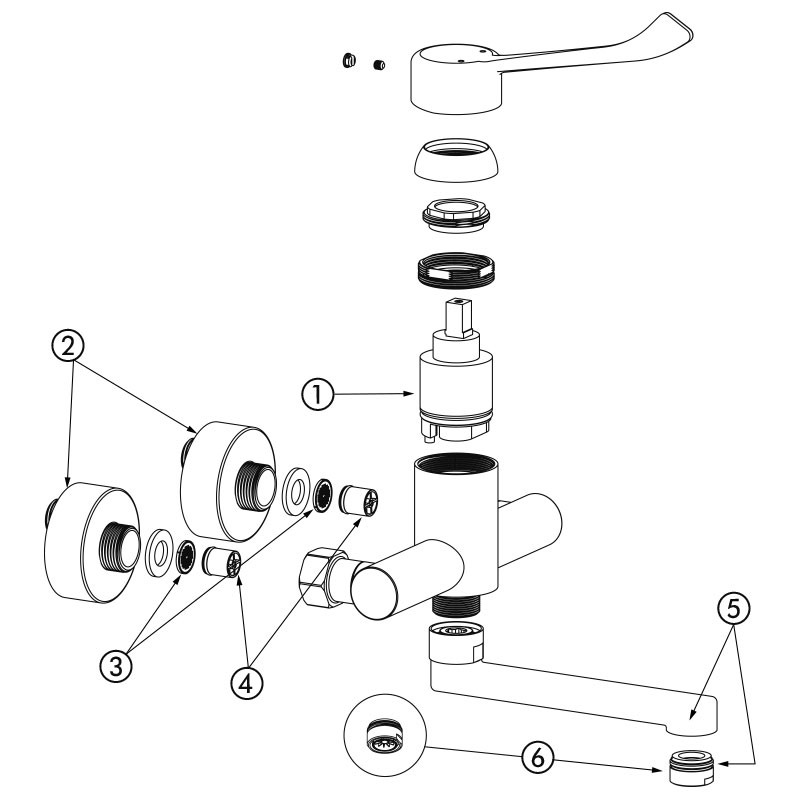

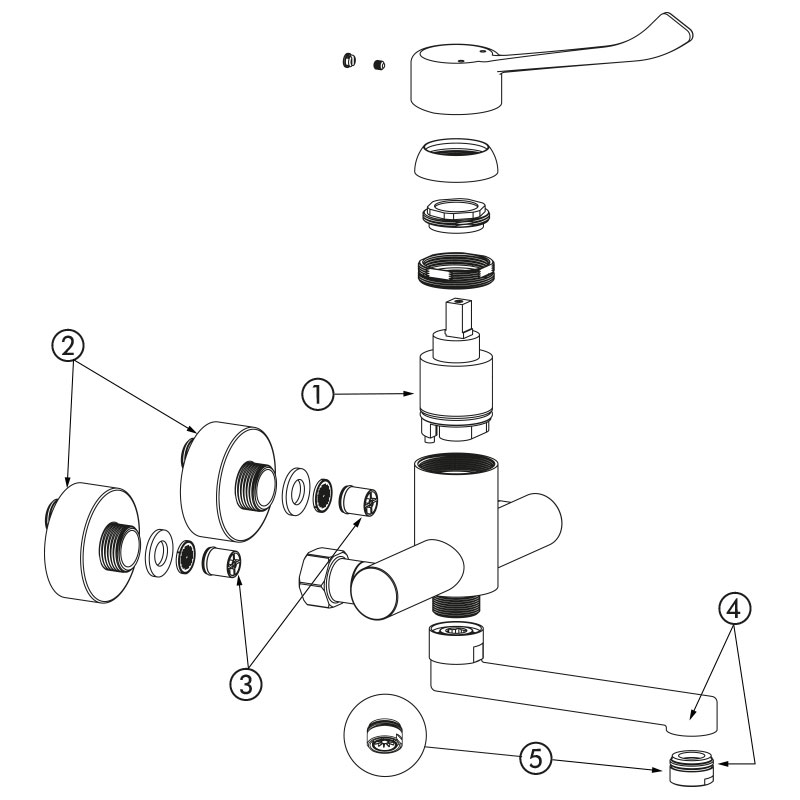

SPARE PARTS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2446LEPS
1. N252
Ø40mm ceramic pressure balancing EP cartridge with base
2. 856794.2P
Offset union
3. 60234.10P
Flat filter
4. 900015
Non-return valve
5. 943150
Flat swivelling under spout
6. 921024.2P
Star-shaped flow straightener

VARIANTS

2446EP EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions
2446EPS EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446LEP EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2445EP EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions
2445EPS EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions
2445LEP EP cartridge - Spout L. 200mm - Hygiene lever - Offset STOP/CHECK unions
2445LEPS EP cartridge - swivel spout L. 200mm - Hygiene lever, standard unions
2446 Std cartridge - swivel spout L.150mm - sculpt lever, STOP/CHECK unions
2446S Std cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446L Std cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2446LS Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions
2445 Std cartridge - Spout L.200mm - Sculpt lever, offset STOP/CHECK unions
2445S Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions
2445L Standard cartridge - Spout L. 200mm - Hygiene lever - offset STOP/CHECK unions
2445LS Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions
