Mechanical basin mixer

Ref. 2446
Wall-mounted mixer with swivelling spout L. 150mm, sculptured lever
See variants See variants
Mechanical basin mixer

Presentation

DESCRIPTION

Mechanical basin mixer

Ref. 2446

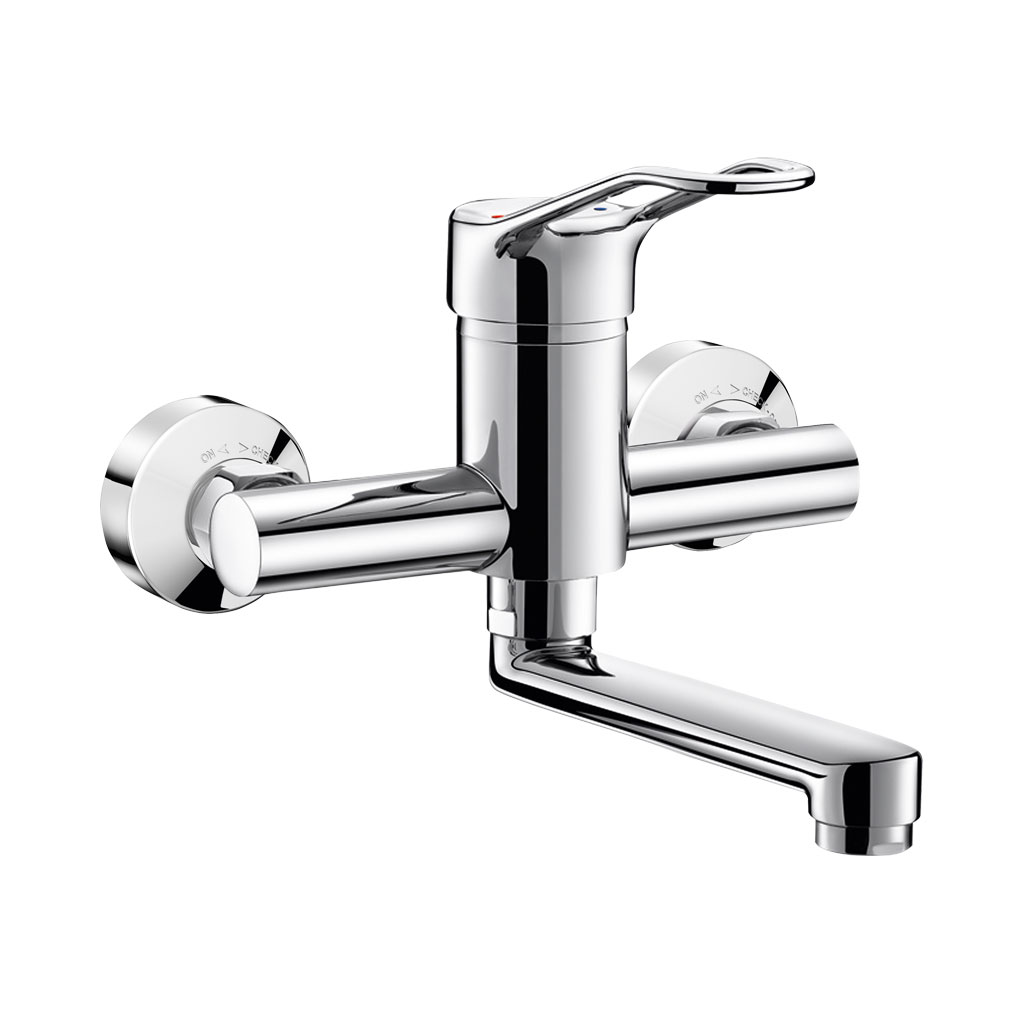

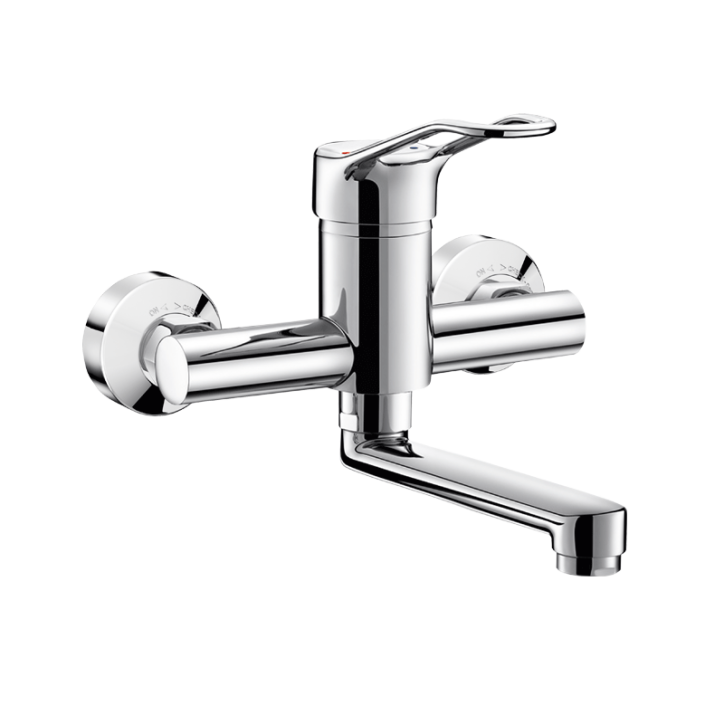

Wall-mounted mechanical basin mixer.
Flat, swivelling under spout L. 150mm with hygienic flow straightener suitable for fitting a BIOFIL terminal filter.
Securitouch thermal insulation prevents burns.
Body and spout with smooth interiors and low water volume (reduces bacterial development).
Ø 40mm ceramic cartridge with pre-set maximum temperature limiter .
Body and spout with smooth interiors and low water volume (reduces bacterial development).Flow rate reguated at 5 lpm.
Chrome-plated brass body.
Sculptured control lever.
Supplied with STOP/CHECK connectors M1/2" M3/4" ideal for hospitals.
30-year warranty.

ADVANTAGES

Corps à intérieur lisse

Smooth body/spout interior, reduces bacteria

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Sécurité anti-brûlure

Securitouch thermal insulation prevents burns

Confort - Ergonomie - Déclenchement souple

Ergonomic, sculptured control lever

Characteristics

TECHNICAL CHARACTERISTICS

Mechanical basin mixer

Ref. 2446
Connector M1/2"
Technology Securitouch

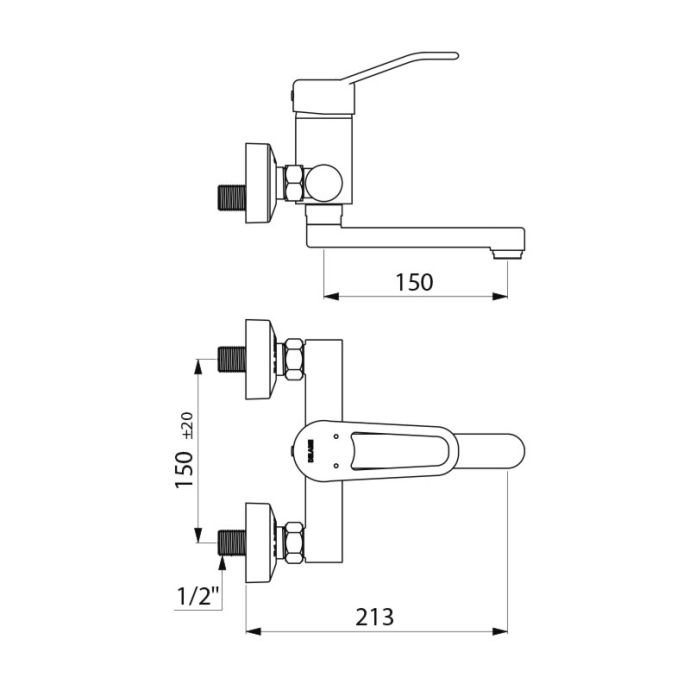

Spout length 150mm
Flow rate 5 lpm
Finish Chrome-plated brass
Certificates ACS Logo WRAS Logo DIN-DVGW Logo PZH Logo DoP
Warranty 30-Year

Downloads

DOWNLOADS

Mechanical basin mixer

Ref. 2446

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

2446EP EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions
2446EPS EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446LEP EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2446LEPS EP cartridge - swivel spout L. 150mm - Hygiene lever, standard unions
2445EP EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions
2445EPS EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions
2445LEP EP cartridge - Spout L. 200mm - Hygiene lever - Offset STOP/CHECK unions
2445LEPS EP cartridge - swivel spout L. 200mm - Hygiene lever, standard unions
2446S Std cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446L Std cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2446LS Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions
2445 Std cartridge - Spout L.200mm - Sculpt lever, offset STOP/CHECK unions
2445S Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions
2445L Standard cartridge - Spout L. 200mm - Hygiene lever - offset STOP/CHECK unions
2445LS Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions
