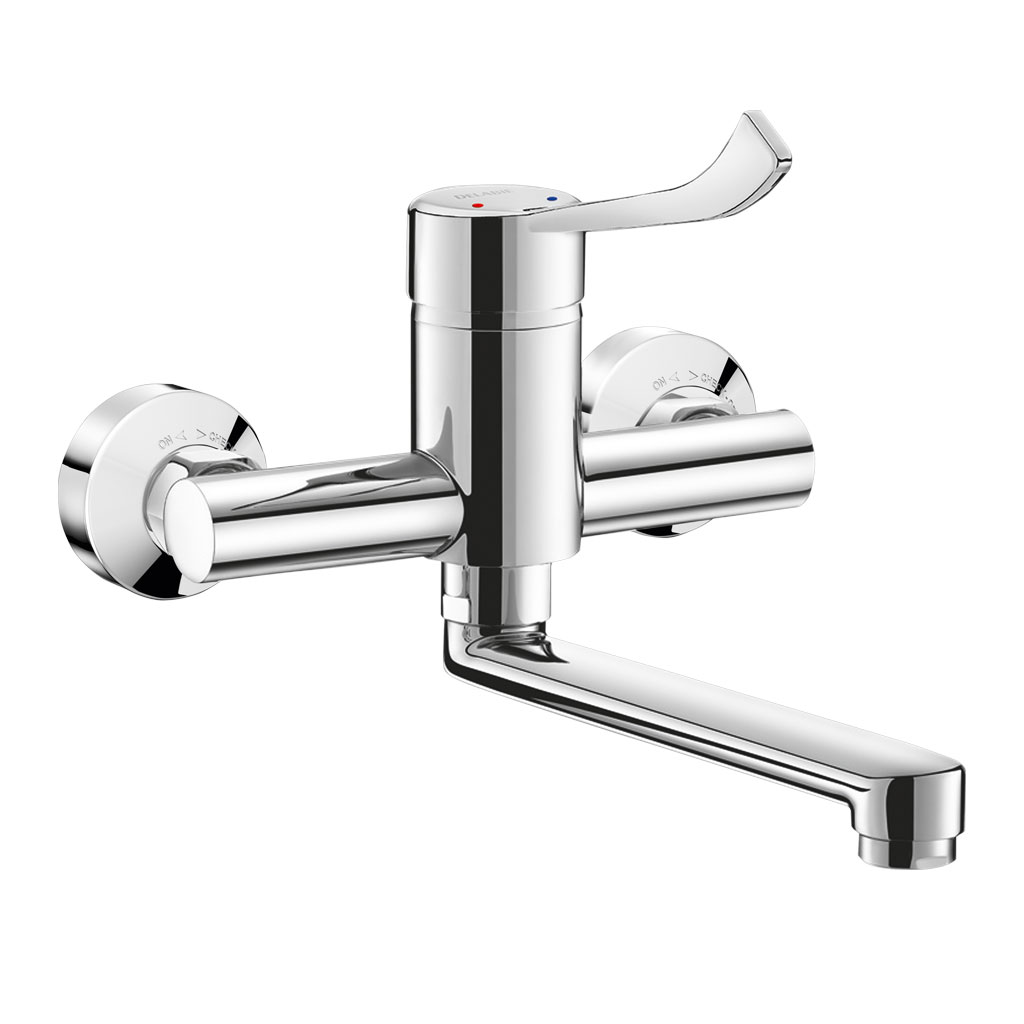

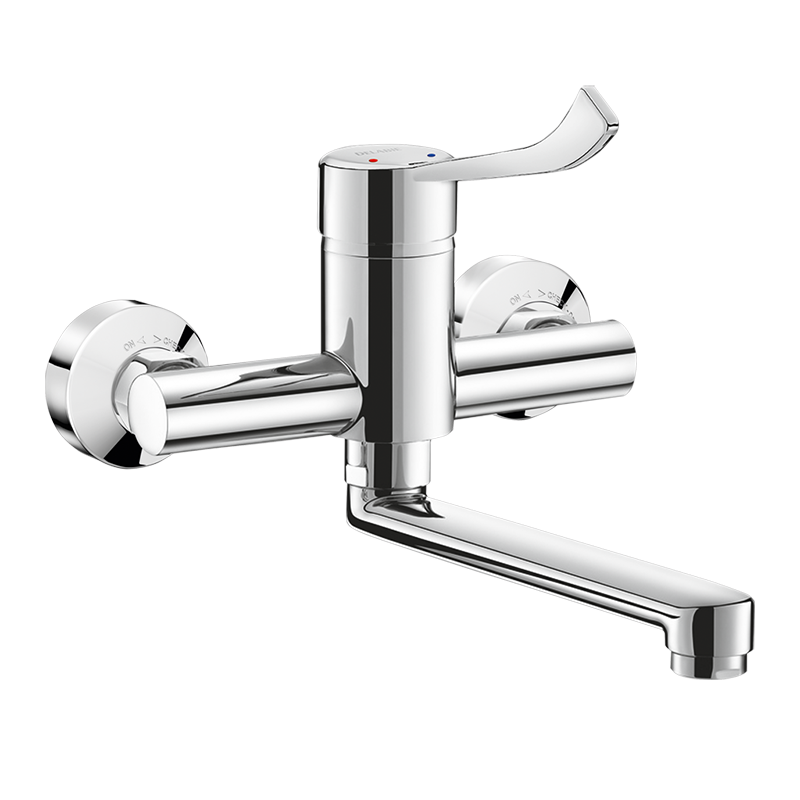

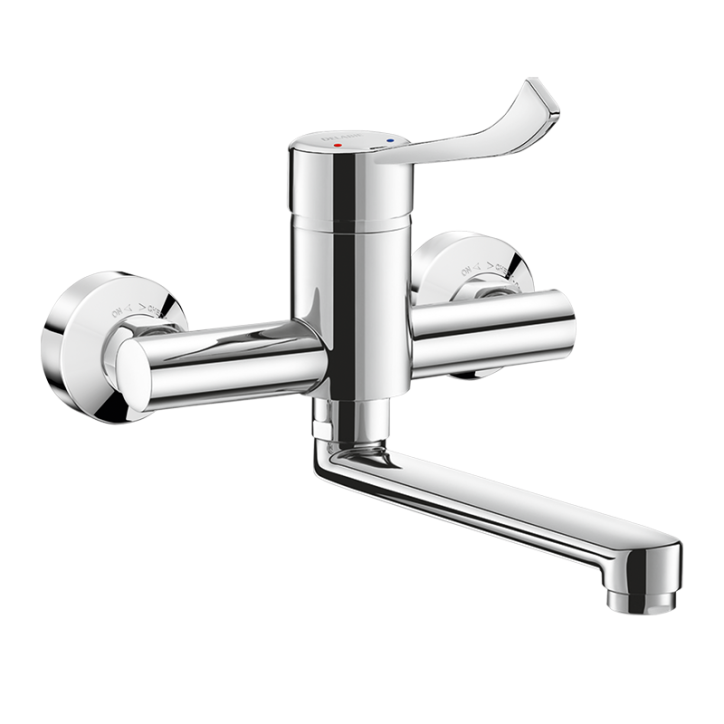

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEP
Wall-mounted mixer with swivel spout L .200mm, Hygiene lever L. 150mm
See variants See variants
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEP
Wall-mounted SECURITHERM pressure-balancing basin mixer.
Wall-mounted mechanical mixer with flat swivelling under spout L. 200mm with hygienic flow straightener,
Spout suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow rate is reduced if CW fails (and vice versa).
Stable temperature regardless of flow rate and pressure variations in the system.
Mixer with Securitouch thermal insulation prevents burns.
Ø 40mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm requires no manual contact.
Mixer with 150mm centres supplied with offset STOP/CHECK wall connectors M1/2" M3/4" ideal for hospitals.
Filters and non-return valves.
Recommended installation height: 110 - 200mm above the basin surface.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

EP: HW flow reduced if CW fails

Sécurité anti-brûlure

Securitouch thermal insulation prevents burns

Confort - Ergonomie - Déclenchement souple

EP: reduces pressure variations

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEP
Connector M1/2"
Technology SECURITHERM EP mixer, Securitouch

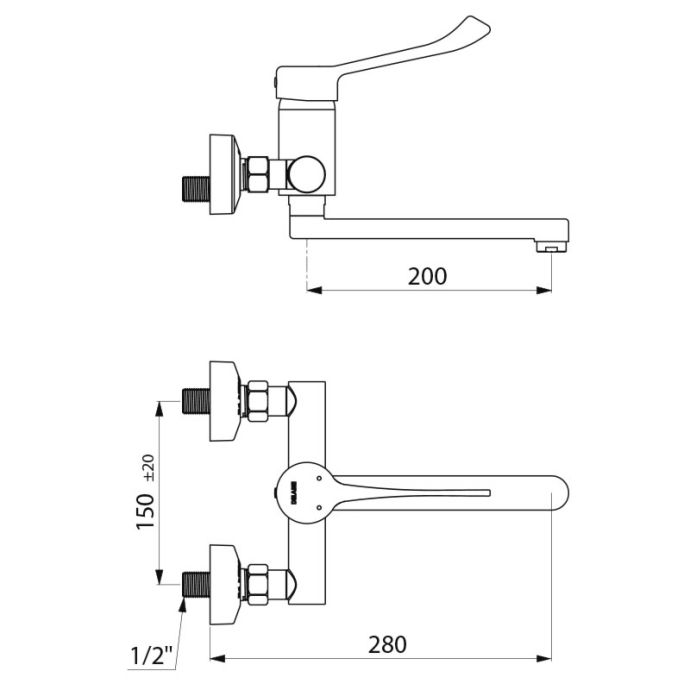

Spout length 200mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated
Certificates ACS Logo Belgaqua Logo WRAS Logo PZH Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

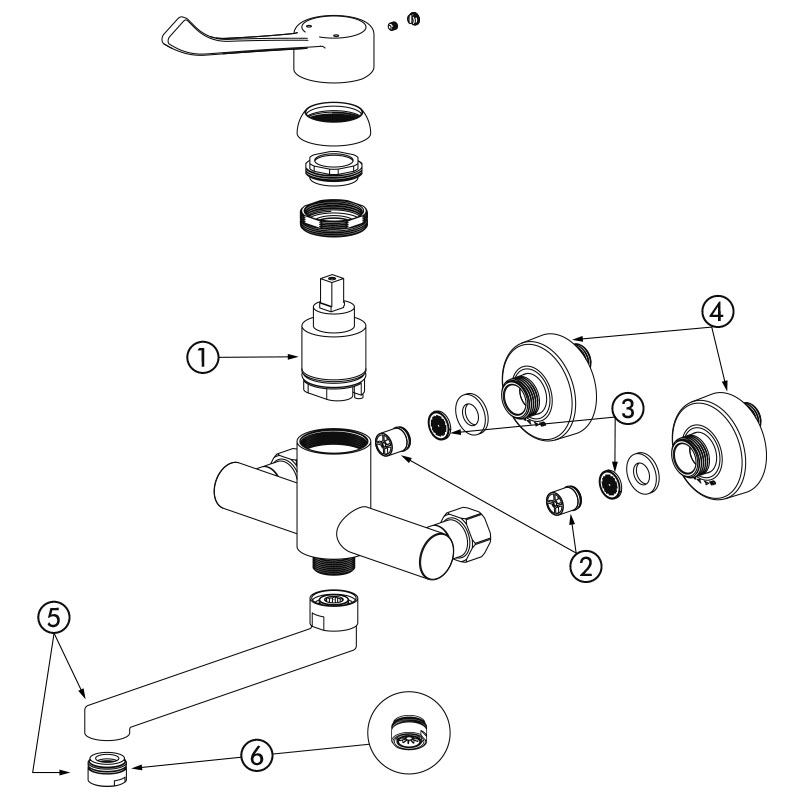

SPARE PARTS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEP
1. N252
Ø40mm ceramic pressure balancing EP cartridge with base
2. 855755.2P
Offset connectors
3. 60234.10P
Flat filter
4. 900015
Non-return valve
5. 943200
Flat swivelling spout
6. 921024.2P
Star-shaped flow straightener

VARIANTS

2446EP EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions
2446EPS EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446LEP EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2446LEPS EP cartridge - swivel spout L. 150mm - Hygiene lever, standard unions
2445EP EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions
2445EPS EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions
2445LEPS EP cartridge - swivel spout L. 200mm - Hygiene lever, standard unions
2446 Std cartridge - swivel spout L.150mm - sculpt lever, STOP/CHECK unions
2446S Std cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446L Std cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2446LS Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions
2445 Std cartridge - Spout L.200mm - Sculpt lever, offset STOP/CHECK unions
2445S Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions
2445L Standard cartridge - Spout L. 200mm - Hygiene lever - offset STOP/CHECK unions
2445LS Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions

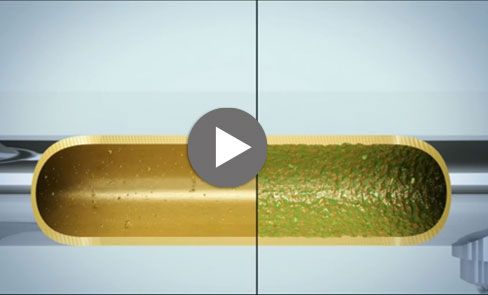

Infection control: mixer body and spout with smooth interiors
Infection control: mixer body and spout with smooth interiors

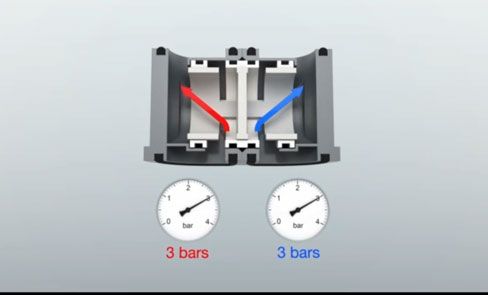

Pressure-balancing mixer: anti-scalding safety and stable temperature
Pressure-balancing mixer: anti-scalding safety and stable temperature
